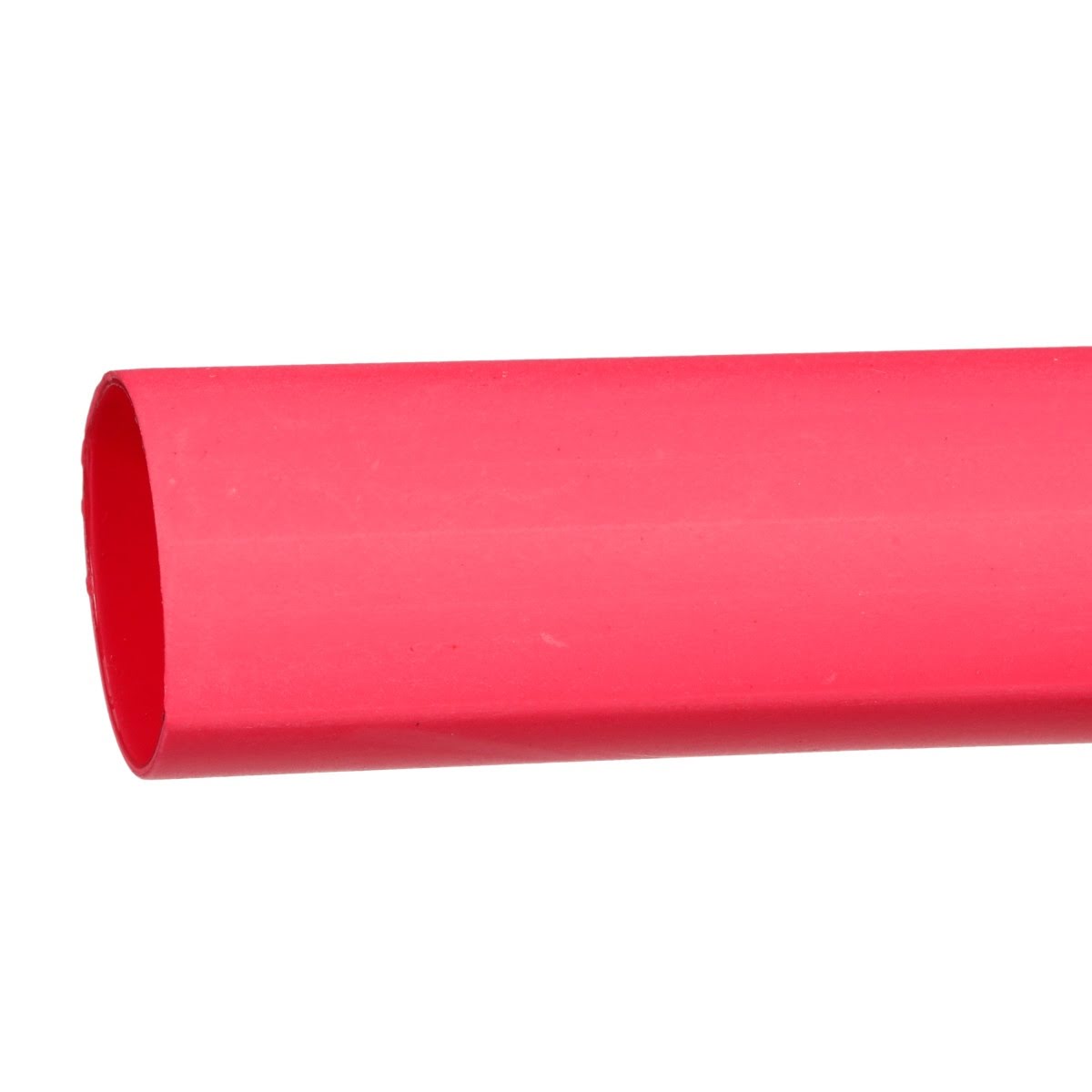

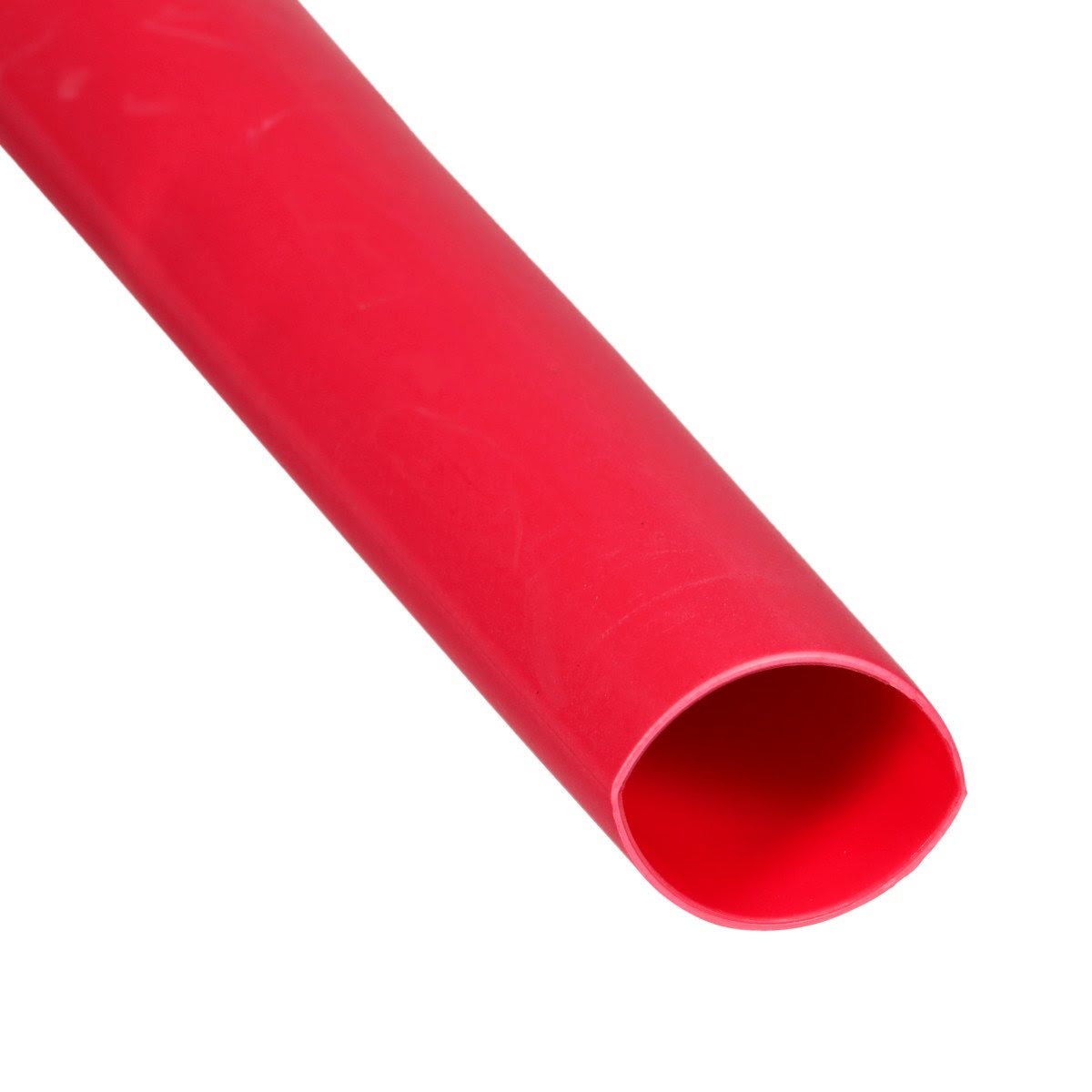

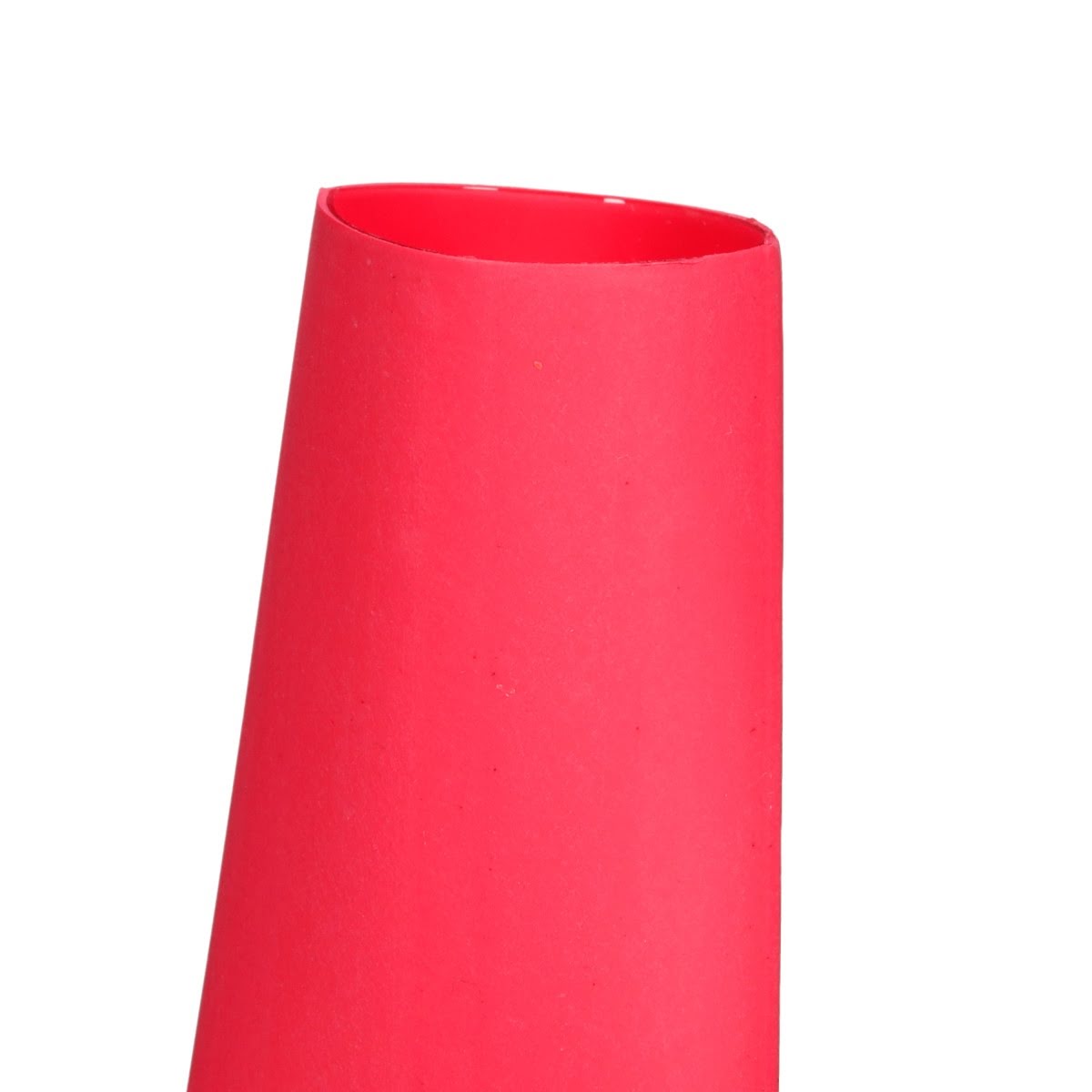

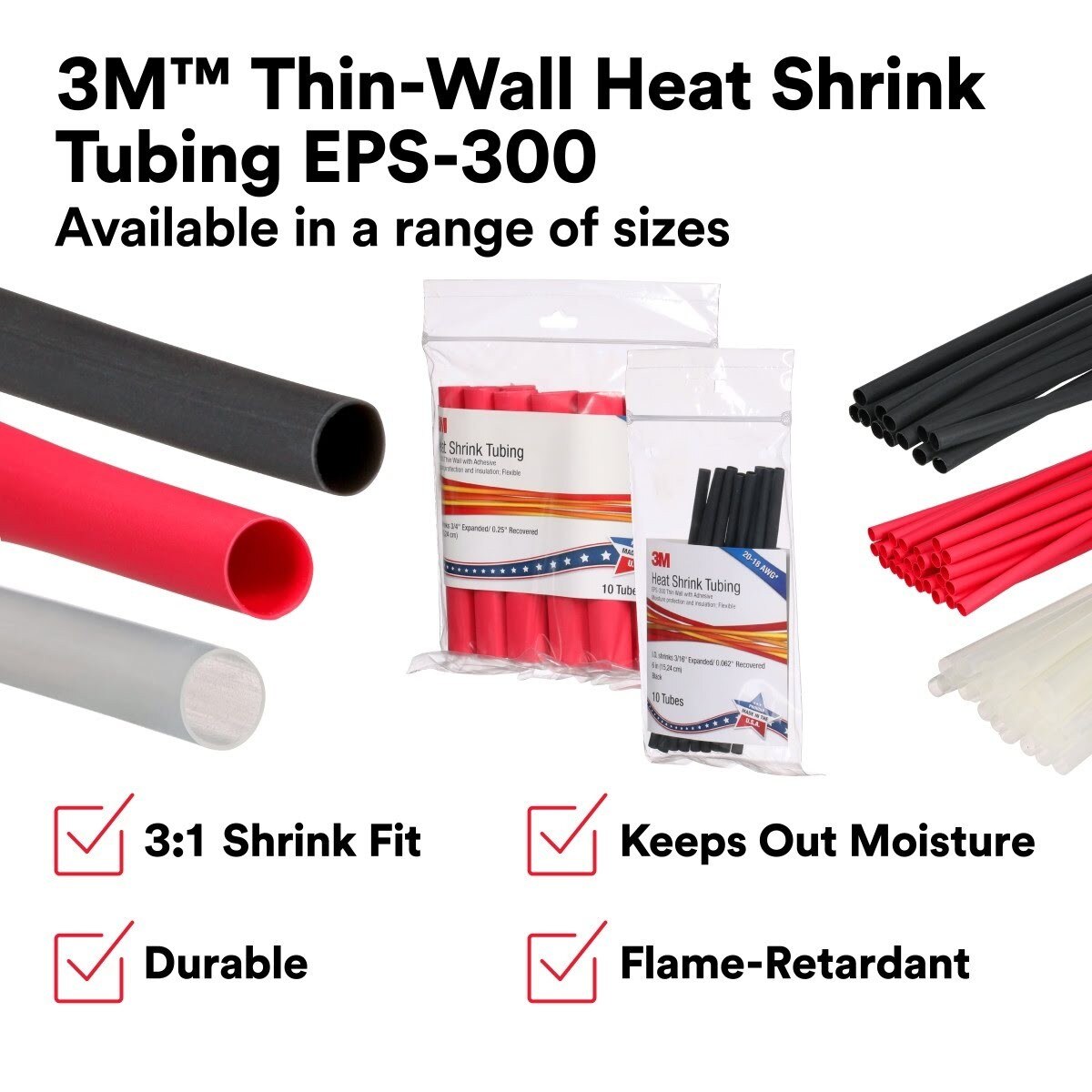

3M E30.750RD48"L Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined Polyolefin Dual Wall, Red, 3/4 in x 48 in (7100069408) (45 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M E30.750RD48"L Thin-Wall Heat Shrink Tubing EPS-300, Adhesiv...
Description
Description
3M 7100069408 Description

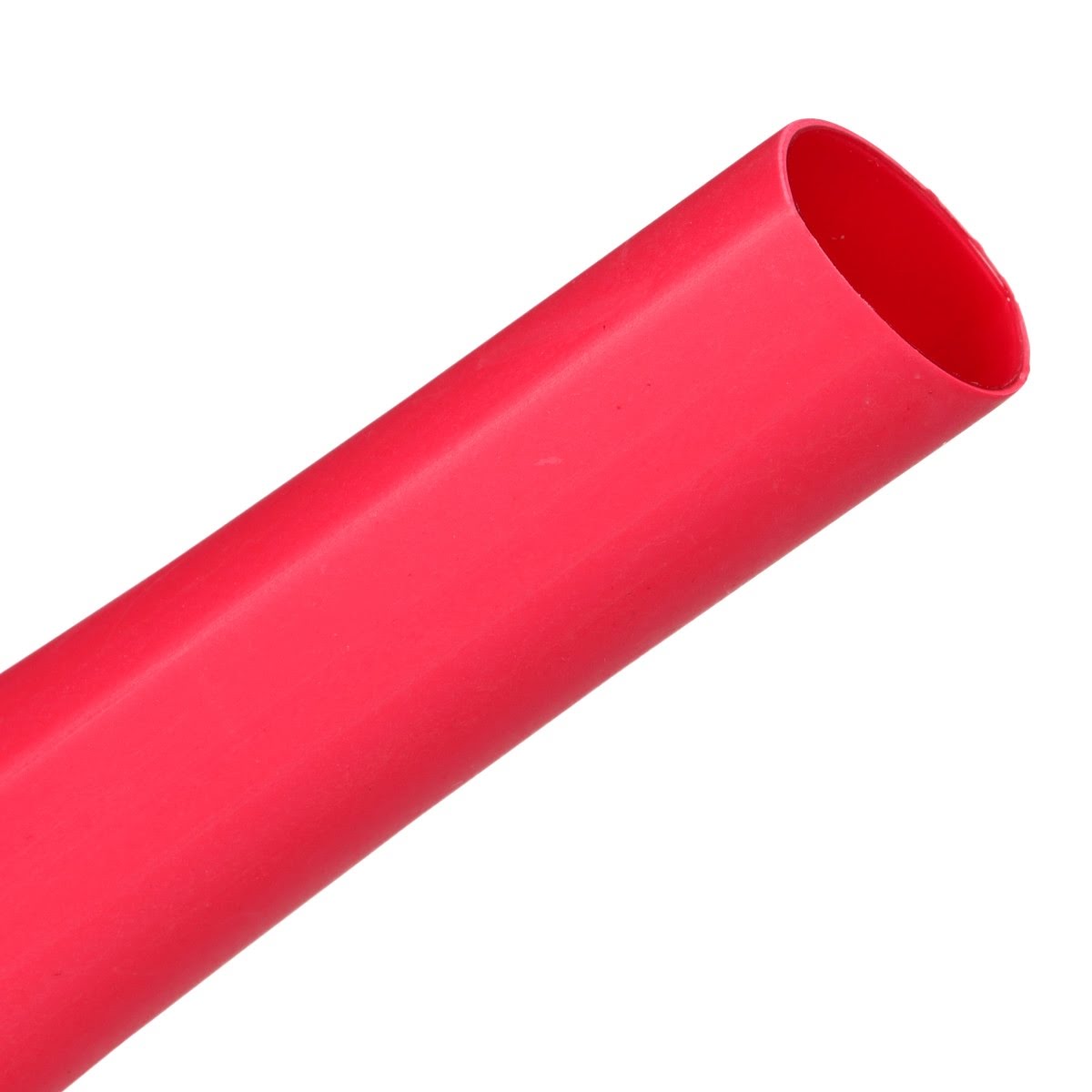

3M Heat Shrink Tubing EPS-300 is a thin-wall, dual wall, adhesive-lined polyolefin tubing designed to provide insulation and a moisture-resistant seal for wire splices, bundles, and harness breakouts. It features a 3 to 1 shrink ratio, is flame retardant, and is rated for 600V applications, making it suitable for automotive and marine use.
3M 7100069408 Includes
- (45) - 3M 7100069408 Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4 in x 48 in, Red (E30.750RD48 in L)
3M 7100069408 Features

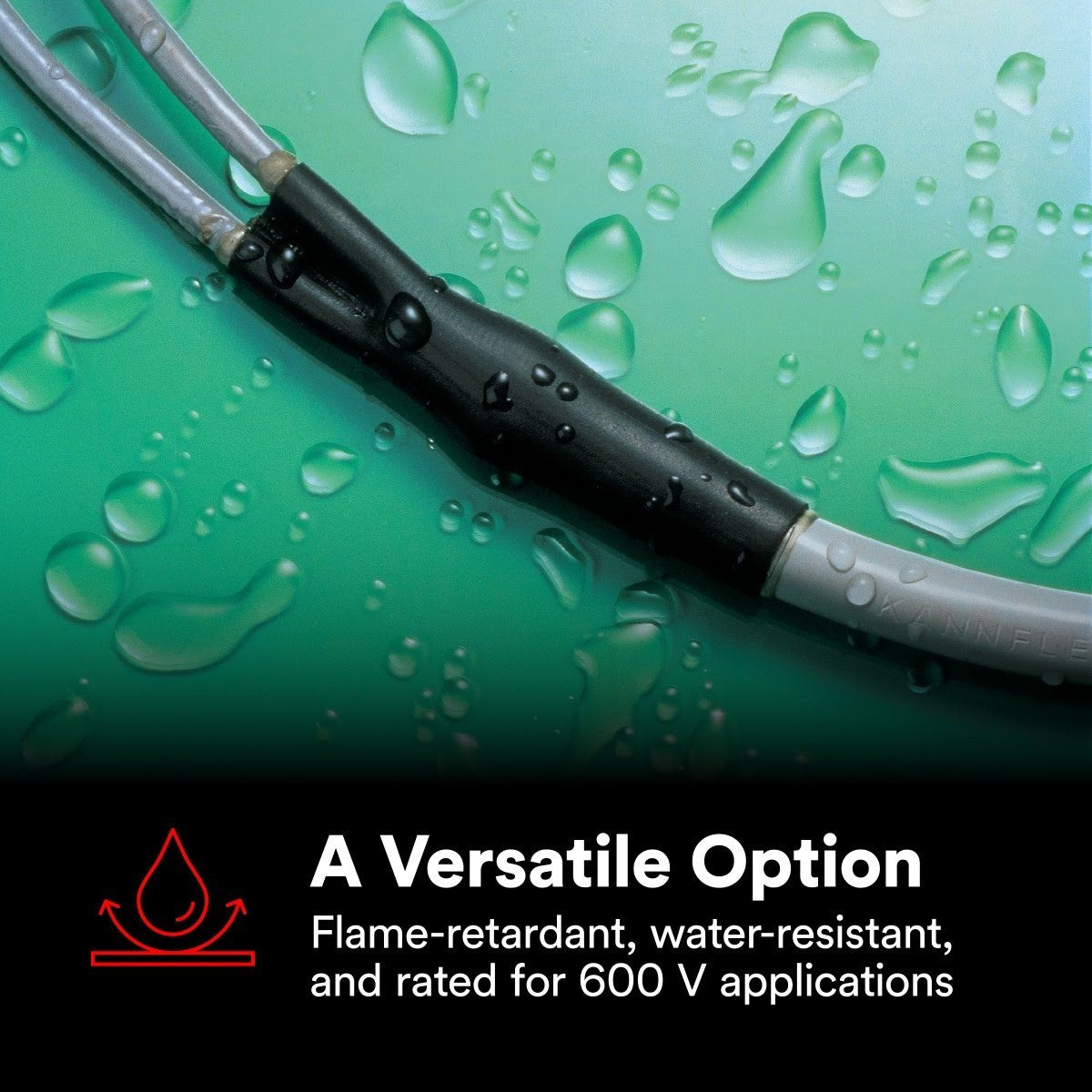

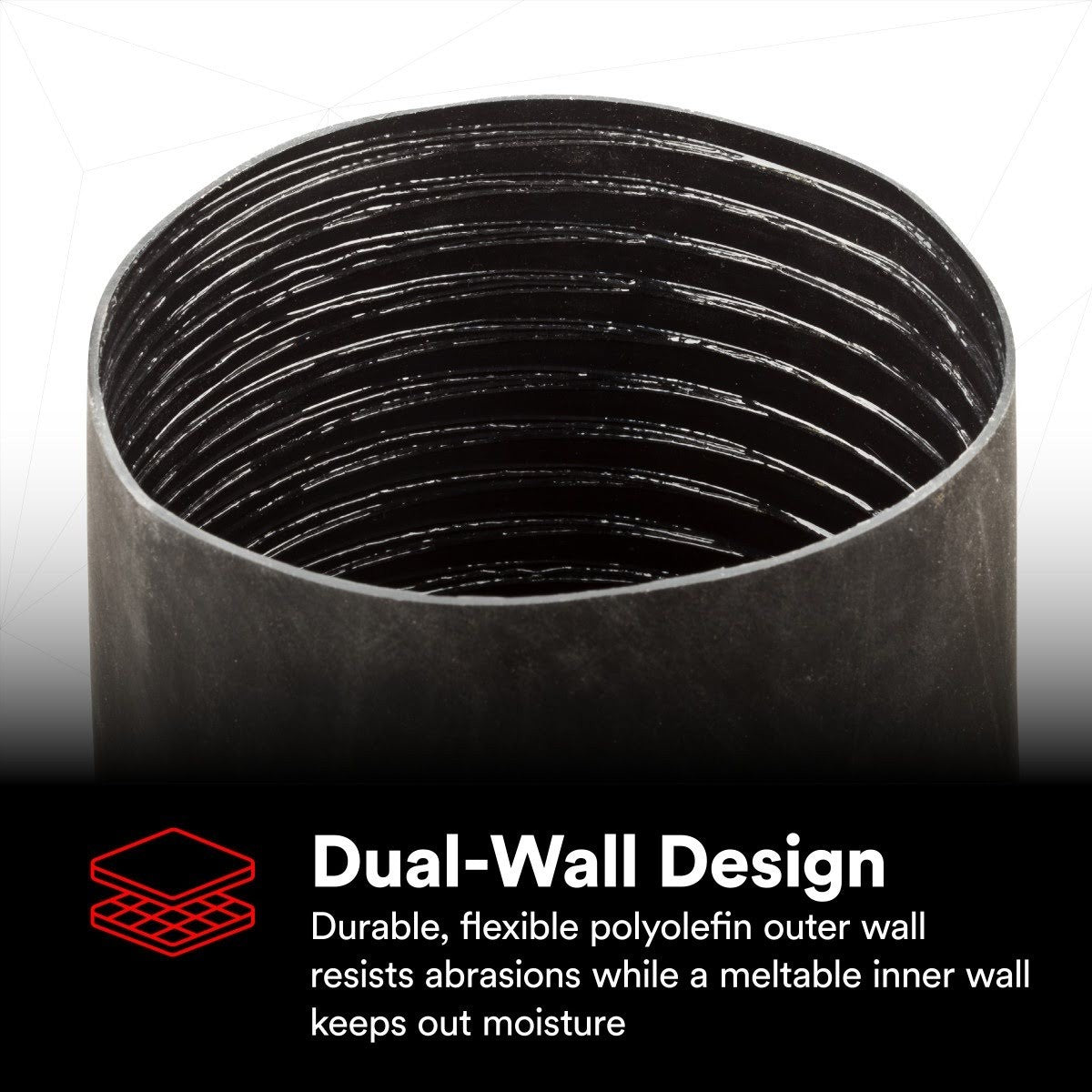

- Dual wall adhesive-lined construction helps seal out moisture

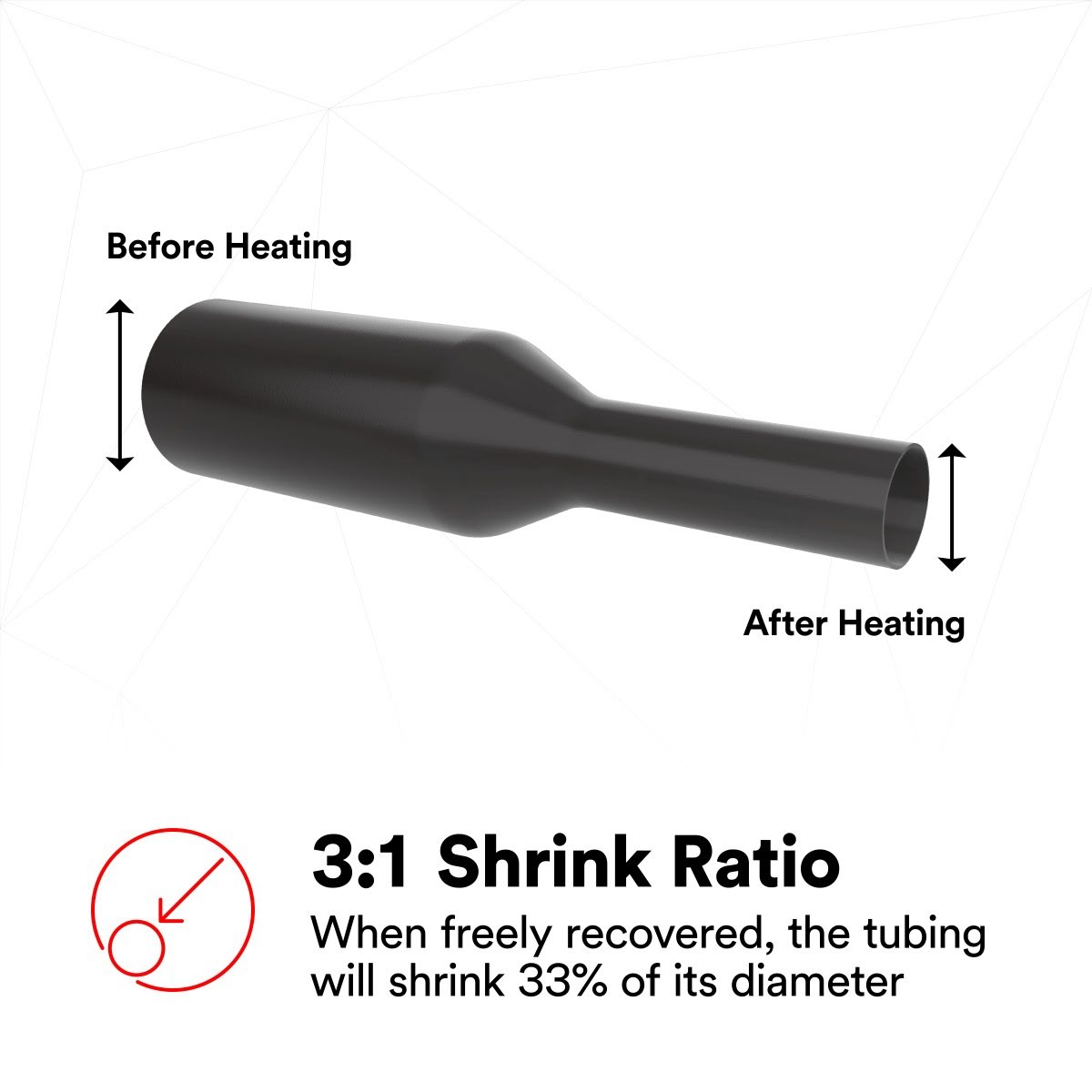

- 3:1 shrink ratio for a secure fit over connectors and splices
- Flame retardant tubing rated for 600V applications
- Flexible polyolefin material provides insulation and strain relief

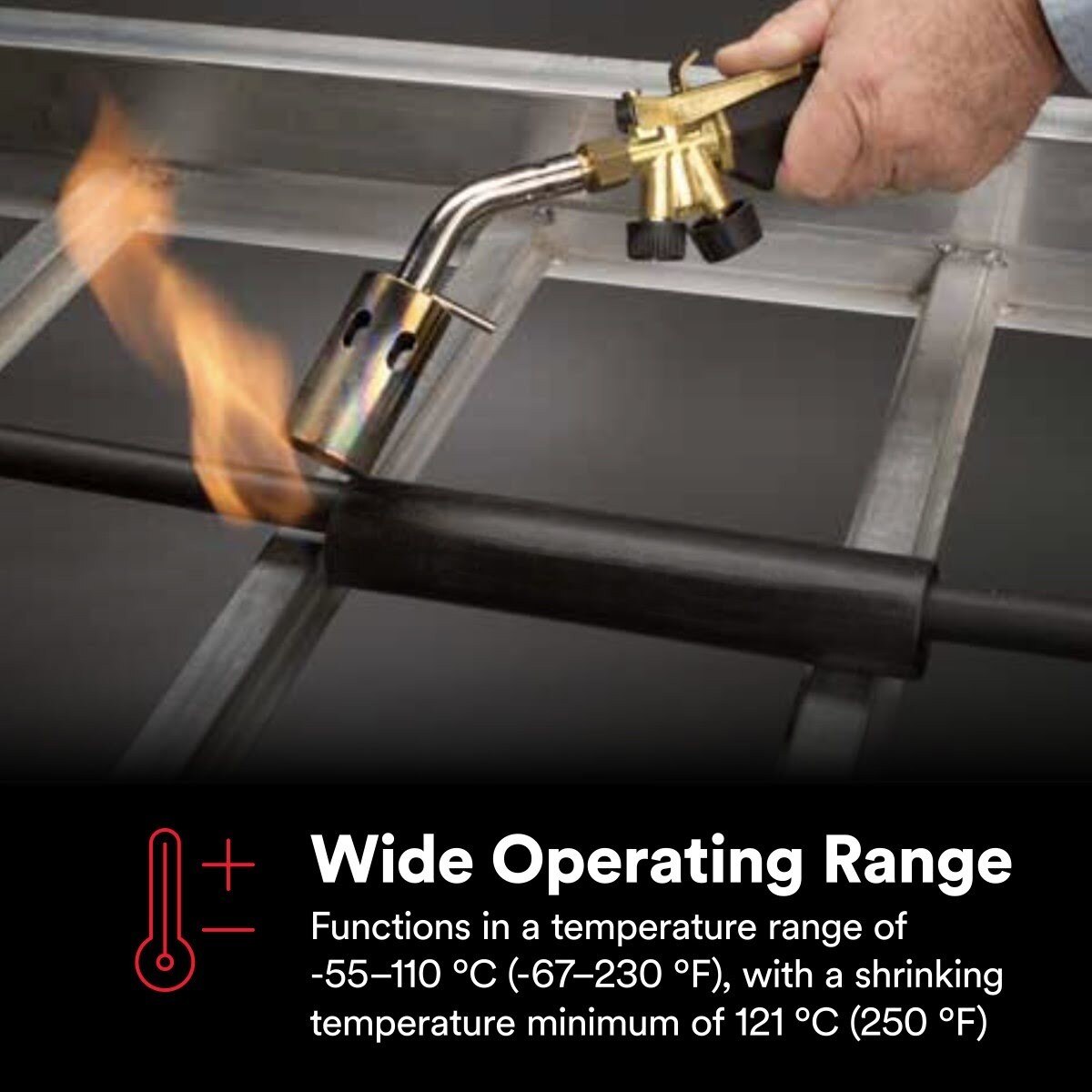

- Operating temperature range of -67 Degree F to 230 Degree F
- Abrasion resistant outer wall for added durability
- Color coded red for quick identification
3M 7100069408 Specifications
| Product Type | Thin-Wall Heat Shrink Tubing |
| Series | EPS-300 |
| Tubing Type | Dual Wall (Adhesive Lined) |
| Heat Shrink Type | Adhesive-Lined Polyolefin Heat Shrink Tubing |
| Color | Red |
| Material | Polyolefin |
| Shrink Ratio | 3:1 |
| Inner Diameter Before Shrink | 0.75 in |
| Inner Diameter After Shrink | 0.25 in |
| Overall Length | 48 in |
| Flame Retardant | Yes |
| Flammability Rating | UL 224 All Tubing Flame Test jacket |
| Voltage Rating | 600V |
| Operating Temperature | -67 Degree F to 230 Degree F |
| Elongation | 450 percent |
| Tensile Strength | 2100 Pound-Force Per Square Inch |

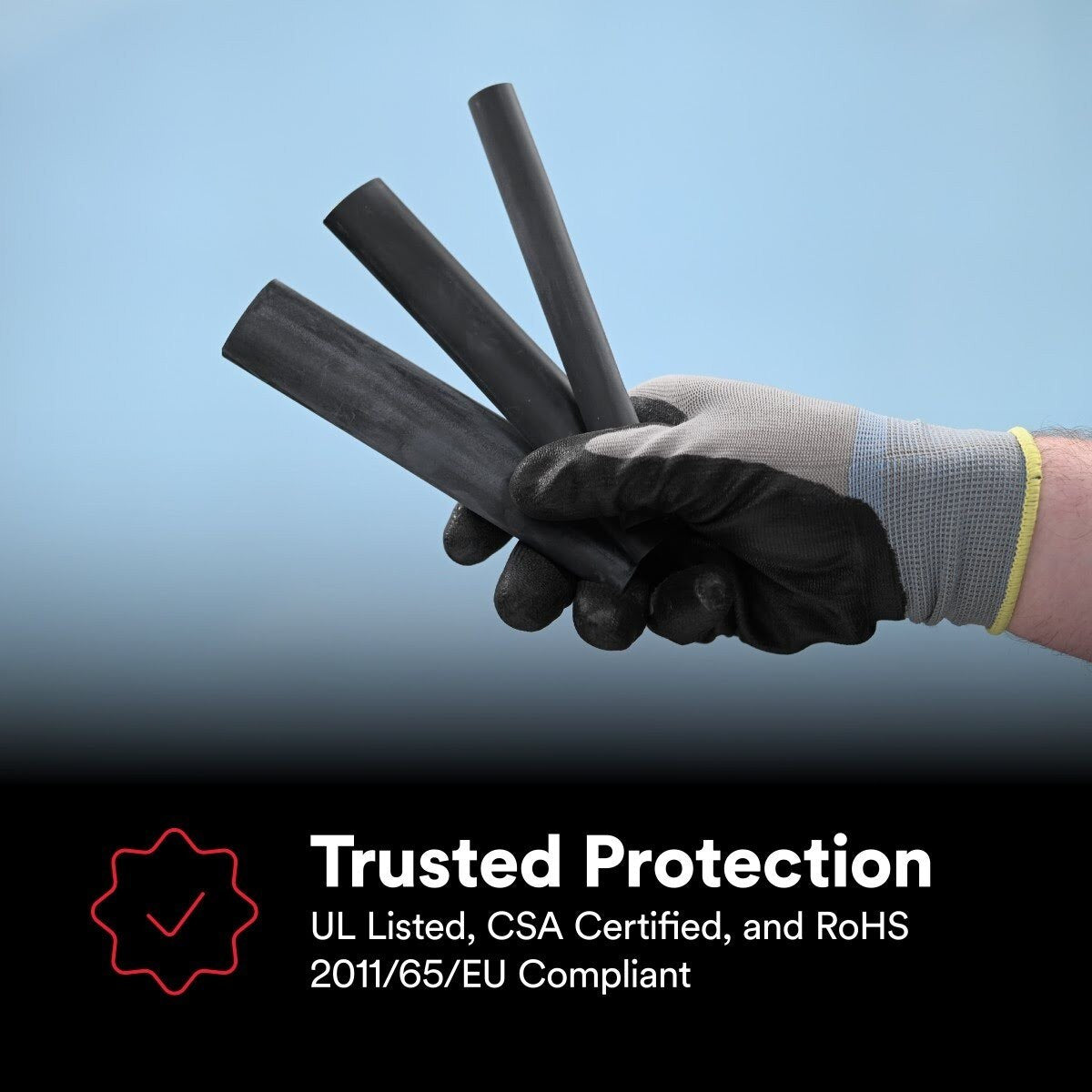

| RoHS | RoHS 2011/65/EU compliant without exemption |
