3M Scotchcast Flexible Splice Kit, Self Curing Resin, Flame Retardant Compound 2131, 0.6/1 kV, Black (7100011582) (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M Scotchcast Flexible Splice Kit, Self Curing Resin, Flame Retarda...
Description
Description
3M 7100011582 Description
3M Scotchcast Flexible Splice 82-BF1 is a resin compression C tap cable splice kit designed to splice or re jacket non shielded portable power cables and cords. The self curing flame retardant resin forms a tough repair that resists abrasion and is rated for up to 1 kV applications.

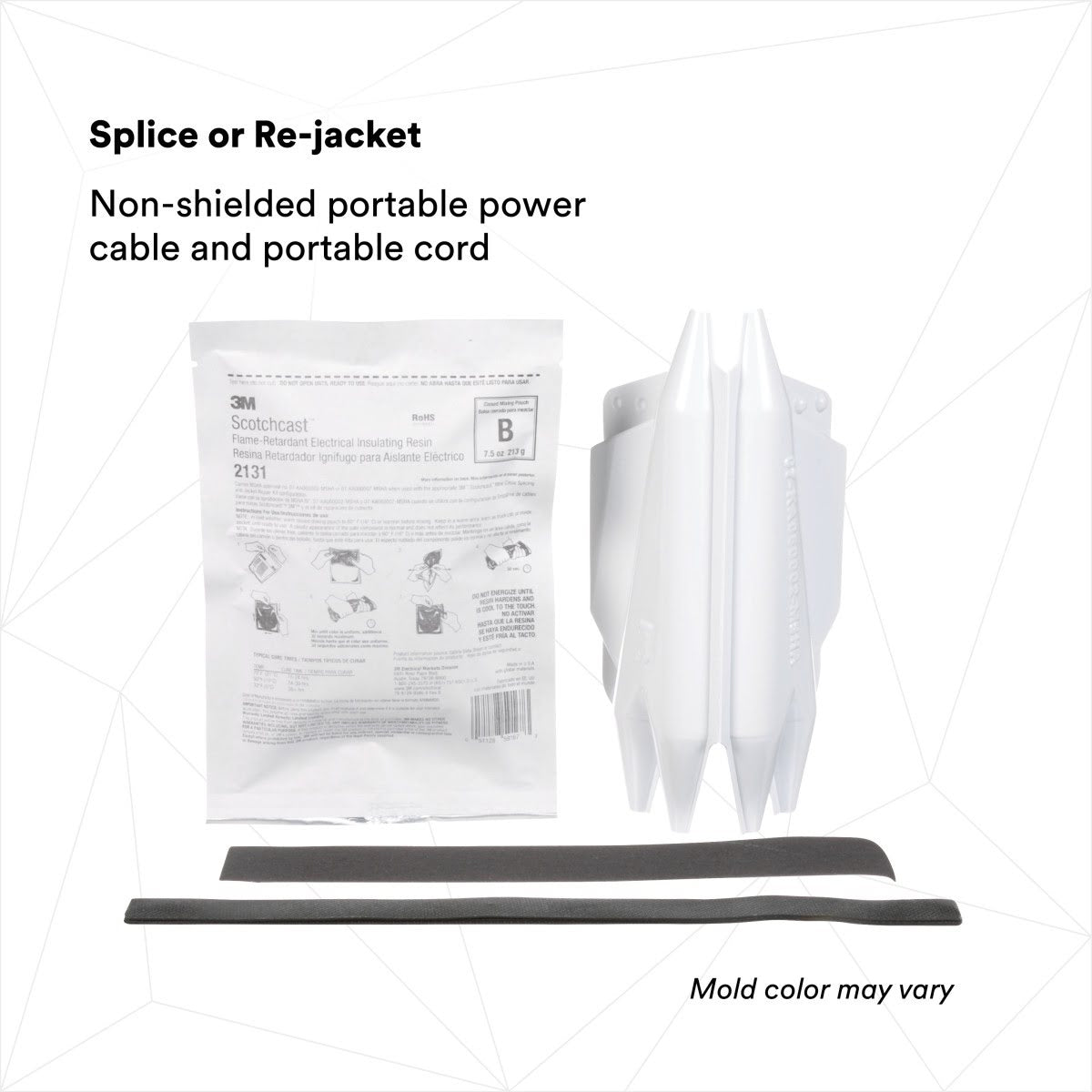

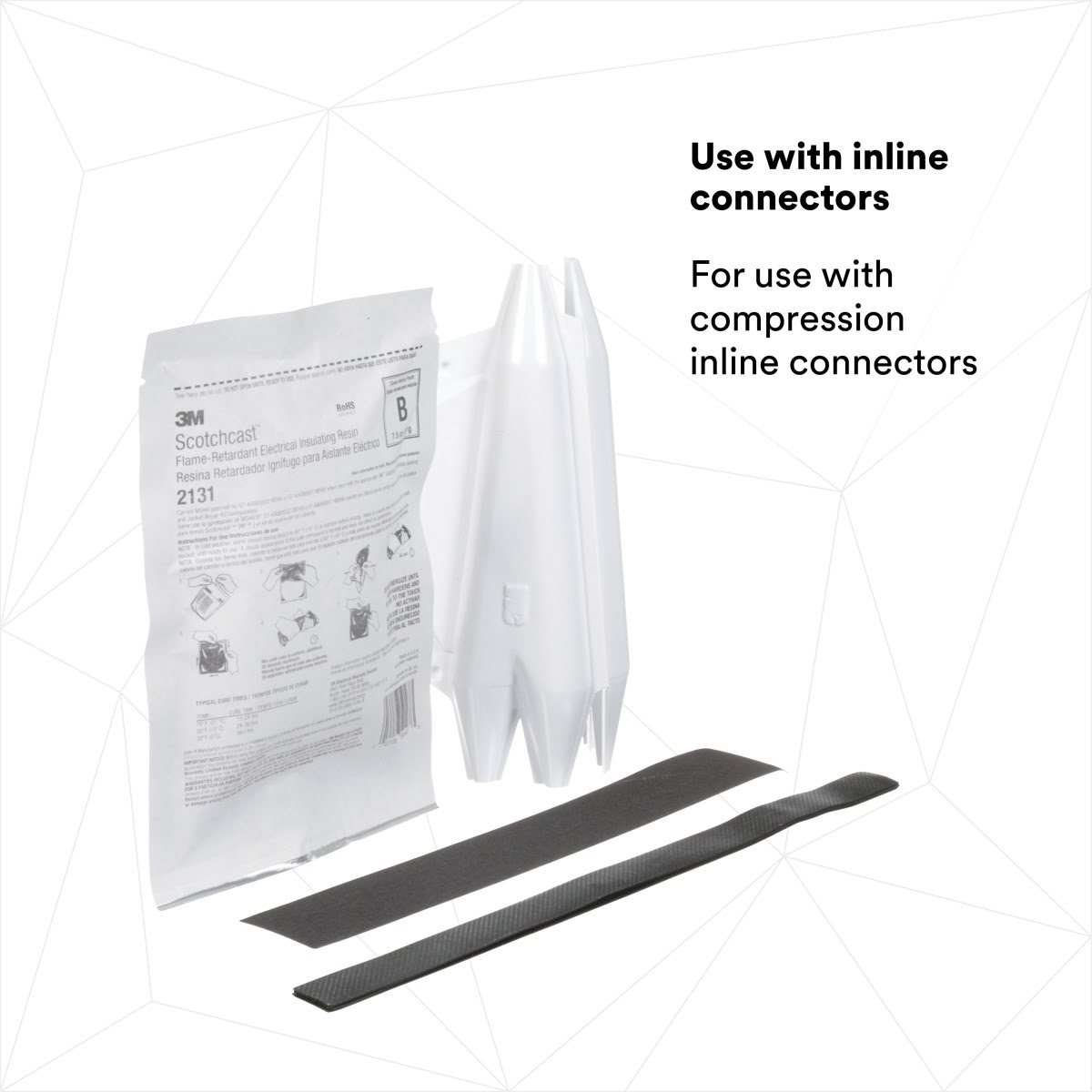

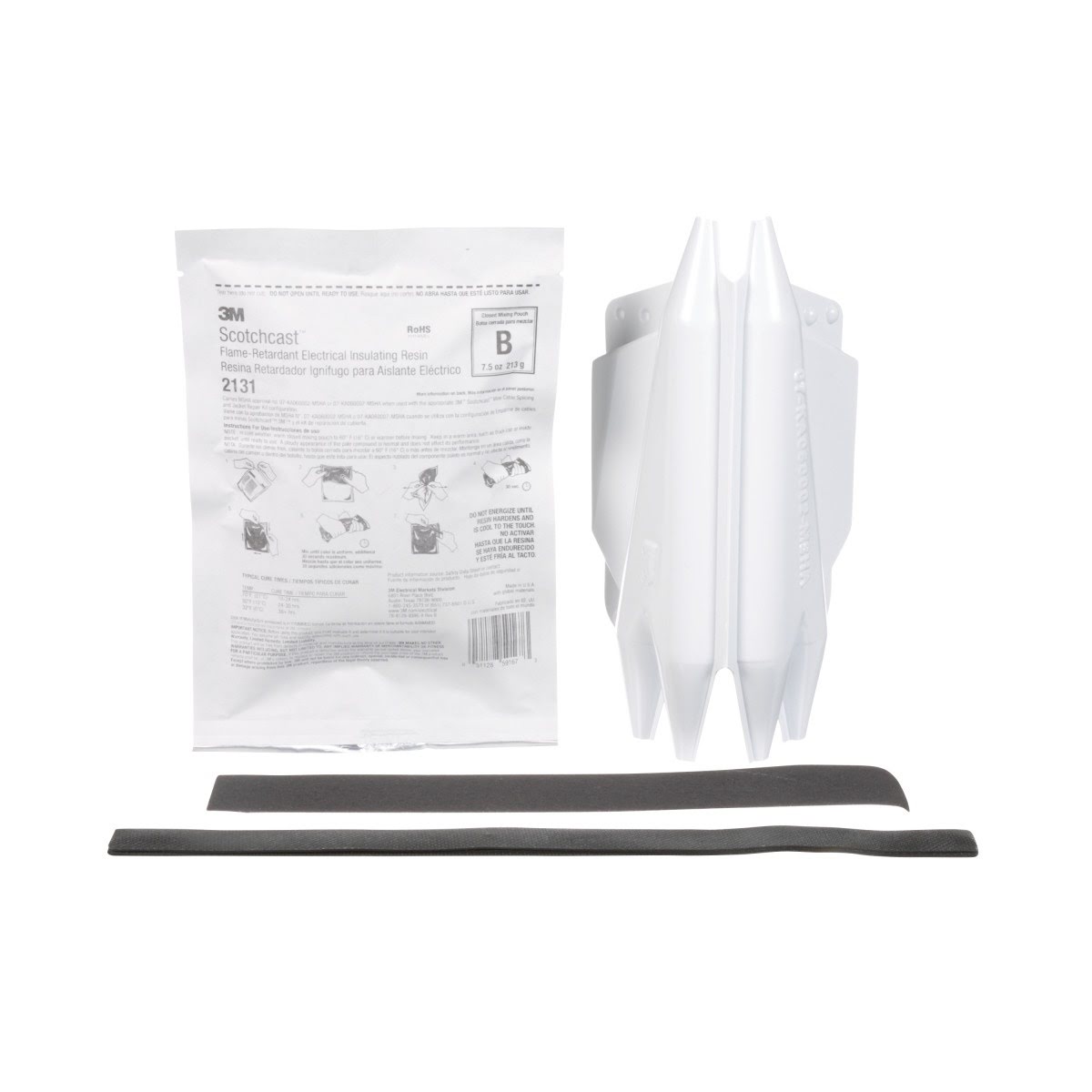

3M 7100011582 Includes
- (10) Scotchcast Flexible Splice 82-BF1 Kit
- (10) Flame Retardant Compound 2131 (self curing resin)
- (10) Splice mold
3M 7100011582 Features

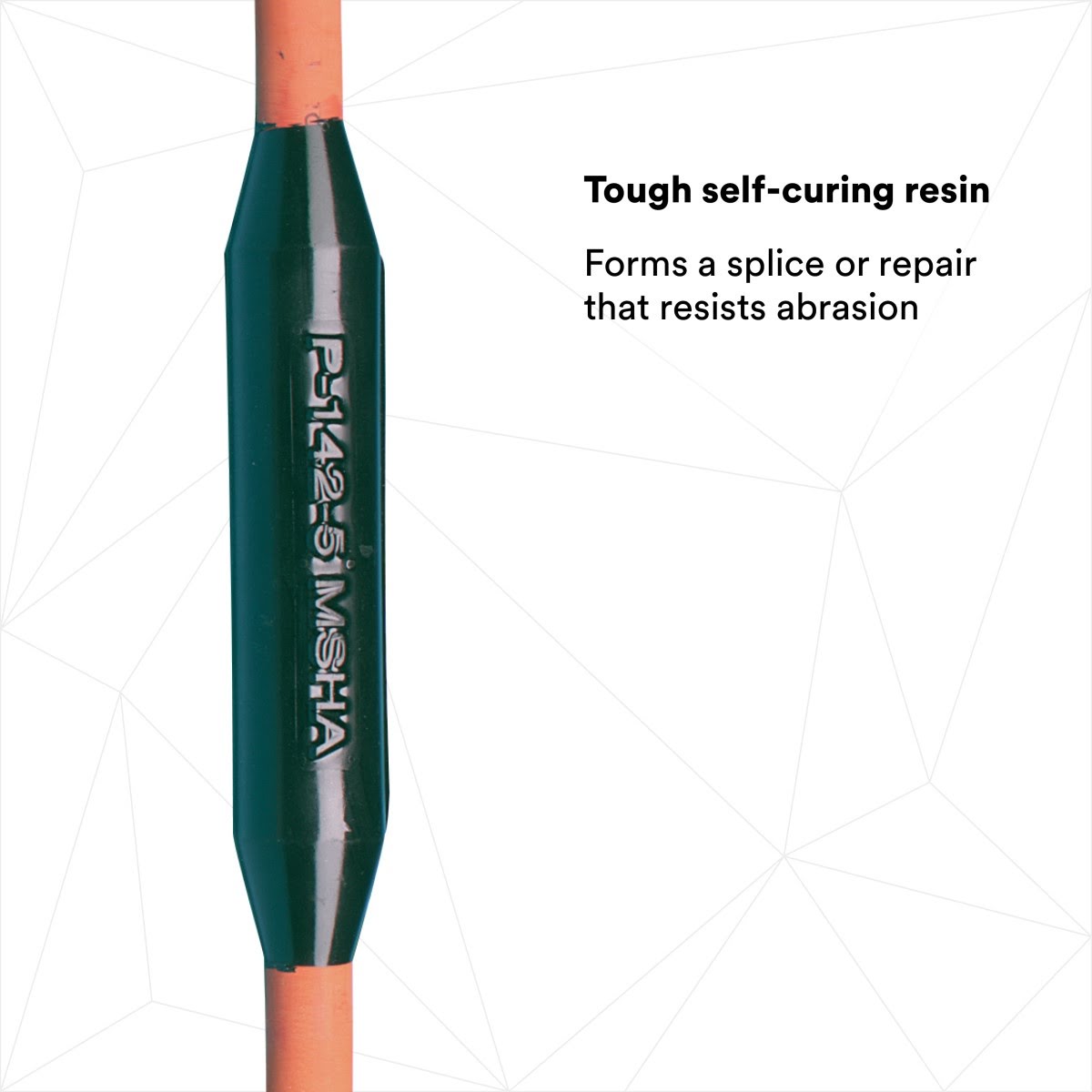

- Self curing resin forms a splice or repair that resists abrasion
- Designed to splice or re jacket non shielded portable power cable and portable cord
- Suitable for use with compression C tap connectors
- Rated for up to 1 kV applications
- Flame retardant compound 2131 included

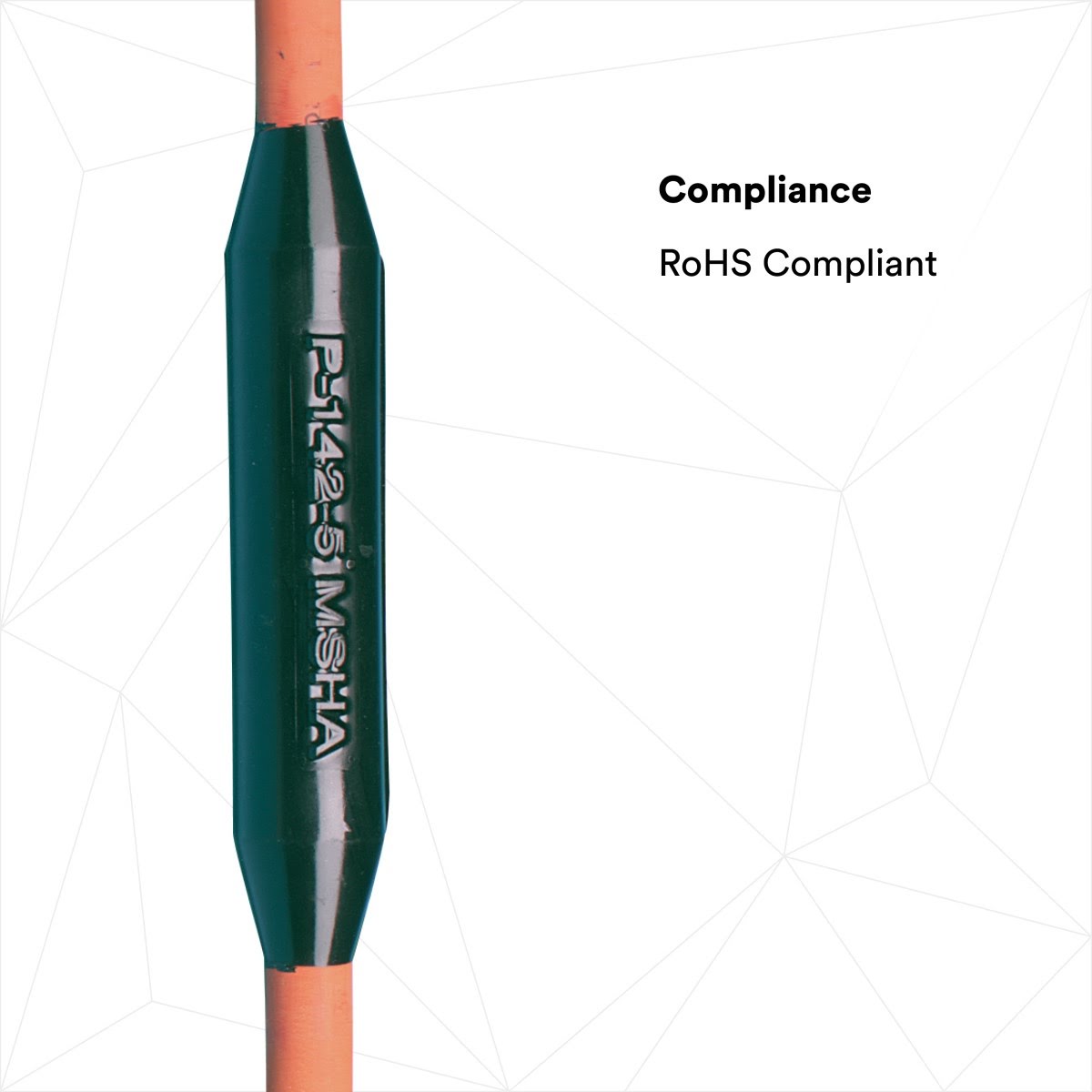

- RoHS 2011/65/EU compliant
- MSHA approved

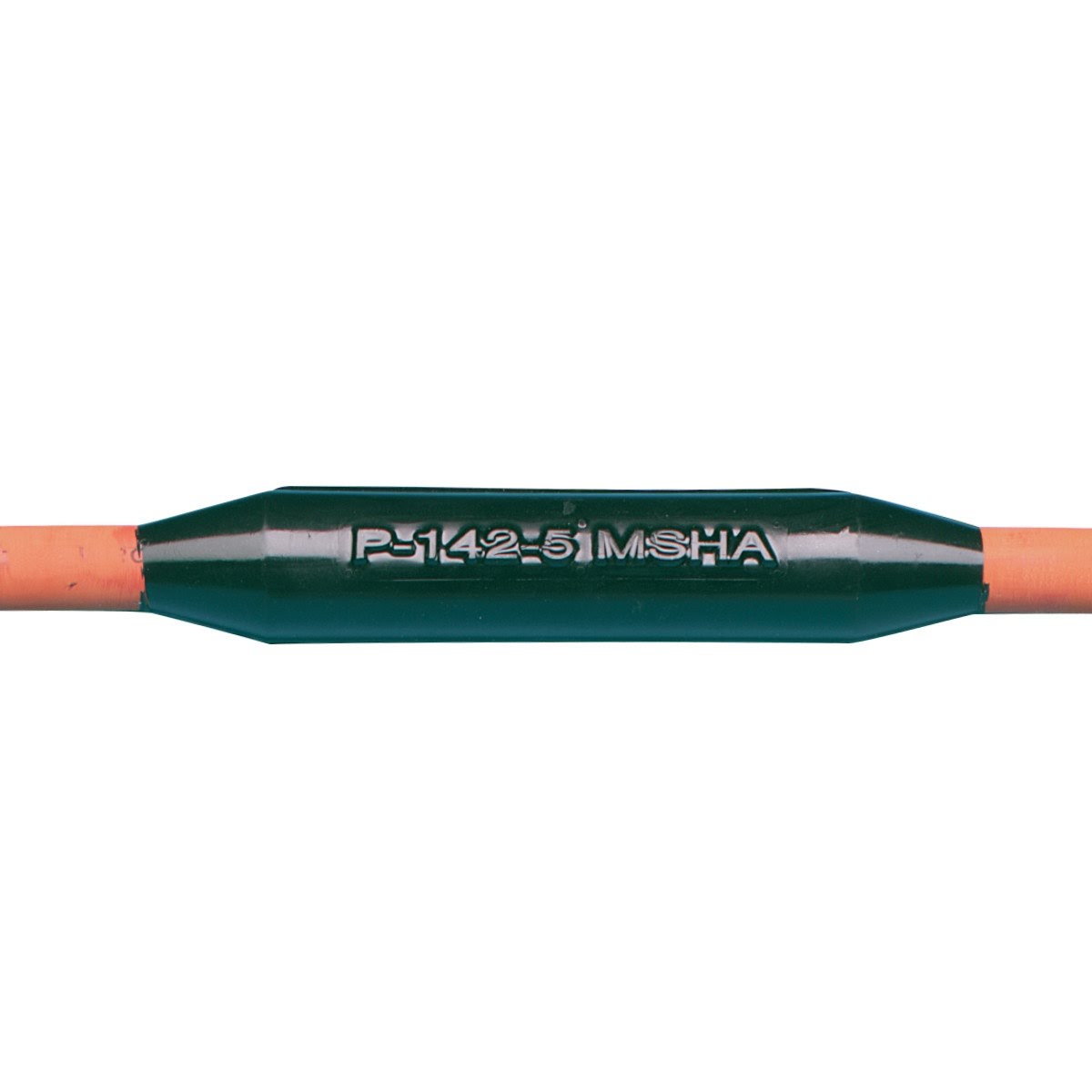

- Smooth tapered splice helps prevent cable hang ups and end lifting
- For indoor and outdoor use
3M 7100011582 Specifications
| Product Type | Resin Splice |
| Product Series | 82-B Series |
| Splice Type | Parallel Branch |
| Resin Type | SC 2131 |
| Voltage Rating | 0.6/1 kV |
| Maximum Operating Voltage | 5 kV |
| Color | Black |
| Minimum Conductor Size | 6 AWG |
| Maximum Conductor Size | 1/0 AWG |
| Insulation Outside Diameter Range | 0.25 to 0.80 in |
| Gel Time | 17 min at 73 DegreeF (23 DegreeC) |
| Hardness | 82 Shore A |
| Dielectric Strength | 343 V/mil |
| Indoor Outdoor Use | Both |
| Shelf Life | 36 Month |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
