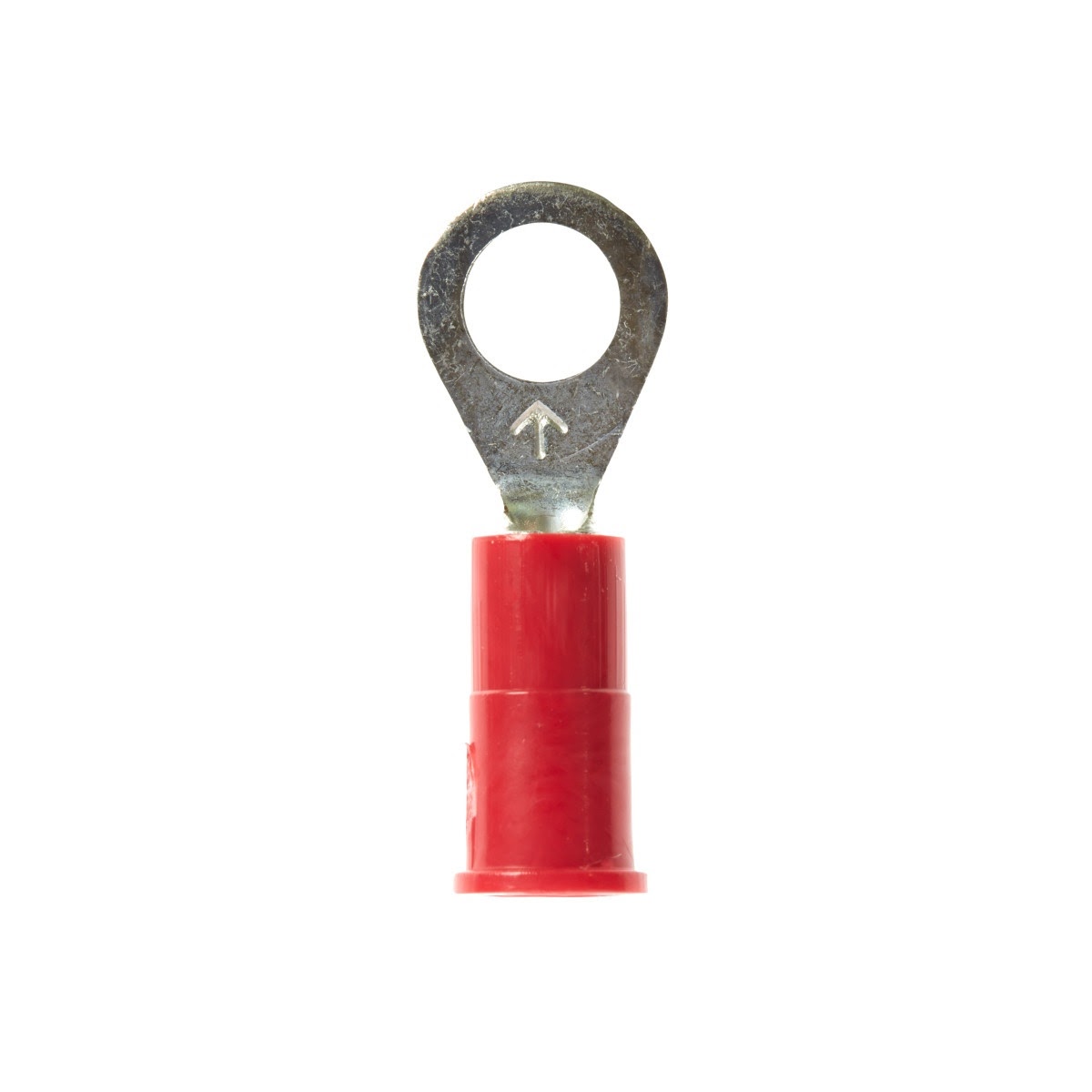

3M RV18-10Q Highland Vinyl Insulated Ring Terminal, AWG 22-18 (7000133680) (250 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M RV18-10Q Highland Vinyl Insulated Ring Terminal, AWG 22-18 (7000...
Description
Description
3M 7000133680 Description
3M Highland vinyl insulated ring terminals provide a secure, reliable electrical connection for AWG 22 to 18 wire. The standard-style ring tongue fits around a number 10 stud, and the butted-seam barrel with PVC sleeve supports easy wire insertion and corrosion resistance for consistent performance.
3M 7000133680 Includes
- (250) - 3M 7000133680 Highland Vinyl Insulated Ring Terminal RV18-10Q, AWG 22-18
3M 7000133680 Features
- Vinyl-insulated, butted-seam barrel helps ensure a secure fit and reliable performance
- Funnel-designed polyvinyl chloride sleeve supports easy wire insertion
- Standard-style ring tongue fits around the stud
- Electrolytic copper construction provides good conductivity
- Tin-plated finish helps resist corrosion
- Temperature range -40 to 221 Degree F (-40 to 105 Degree C)
- 600V rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU compliant
- 25 per bag
3M 7000133680 Specifications
| Part Number | RV18-10Q |
| Terminal Type | Ring |
| Ring Type | Standard |
| Stud Size | #10 |
| Wire Range | 22 to 18 AWG |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |
| Barrel Inside Diameter | 0.07 Inch |
| Barrel Length | 0.25 Inch |
| Overall Length | 0.93 in |
| Overall Width | 0.31 in |
| Maximum Insulation Outer Diameter | 0.145 in |
| Certifications | UL Listed, CSA Certified, RoHS Compliant |
| Color | Red |
