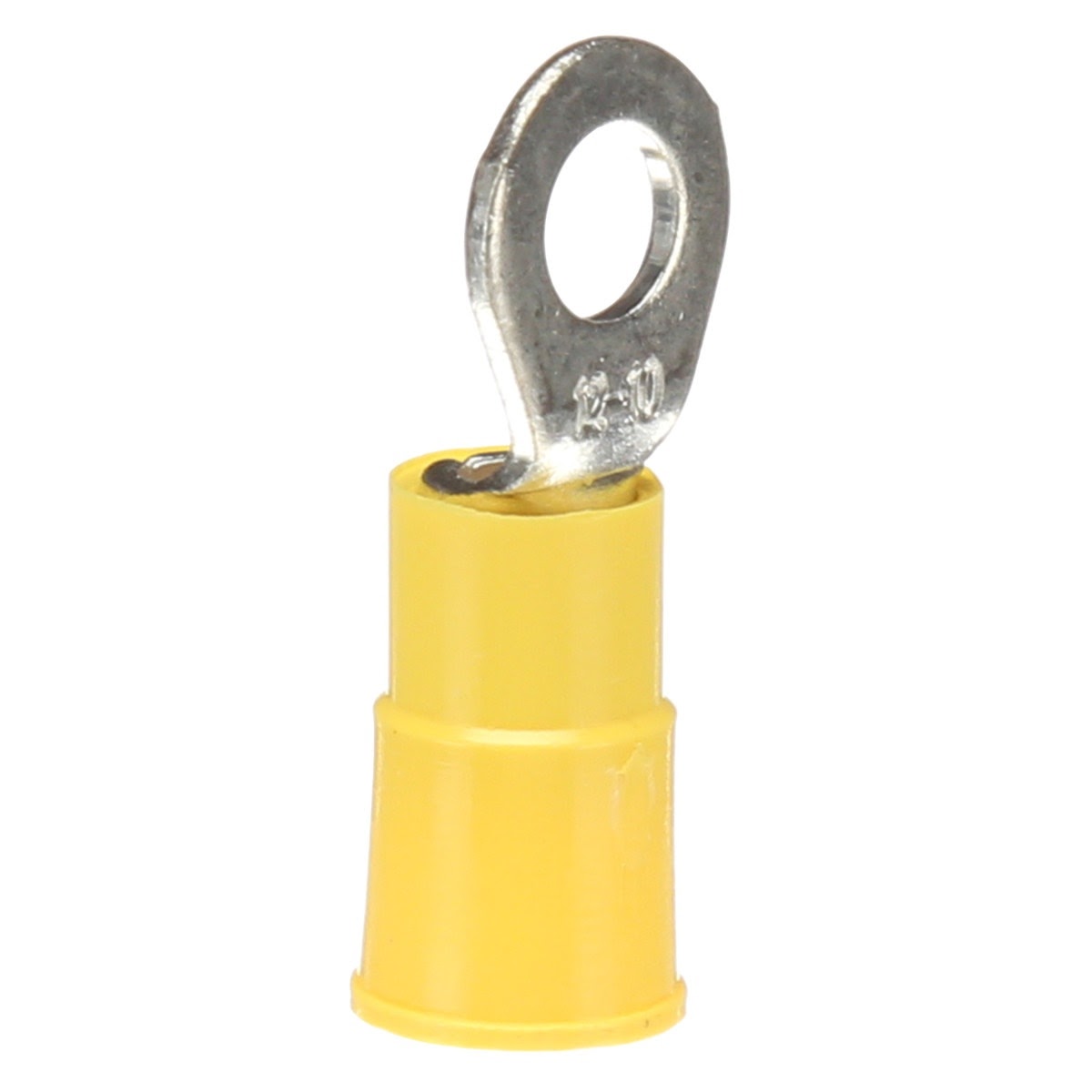

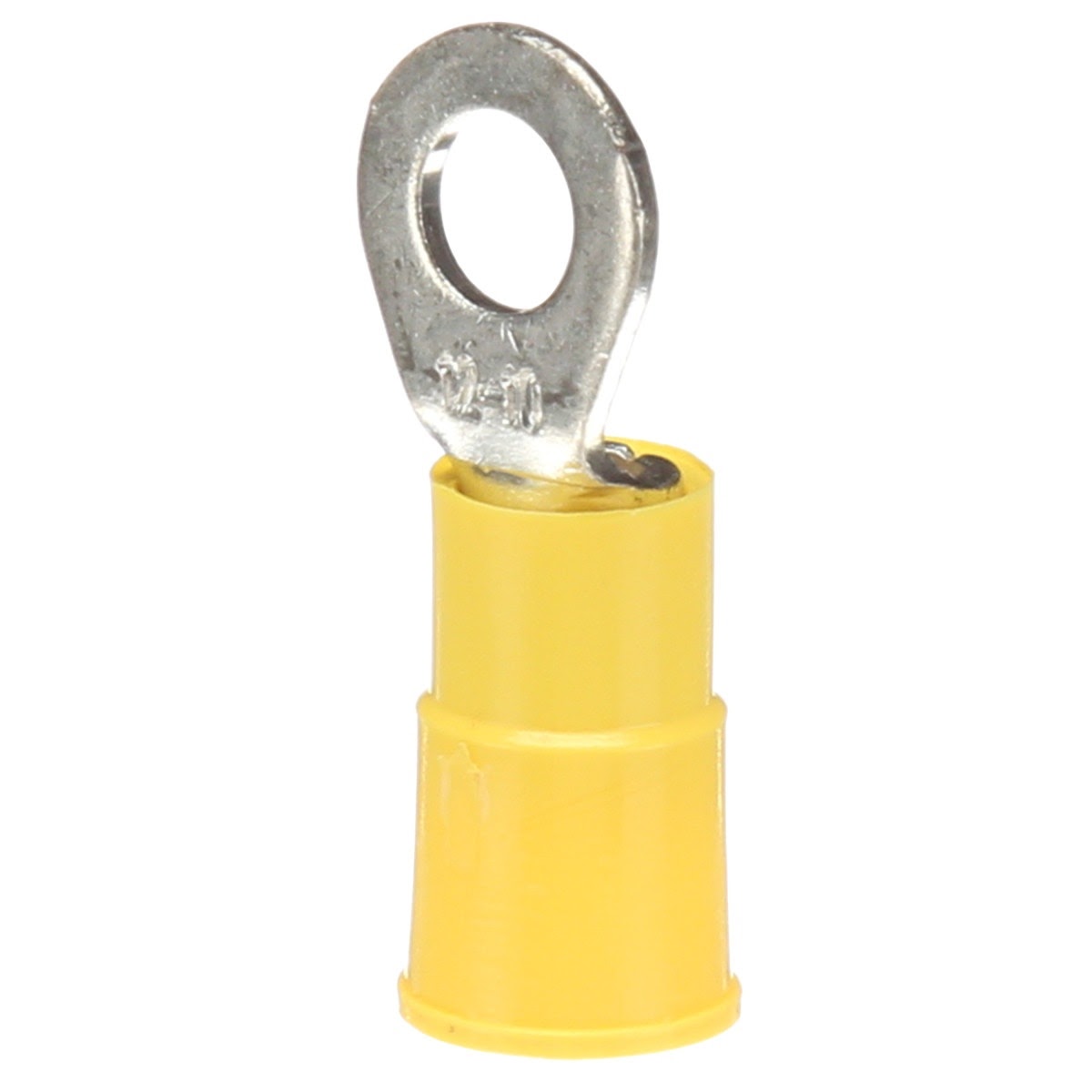

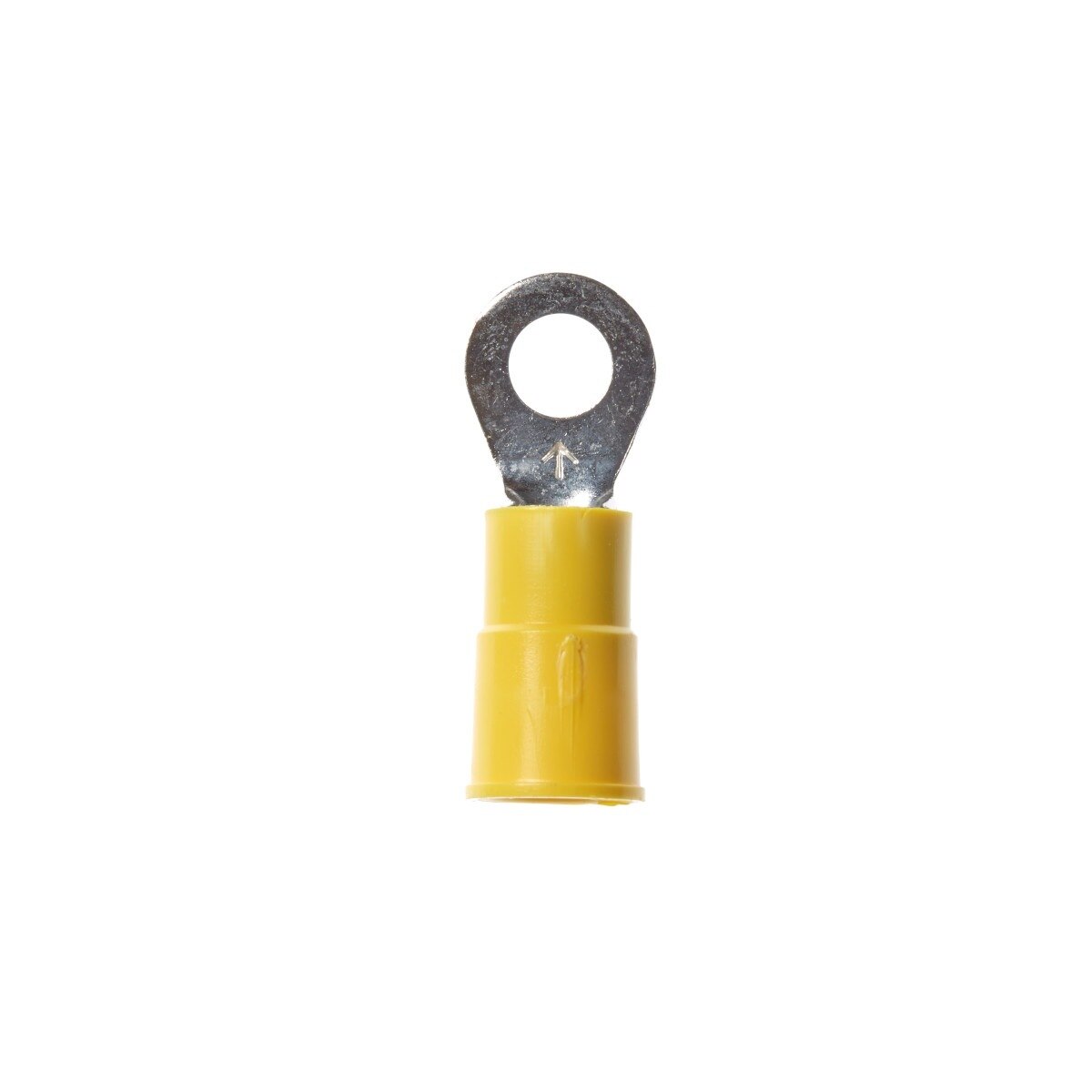

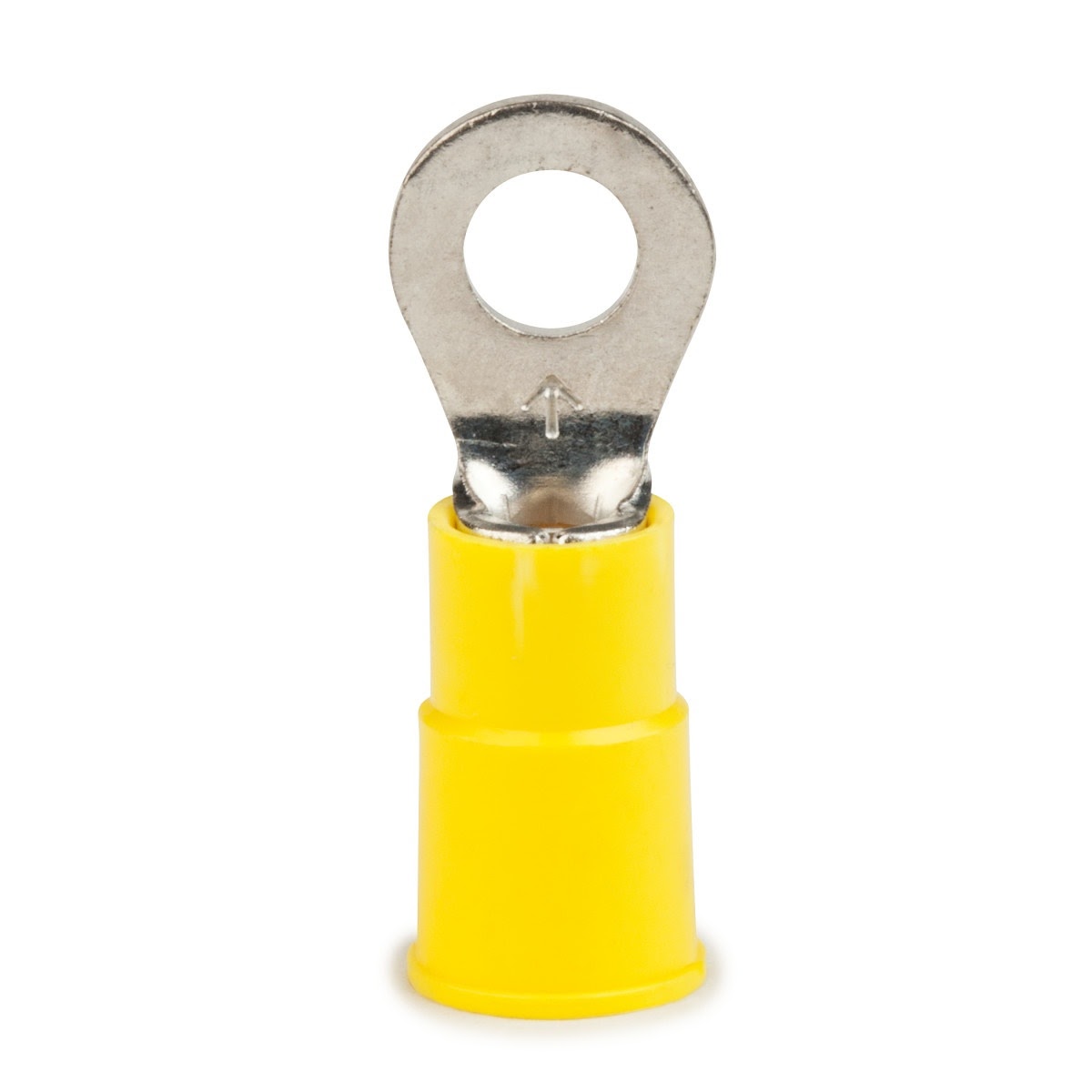

3M RV10-10Q Highland Vinyl Insulated Ring Terminal, AWG 12-10 (7000133671) (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M RV10-10Q Highland Vinyl Insulated Ring Terminal, AWG 12-10 (7000...
Description
Description
3M 7000133671 Description
3M Highland vinyl insulated ring terminals provide a secure crimp connection for 12 to 10 AWG wire and a standard ring tongue that fits around a #10 stud. Electrolytic copper construction with tin plating helps resist corrosion, and the vinyl insulated butted seam barrel supports reliable electrical performance.
3M 7000133671 Includes
- (10) - 3M 7000133671 Highland Vinyl Insulated Ring Terminal RV10-10Q, AWG 12-10
3M 7000133671 Features
- Vinyl insulated butted seam barrel helps provide a secure crimp and reliable performance
- Funnel designed polyvinyl chloride sleeve helps ease wire insertion
- Standard style ring tongue fits around the stud for a secure connection
- Electrolytic copper construction offers good conductivity
- Tin plated finish helps resist corrosion
- Operating temperature range -40 to 221 Degree F -40 to 105 Degree C
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS 2011/65/EU compliant
- 25 terminals per bag
3M 7000133671 Specifications
| Part Number | RV10-10Q |
| Terminal Type | Ring |
| Terminal Style | Standard |
| Ring Type | Standard |
| Connection Type | Crimp |
| Wire Range | 12 to 10 AWG |
| Stud Size | #10 |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.135 Inch |
| Barrel Length | 0.25 Inch |
| Overall Length | 1.03 in |
| Overall Width | 0.38 in |
| Maximum Operating Temperature | 221.0 Degree Fahrenheit |
| Maximum Recommended Voltage Rating | 600.0 V |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| RoHS EU Comments | RoHS 2011/65/EU compliant without exemption |
