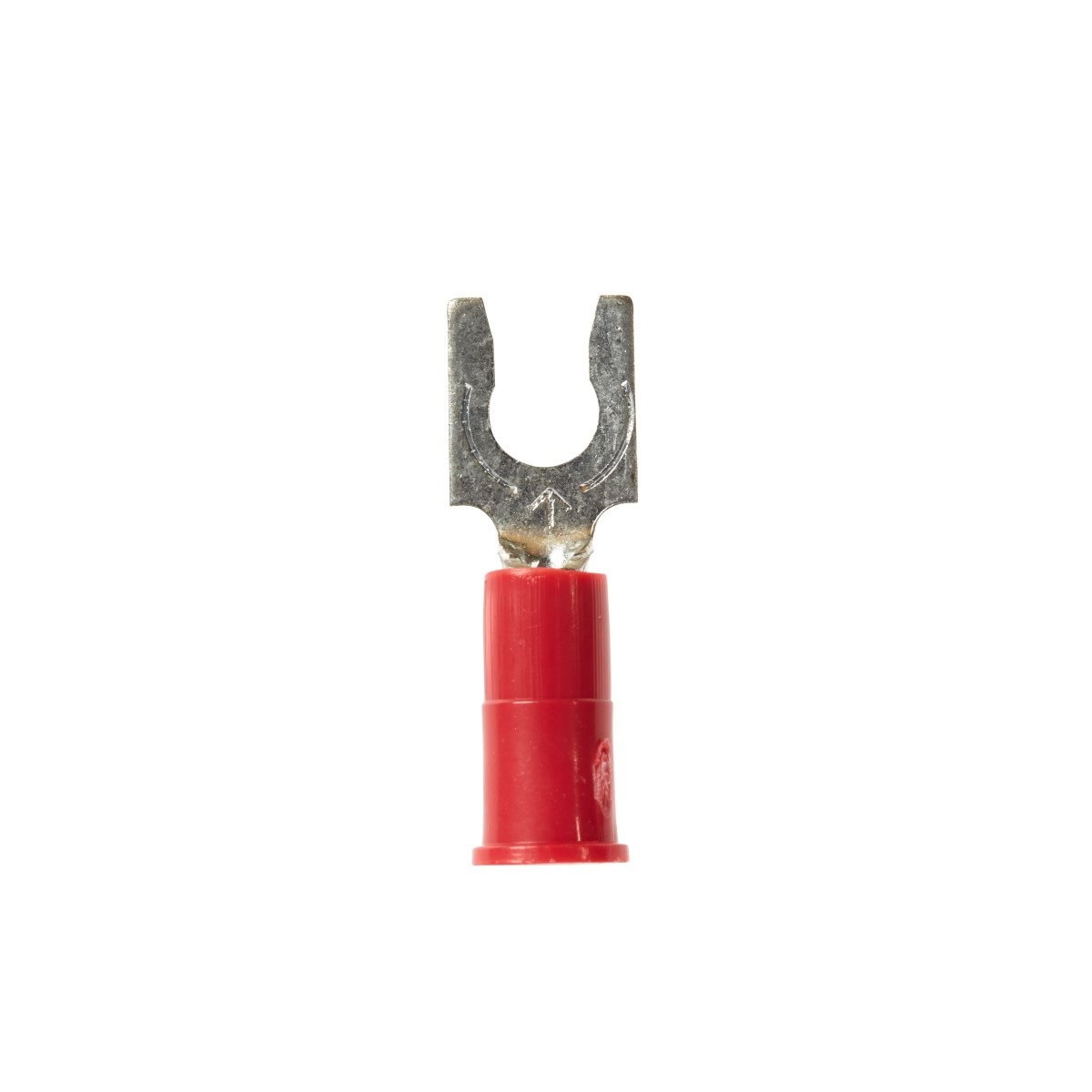

3M MVU18-8FLK Locking Fork Terminal Vinyl Insulated Butted Seam Stud Size 8 (7000148828) (1000 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MVU18-8FLK Locking Fork Terminal Vinyl Insulated Butted Seam Stu...
Description
Description
3M 7000148828 Description

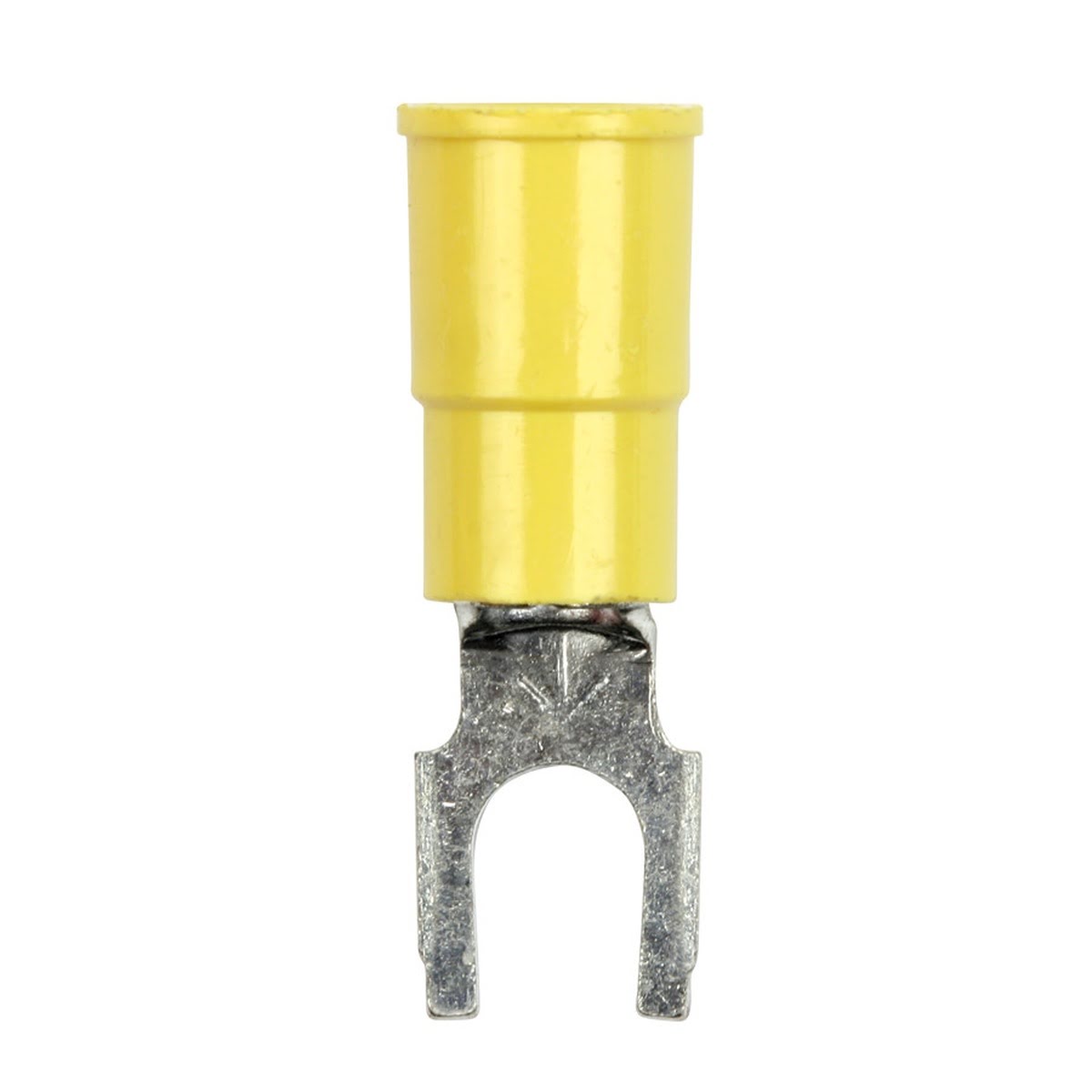

3M Scotchlok MVU18-8FLK locking fork terminals provide a secure lug connection with a spring-like tongue that locks around a #8 stud. The vinyl insulated, butted seam barrel and electrolytic copper construction with a tin plated finish deliver reliable electrical performance and corrosion resistance.
3M 7000148828 Includes
- (1000) 3M Scotchlok MVU18-8FLK locking fork terminals
3M 7000148828 Features
- Locking fork terminal design with spring-like tongue to lock around the stud
- Vinyl insulated butted seam barrel for reliable performance
- Funnel designed PVC sleeve helps guide wire into position
- Electrolytic copper construction for good conductivity
- Tin plated finish helps resist corrosion
- Operating temperature range -40 Degree F to 221 Degree F
- 600V rated for building wire and up to 1000V rated for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000148828 Specifications
| Part Number | MVU18-8FLK |
| Terminal Type | Fork |
| Terminal Style | Locking |
| Stud Size | #8 |
| Stud Diameter | 0.164 in |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Conductor Size Range | 22 AWG to 18 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 to 1000 V |
| Operating Temperature Range | -40 Degree F to 221 Degree F |
| Overall Length | 0.88 in |
| Overall Width | 0.3 in |
