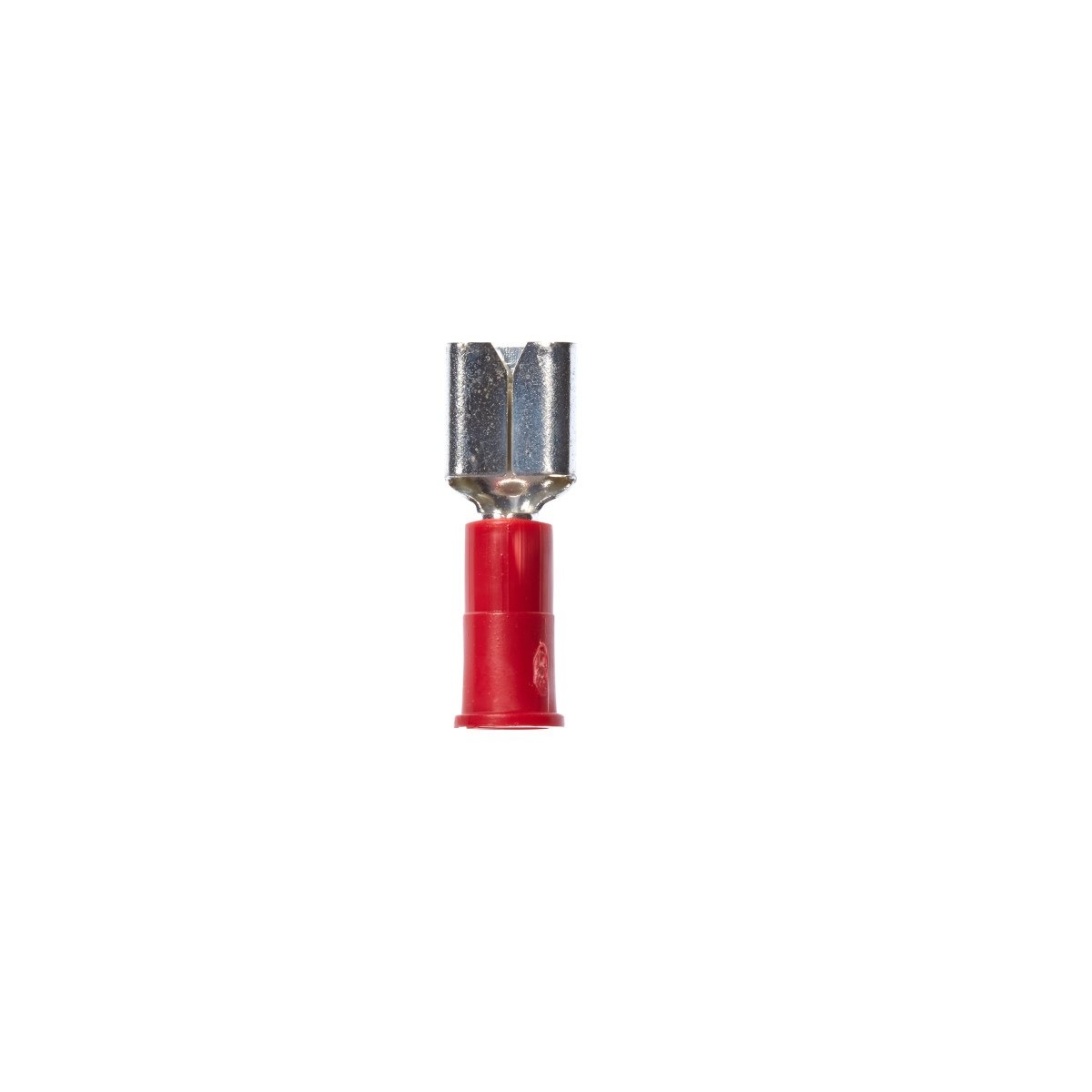

3M MVU18-250DFX Vinyl Insulated Female Disconnect, Red, 1/4 in Tab (7000133356) (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MVU18-250DFX Vinyl Insulated Female Disconnect, Red, 1/4 in Tab ...
Description
Description
3M 7000133356 Description
3M Scotchlok vinyl insulated butted seam female disconnect provides strong holding force with dents and rolled edges while allowing quick and easy wire disconnect. The brass terminal offers good conductivity, and the tin plated finish helps resist corrosion. Vinyl insulation supports electrical insulation and mechanical stress relief.
3M 7000133356 Includes
- (100) Scotchlok vinyl insulated female disconnect terminals
3M 7000133356 Features
- Vinyl insulated butted seam barrel with funnel designed sleeve for easy wire insertion
- Dents and rolled edges provide excellent holding force
- Quick disconnect terminal for fast service and maintenance
- Durable brass construction for good conductivity
- Tin plated finish helps resist corrosion
- Abrasion resistant vinyl sleeve insulation
- Temperature range -40 Degree F to 221 Degree F
- Rated up to 600 V
- For 18 to 22 AWG conductors
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7000133356 Specifications
| Part Number | MVU18-250DFX |
| Product Type | Female disconnect terminal |
| Disconnect Type | Female |
| Insulation Material | Vinyl |
| Insulation Color | Red |
| Material | ETP Copper |
| Finish | Tin plated |
| Connection Width | 0.25 in (6.35 mm) |
| Wire Range | 18 to 22 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit (105 Degree Celsius) |
| Barrel Style | Butted |
| Barrel Length | 0.25 in |
| Overall Length | 0.87 in |
| Overall Width | 0.37 in |
| Overall Diameter | 0.23 in |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
