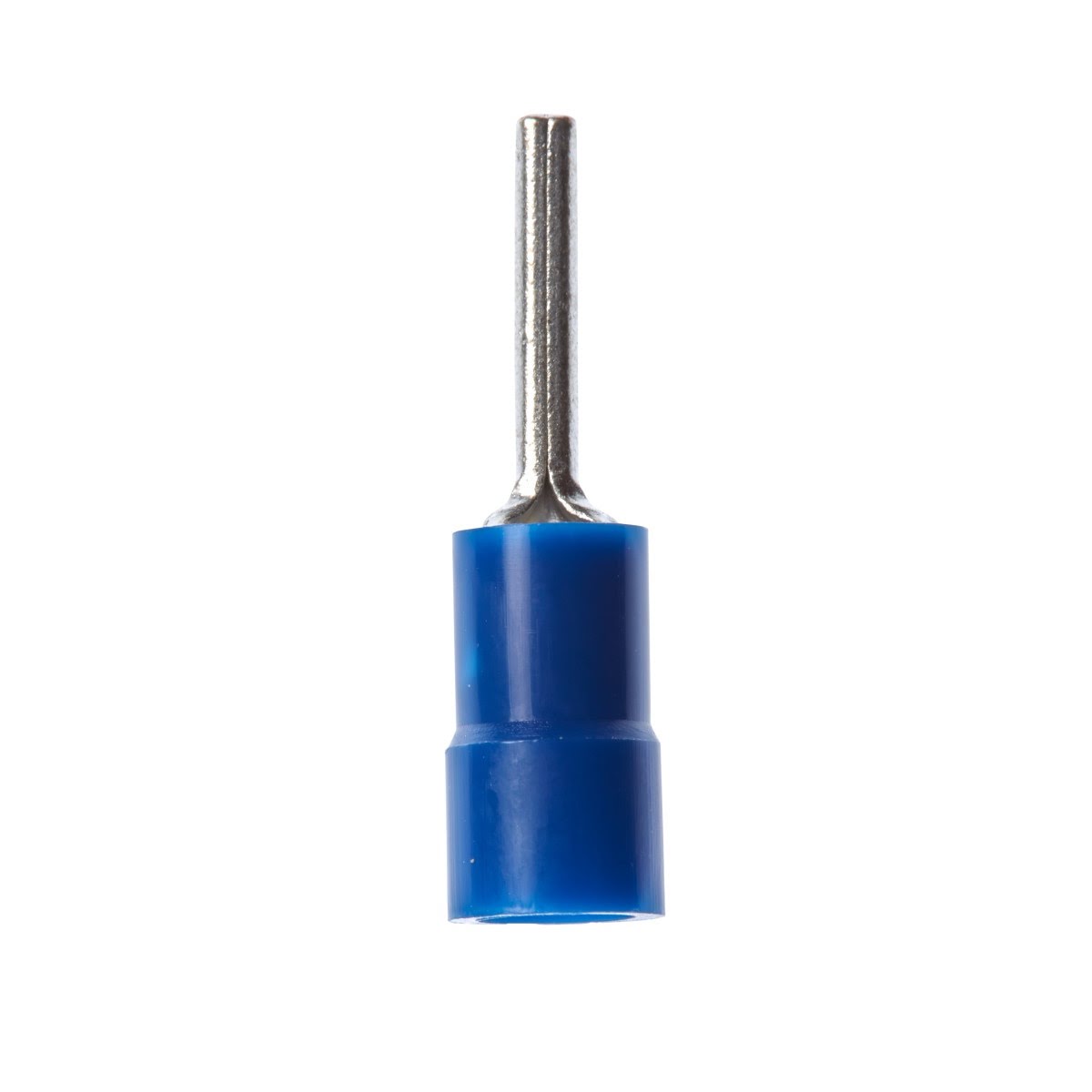

3M MVU14-47PX-A Pin Vinyl Insulated Butted Seam Pin Terminal, Blue, 16-14 AWG, 100 per Bottle (7100055062)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MVU14-47PX-A Pin Vinyl Insulated Butted Seam Pin Terminal, Blue,...
Description
Description
3M 7100055062 Description
3M Scotchlok pin terminals provide a secure, vinyl-insulated butted-seam crimp connection for 16 to 14 AWG wire, with a funnel-designed sleeve to help guide wire insertion and provide mechanical stress relief.
3M 7100055062 Includes
- (100) Scotchlok pin vinyl insulated butted seam pin terminals
3M 7100055062 Features
- Vinyl insulated butted seam barrel provides a secure crimp connection
- Funnel-designed PVC sleeve helps guide wire insertion
- Provides a quick connection for set screws or clamps used to make electrical contact
- Copper construction offers good conductivity with tin plating for corrosion resistance
- Withstands up to 167 Degree F (75 Degree C)
- Color coded blue insulation for wire size identification
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7100055062 Specifications
| Brand | Scotchlok |
| Part Number | MVU14-47PX-A |
| Terminal Type | Pin |
| Barrel Style | Butted |
| Insulation Material | Vinyl |
| Product Color | Blue |
| Wire Range | 16-14 AWG (1.5-2.5 mm2) |
| Pin Diameter | 0.075 in (1.905 mm) |
| Pin Length | 0.47 in (11.94 mm) |
| Overall Length | 0.9 in (22.86 mm) |
| Barrel Inside Diameter | 0.090 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| Material | Copper, tin plated |
| Maximum Temperature | 167 Degree F (75 Degree C) |
| Compliance | RoHS 2011/65/EU compliant |
| Certifications | UL Listed, CSA Certified |
