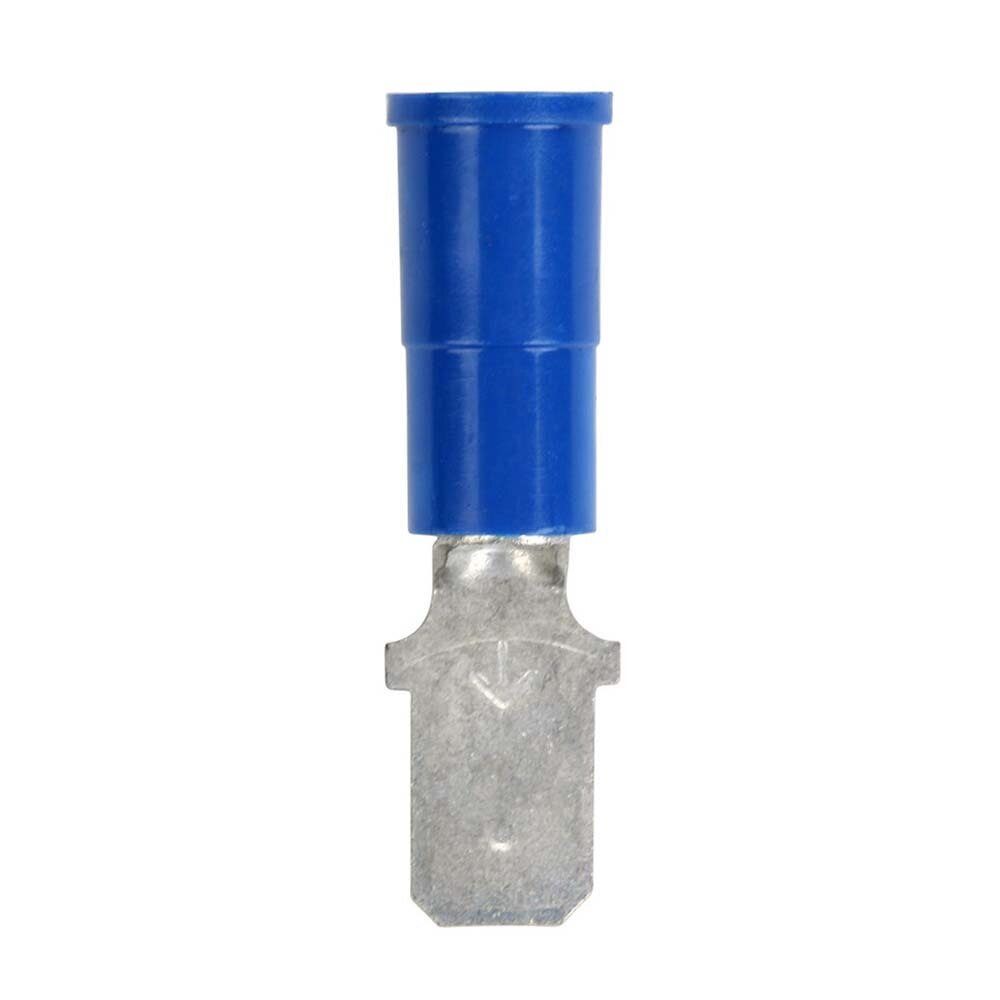

3M MVU14-250DMX Scotchlok Male Disconnect Vinyl Insulated (7000133289) (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MVU14-250DMX Scotchlok Male Disconnect Vinyl Insulated (70001332...
Description
Description
3M 7000133289 Description
3M Scotchlok vinyl-insulated male disconnect terminals provide quick, reliable connections for 22–18 AWG wire, featuring a butted-seam barrel and PVC sleeve for easy insertion and secure holding force.
3M 7000133289 Includes
- (100) Scotchlok Male Disconnect Vinyl Insulated Terminals
3M 7000133289 Features
- Vinyl-insulated, butted-seam barrel
- PVC funnel sleeve for easy wire insertion
- Male tab width 0.250 in
- Designed for 22–18 AWG wire
- Tin-plated copper for conductivity and corrosion resistance
- Rated up to 600 V
- Operating temperature up to 105 Degree Celsius
- UL Listed and CSA Certified
- Blue insulation color
3M 7000133289 Specifications
| Part Number | MVU14-250DMX |
| Wire Range | 22–18 AWG |
| Disconnect Type | Male |
| Insulation Material | Vinyl (PVC) |
| Insulation Color | Blue |
| Barrel Style | Butted |
| Male Tab Width | 0.250 in |
| Connection Width | 0.25 in |
| Overall Length | 0.93 in |
| Overall Diameter | 0.39 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Voltage Rating | 600 V |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| RoHS | Compliant |
| Package Quantity | 100 per bottle |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
