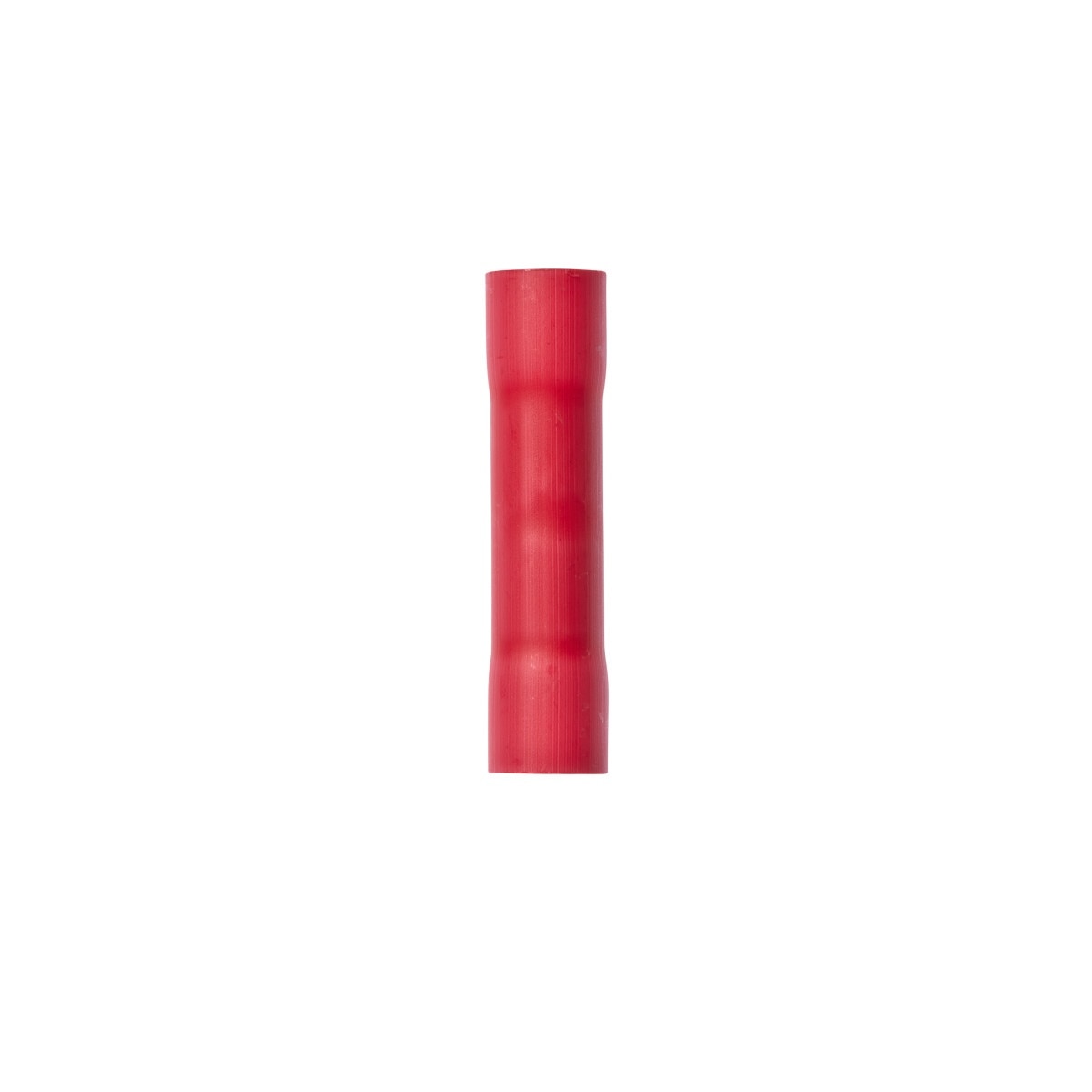

3M MV8BCK Butt Connector, Vinyl Insulated Brazed Seam, 8 AWG, Built in Wire Stop (7100164153) (200 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MV8BCK Butt Connector, Vinyl Insulated Brazed Seam, 8 AWG, Built...
Description
Description
3M 7100164153 Description
3M Scotchlok vinyl insulated butt connector with a brazed seam barrel and built in wire stop, designed for 8 AWG conductors to provide reliable electrical connections and corrosion resistance.
3M 7100164153 Includes
- (200) 3M Scotchlok Butt Connector (MV8BCK), 8 AWG
3M 7100164153 Features
- Vinyl insulated brazed seam barrel helps provide a secure crimp connection
- Built in wire stop helps ensure correct wire positioning
- Funnel designed polyvinyl chloride sleeve helps guide wire insertion
- Tin plated copper terminal helps provide good conductivity and corrosion resistance
- Rated for temperatures from -40 to 221 Degree F (-40 to 105 Degree C)
- Color coded design helps quickly identify wire size
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7100164153 Specifications
| Brand | 3M |
| Sub Brand | Scotchlok |
| Part Number | MV8BCK |
| Conductor Size | 8 AWG |
| Conductor Size (Metric) | 10 mm2 |
| Insulation Material | Vinyl |
| Overall Length | 1.5 in |
| Terminal Material | Electrolytic copper with tin plated finish |
| Temperature Range | -40 to 221 Degree F (-40 to 105 Degree C) |
| Certifications | UL Listed; CSA Certified |
| RoHS Compliant | Yes |
| ECCN | EAR99 |
| HTS Code | 8536904000 |
