3M MV18BCX Scotchlok Butt Connector Seamless Vinyl Insulated, (7000133318) (500 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MV18BCX Scotchlok Butt Connector Seamless Vinyl Insulated, (7000...
Description
Description
3M 7000133318 Description

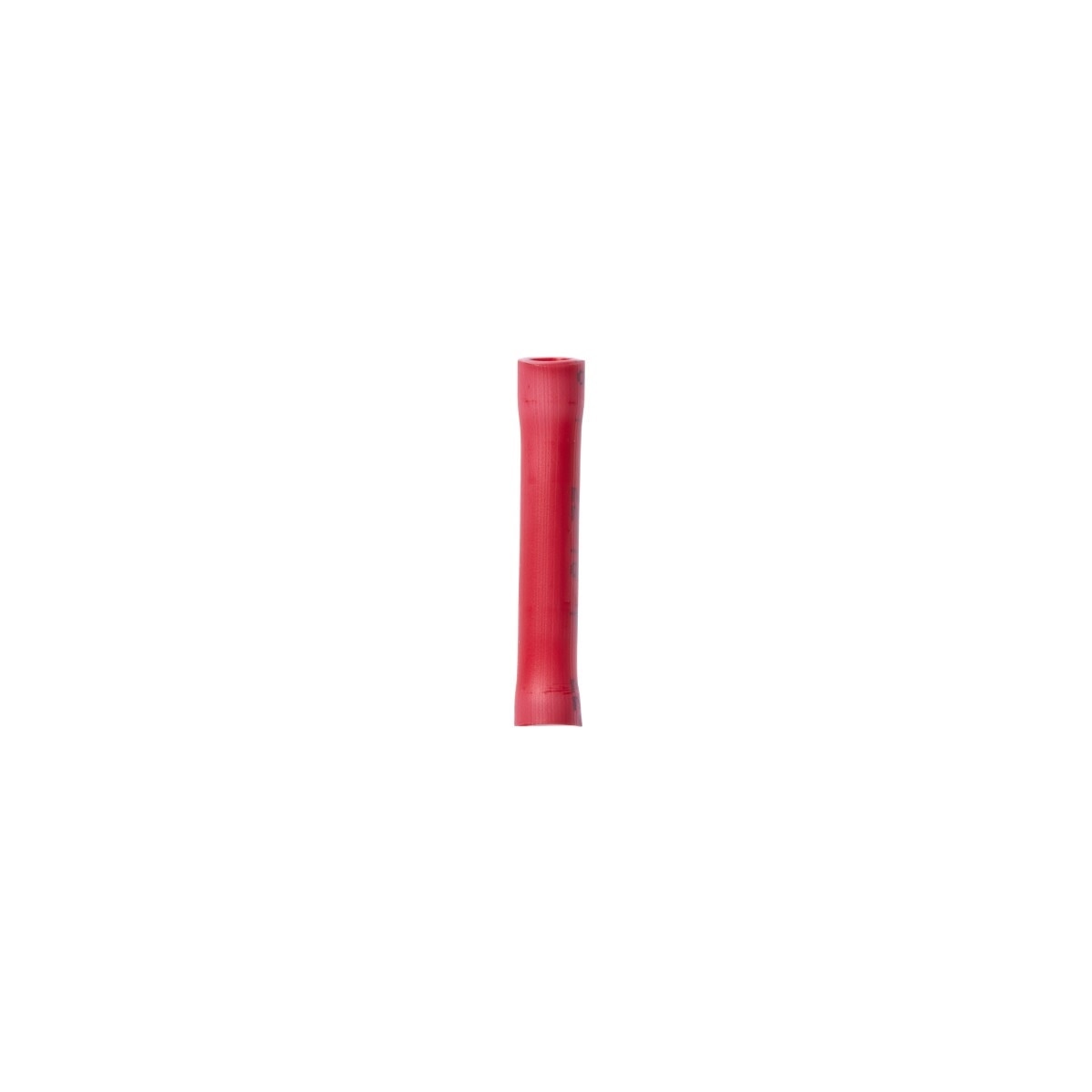

3M Scotchlok MV18BCX seamless vinyl insulated butt connector provides a reliable electrical connection for pre stripped stranded wire. Copper alloy construction with tin plating helps deliver good conductivity and corrosion resistance, and the red color coding supports quick wire size identification.
3M 7000133318 Includes
- (500) 3M Scotchlok Seamless Vinyl Insulated Butt Connector, MV18BCX
3M 7000133318 Features
- Seamless vinyl insulated barrel for a secure fit and reliable performance
- Connects to a pre stripped end of stranded wire
- Built in wire stop helps ensure correct wire positioning
- Electrolytic copper terminal with tin plating for conductivity and corrosion resistance
- Temperature range -40 to 221 Degree F (-40 to 105 Degree C)
- UL Listed, CSA Certified, and RoHS 2011/65/EU compliant
- Color coded red for quick wire size identification
- Chamfered barrel ends for faster and easier wire insertion
3M 7000133318 Specifications
| Connector Type | Butt |
| Insulation Material | Vinyl |
| Body Material | Copper Alloy |
| Color | Red |
| Minimum Conductor Size | 22 AWG |
| Maximum Conductor Size | 18 AWG |
| Maximum Operating Temperature | 105 Degree Celsius |
| Overall Length | 1.02 in |
| Certifications | UL Listed; CSA Certified; RoHS 2011/65/EU Compliant |
| Case Quantity | 500 connectors |
| Bottle Quantity | 100 connectors |
