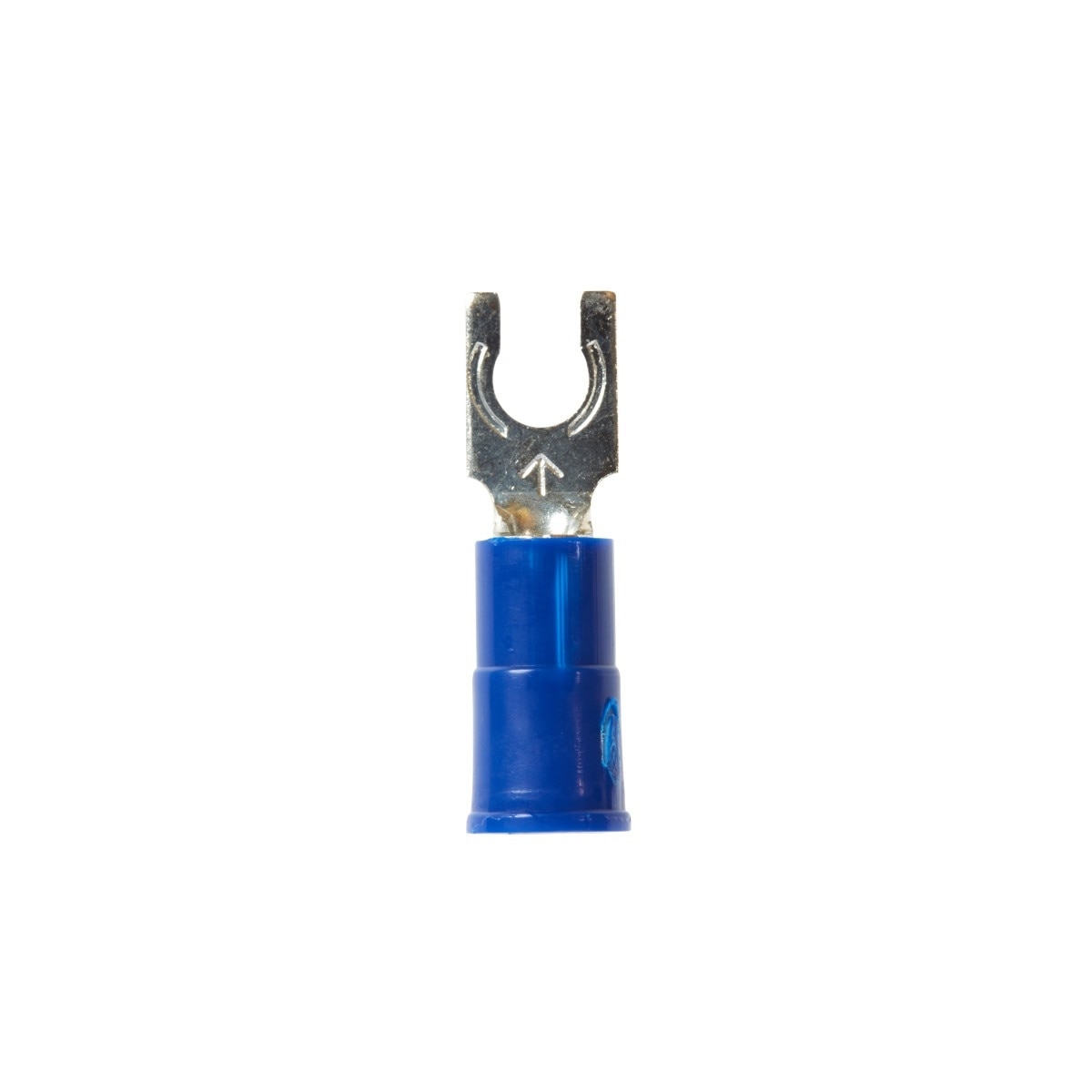

3M MV14-6FLX Scotchlok Locking Fork Vinyl Insulated, spring-like tongue firmly fits around the stud (7000133369)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MV14-6FLX Scotchlok Locking Fork Vinyl Insulated, spring-like to...
Description
Description
3M 7000133369 Description
3M Scotchlok locking fork terminal provides a secure lug connection with a spring-like tongue that locks around the stud. The vinyl-insulated brazed-seam barrel supports easy wire insertion and helps resist corrosion with its tin-plated electrolytic copper construction.
3M 7000133369 Includes
- (100) Scotchlok Locking Fork Vinyl Insulated Terminals (MV14-6FLX)
3M 7000133369 Features
- Spring-like tongue securely locks around the stud
- Vinyl-insulated brazed-seam barrel for a secure fit and reliable performance
- Funnel-designed polyvinyl chloride sleeve helps guide wire for easy insertion
- Electrolytic copper construction for good conductivity
- Tin-plated finish helps resist corrosion
- Temperature range -40 to 221 Degree F (-40 to 105 Degree C)
- 600V rated for building wire; 1000V rated for signs fixtures or luminaires
- UL Listed, CSA Certified, and RoHS compliant
3M 7000133369 Specifications
| Part Number | MV14-6FLX |
| Terminal Type | Fork |
| Fork Type | Locking |
| Stud Size | #6 |
| Color | Blue |
| Insulation Material | Vinyl |
| Barrel Style | Brazed |
| Wire Range | 16 to 14 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree F |
| Overall Length | 0.88 in |
| Overall Width | 0.25 in |
| Certifications | UL Listed; CSA Certified; RoHS 2011/65/EU Compliant |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
