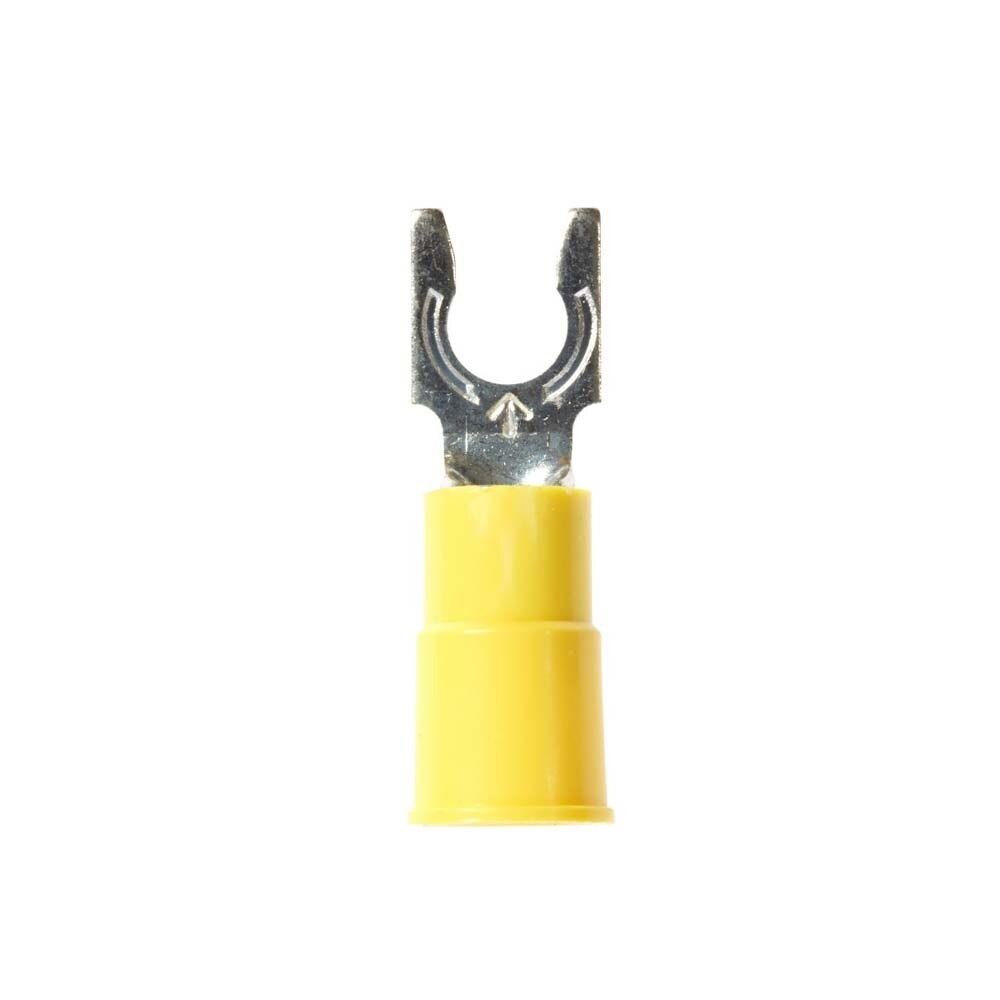

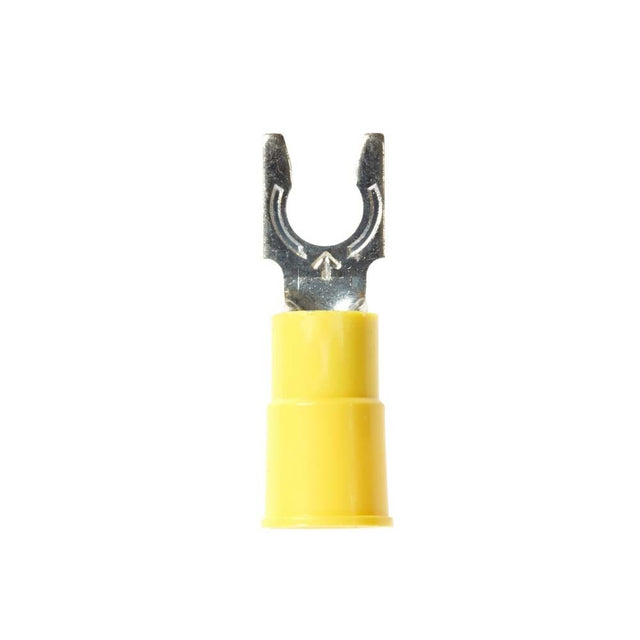

3M MV10-10FLX Scotchlok Locking Fork Vinyl Insulated, spring-like tongue firmly fits around the stud (7010320678) (50 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MV10-10FLX Scotchlok Locking Fork Vinyl Insulated, spring-like t...
Description
Description
3M 7010320678 Description
3M Scotchlok vinyl-insulated locking fork terminal features a spring-like tongue that firmly fits around a #10 stud for a secure connection. Made of electrolytic copper with a tin-plated finish and brazed-seam barrel for durability and corrosion resistance.
3M 7010320678 Includes
- (50) Locking fork vinyl-insulated terminals
3M 7010320678 Features
- Locking fork design with spring-like tongue for secure stud engagement
- Vinyl-insulated, brazed-seam barrel for reliable crimping
- Electrolytic copper construction with tin-plated finish resists corrosion
- Color-coded for quick wire size identification
- Rated for -40 to 221 Degree F applications
- Suitable for 600V building wire and 1000V signs/luminaires
- UL Listed and CSA Certified
3M 7010320678 Specifications
| Terminal Type | Fork |
| Terminal Style | Locking |
| Stud Size | #10 |
| Conductor Size (Imperial) | 10-12 AWG |
| Insulation Material | Vinyl |
| Overall Length (Imperial) | 1.03 in |
| Overall Width (Imperial) | 0.32 in |
| Maximum Lock Width | 0.36 in |
| Barrel Inside Diameter | 0.135 in |
| Barrel Style | Brazed |
| Clearance (C) | 0.28 in |
| Dimension E | 0.83 in |
| Temperature Range | -40 to 221 Degree F |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| RoHS | Compliant |
