3M MTI18-250Q Highland Nylon Fully Insulated Male Disconnect Terminal AWG 22-18 (7000133669) (250 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MTI18-250Q Highland Nylon Fully Insulated Male Disconnect Termin...
Description
Description
3M 7000133669 Description

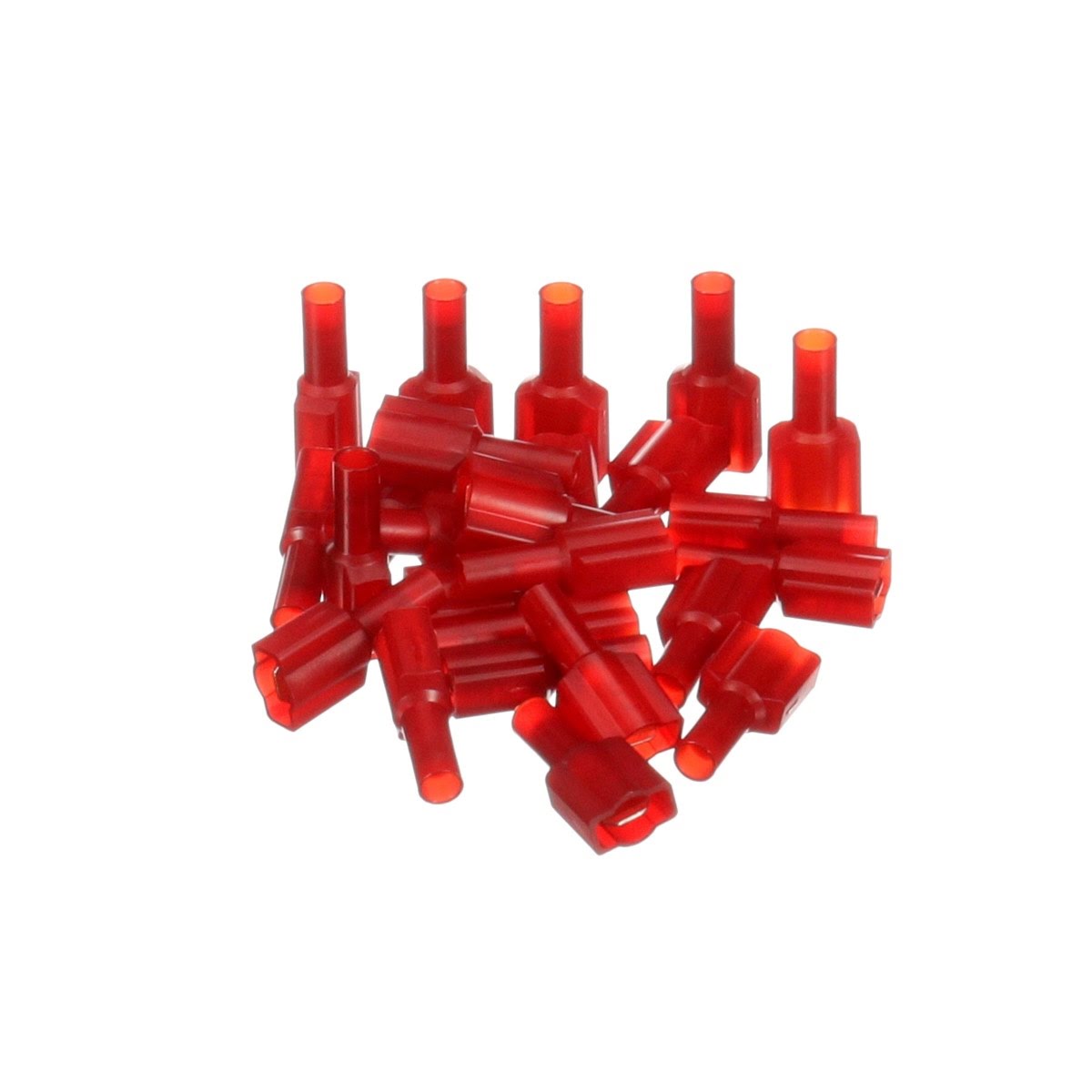

3M Highland nylon fully insulated male disconnect terminal provides a secure crimp connection with quick disconnect capability. Designed for AWG 22 to 18 conductors, it features a butted seam barrel and corrosion resistant tin plated electrolytic copper construction for reliable electrical performance.
3M 7000133669 Includes
- (250) - 3M 7000133669 C3SD Nylon Fully Insulated Male Disconnect Terminal MTI18-250Q, AWG 22-18
3M 7000133669 Features
- Male quick disconnect terminal enables fast connect and disconnect
- Fully insulated nylon sleeve with flared design helps resist abrasion
- Butted seam barrel provides electrical contact after crimping
- Electrolytic copper construction offers good conductivity
- Tin plated finish helps resist corrosion
- Rated for 22 AWG to 18 AWG conductors
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
- Operating temperature range: -40 to 221 Degree F
3M 7000133669 Specifications
| Brand | 3M Highland |
| Part Number | MTI18-250Q |
| Terminal Type | Disconnect |
| Disconnect Type | Male |
| Terminal Style | Fully Insulated |
| Wire Range | 22 to 18 AWG |
| Connection Width | 0.25 in |
| Tab Width | 0.250 |
| Barrel Style | Butted |
| Barrel Length | 0.25 in |
| Barrel Inside Diameter | 0.065 in |
| Insulation Material | Nylon |
| Maximum Recommended Voltage Rating | 600 V |
| Overall Length | 0.95 in |
| Overall Width | 0.44 in |
| Overall Diameter | 0.3 in |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| Package Quantity | 25 per bag |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
