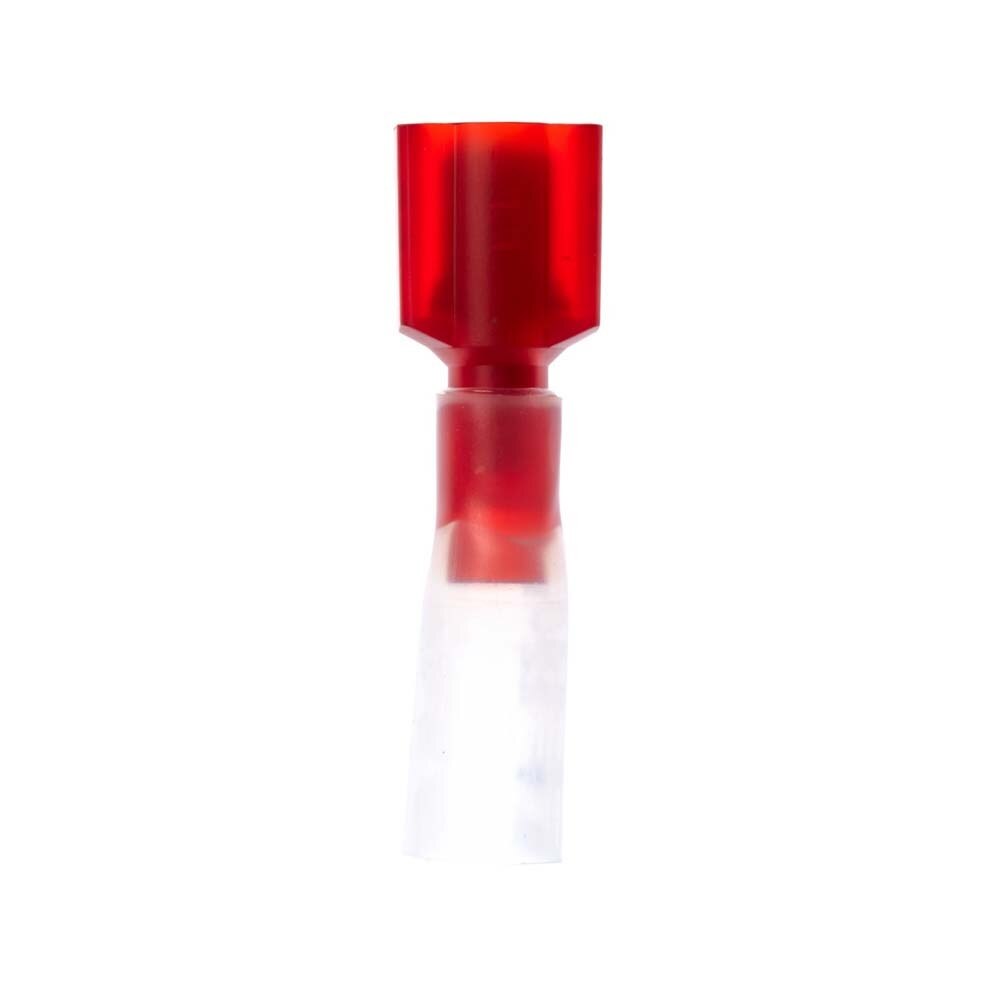

3M MNU18-250DMIX Scotchlok Male Disconnect Nylon Insulated, 22-18 AWG (7000058836) (50 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MNU18-250DMIX Scotchlok Male Disconnect Nylon Insulated, 22-18 A...
Description
Description
3M 7000058836 Description
Nylon-insulated Scotchlok male disconnect terminals for 22-18 AWG provide quick, secure connections with excellent holding force and corrosion-resistant tin plating.
3M 7000058836 Includes
- (50) Scotchlok Male Disconnect Nylon Insulated terminals
3M 7000058836 Features
- Nylon-insulated, butted-seam barrel for easy wire insertion
- Designed for quick disconnect applications
- For 22-18 AWG wire range
- Electrolytic copper with corrosion-resistant tin plating
- Rated up to 600V
- Operating temperature range -40 to 221 Degree Fahrenheit
- Red insulation for easy identification
- UL Listed and CSA Certified
3M 7000058836 Specifications
| Terminal Type | Disconnect |
| Disconnect Type | Male |
| Wire Range | 22-18 AWG |
| Insulation Material | Nylon |
| Insulation Color | Red |
| Barrel Style | Butted |
| Overall Length | 0.95 in |
| Overall Width | 0.44 in |
| Overall Diameter | 0.3 in |
| Male Tab Width | 0.250 in |
| Maximum Recommended Voltage Rating | 600 V |
| Operating Temperature Range | -40 to 221 Degree Fahrenheit |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| RoHS | Compliant |
| Package Quantity | 50 |
