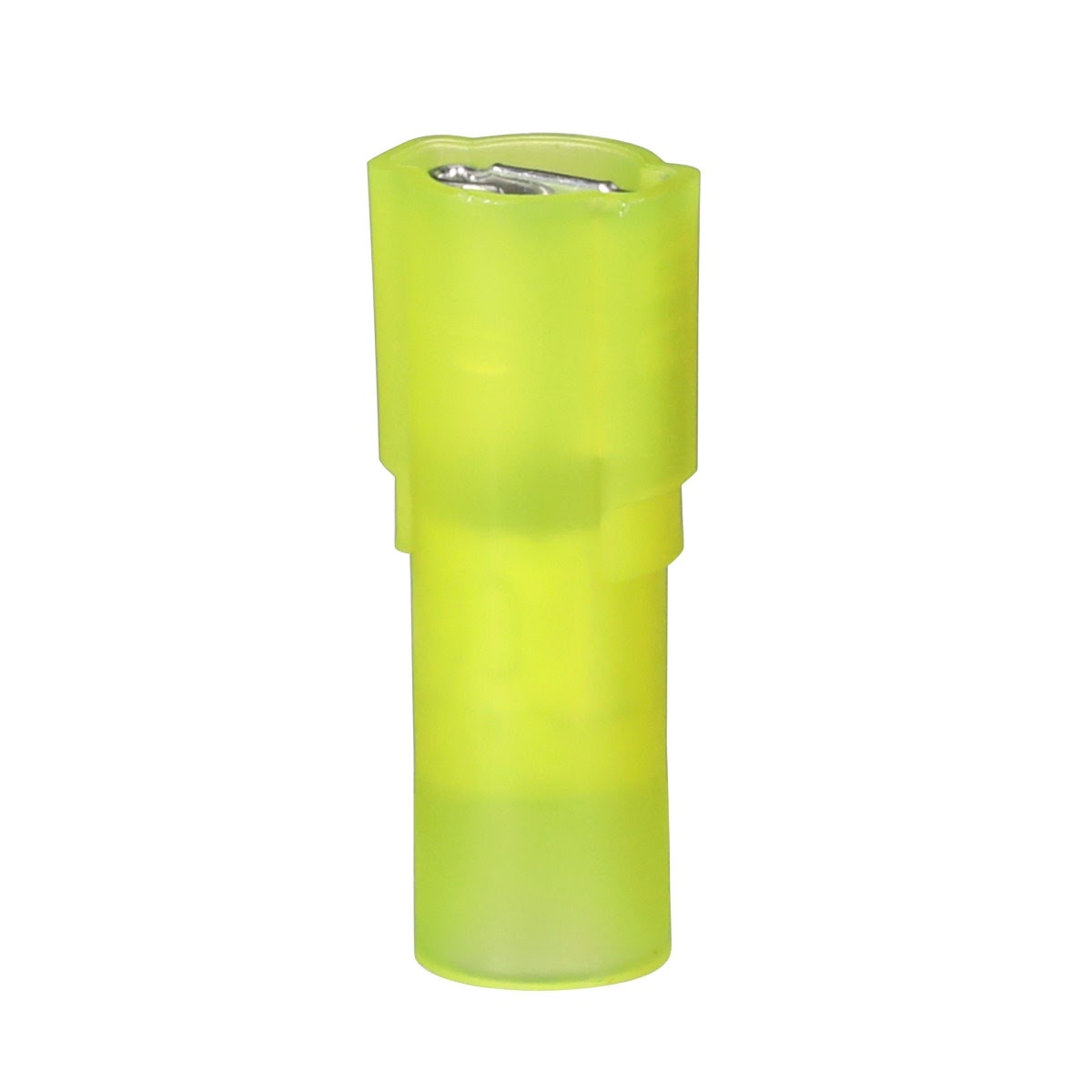

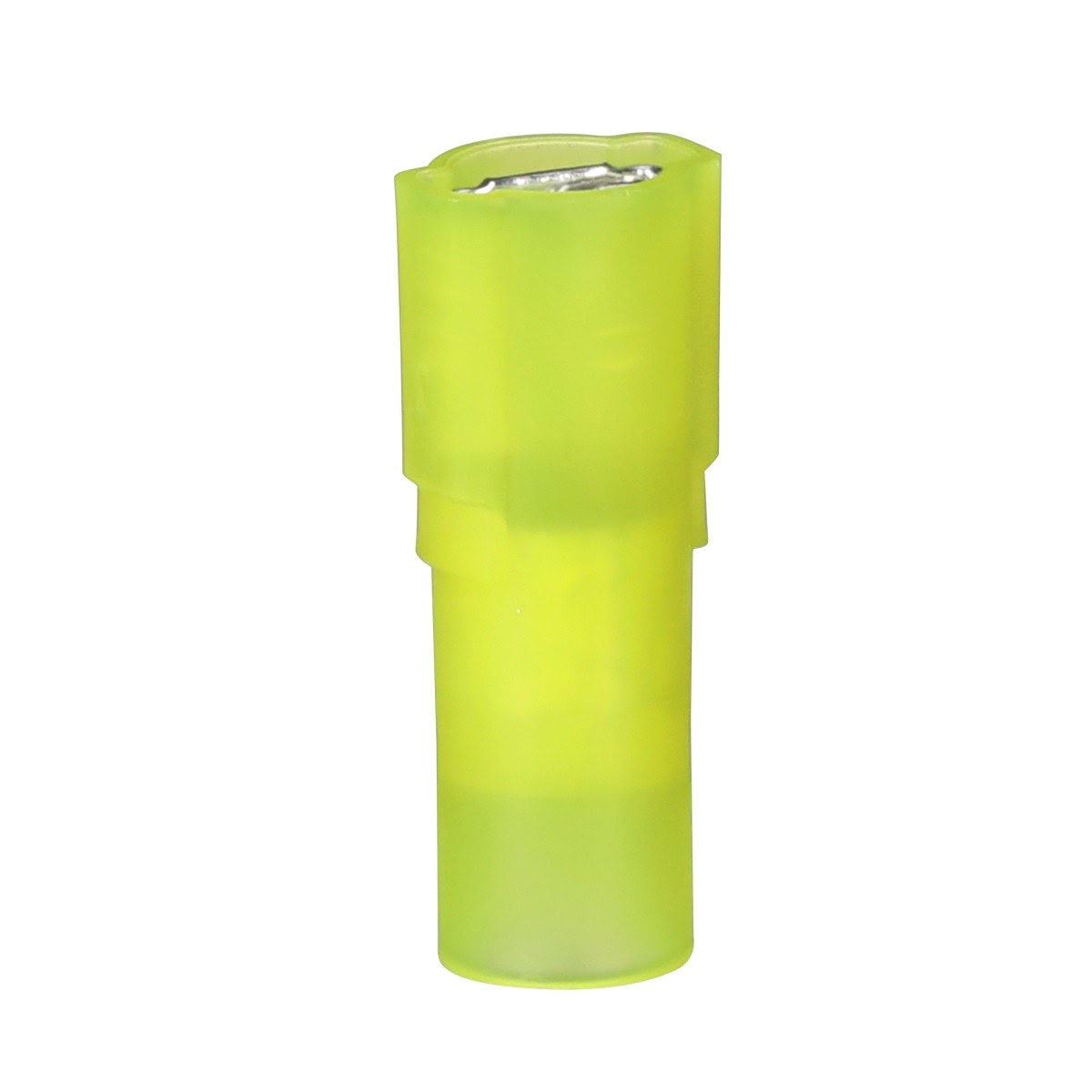

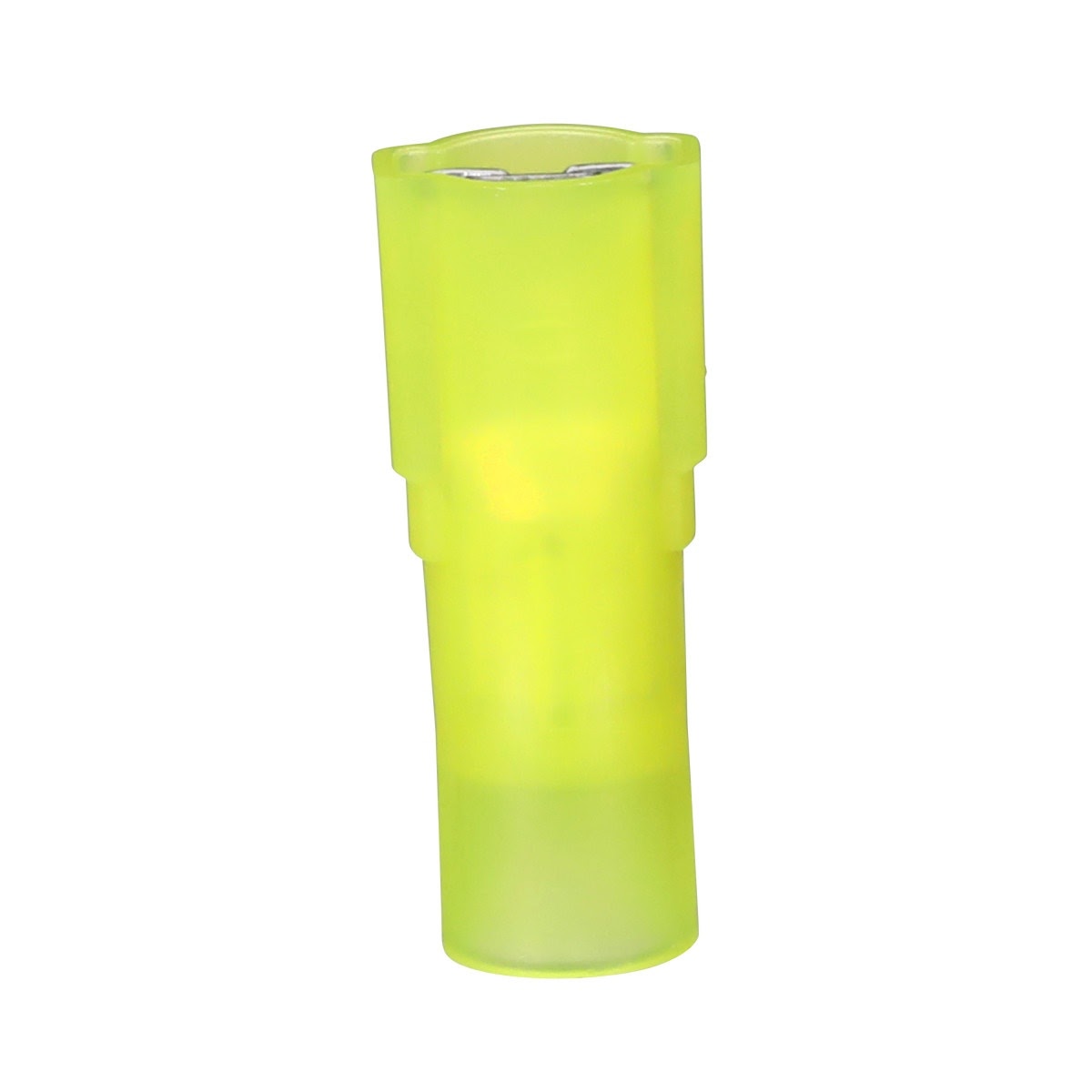

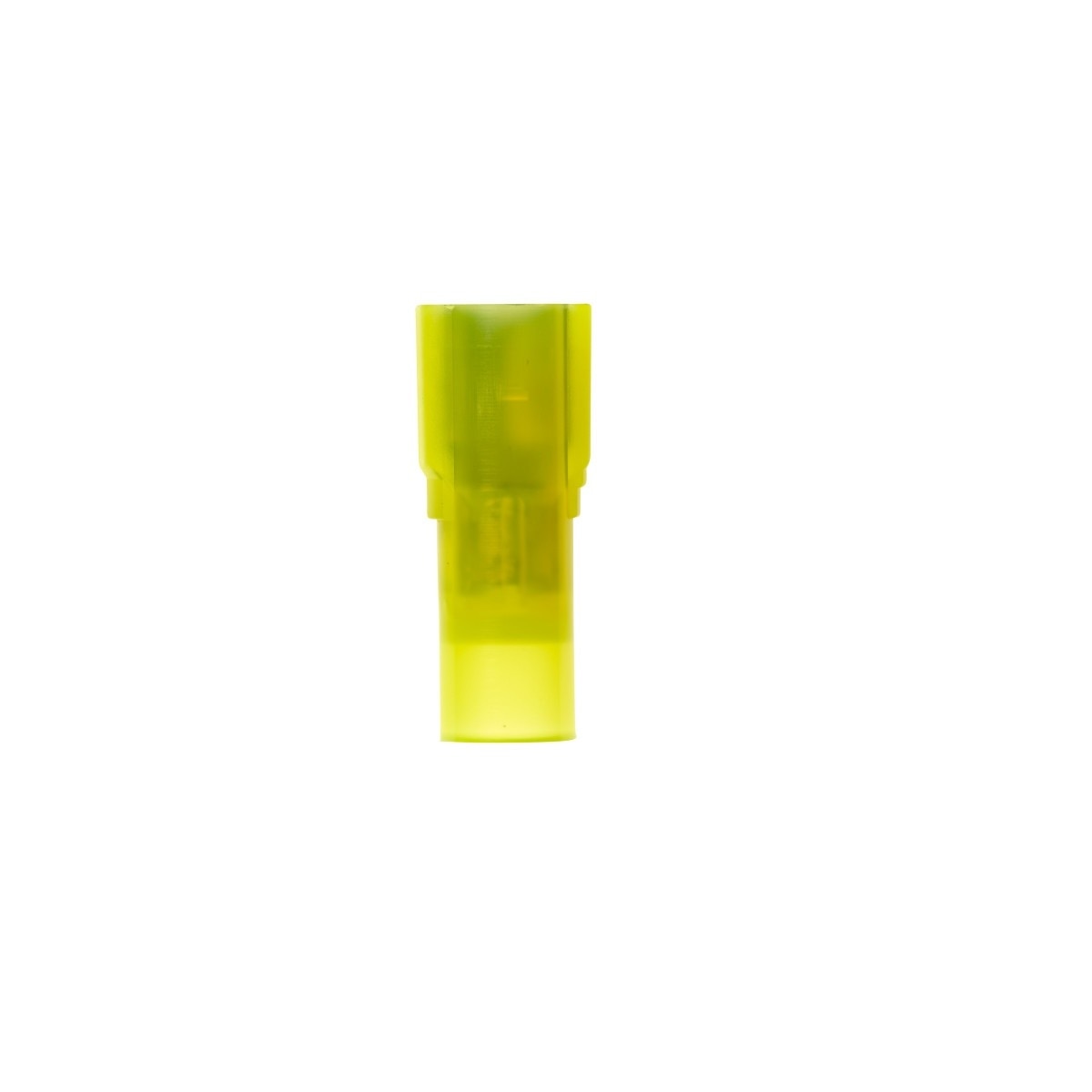

3M MNI10-250DFIX Scotchlok Female Disconnect Nylon Insulated, (7000133400) (500 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MNI10-250DFIX Scotchlok Female Disconnect Nylon Insulated, (7000...
Description
Description
3M 7000133400 Description

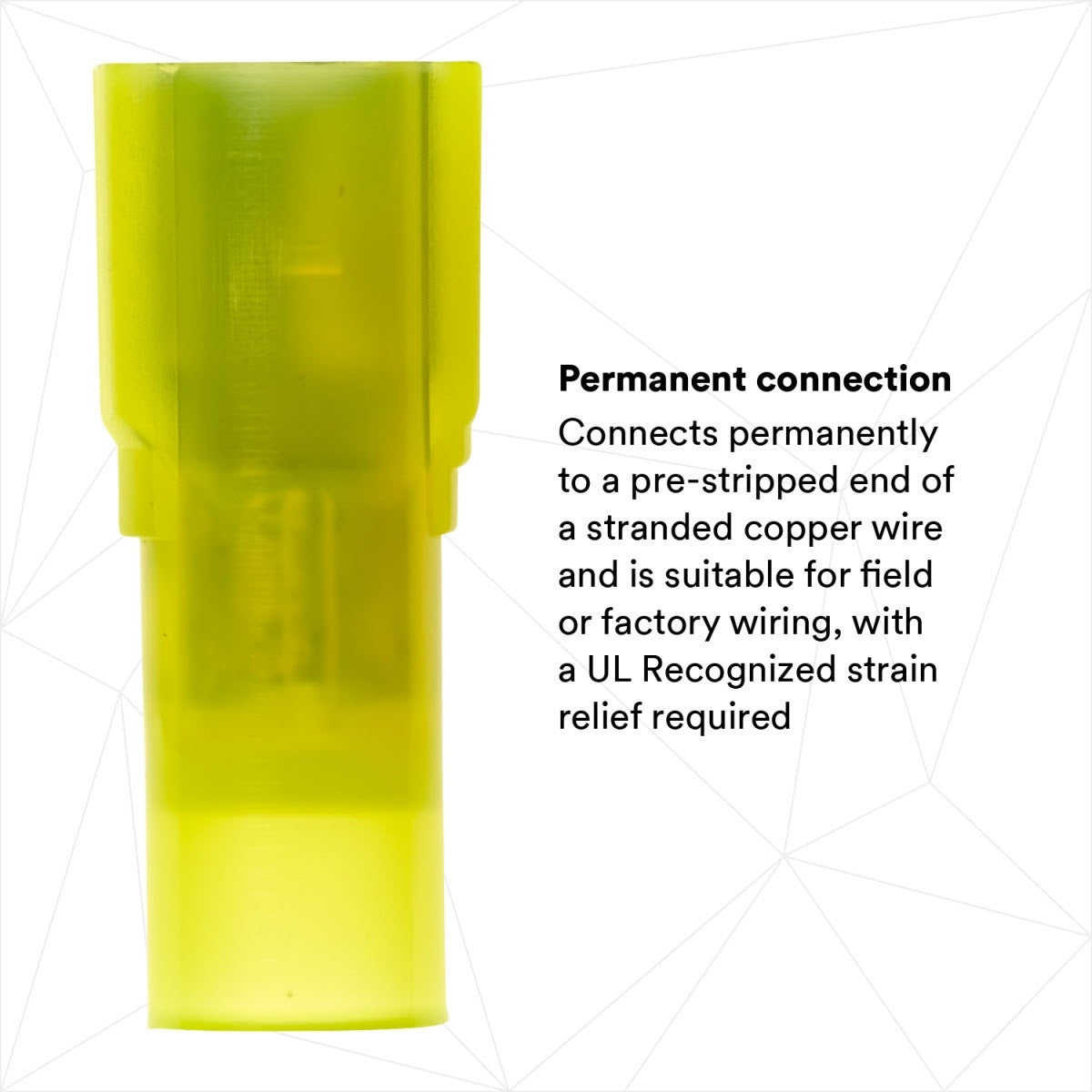

3M Scotchlok female disconnect terminals provide a quick connect solution for stranded copper wire. The fully insulated nylon sleeve and interlocking barrel help support reliable crimp connections, and the 0.25 in tab size enables quick and easy disconnects in wiring applications.
3M 7000133400 Includes

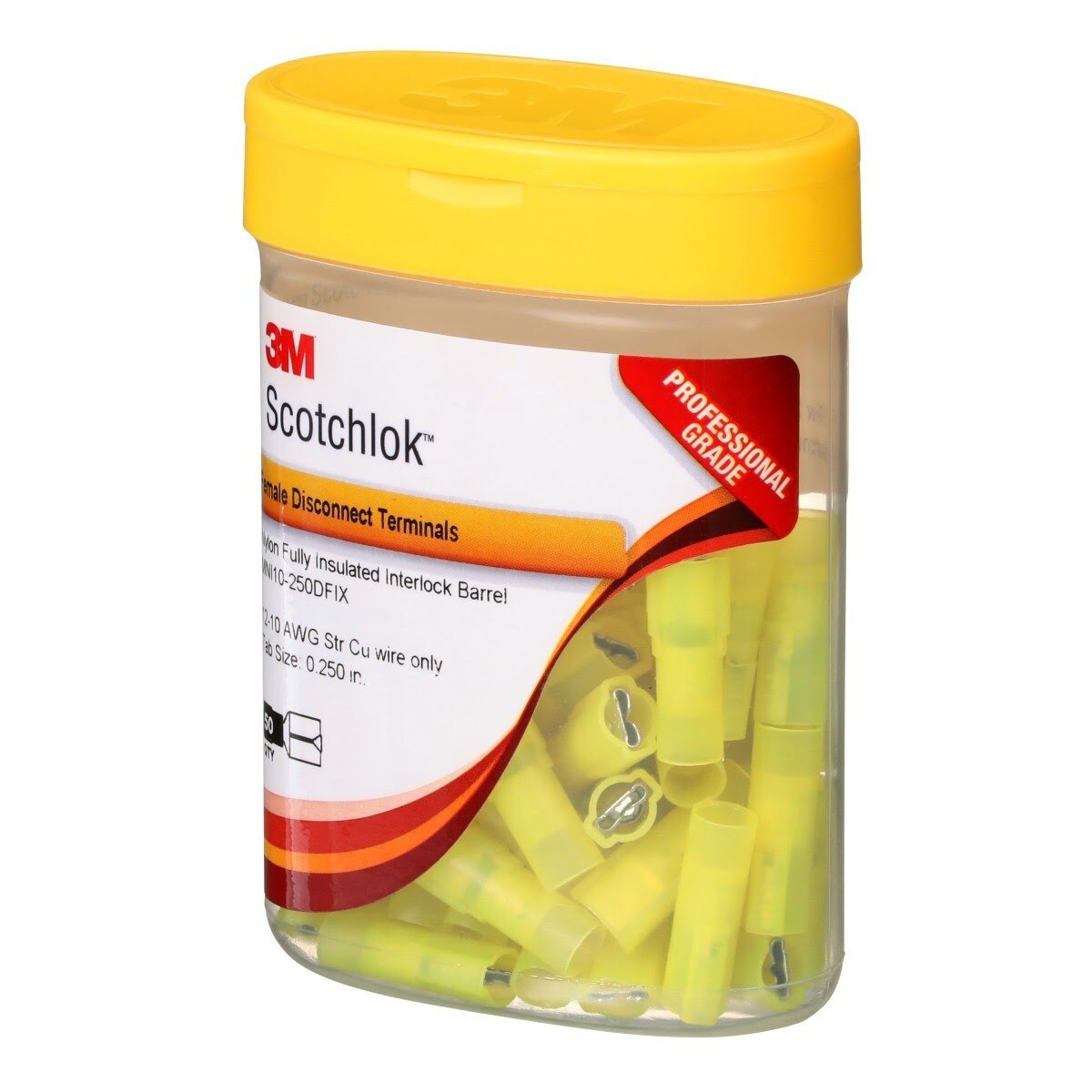

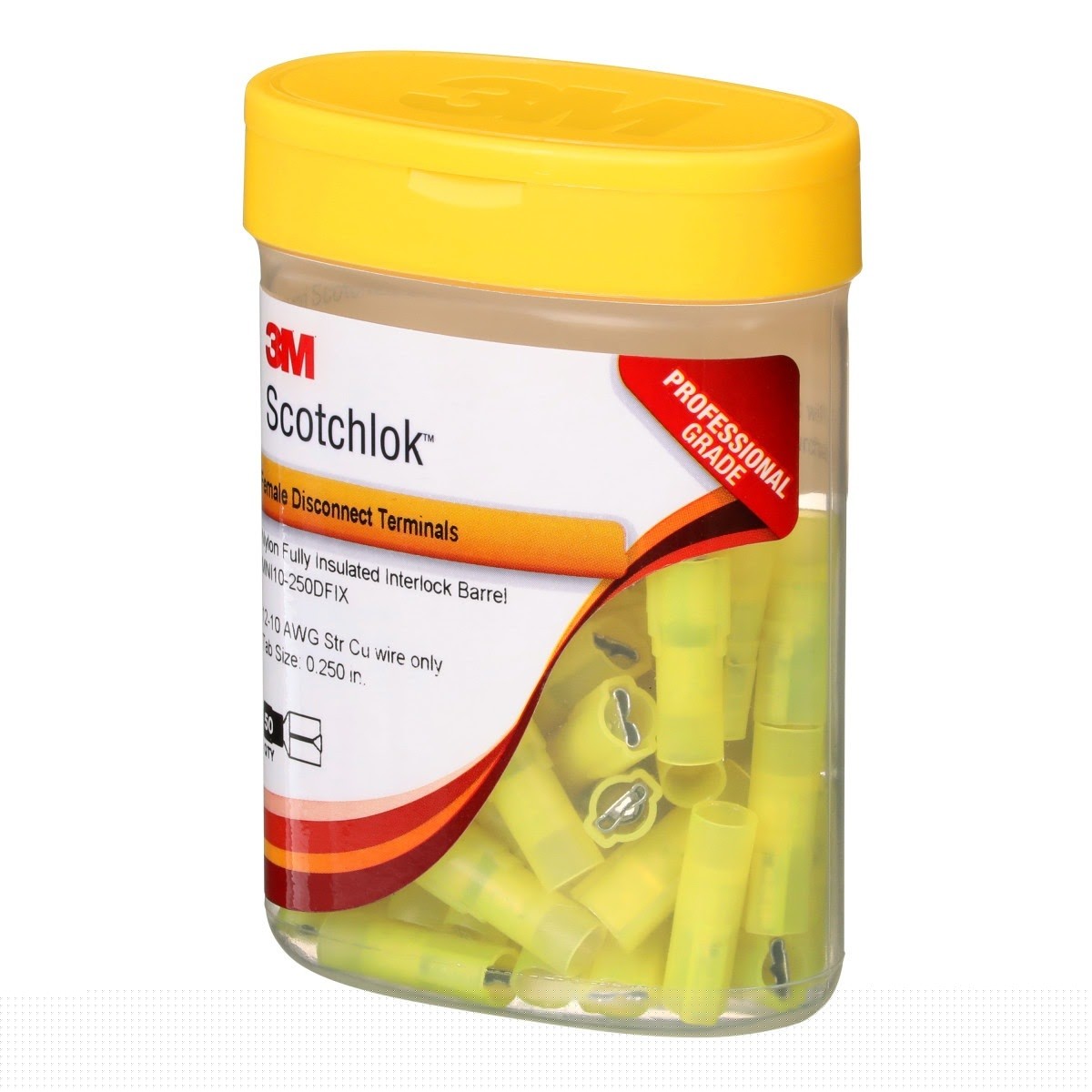

- (500) 3M Scotchlok Female Disconnect Terminals, Nylon Insulated, Yellow, 12-10 AWG, 0.25 in Tab (MNI10-250DFIX)
3M 7000133400 Features
- Nylon insulated, fully insulated terminal design
- Female disconnect for quick and easy wire disconnection
- Interlocking barrel, butted seam construction
- Mates with 0.25 in wide male tab
- For 12-10 AWG stranded copper wire
- Rated 600V for building wire applications
- Withstands -40 to 221 Degree Fahrenheit operating temperatures
- Tin plated finish helps resist corrosion

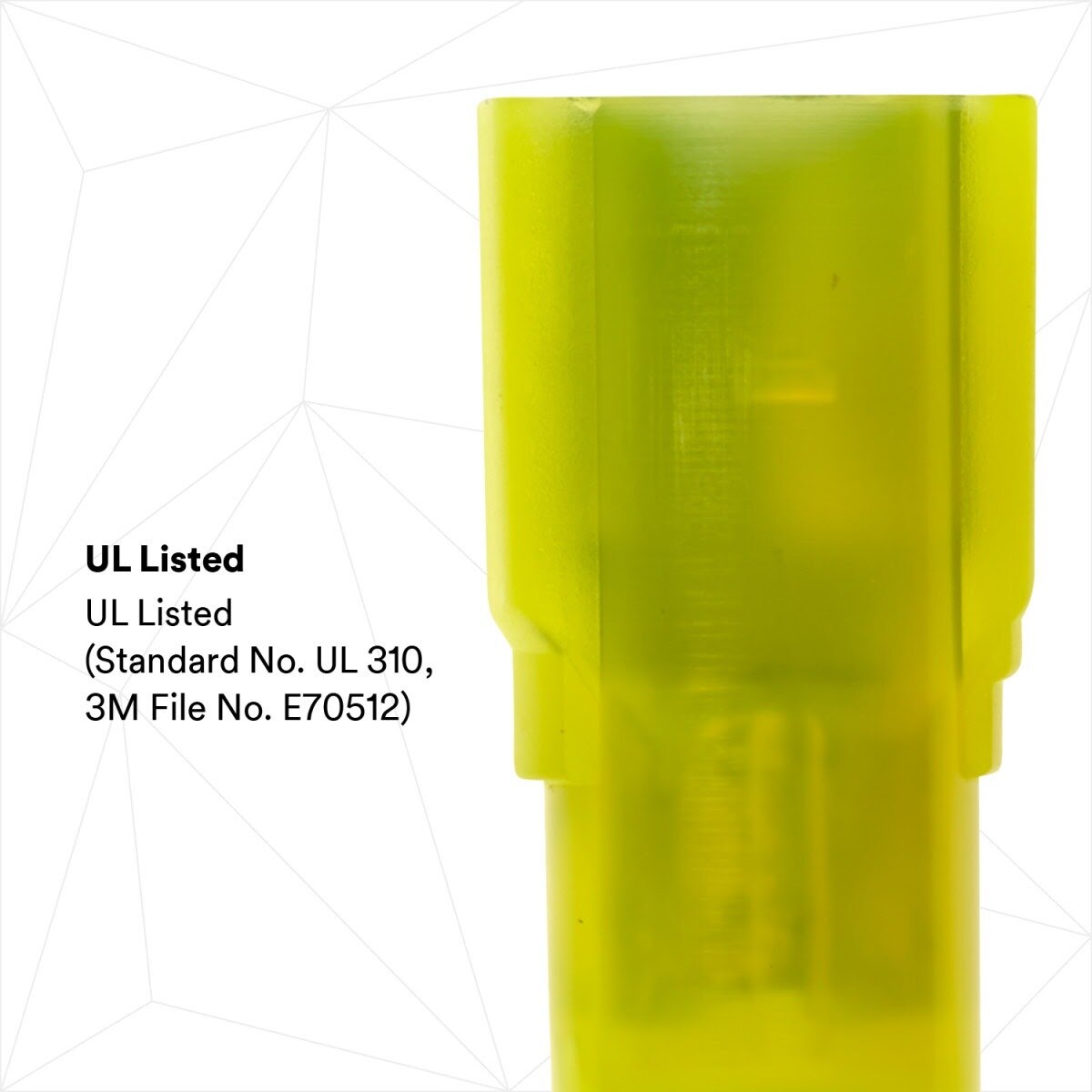

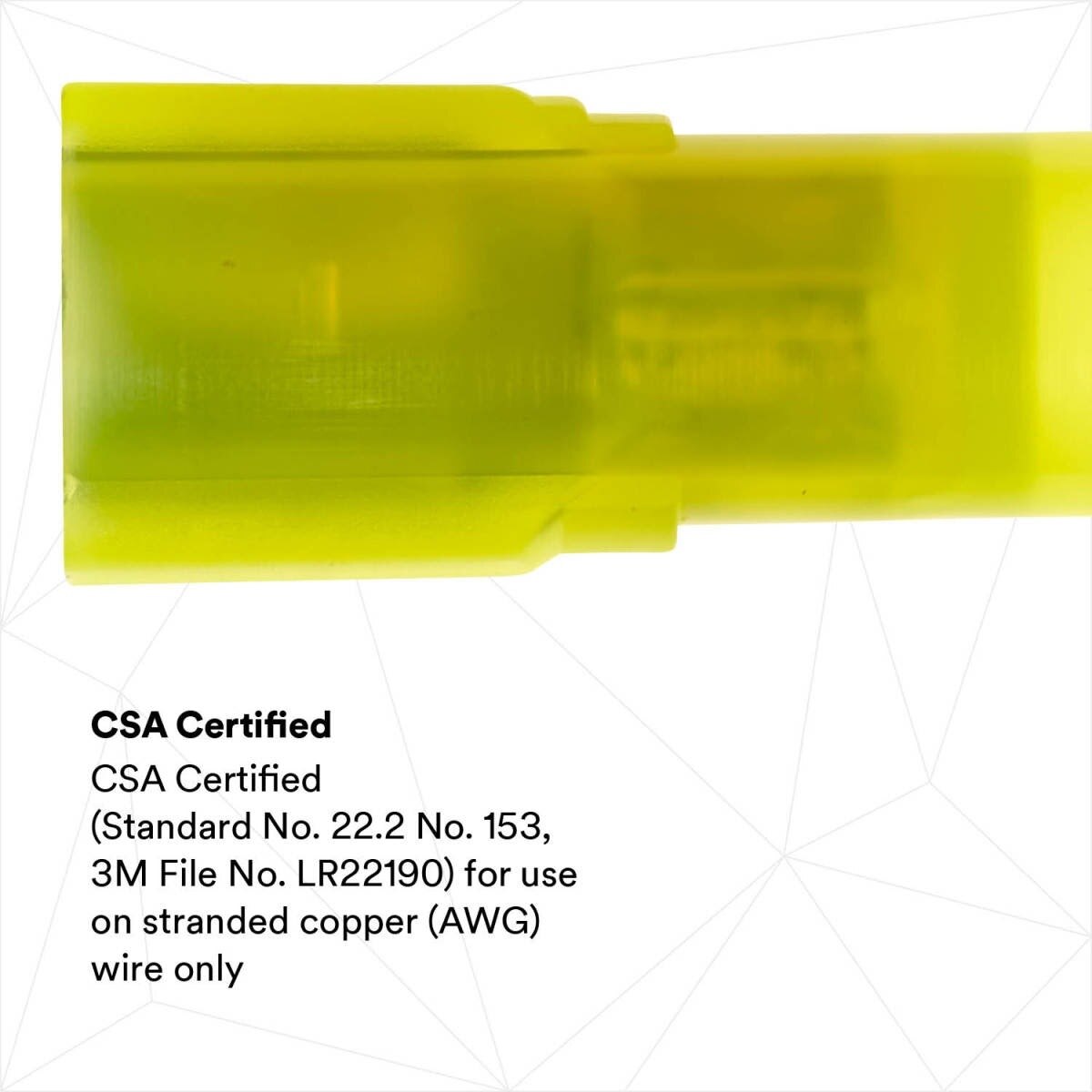

- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000133400 Specifications
| Sub Brand | Scotchlok |
| Secondary Part Number | MNI10-250DFIX |
| Disconnect Type | Female |
| Terminal Type | Disconnect |
| Terminal Style | Fully Insulated |
| Insulation Material | Nylon |
| Insulation Color | Yellow |
| Barrel Style | Interlocking Barrel |
| Connection Width | 0.25 in |
| Tab Width | 0.250 in |
| Wire Size Range | 12-10 AWG |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 221 Degree Fahrenheit |

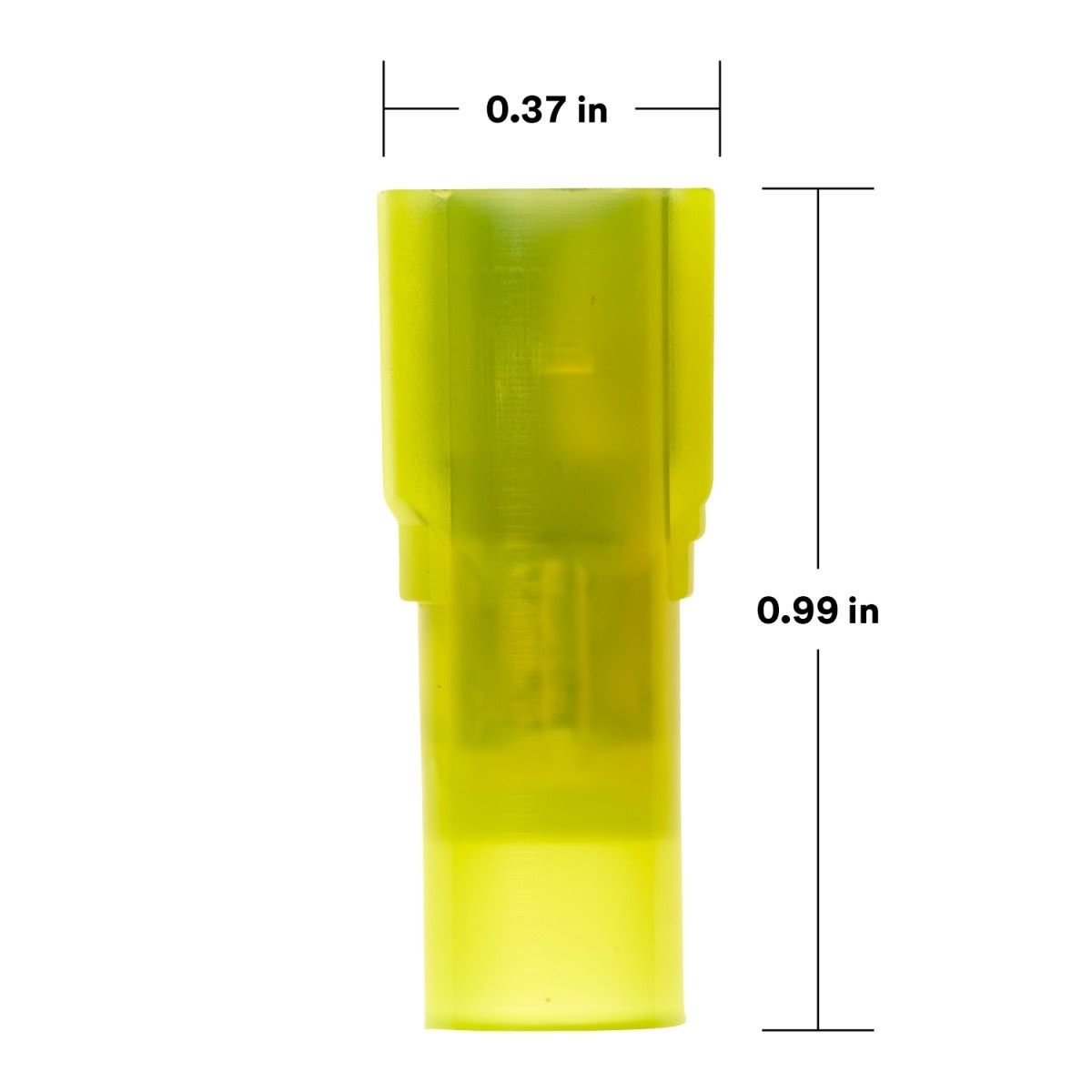

| Overall Length | 0.99 in |
| Overall Width | 0.37 in |
| Case Quantity | 500 |
| Bottle Quantity | 50 |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
