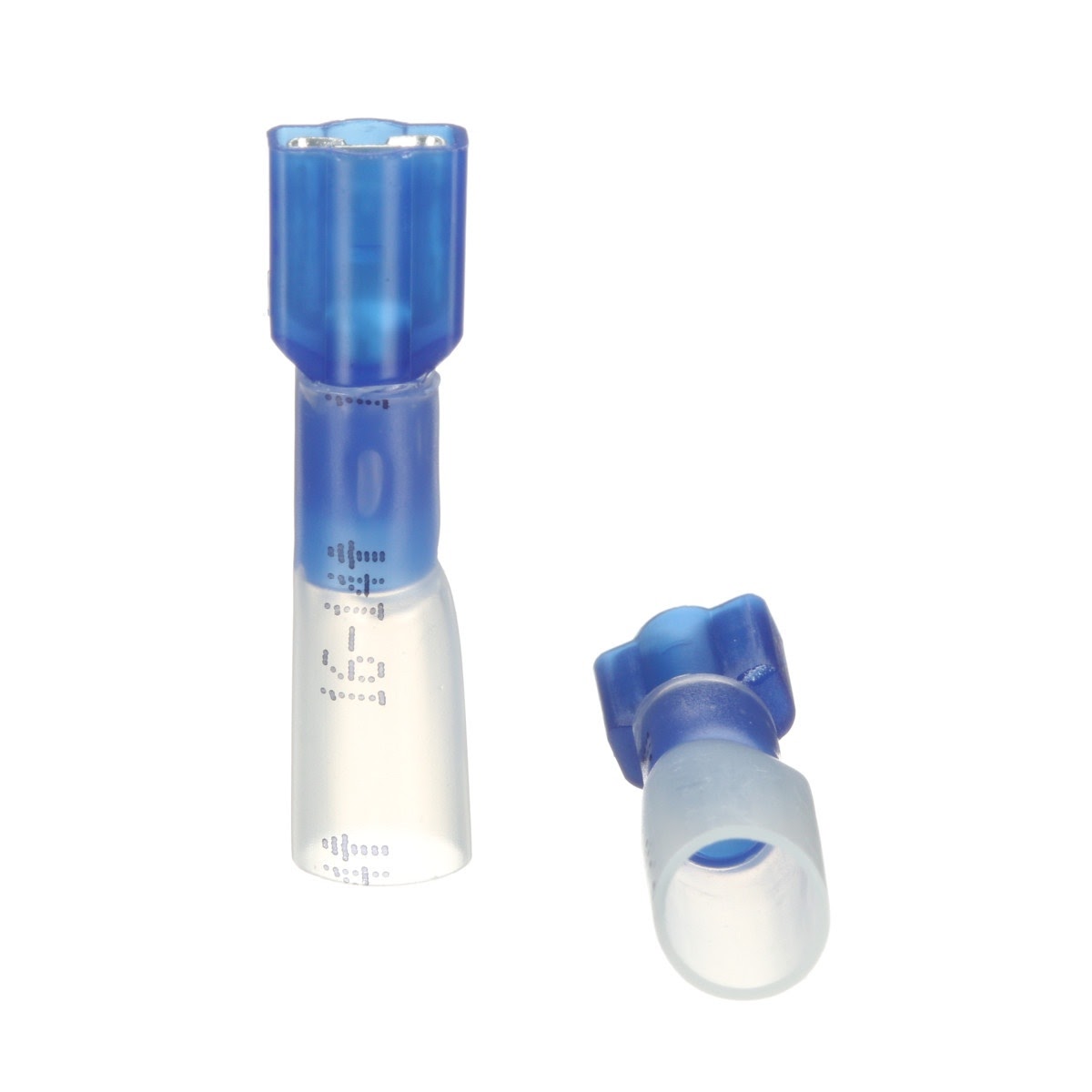

3M MNHU14-250DFIX Scotchlok Female Disconnect Heatshrink Nylon Insulated, (7000133391) (125 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MNHU14-250DFIX Scotchlok Female Disconnect Heatshrink Nylon Insu...
Description
Description
3M 7000133391 Description
3M Scotchlok heat shrink female disconnect terminal provides a secure, moisture resistant connection with adhesive lined polyolefin insulation and a durable tin plated brass construction for corrosion resistance. Designed to mate with a 0.25 in male tab and suitable for 16 to 14 AWG wire applications.
3M 7000133391 Includes
- (125) Scotchlok Female Disconnect Heatshrink Nylon Insulated Terminals
3M 7000133391 Features
- Dents and rolled edges provide excellent holding force
- Adhesive lined polyolefin heat shrink insulation helps seal against water and salt
- Mates with 0.25 in wide male tab
- Durable brass construction with corrosion resistant tin plating
- Maximum operating temperature 221 Degree Fahrenheit (105 Degree Celsius)
- Rated 600 V for building wire and 1000 V for signs fixtures or luminaires
- UL Listed CSA Certified and RoHS compliant
3M 7000133391 Specifications
| Sub Brand | Scotchlok |
| Part Number | MNHU14-250DFIX |
| Disconnect Type | Female |
| Terminal Style | Fully Insulated |
| Insulation Material | Heat Shrink |
| Color | Blue |
| Connection Width | 0.25 in (6.35 mm) |
| Wire Range | 16 AWG to 14 AWG (1.5 to 2.5 mm2) |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius (221 Degree Fahrenheit) |
| Material | ETP Copper |
| Case Quantity | 125 |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
