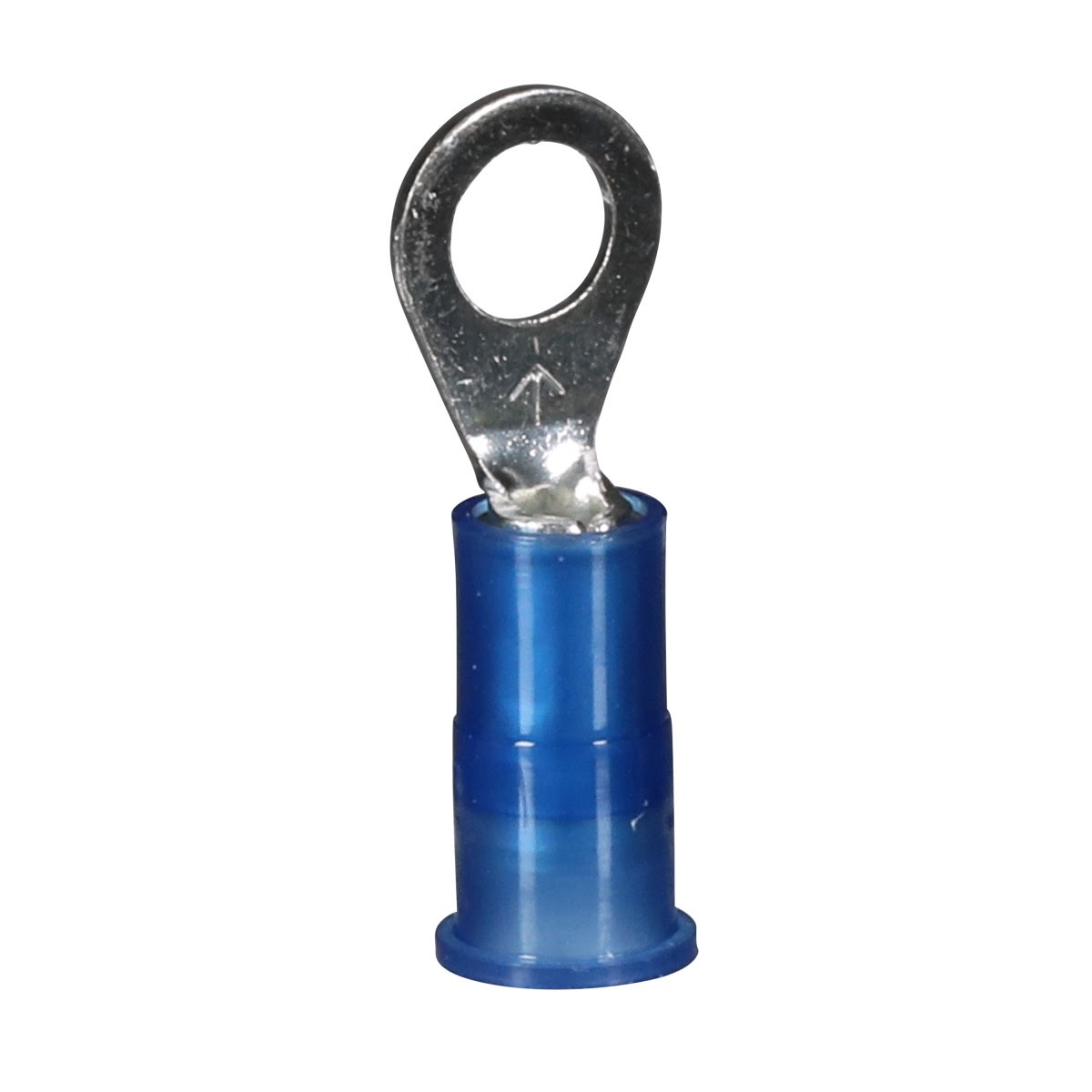

3M MNG14-10RX Scotchlok Ring Nylon Insulated, standard-style ring tongue fits around the stud (7000133416)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M MNG14-10RX Scotchlok Ring Nylon Insulated, standard-style ring t...
Description
Description
3M 7000133416 Description

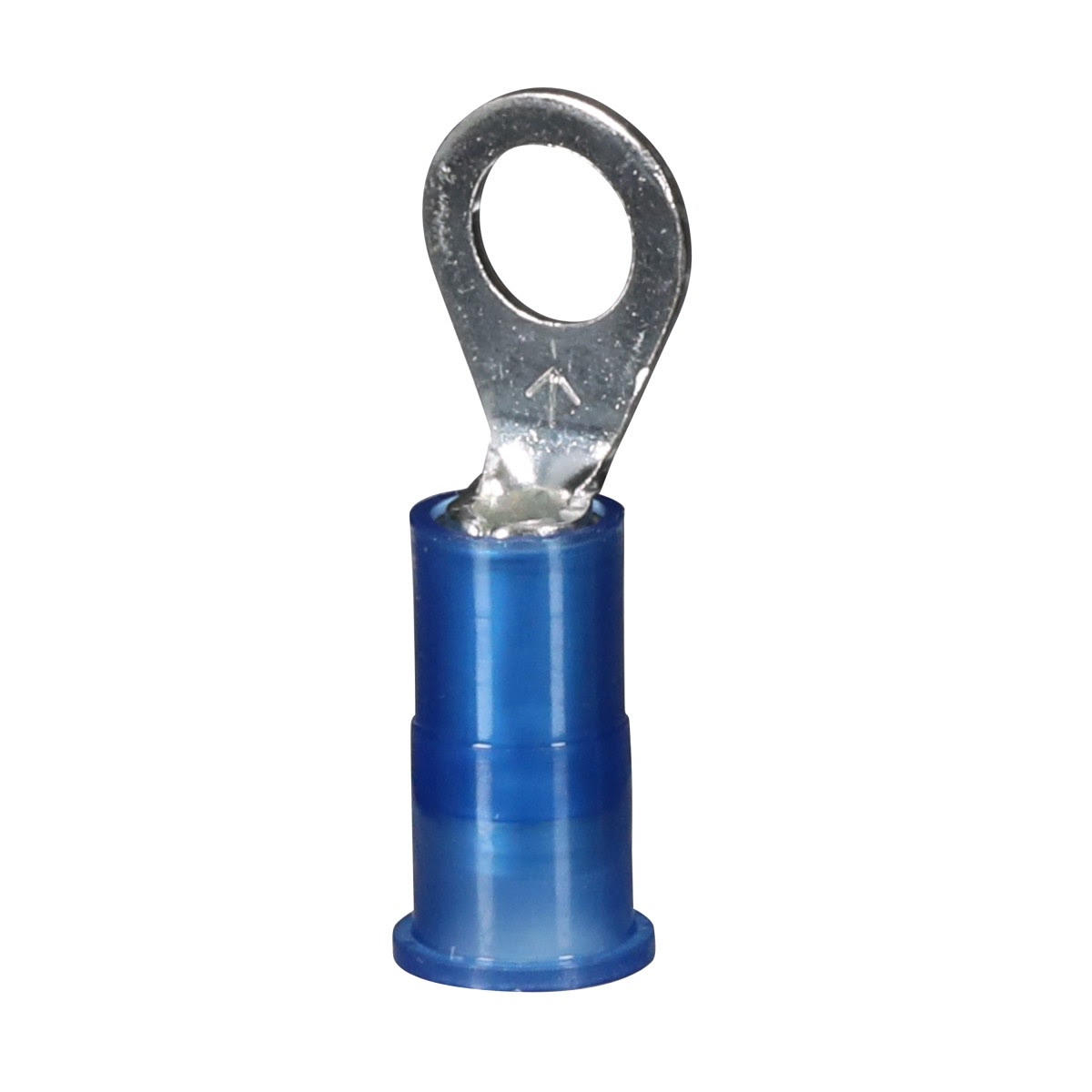

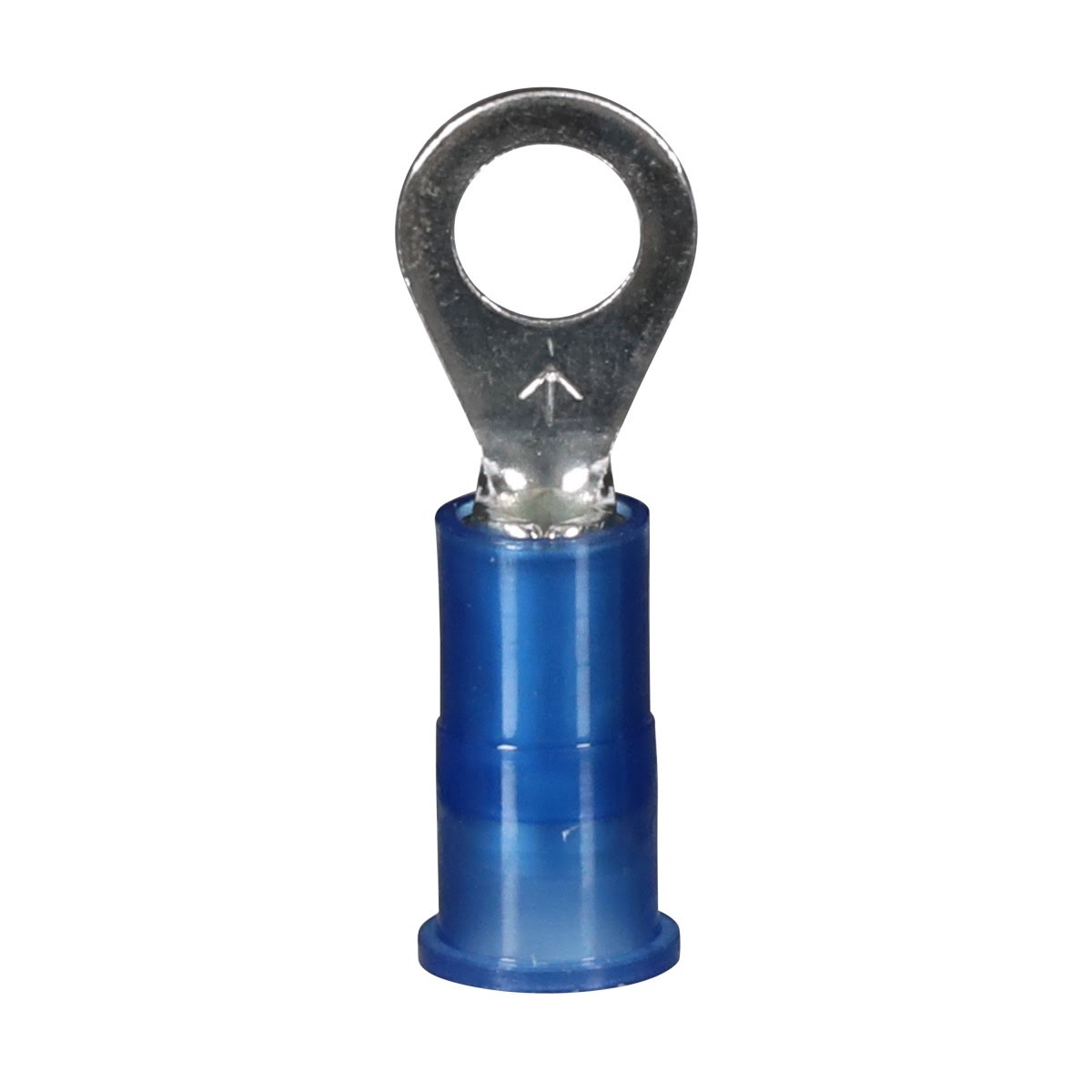

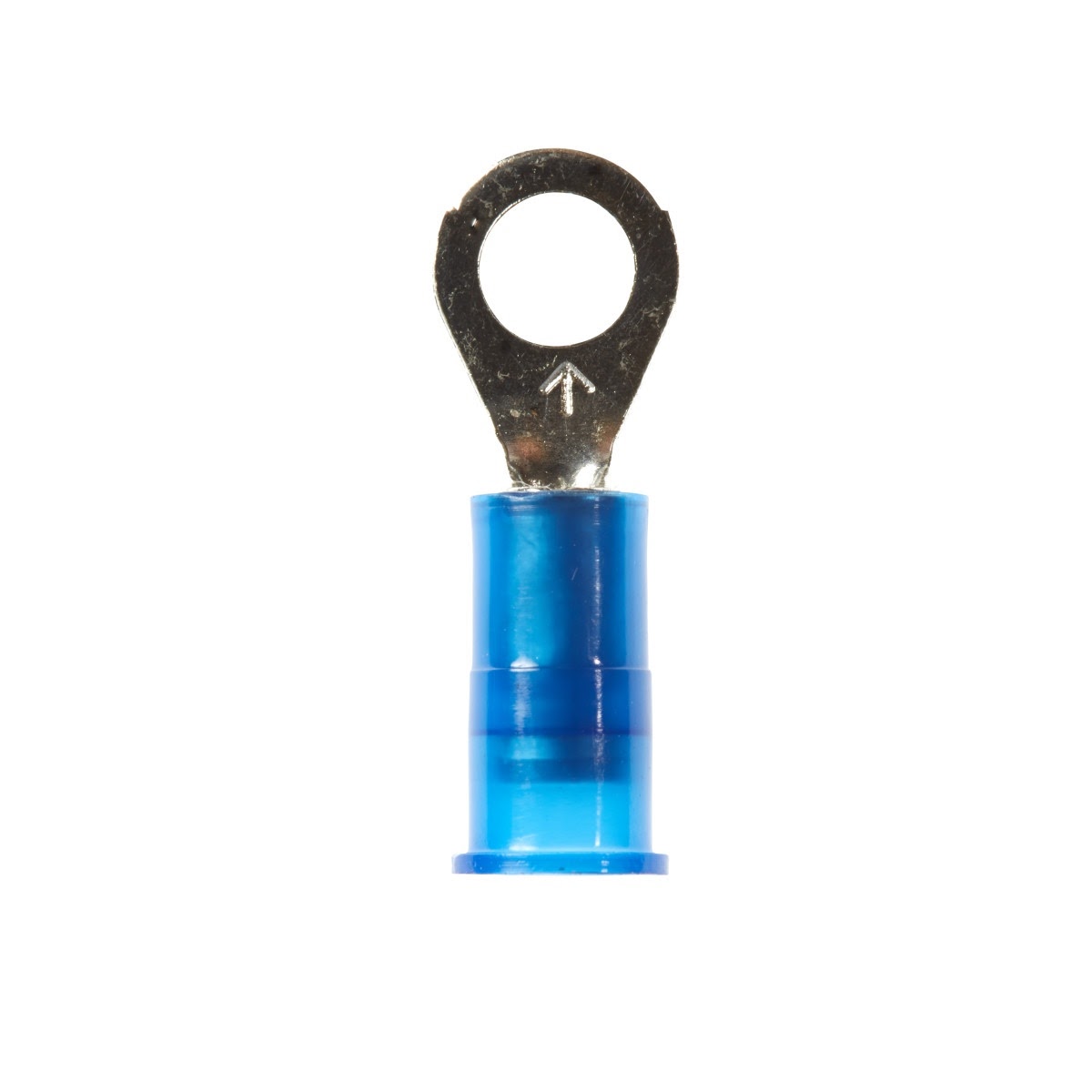

3M Scotchlok ring tongue terminals provide reliable crimp connections with a nylon insulated butted seam barrel and a standard style ring tongue that fits around a stud. Made from electrolytic copper with a tin plated finish for good conductivity and corrosion resistance.
3M 7000133416 Includes

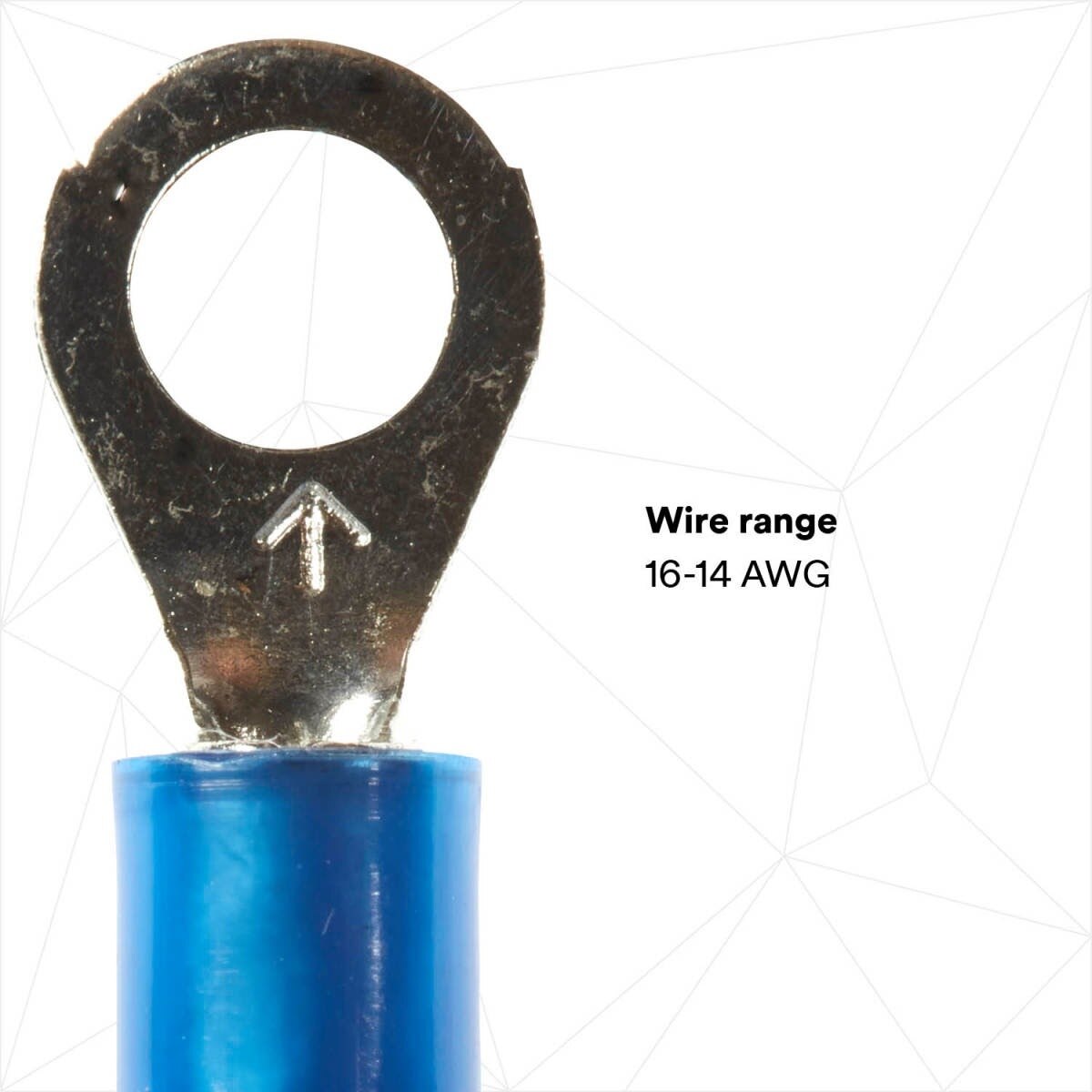

- (100) Ring Tongue Terminal, Nylon Insulated, Blue, 16-14 AWG, Stud Size 10, MNG14-10RX (in canister)
3M 7000133416 Features
- Nylon insulated butted seam barrel for secure crimp connections
- Funnel designed seamless brass sleeve helps guide wire into position
- Standard style ring tongue fits around the stud
- Electrolytic copper construction for good conductivity
- Tin plated finish resists corrosion

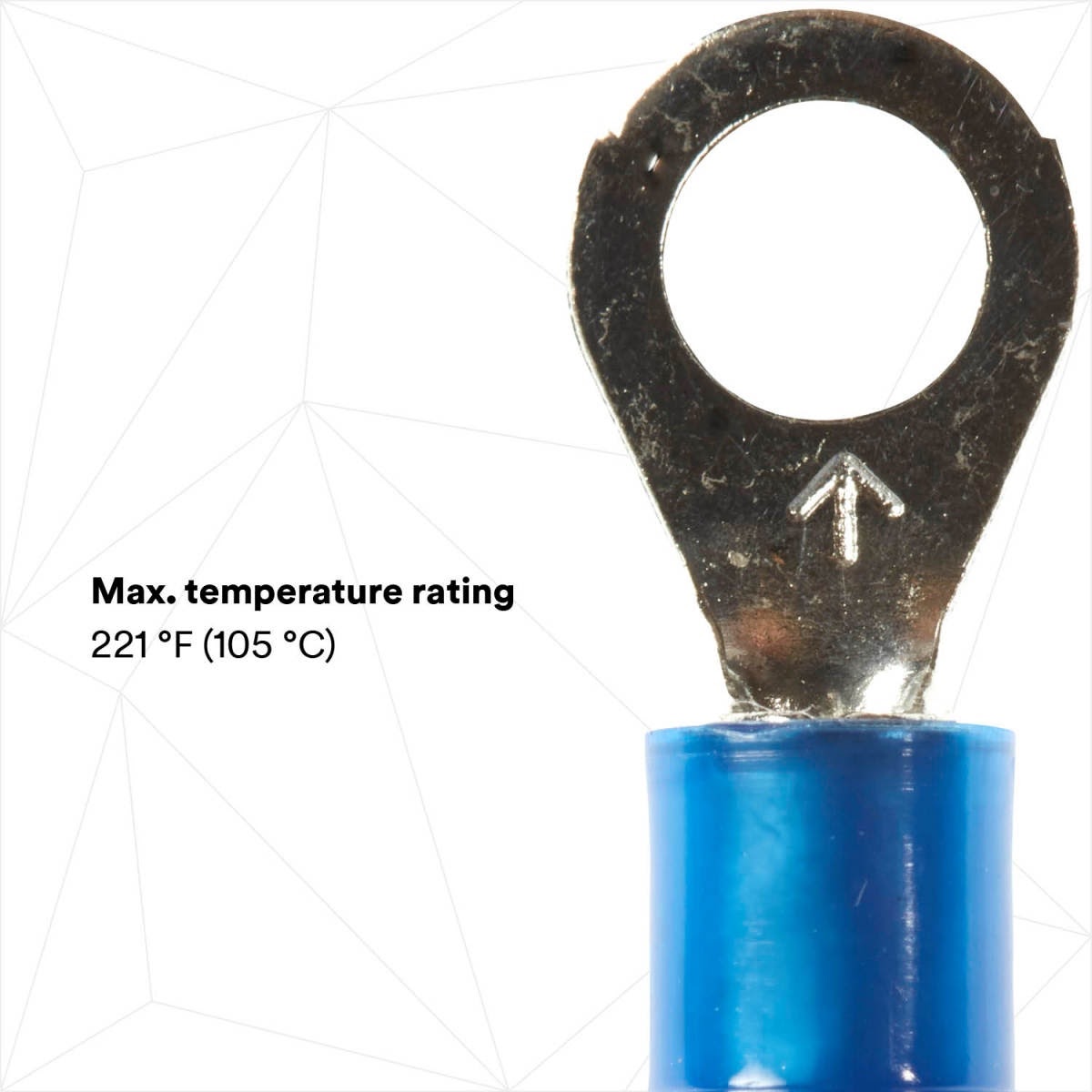

- Temperature range -40 to 221 degrees F
- 600V rated for building wire and 1000V for signs fixtures or luminaires
- UL Listed and CSA Certified
- RoHS 2011/65/EU Compliant
3M 7000133416 Specifications
| Terminal Type | Ring |

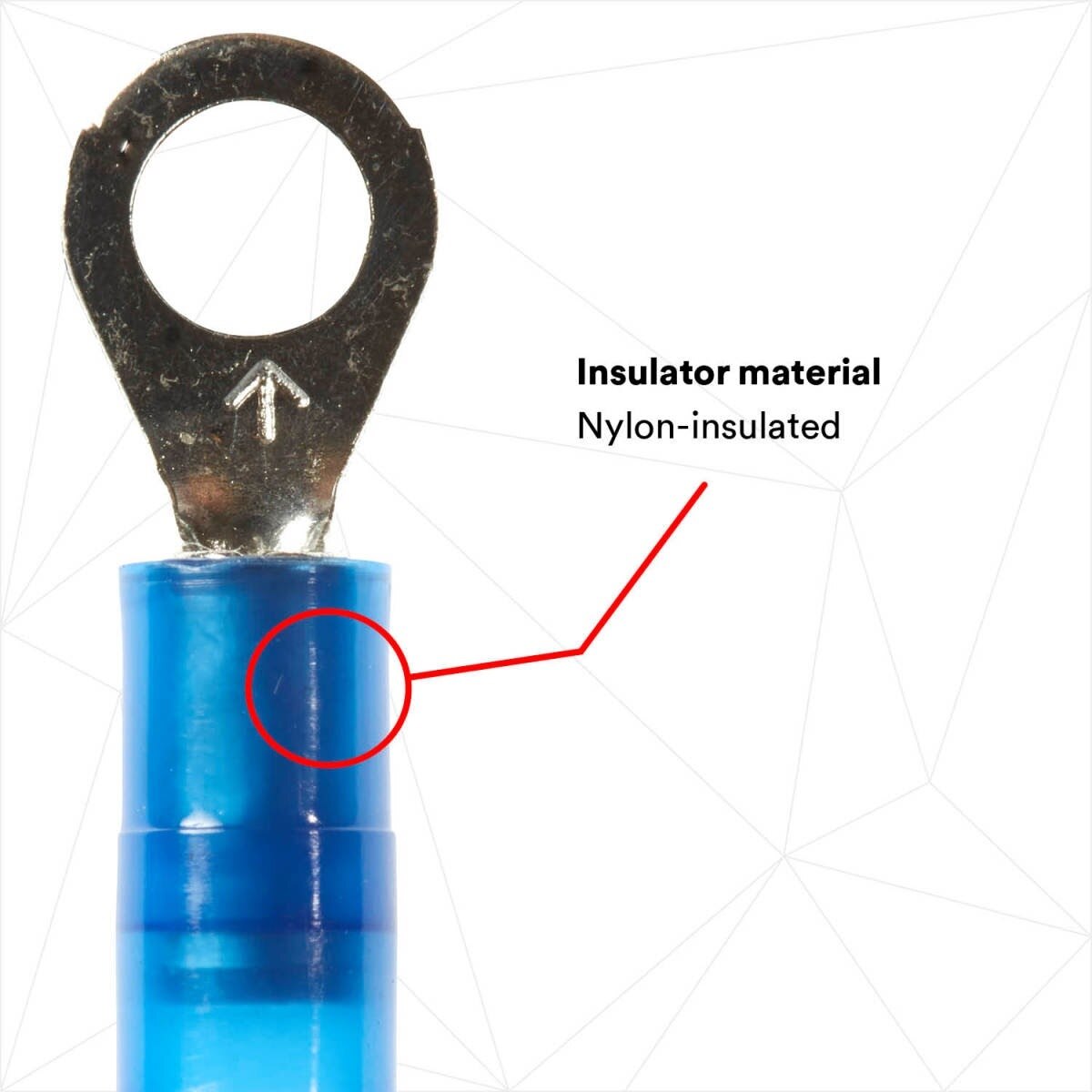

| Insulation Material | Nylon |
| Product Color | Blue |
| Minimum Conductor Size | 16 AWG |
| Maximum Conductor Size | 14 AWG |
| Stud Size | 10 |

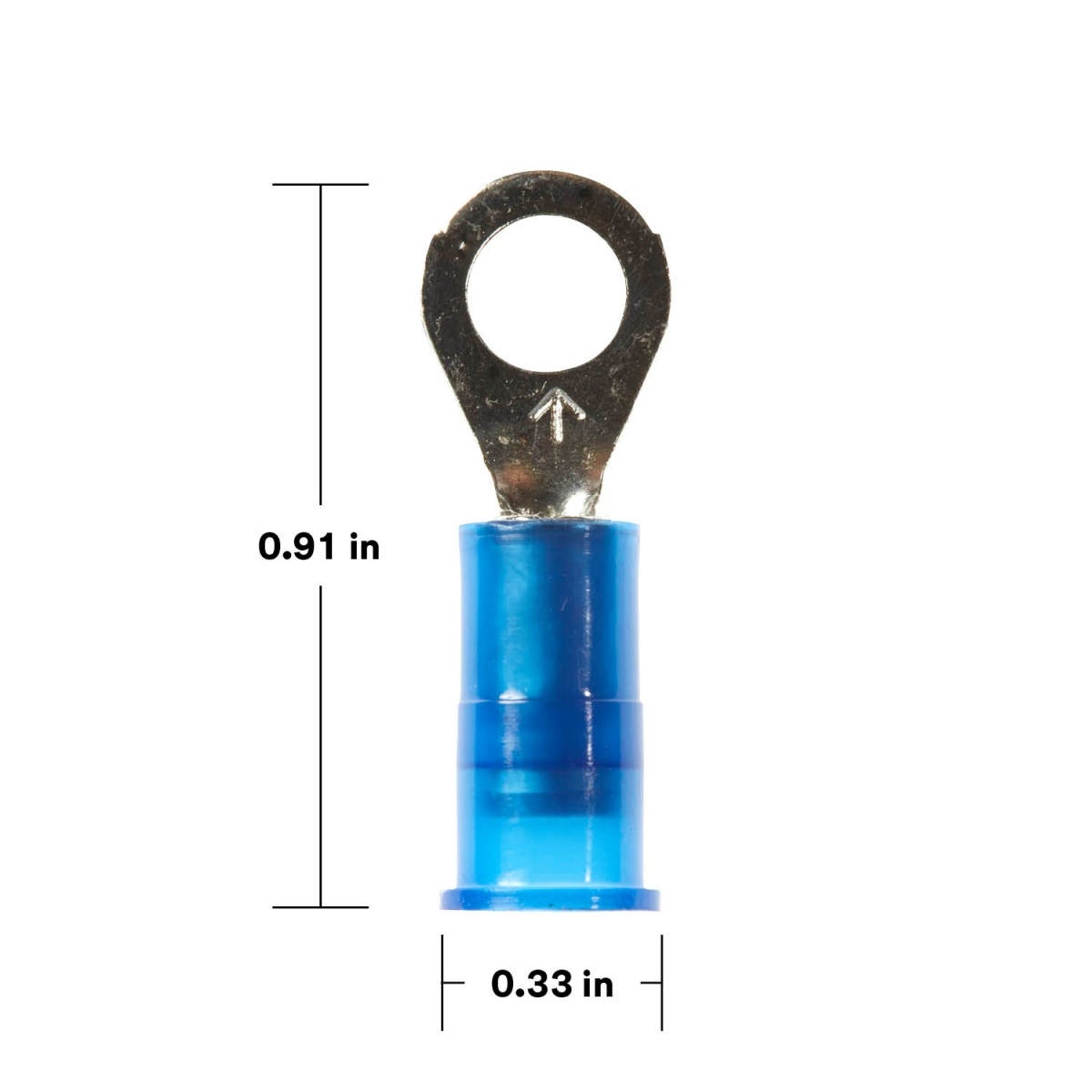

| Overall Length | 0.91 in |
| Overall Width | 0.33 in |
| Connection Width | 0.19 in |
| Maximum Operating Temperature | 105 Degree Celsius |

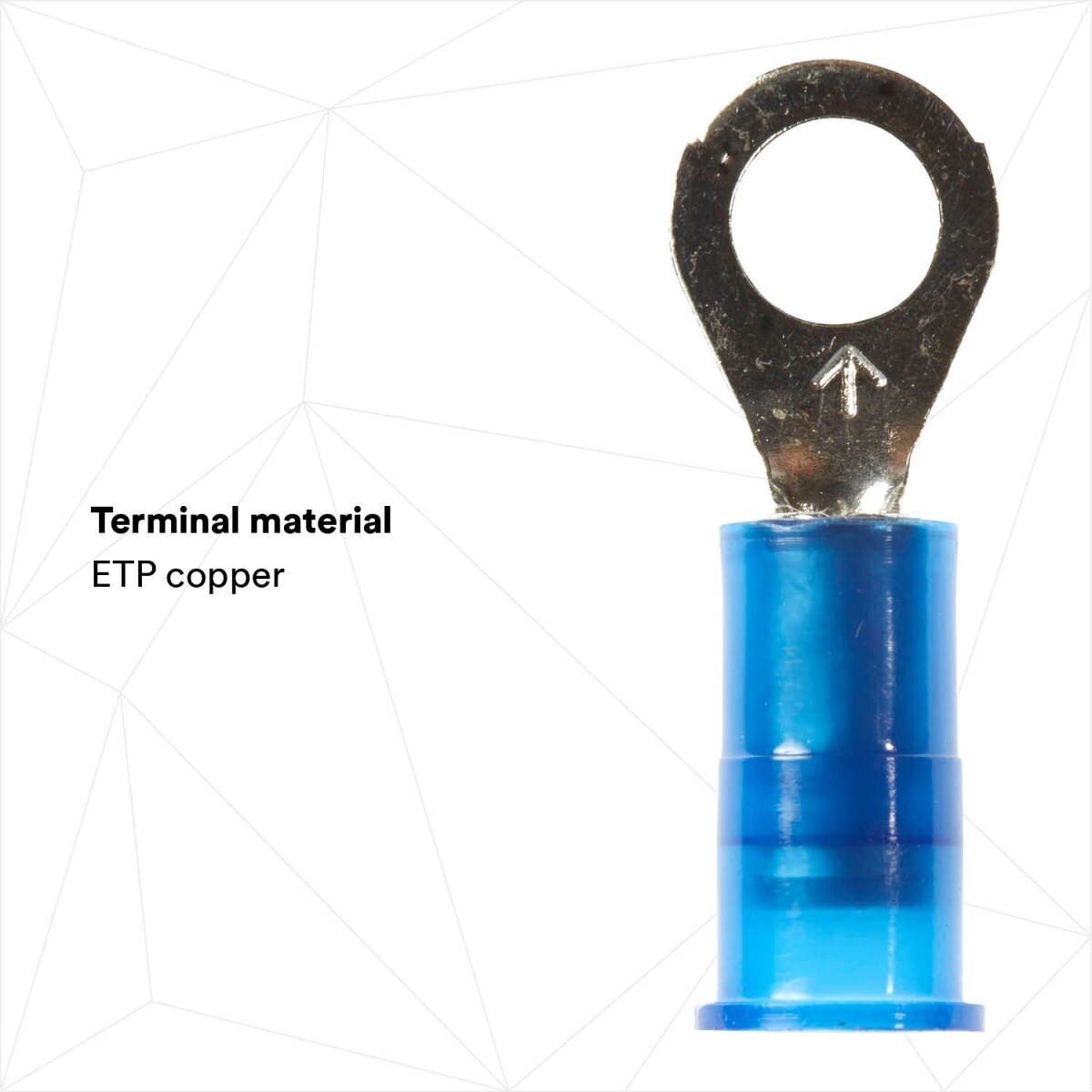

| Material | Electrolytic copper |
| Finish | Tin plated |
| Certifications | UL Listed; CSA Certified |
| Compliance | RoHS 2011/65/EU Compliant |
