3M LFV14-6Q Highland Vinyl Insulated Locking Fork Terminal, AWG 16-...
Description
Description
3M 7010350241 Description

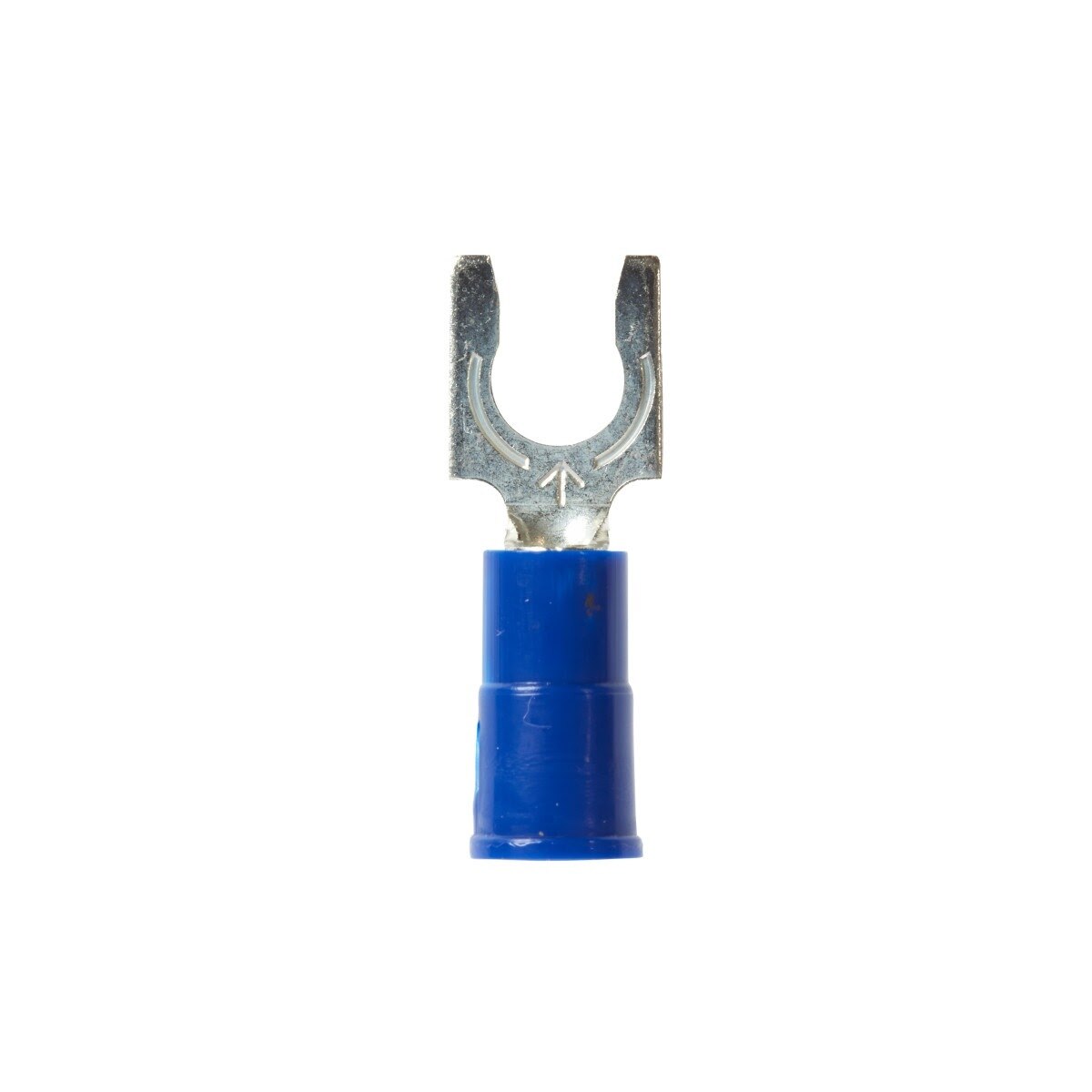

3M Highland Vinyl Insulated Locking Fork Terminal LFV14-6Q provides a secure, corrosion resistant electrical connection for AWG 16 to 14 conductors. Its spring like locking fork design helps hold around the stud, while the vinyl insulated butted seam barrel and funnel designed sleeve support easy wire insertion and crimping.
3M 7010350241 Includes
- (250) -3M 7010350241 Highland Vinyl Insulated Locking Fork Terminal LFV14-6Q, AWG 16-14
3M 7010350241 Features
- Locking fork style terminal with spring like tongue to help secure around the stud
- Vinyl insulated butted seam barrel for secure fit and reliable performance
- Electrolytic copper construction for good conductivity
- Tin plated finish helps resist corrosion
- Funnel designed rigid molded sleeve guides wire into position
- Color coded for quick identification of wire size
- Abrasion resistant flared insulation supports easy crimping
- Temperature range -40 to 221 Degree F -40 to 105 Degree C
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7010350241 Specifications
| Brand | Highland |
| Part Number | LFV14-6Q |
| Terminal Type | Fork |
| Terminal Style | Locking |
| Fork Type | Locking |
| Wire Size Range | 16 to 14 AWG |
| Stud Size | 6 |
| Insulation Material | Vinyl |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.09 Inch |
| Barrel Length | 0.25 Inch |
| Overall Length | 0.88 in |
| Overall Width | 0.25 in |
| Maximum Insulation Outer Diameter | 0.17 in |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| RoHS Compliance | RoHS 2011/65/EU compliant without exemption |
