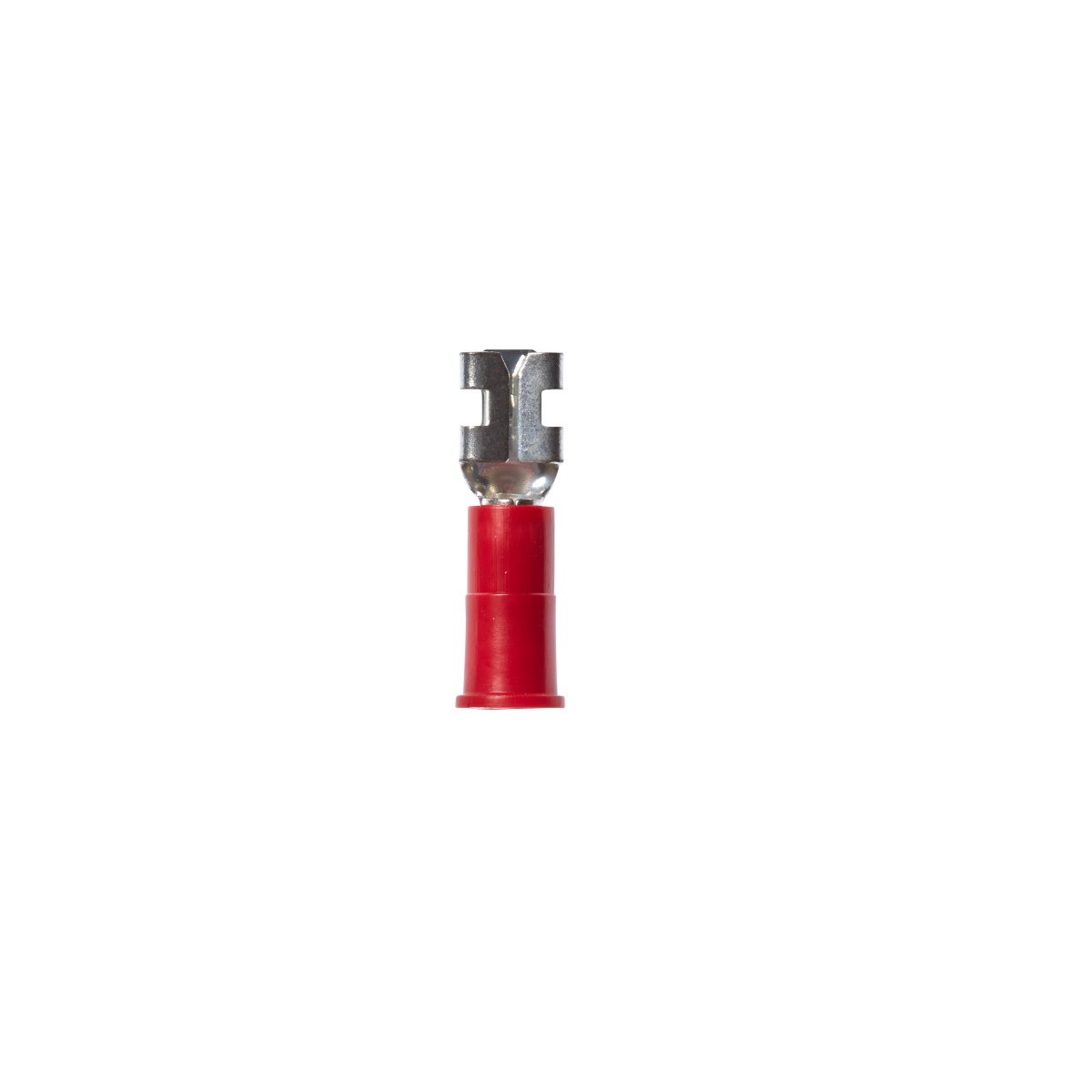

3M FDV18-250Q Highland Vinyl Insulated Female Disconnect Terminal, AWG 22-18, Red (7000133664) (250 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M FDV18-250Q Highland Vinyl Insulated Female Disconnect Terminal, ...
Description
Description
3M 7000133664 Description
3M Highland vinyl insulated female disconnect terminal designed for quick and easy wire disconnects. The butted seam barrel with dents and rolled edges helps provide strong holding force, and the funnel designed PVC sleeve helps guide wire insertion for reliable electrical connections.
3M 7000133664 Includes
- (250) - 3M 7000133664 Highland Vinyl Insulated Female Disconnect Terminal FDV18-250Q, AWG 22-18
3M 7000133664 Features
- Vinyl insulated butted seam barrel with funnel designed PVC sleeve helps guide wire insertion
- Dents and rolled edges help provide excellent holding force
- Quick disconnect design allows fast connect and disconnect
- Fits wire sizes AWG 22 to 18
- Withstands temperatures from -40 Degree F to 221 Degree F
- Tin plated finish helps resist corrosion
- UL Listed, CSA Certified, and RoHS compliant
3M 7000133664 Specifications
| Part Number | FDV18-250Q |
| Disconnect Type | Female |
| Wire Size Range | 22 to 18 AWG |
| Connection Width | 0.25 in (6.35 mm) |
| Tab Width | 0.250 in |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.08 in |
| Overall Length | 0.87 in (22.098 mm) |
| Maximum Insulation Outer Diameter | 0.145 in (3.7 mm) |
| Insulation Material | Vinyl |
| Maximum Recommended Voltage Rating | 600 V |
| Temperature Range | -40 Degree F to 221 Degree F (-40 Degree C to 105 Degree C) |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| RoHS | RoHS 2011/65/EU compliant |
