3M 7000133650 Description

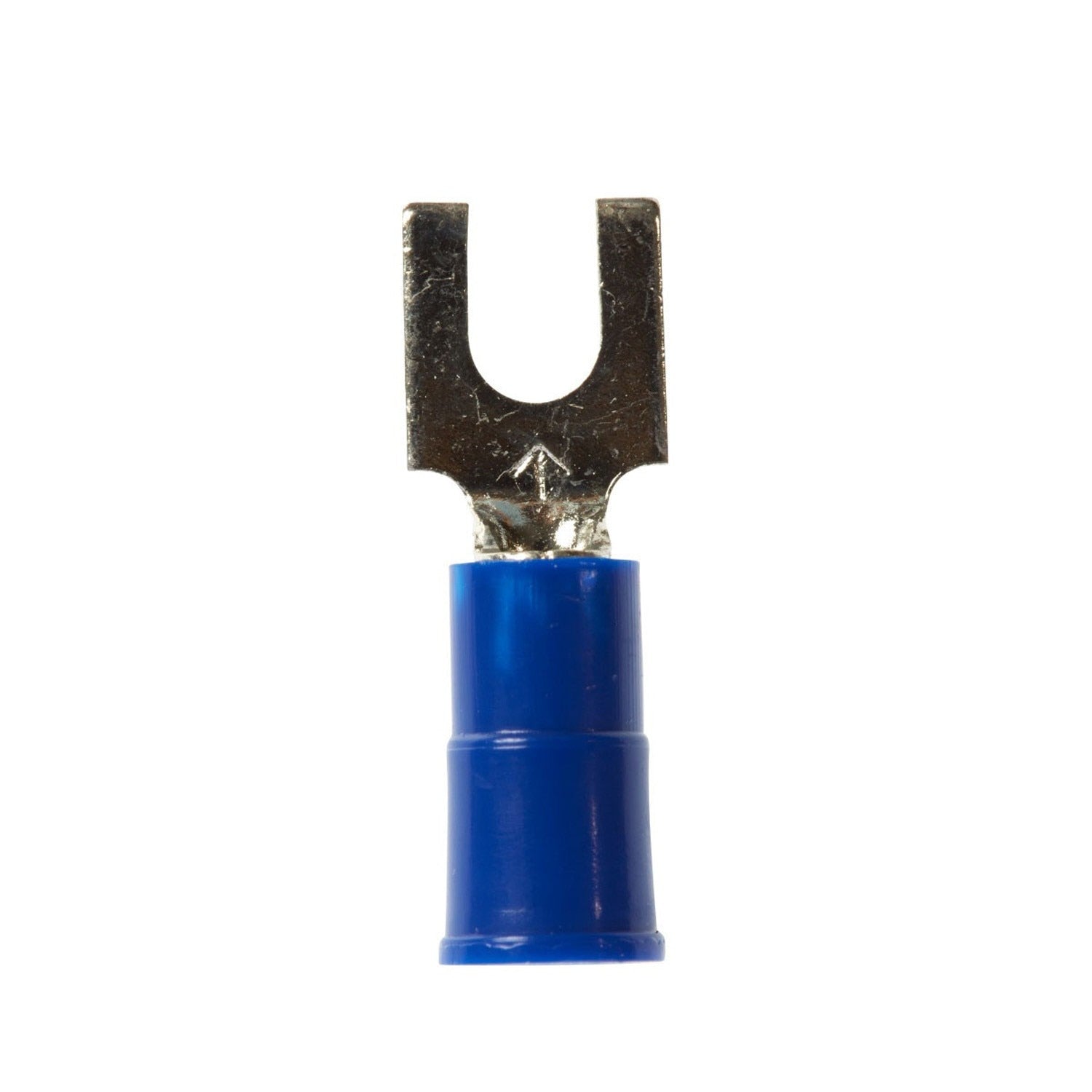

3M Highland BFV14-8Q vinyl insulated block fork terminal is designed for reliable electrical connections on 16-14 AWG stranded copper wire in terminal block applications. The butted-seam, vinyl-insulated barrel helps provide a secure crimp, while the tin-plated electrolytic copper construction resists corrosion.
3M 7000133650 Includes
- (250) - 3M 7000133650 Highland Vinyl Insulated Block Fork Terminal BFV14-8Q, AWG 16-14, suitable for use in a terminal block
3M 7000133650 Features
- Vinyl-insulated, butted-seam barrel for a secure crimp connection
- Fork-style, block terminal design for terminal block connections
- Fits 16-14 AWG wire range
- Tin-plated electrolytic copper construction helps resist corrosion
- Color-coded insulation for quick wire size identification
- Abrasion-resistant, flared vinyl sleeve insulation supports easier crimping
- Rated for operating temperatures from -40 to 105 Degree Celsius
- UL Listed, CSA Certified, and RoHS compliant

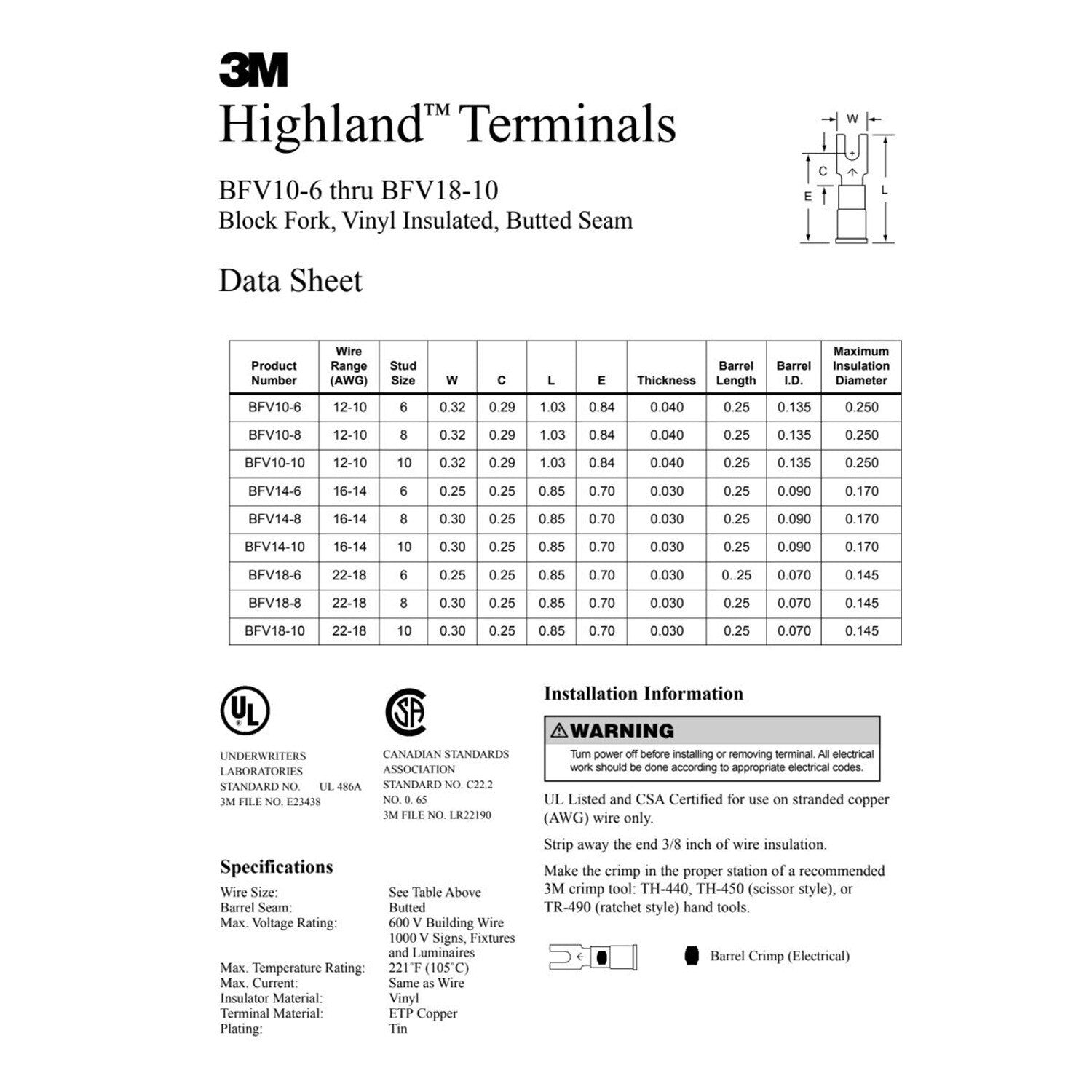

3M 7000133650 Specifications
| Terminal Type | Fork |
| Terminal Style | Block |
| Wire Range | 16-14 AWG |
| Minimum Conductor Size | 16 AWG |
| Maximum Conductor Size | 14 AWG |
| Insulation Material | Vinyl |
| Connection Width | 0.164 in |
| Overall Length | 0.85 in |
| Overall Width | 0.3 in |
| Maximum Operating Temperature | 105 Degree Celsius |
| Terminal Material | ETP Copper |
| Plating | Tin |
| Certifications | UL Listed; CSA Certified |
| RoHS Compliant | Yes |
| Package Quantity | 25 per bag |
