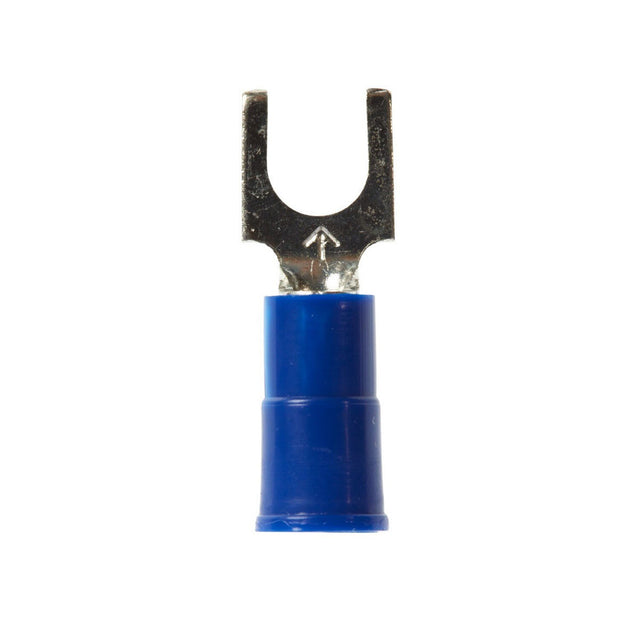

3M BFV14-10Q Highland Vinyl Insulated Block Fork Terminal, AWG 16-14 (7000133648) (250 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M BFV14-10Q Highland Vinyl Insulated Block Fork Terminal, AWG 16-1...
Description
Description
3M 7000133648 Description

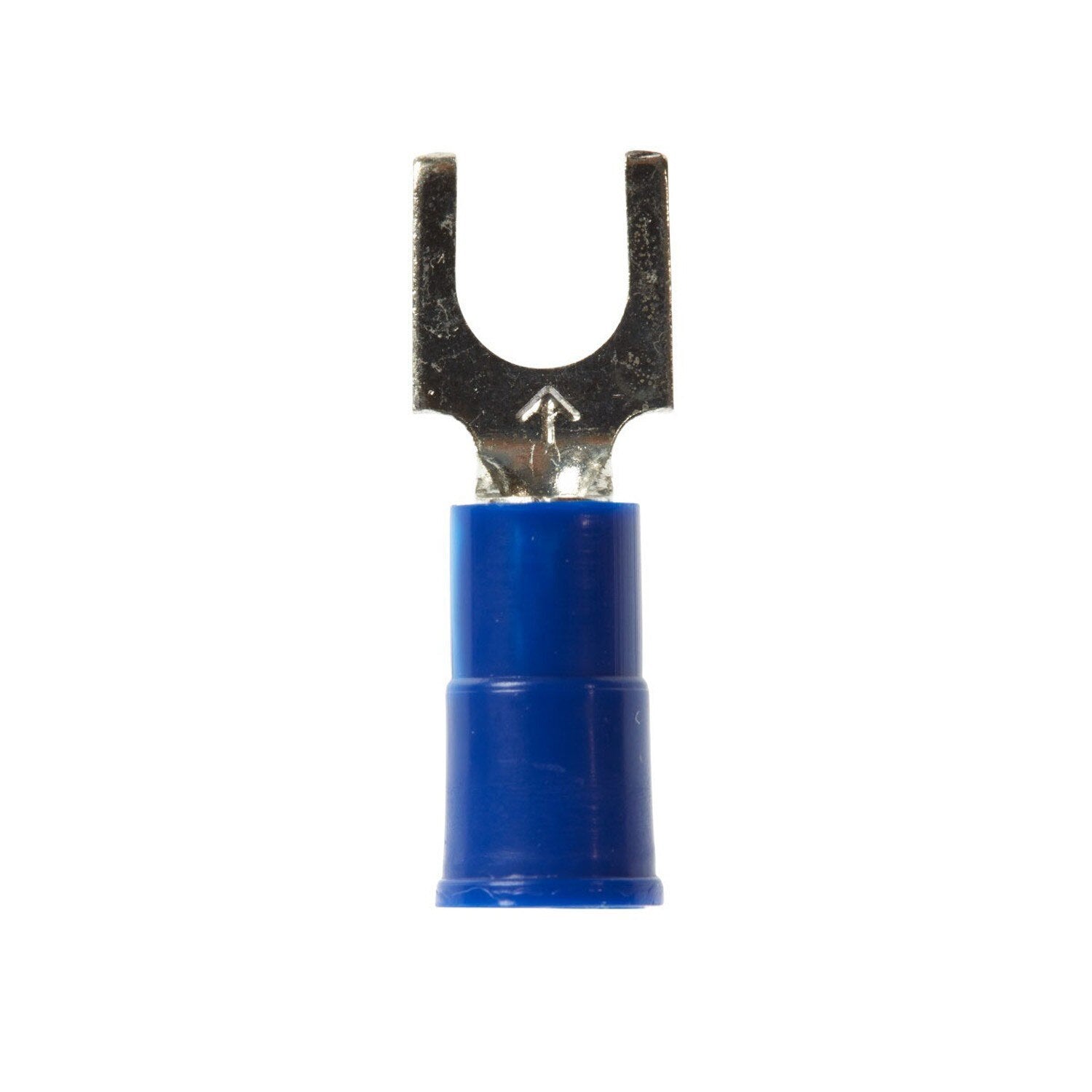

3M Highland vinyl insulated block fork terminals provide a reliable lug-style connection for terminal blocks. The butted-seam barrel and vinyl sleeve help guide the wire for consistent crimps, while the electrolytic copper construction with a tin-plated finish supports good conductivity and corrosion resistance. Suitable for AWG 16-14 wire and packaged 25 per bag.
3M 7000133648 Includes
- (250) - 3M 7000133648 C3SD Vinyl Insulated Block Fork Terminal BFV14-10Q, AWG 16-14, suitable for use in a terminal block
3M 7000133648 Features
- Block fork terminal for terminal block connections
- For AWG 16-14 stranded copper wire
- Vinyl-insulated, butted-seam barrel for secure fit and reliable performance
- Electrolytic copper terminal for good conductivity
- Tin-plated finish helps resist corrosion
- Temperature range: -40 to 105 Degree Celsius (-40 to 221 Degree F)
- Funnel-designed, rigid-molded PVC sleeve helps guide wire into position
- Abrasion-resistant, flared vinyl sleeve supports easier crimping
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant

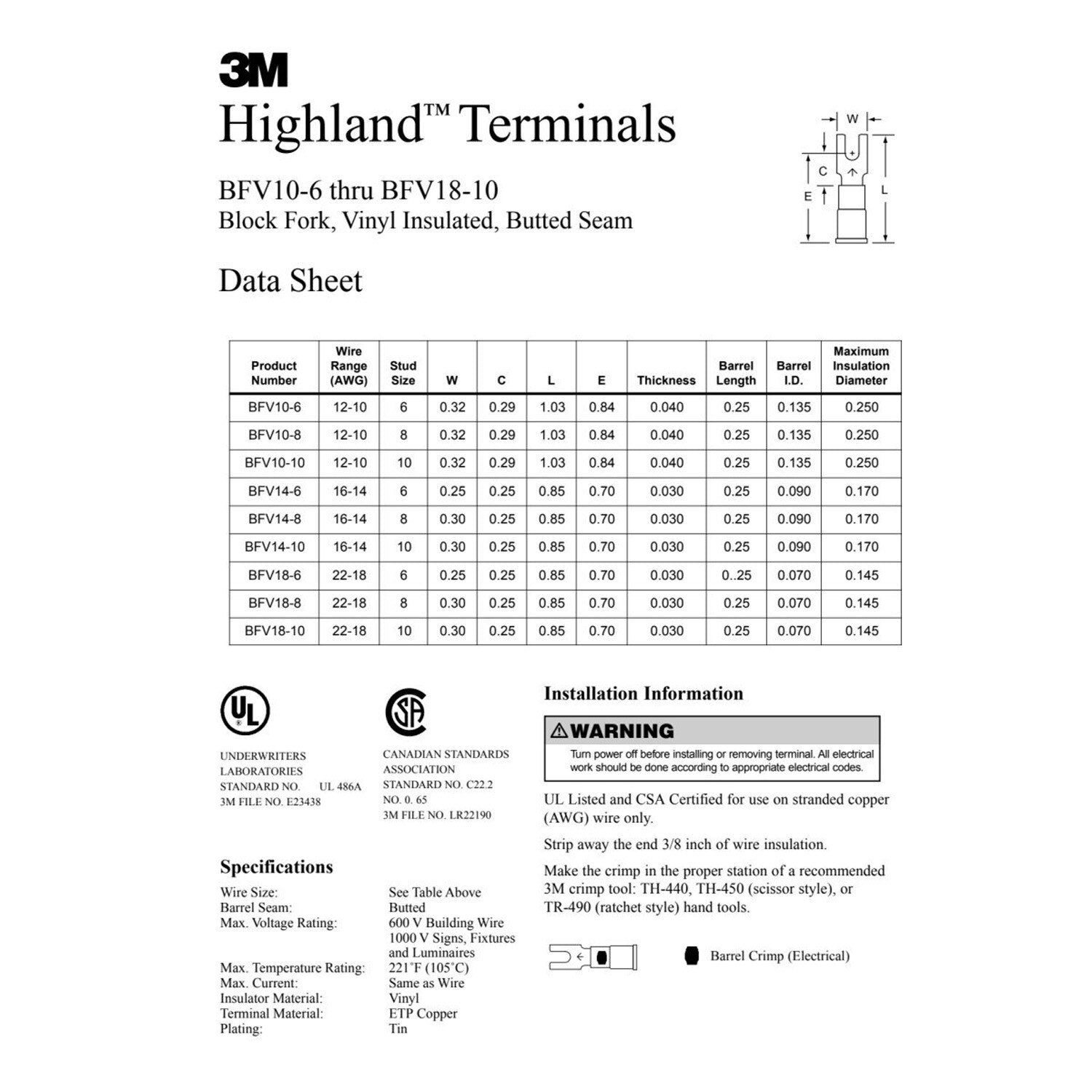

3M 7000133648 Specifications
| Sub Brand | Highland |
| Terminal Type | Fork |
| Terminal Style | Block |
| Wire Range | 16-14 AWG |
| Insulation Material | Vinyl |
| Terminal Material | Electrolytic Copper |
| Plating | Tin |
| Maximum Operating Temperature | 105 Degree Celsius |
| Connection Width | 0.19 in |
| Overall Length | 0.85 in |
| Overall Width | 0.3 in |
| Package Quantity | 25 per bag |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
