3M BFV10-10Q Highland Vinyl Insulated Block Fork Terminal, AWG 12-10, Yellow (7000133646) (250 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M BFV10-10Q Highland Vinyl Insulated Block Fork Terminal, AWG 12-1...
Description
Description
3M 7000133646 Description

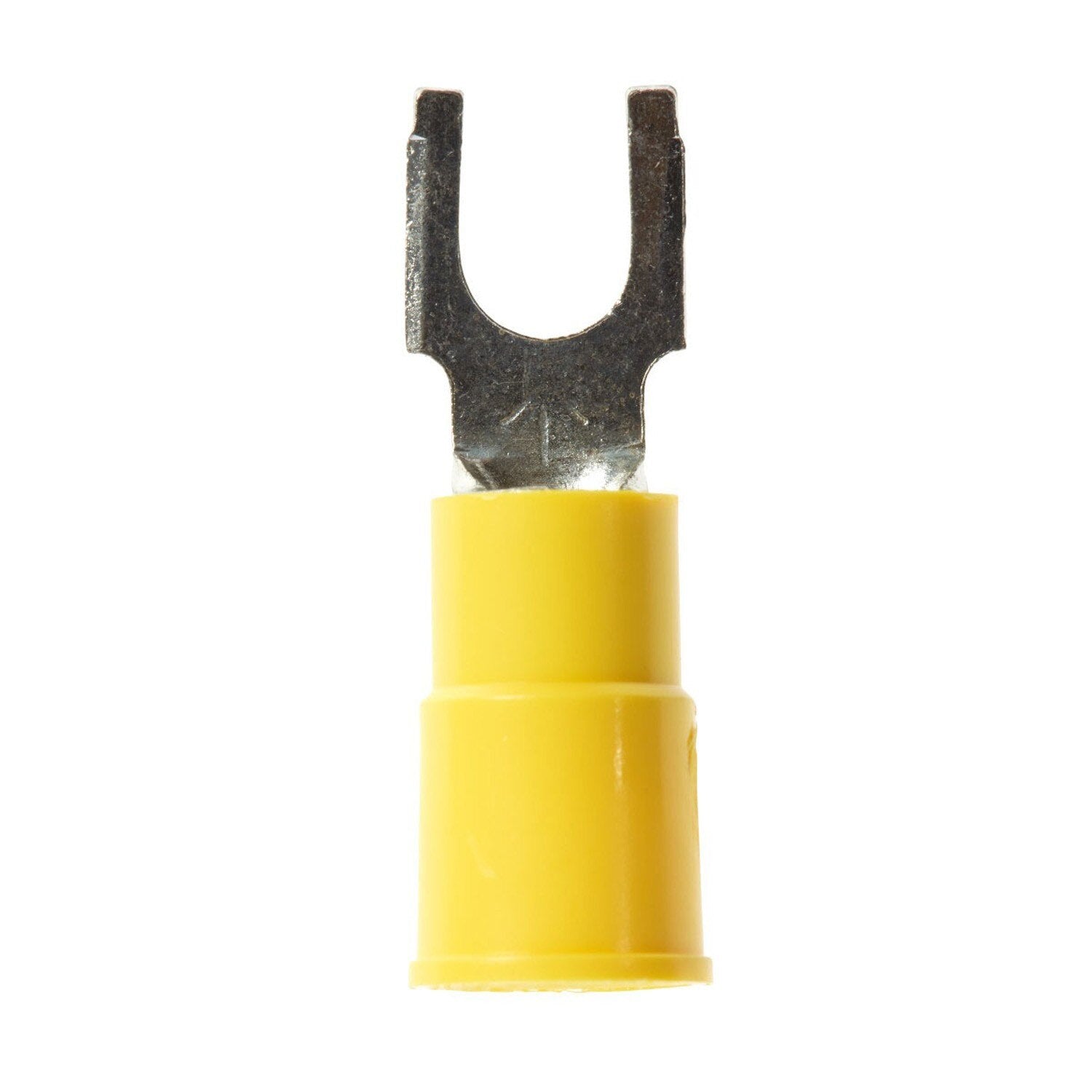

3M Highland vinyl insulated block fork terminals provide a secure, reliable lug connection for stranded copper wire. The vinyl-insulated butted-seam barrel helps ensure proper fit, while electrolytic copper construction and a tin-plated finish support conductivity and corrosion resistance.
3M 7000133646 Includes
- (250) - 3M 7000133646 Highland Vinyl Insulated Block Fork Terminal BFV10-10Q, AWG 12-10
3M 7000133646 Features
- Vinyl-insulated, butted-seam barrel for a secure crimp connection
- Fits wire range AWG 12-10
- Electrolytic copper construction for good conductivity
- Tin-plated finish helps resist corrosion
- Color-coded insulation for quick wire size identification
- Rigid-molded PVC sleeve helps guide wire into position and provides stress relief
- Abrasion-resistant, flared vinyl sleeve supports easier crimping
- UL Listed, CSA Certified and RoHS compliant
- Operating temperature range -40 to 221 degrees F (-40 to 105 Degree Celsius)

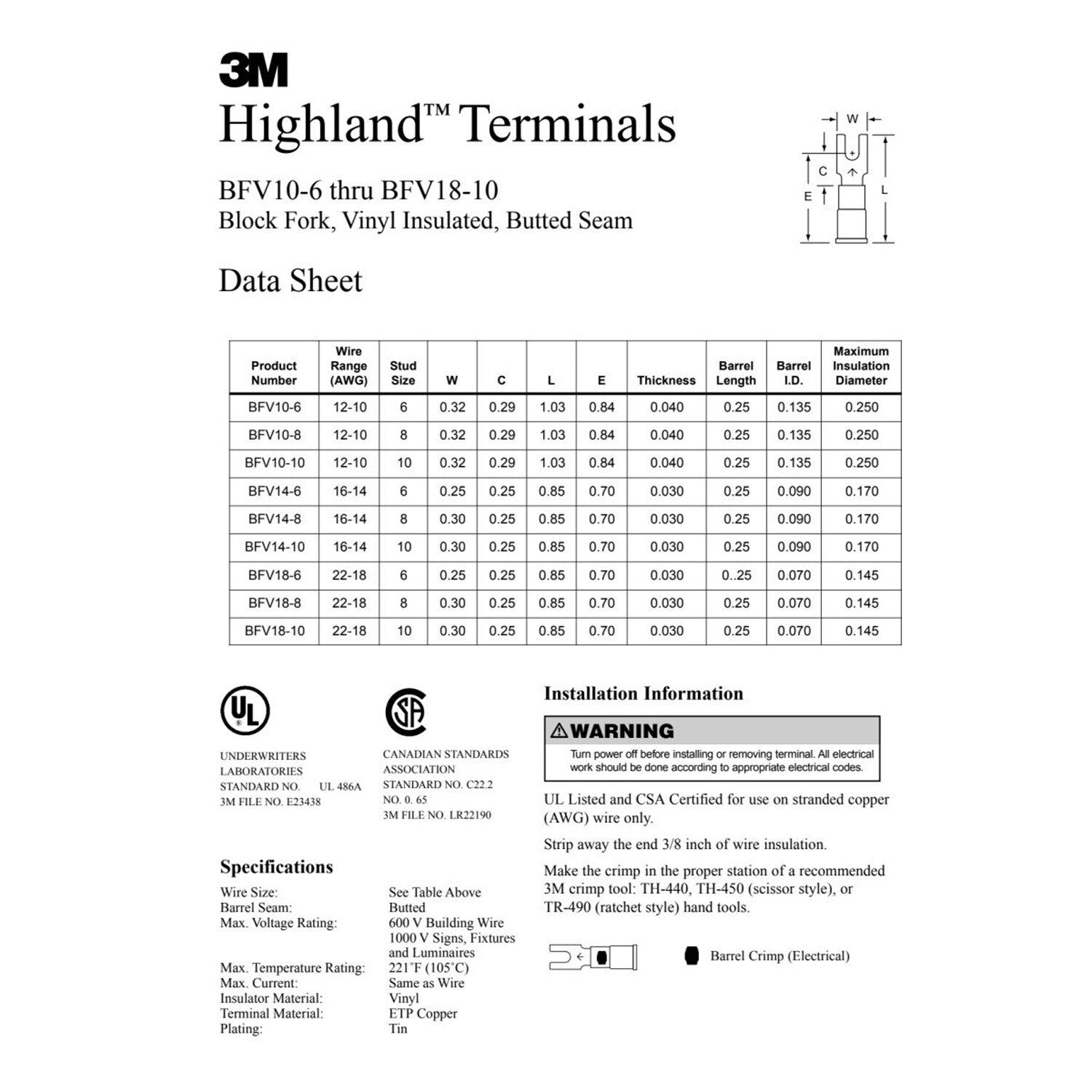

3M 7000133646 Specifications
| Brand | Highland |
| Part Number | BFV10-10Q |
| Terminal Type | Fork |
| Terminal Style | Block |
| Wire Range | 12-10 AWG |
| Insulation Material | Vinyl |
| Terminal Material | ETP Copper |
| Plating | Tin |
| Maximum Operating Temperature | 105.0 Degree Celsius |
| Overall Length | 1.03 in |
| Overall Width | 0.32 in |
| Connection Width | 0.19 in |
| Stud Size | 10 |
| Barrel Seam | Butted |
| Package Type | Bag |
| Quantity | 25 per bag |
