3M Highland Nylon Fully Insulated Male Disconnect Terminal, AWG 16-14, Blue, 25 per Bag (MTI14-250Q) (7000133668) (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M Highland Nylon Fully Insulated Male Disconnect Terminal, AWG 16-...
Description
Description
3M 7000133668 Description

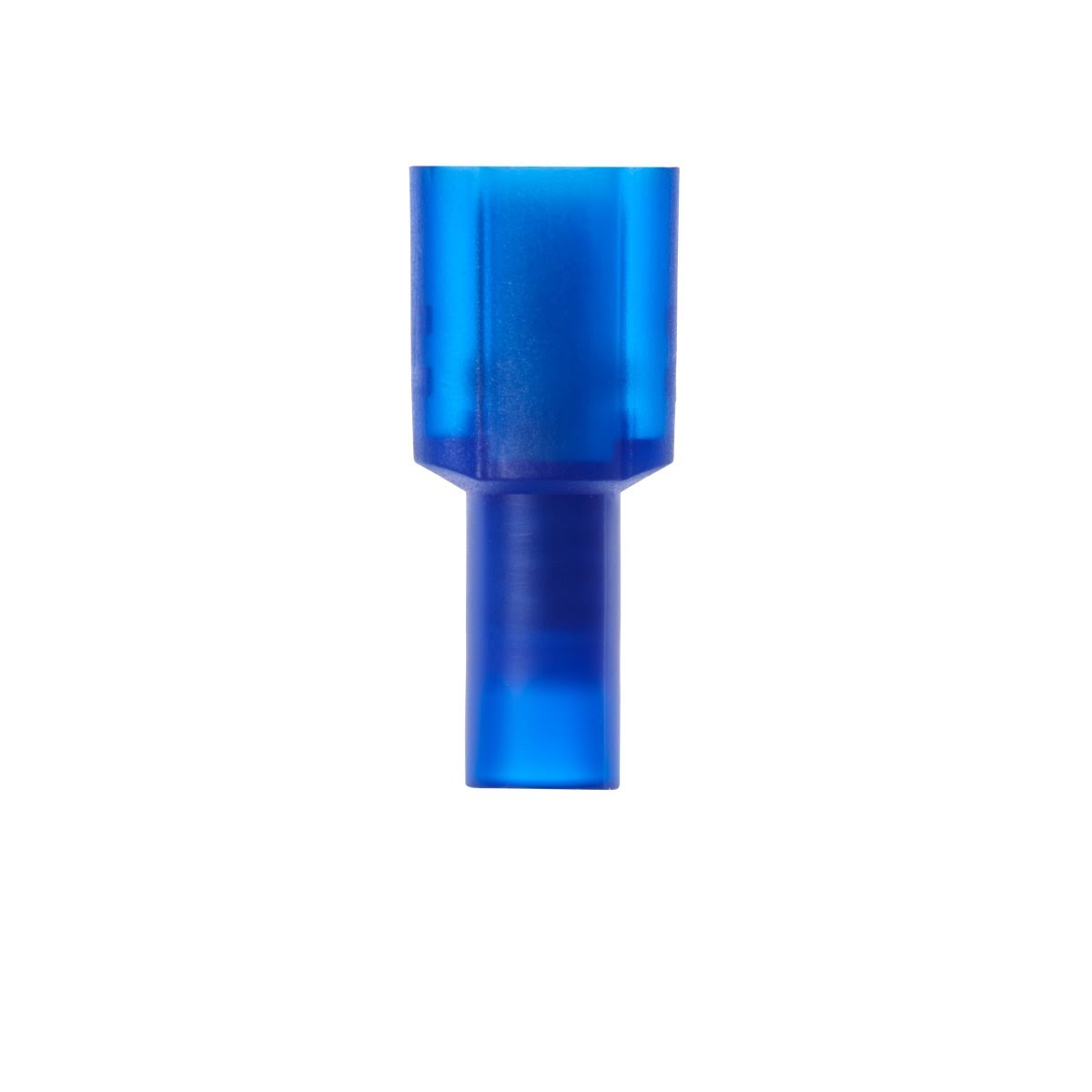

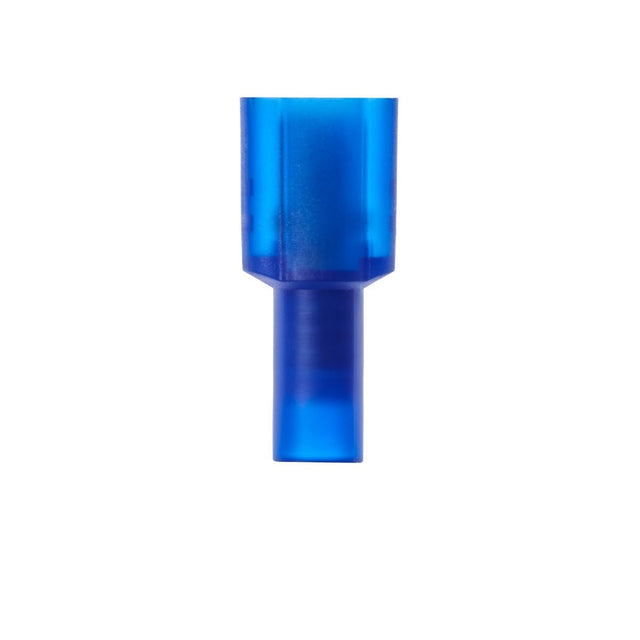

3M Highland nylon fully insulated male disconnect terminal with a butted-seam barrel for quick, easy wire disconnects and strong holding force. Electrolytic copper construction with a tin-plated finish helps provide good conductivity and corrosion resistance. Suitable for 16 to 14 AWG wire and rated up to 600V.
3M 7000133668 Includes
- (10) - 3M 7000133668 C3SD Highland Nylon Fully Insulated Male Disconnect Terminal MTI14-250Q, AWG 16-14, 25/Bag,Blue
3M 7000133668 Features
- Nylon insulated butted-seam barrel allows for easy wire insertion
- Male disconnect design enables quick and easy disconnects
- Offers excellent holding force after crimping
- Electrolytic copper construction provides good conductivity
- Tin-plated finish helps resist corrosion
- Abrasion-resistant flared nylon sleeve with stepped design for mistake-proof crimping
- Operating temperature range -40 to 221 degrees F
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7000133668 Specifications
| Part Number | MTI14-250Q |
| Terminal Type | Disconnect |
| Disconnect Type | Male |
| Terminal Style | Fully Insulated |
| Wire Size | 16-14 AWG |
| Connection Width | 0.25 in |
| Barrel Style | Butted |
| Insulation Material | Nylon |
| Maximum Recommended Voltage Rating | 600 V |
| Overall Length | 0.95 in |
| Overall Width | 0.44 in |
| Overall Diameter | 0.3 in |
| Barrel Inside Diameter | 0.085 in |
| Tab Width | 0.250 |
| Color | Blue |
| Quantity per Bag | 25 |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
