3M FP0.125CR6"P Heat Shrink Thin Wall Tubing FP-301, Transparent, 1/8 in ID, 6 in Length Pieces, 2:1 Shrink Ratio, 600V (7010399002) (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M FP0.125CR6"P Heat Shrink Thin Wall Tubing FP-301, Transpare...
Description
Description
3M 7010399002 Description

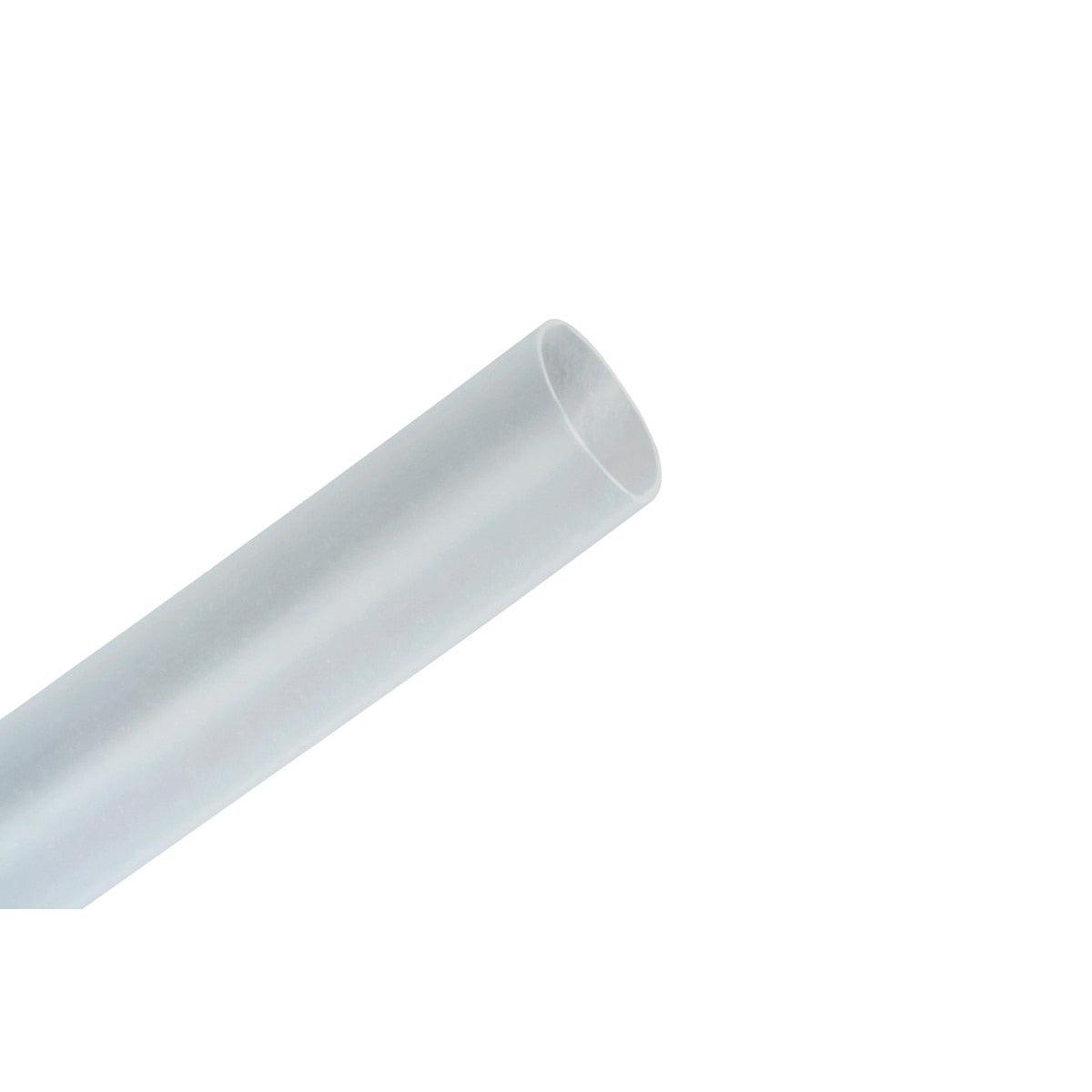

3M Heat Shrink Tubing FP-301 is a general purpose, thin wall polyolefin tubing designed to provide shrink-fit electrical insulation and moisture seal protection for wire splices, terminations, and harnessing. It features a 2:1 shrink ratio and is suitable for 600V rated applications.
3M 7010399002 Includes
- (100) - 3M 7010399002 FP301-1/8-6 Inch-Clear-10-10 Heat Shrink Thin-Wall Tubing FP301-1/8-6 Inch-Clear-10-10 Pc Pks, 6 Inch Length pieces (Pack of 10) (FP0.125CR6P)
3M 7010399002 Features
- 2:1 shrink ratio for shrink-fit insulation
- Thin-wall, single-wall polyolefin construction

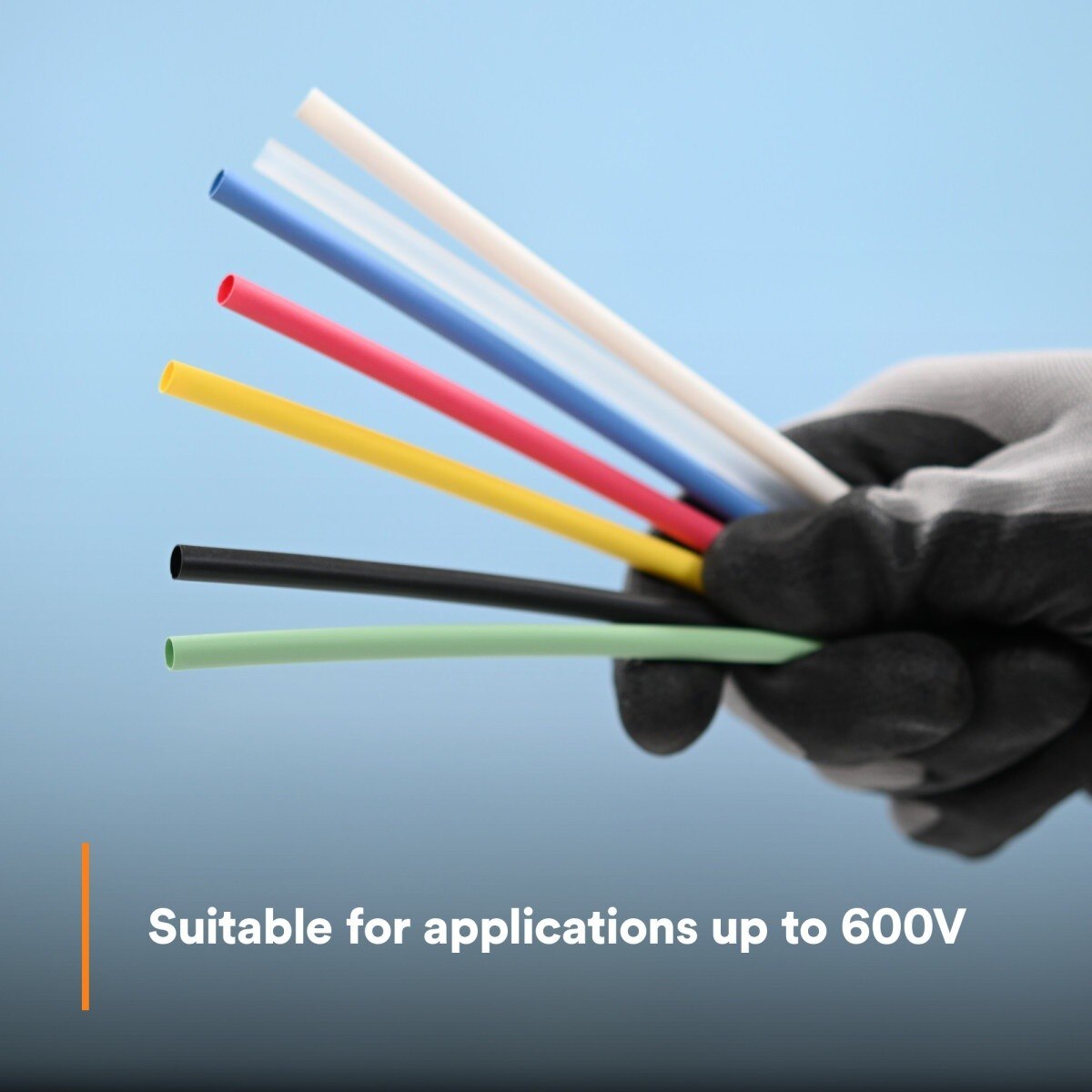

- Suitable for applications up to 600V
- Provides moisture seal protection
- Operating temperature range -67 DegreeF to 275 DegreeF
- Mechanically tough and split resistant
- Easily markable for wire identification
- UL Listed and CSA Certified
- SAE AS23053/5 compliant (Class 2 for clear)
- RoHS 2011/65/EU compliant
3M 7010399002 Specifications
| Product Type | Heat Shrink Thin-Wall Tubing |
| Series | FP-301 |
| Color | Transparent |
| Material | Polyolefin |
| Tubing Type | Single (Thin) Wall |
| Heat Shrink Type | Single-Wall Polyolefin Heat Shrink Tubing |
| Shrink Ratio | 2:1 |
| Inner Diameter Before Shrink | 0.125 in |
| Inner Diameter After Shrink | 0.062 in |
| Piece Length | 6 in |
| Voltage Rating | 600 Volt |
| Flame Retardant | No |
| Maximum Operating Temperature | 275 Degree Fahrenheit |
| Operating Temperature Range | -67 DegreeF to 275 DegreeF |
| Elongation | 400 % |
| Non-Corrosive | Yes |

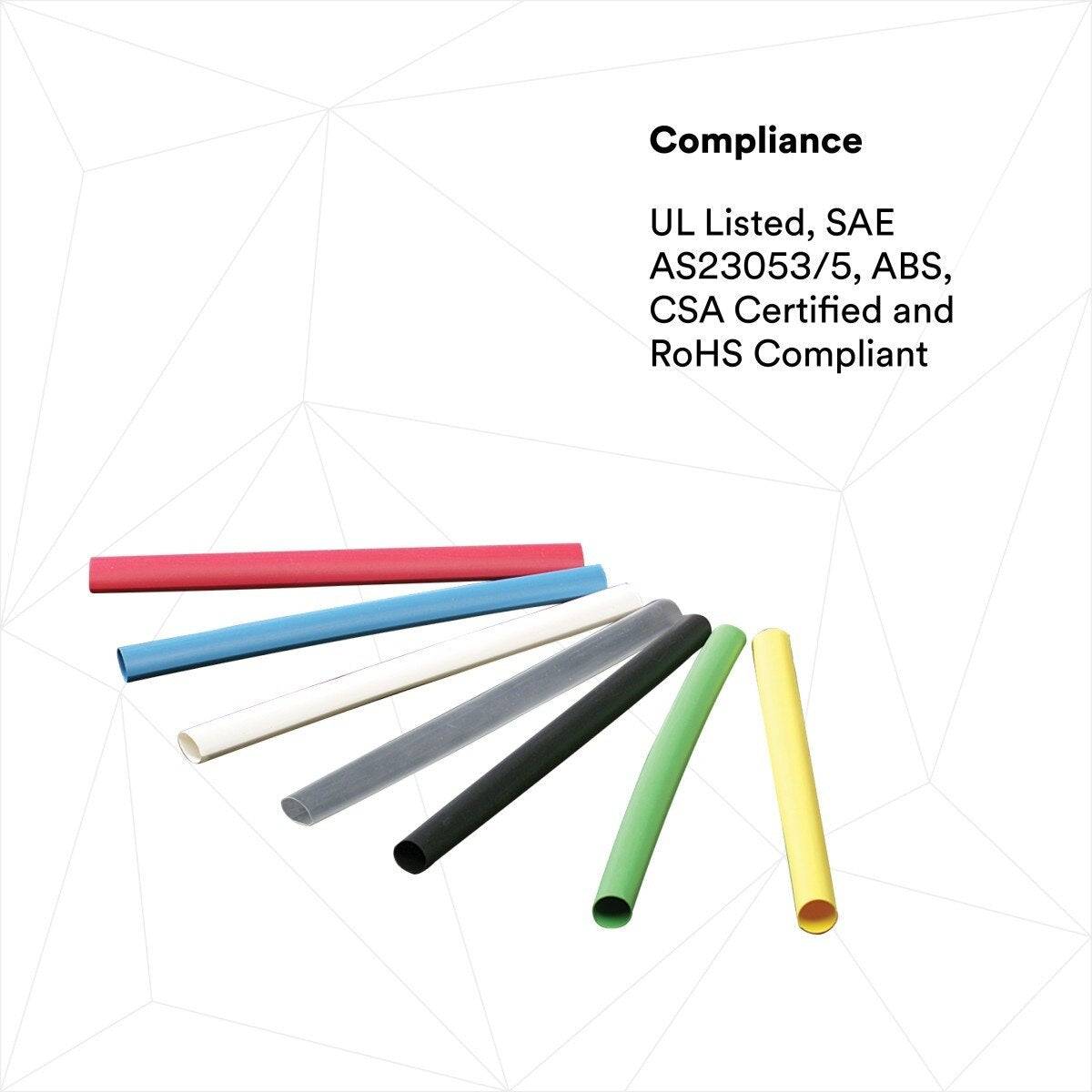

| Compliance | UL Listed, SAE AS23053/5, CSA Certified, RoHS 2011/65/EU |
