3M Heat Shrink Thin-Wall Tubing FP-301, Black, 1/16 in, 100 ft Spool, 1 Roll (FP0.063BK100'S) (7100025179) (3 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M Heat Shrink Thin-Wall Tubing FP-301, Black, 1/16 in, 100 ft Spoo...
Description
Description
3M 7100025179 Description

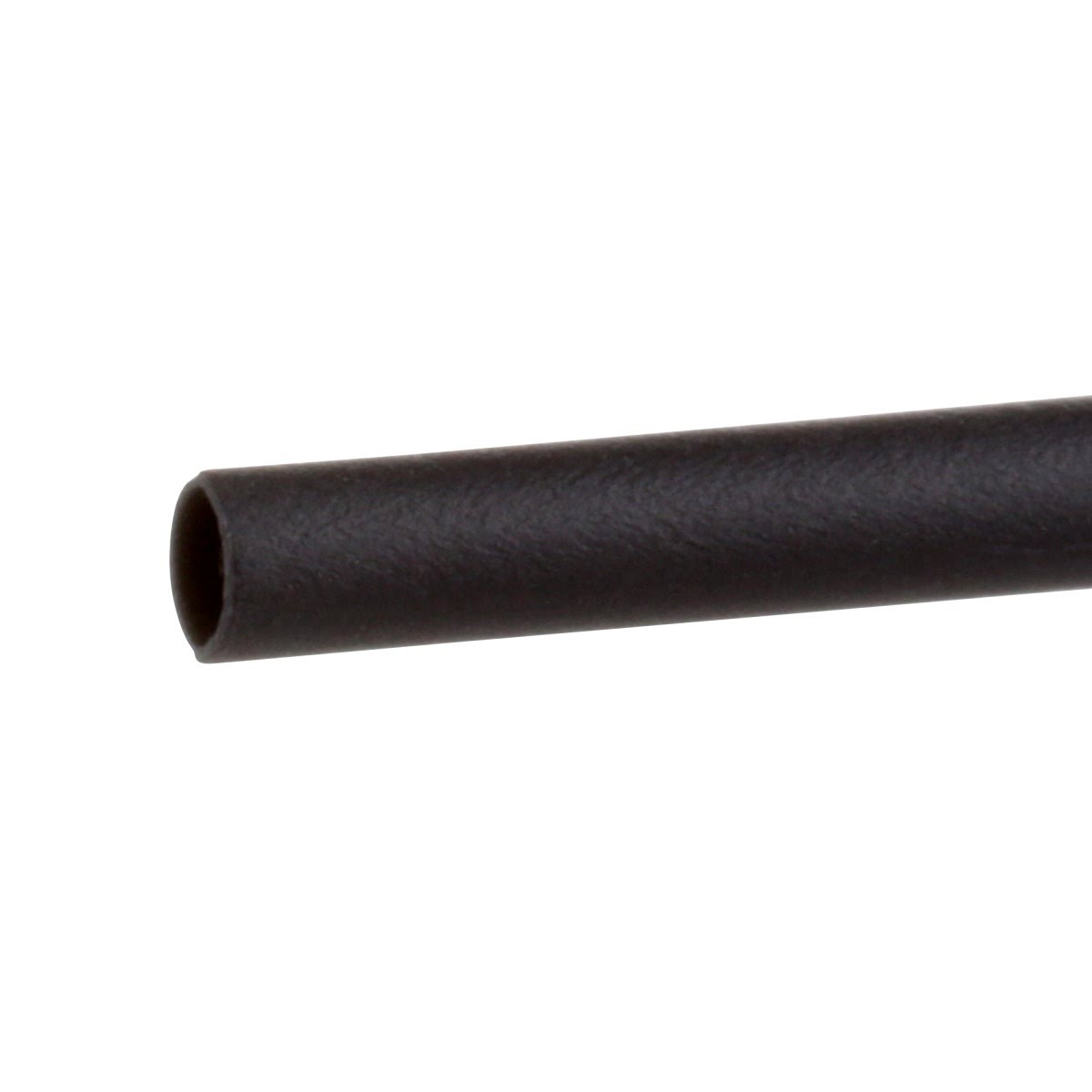

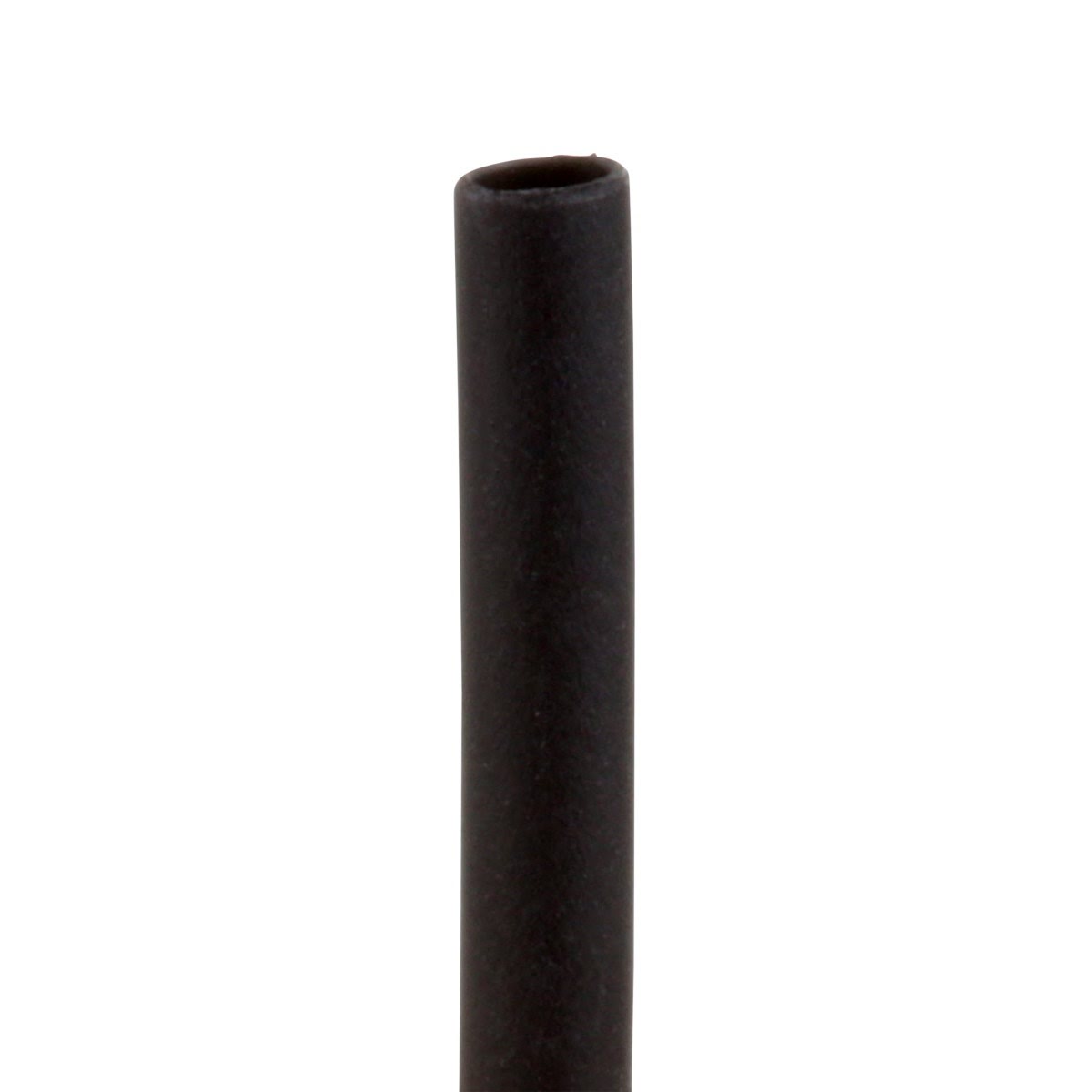

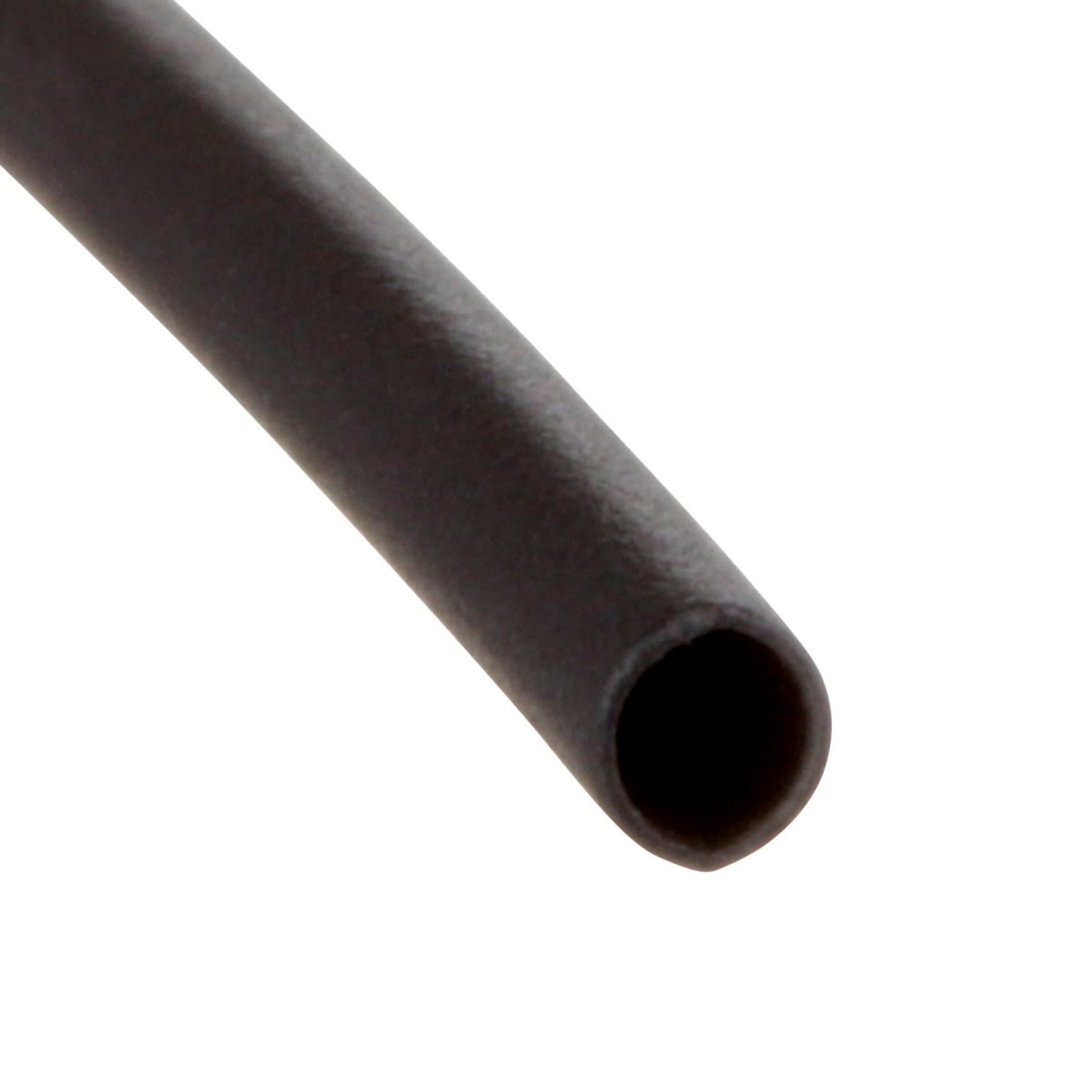

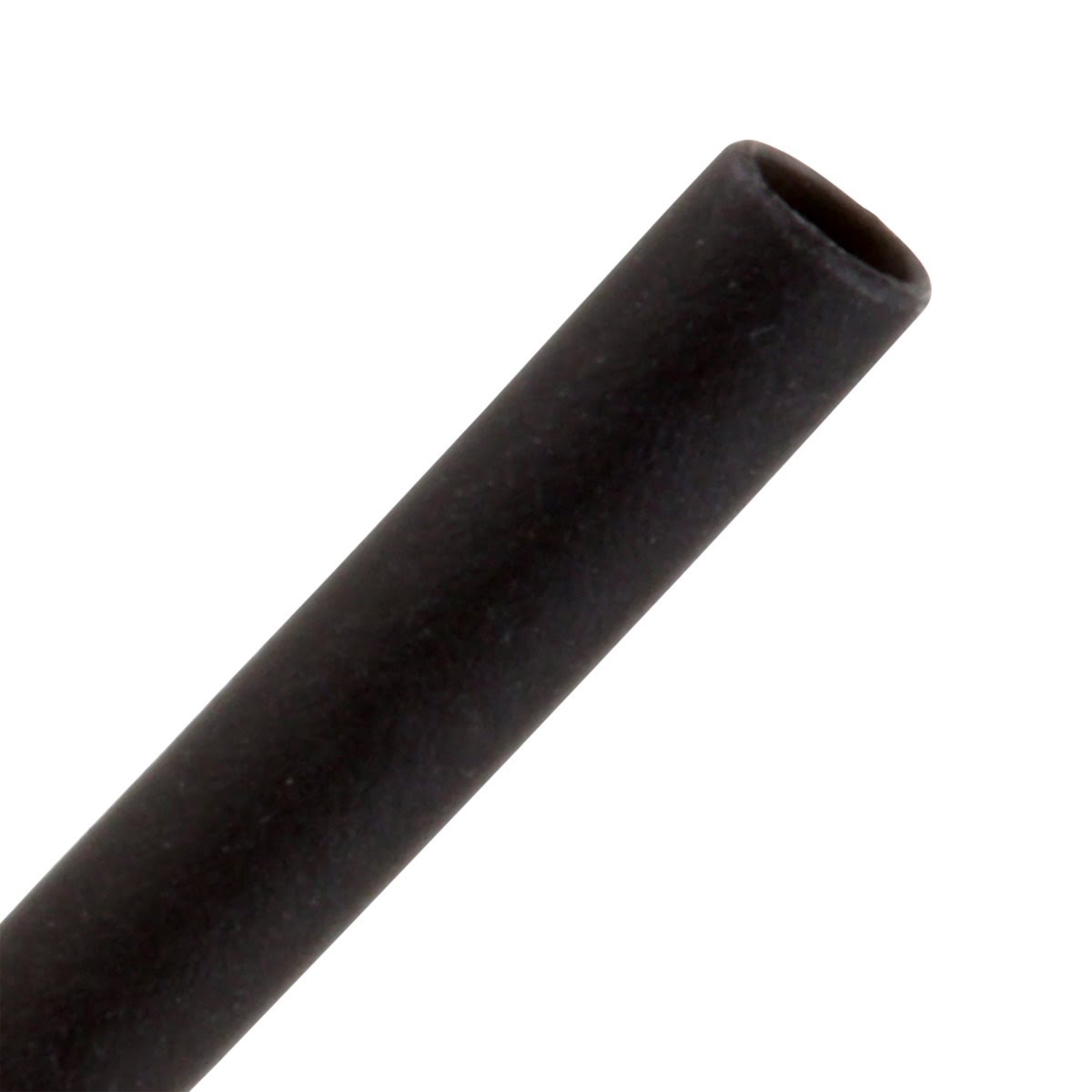

3M Heat Shrink Tubing FP-301 is a general purpose, thin wall polyolefin tubing designed to provide reliable electrical insulation and protection for wire splices and terminations. It features a 2:1 shrink ratio, flame retardant performance, and moisture seal protection for industrial and military applications.
3M 7100025179 Includes

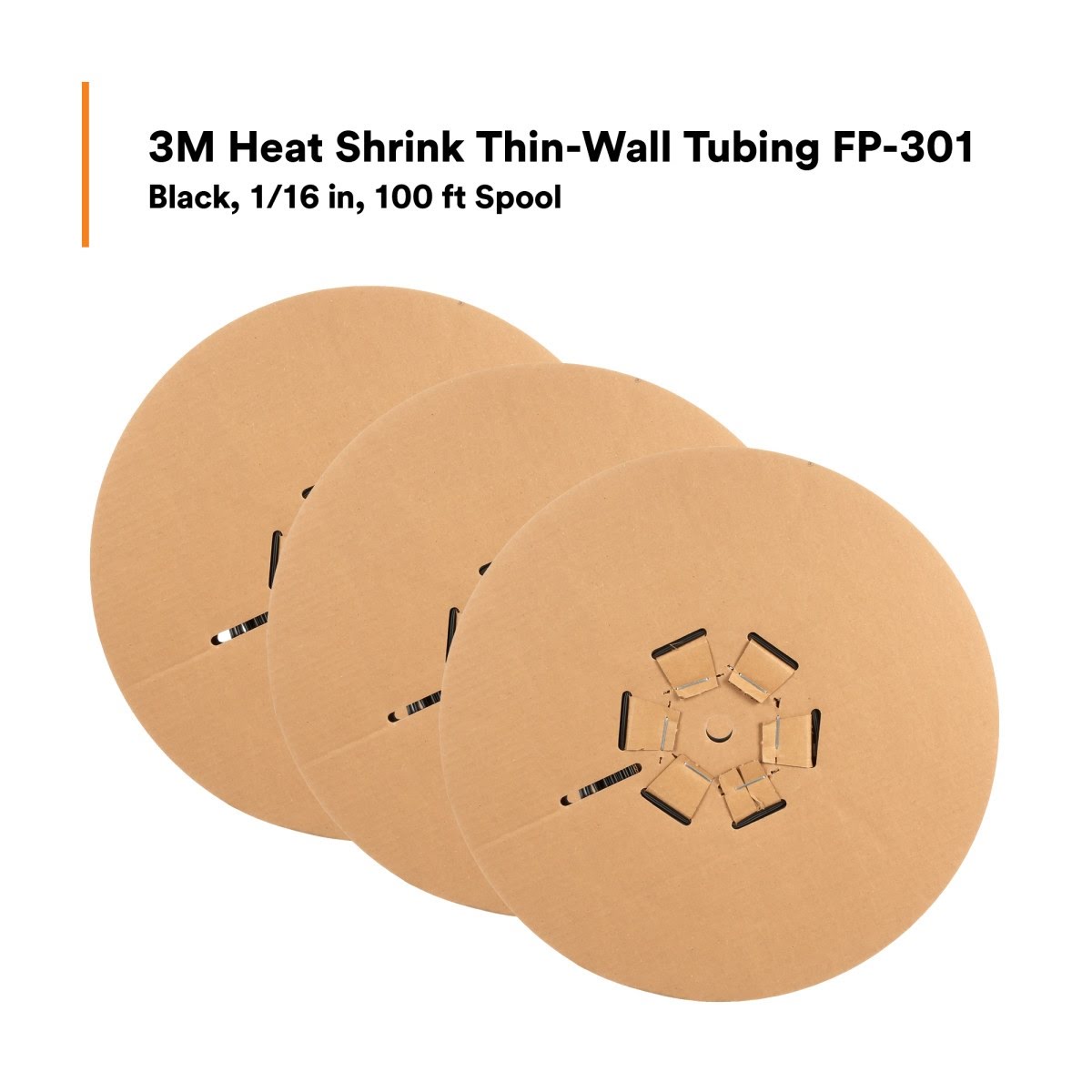

- (3) - 3M 7100025179 FP-301 Heat Shrink Thin-Wall Tubing, 1/16 in x 100 ft Length Spool, 1 Roll, Black (FP0.063BK100'S)
3M 7100025179 Features
- Thin-wall, single-wall polyolefin heat shrink tubing

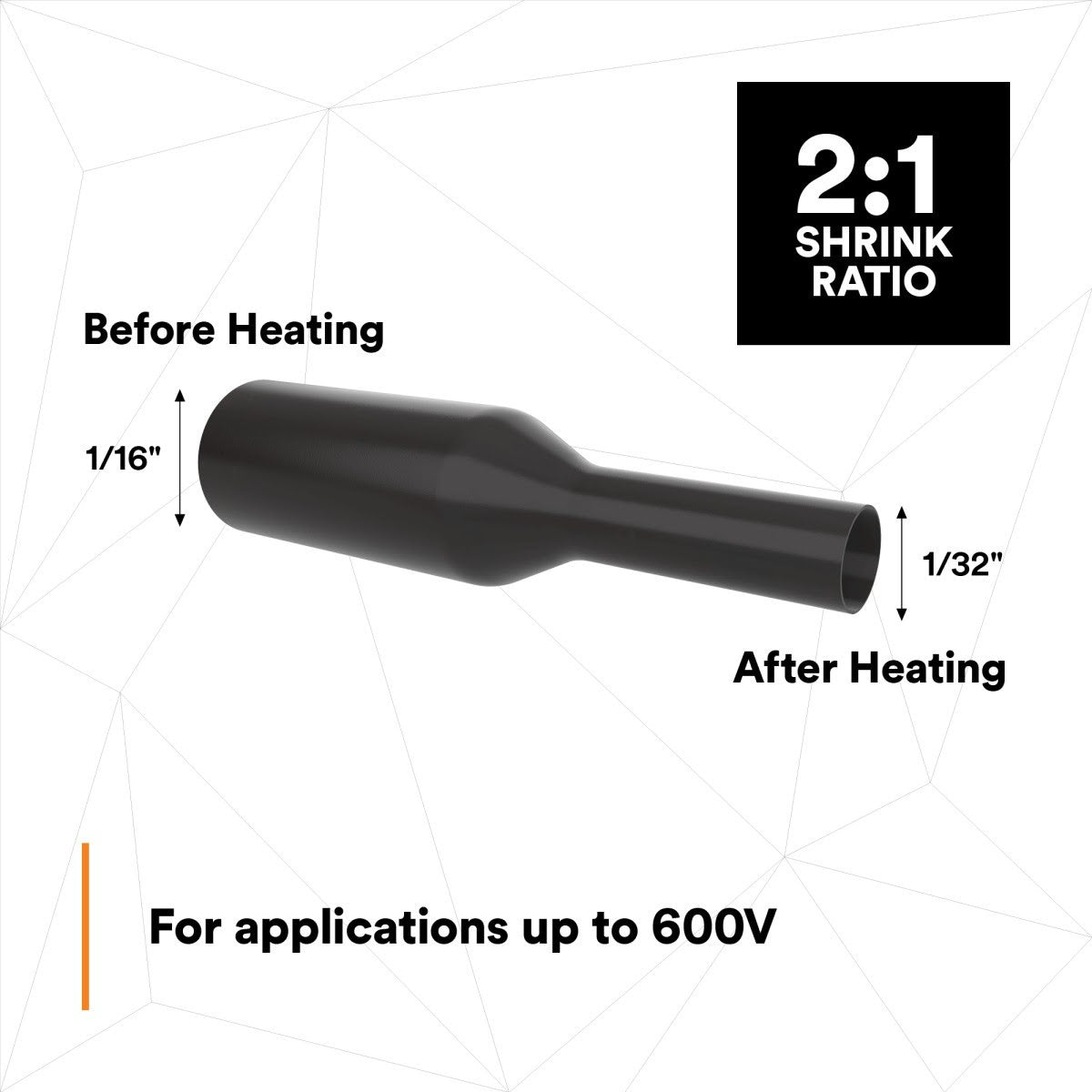

- 2:1 shrink ratio

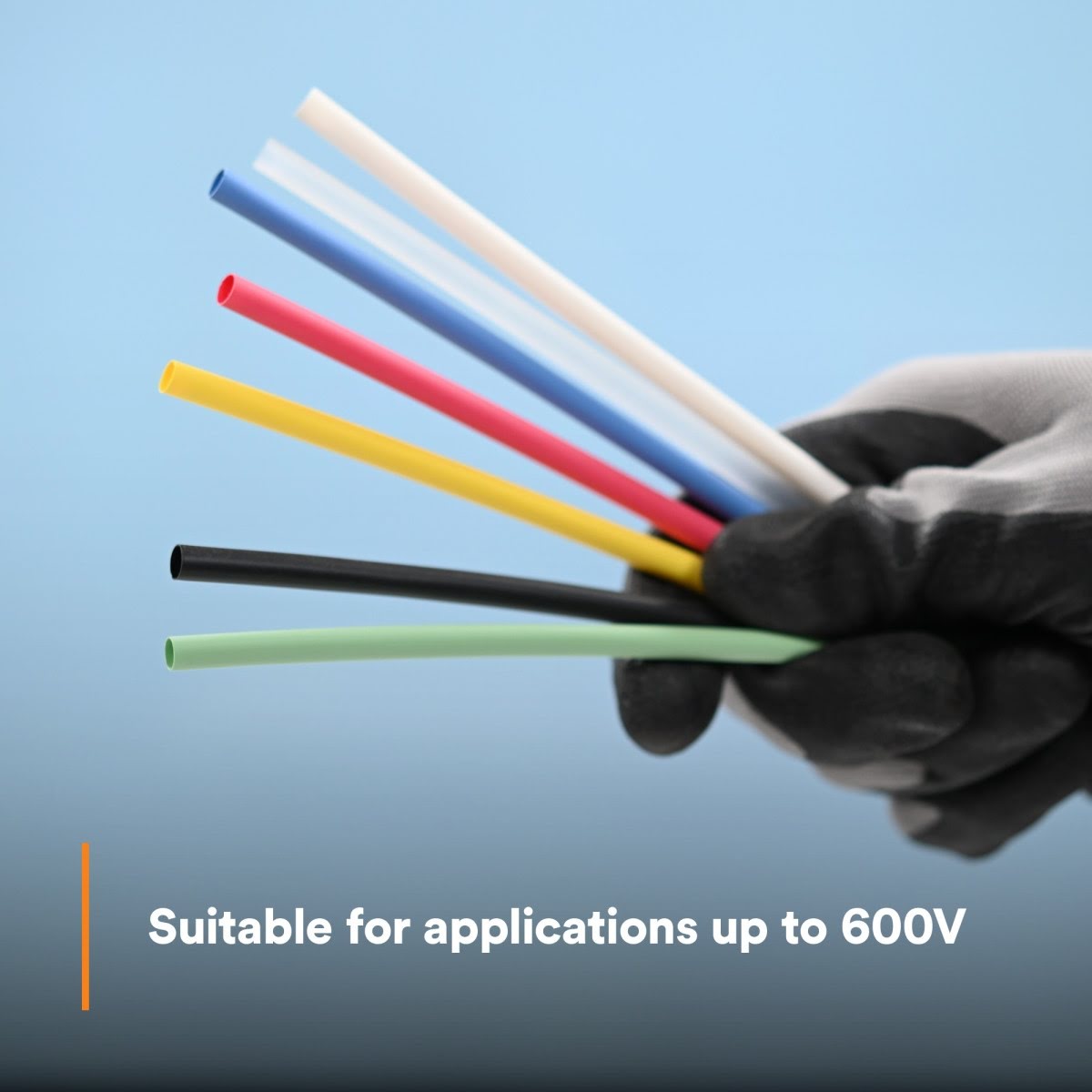

- Flame retardant insulation for applications up to 600V
- Moisture seal protection
- Operating temperature range: -67 Degree Fahrenheit to 275 Degree Fahrenheit (-55 Degree Celsius to 135 Degree Celsius)
- Mechanically tough and split resistant
- Easily markable and resists cold flow

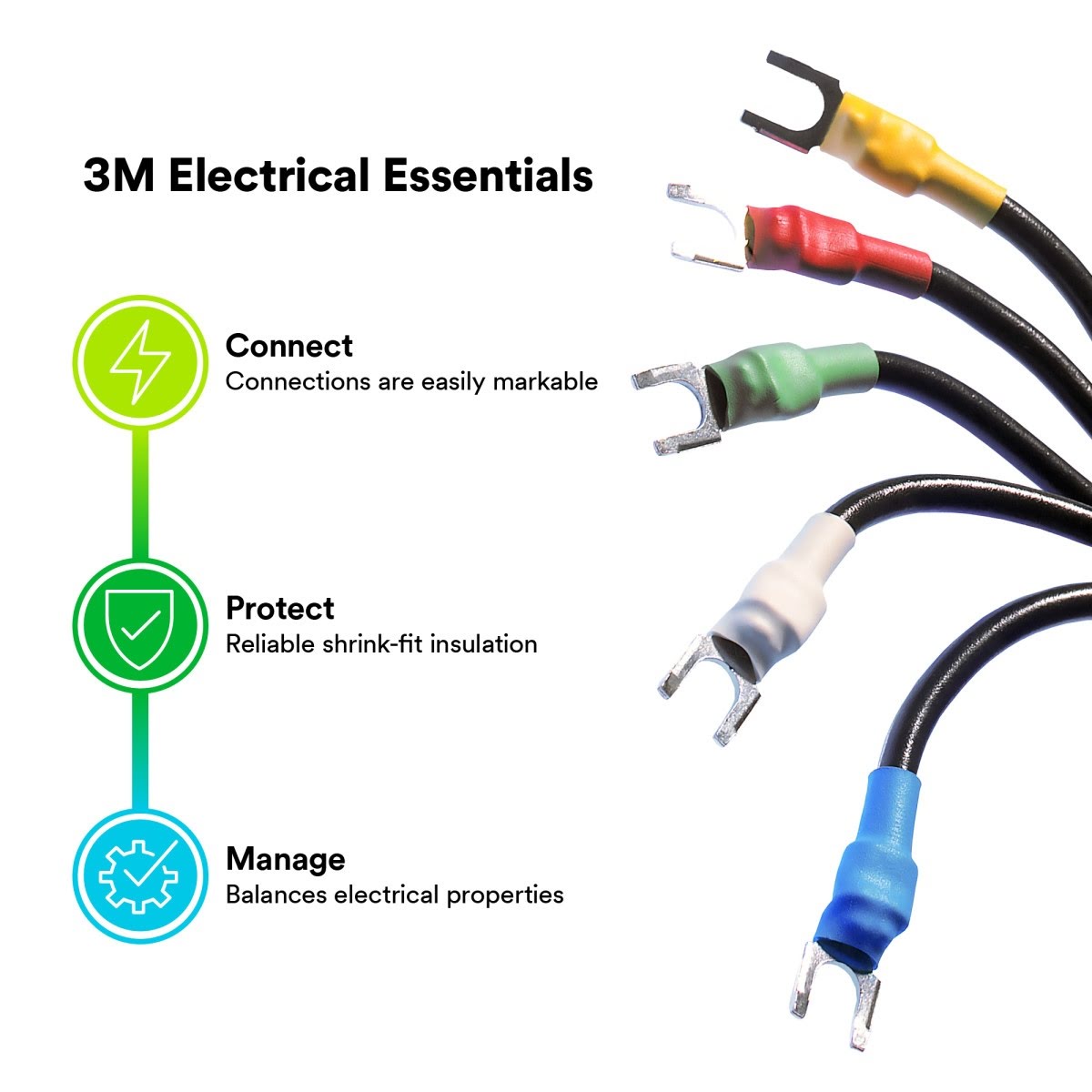

- Suitable for wire harness covering, insulation over splices/terminations, wire marking and bundling, and component packaging

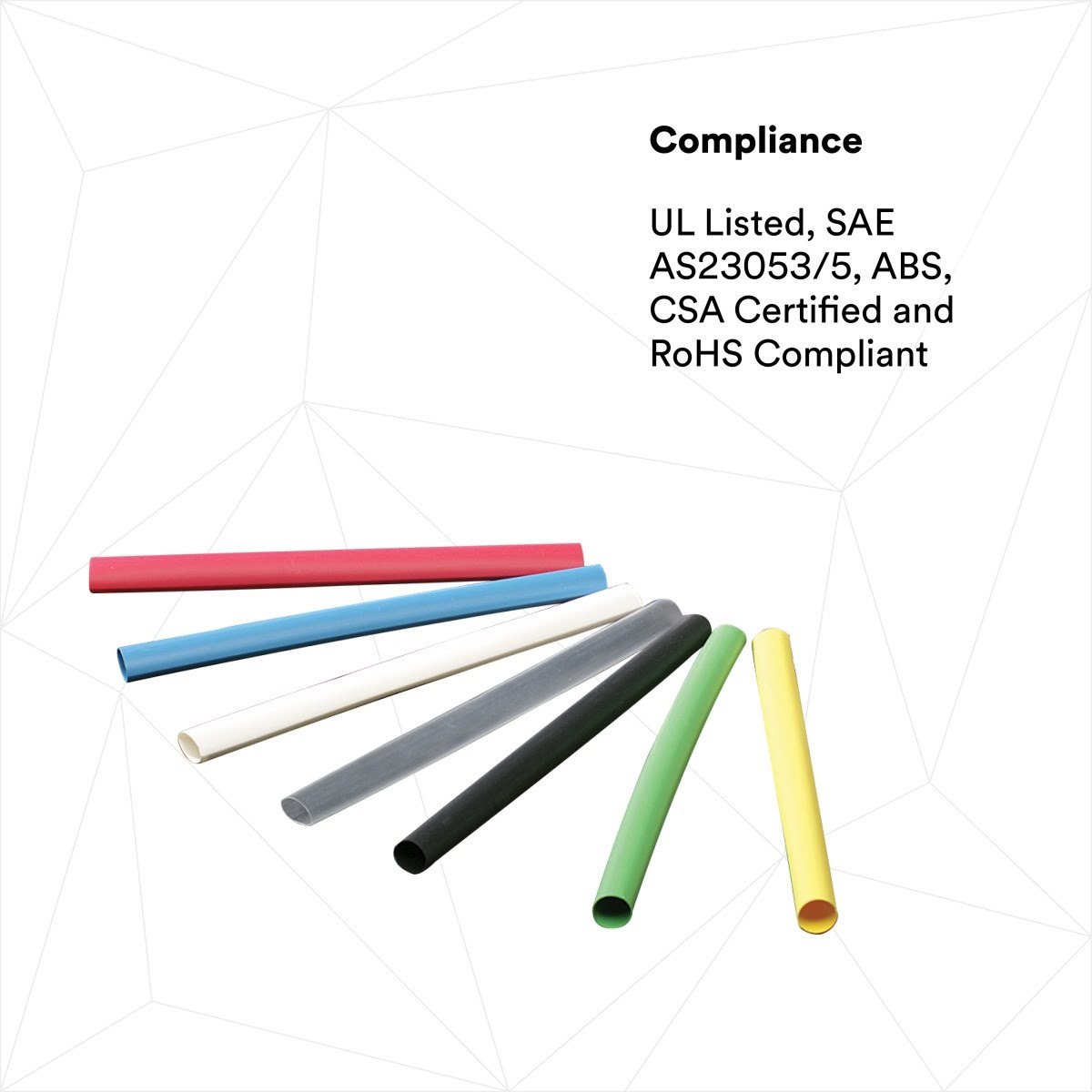

- UL Listed (File E-39100)
- SAE AS23053/5 Class 1 and CSA Certified
- RoHS 2011/65/EU compliant without exemption
3M 7100025179 Specifications
| Product Length (in) | 9.7 |
| Product Width (in) | 8.7 |
| Product Height (in) | 3.4 |
| Shipping Weight (lbs) | 0.675000331244549 |
| Overall Length | 100 ft |
| Color | Black |
| Shrink Ratio | 2:1 |
| Material | Flexible Polyolefin |
| Flame Retardant | Yes |
| Voltage Rating | 600V |
| Inner Diameter Before Shrink | 0.063 in |
| Inner Diameter After Shrink | 0.031 in |
| Maximum Operating Temperature | 275 Degree Fahrenheit (135 Degree Celsius) |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5 Class 1 |
