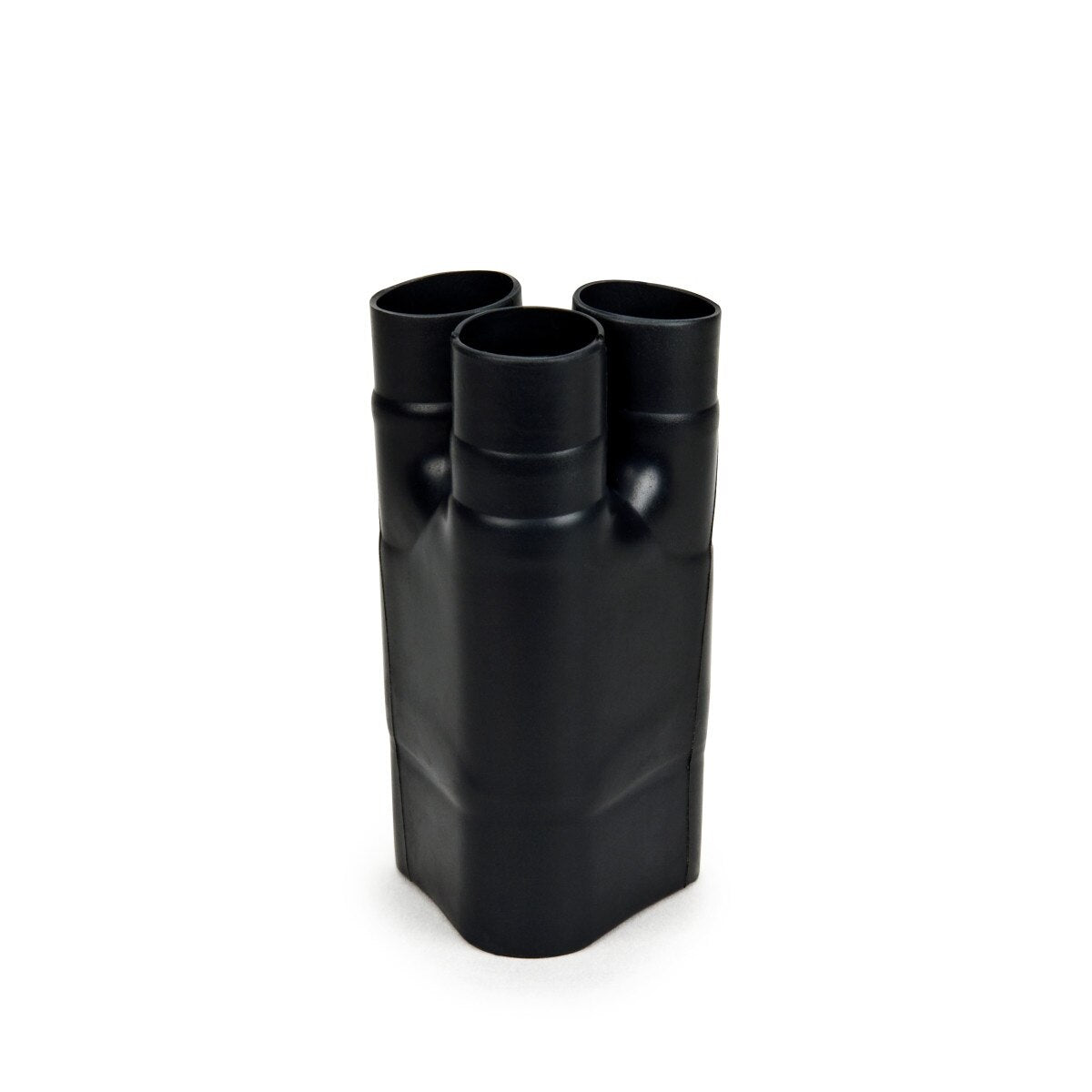

3M HDBB-321-1-250 Heat Shrinkable Cable Breakout Boot, Black, 3-Way Outlet (7000132578)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M HDBB-321-1-250 Heat Shrinkable Cable Breakout Boot, Black, 3-Way...
Description
Description
3M 7000132578 Description
This heat shrinkable cable breakout boot insulates and seals 3-way cable breakouts in multi conductor armored or sheathed cables. The semi rigid flame retardant polyolefin construction with an internal adhesive coating helps provide durable environmental sealing plus electrical and mechanical protection.
3M 7000132578 Includes
- (1) Heat Shrinkable Cable Breakout Boot
3M 7000132578 Features
- Insulates and seals cable breakouts in multi conductor armored or sheathed cables
- Internal adhesive coating helps provide reliable environmental sealing
- Provides electrical and mechanical protection for cable breakouts
- Semi rigid flame retardant polyolefin construction
- RoHS 2011/65/EU compliant without exemption
- UV resistant
- Suitable for indoor and outdoor use
3M 7000132578 Specifications
| Part Number | HDBB-321-1-250 |
| Product Type | Cable and Wire Accessory |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Shrink Type | Heat Shrink |
| Outlet Style | 3-Way |
| Number of Outlets | 3 |
| Color | Black |
| Material | Semi rigid flame retardant polyolefin |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| Indoor Outdoor | Both |
| Transition Type | 1 - 3 Breakout |
| Dielectric Strength | 10 kV per mm |
| Operating Temperature | -30 to +135 Degree Celsius |
| Maximum Operating Temperature | 135 Degree Celsius |
| Cable End Expanded | 1.5 in |
| Cable End Recovered | 0.69 in |
| Conductor Legs Expanded | 0.65 in |
| Conductor Legs Recovered | 0.18 in |
| Inner Diameter Before Shrink | 0.65 in |
| Inner Diameter After Shrink | 0.18 in |
| Outer Diameter Before Shrink | 1.5 in |
| Outer Diameter After Shrink | 0.69 in |
