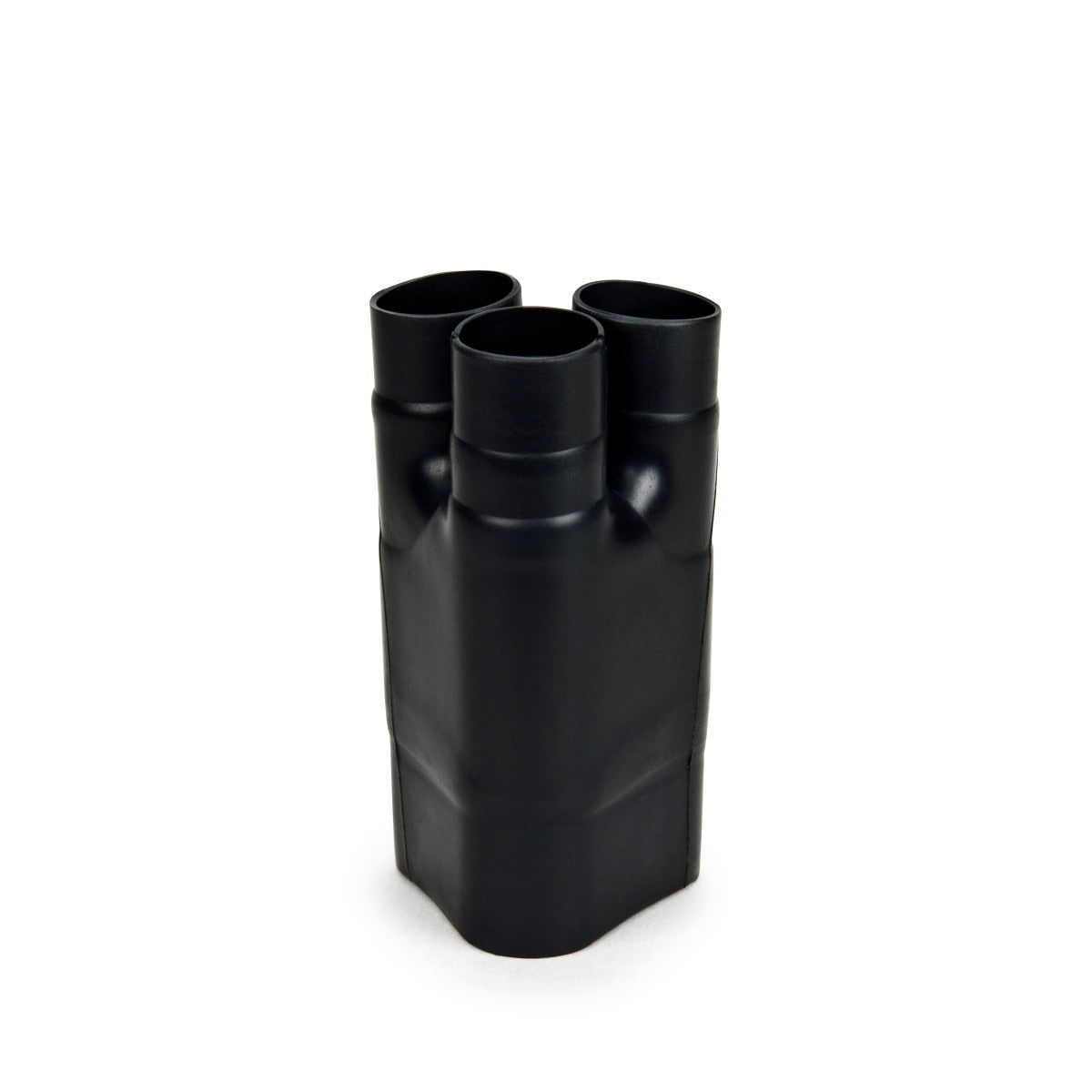

3M HDBB-320-1-250 Heat Shrinkable Cable Breakout Boot, Black, 3 Way Outlet (7000132577)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M HDBB-320-1-250 Heat Shrinkable Cable Breakout Boot, Black, 3 Way...
Description
Description
3M 7000132577 Description
This heat shrinkable cable breakout boot insulates and seals cable breakouts in multi conductor armored or sheathed cables, providing durable electrical and mechanical protection with an adhesive coating for reliable environmental sealing.
3M 7000132577 Includes
- (1) 3M Heat Shrinkable Cable Breakout Boot HDBB-320-1-250
3M 7000132577 Features
- Insulates and seals cable breakouts in multi conductor armored or sheathed cables
- Internal adhesive coating helps provide reliable environmental sealing
- Provides electrical and mechanical protection
- Semi rigid flame retardant polyolefin construction
- RoHS 2011/65/EU compliant
3M 7000132577 Specifications
| Part Number | HDBB-320-1-250 |
| Product Type | Cable & Wire Accessory |
| Heat Shrink Type | Heat Shrink Molded Shapes |
| Shrink Type | Heat Shrink |
| Outlet Style | 3-Way |
| Number of Outlets | 3 |
| Color | Black |
| Material | Semi-rigid, Flame Retardant Polyolefin |
| Flame Retardant | Yes |
| UV Resistant | Yes |
| Indoor/Outdoor | Both |
| Transition Type | 1 - 3 Breakout |
| Dielectric Strength | 10 kV / mm |
| Operating Temperature | -30 up to +135 Degree Celsius |
| Maximum Operating Temperature | 135.0 Degree Celsius |
| Cable End Expanded | 1.2 in |
| Cable End Recovered | 0.5 in |
| Conductor Legs Expanded | 0.5 in |
| Conductor Legs Recovered | 0.16 in |
| Inner Diameter Before Shrink | 0.5 in |
| Inner Diameter After Shrink | 0.16 in |
| Outer Diameter Before Shrink | 1.2 in |
| Outer Diameter After Shrink | 0.5 in |
| SAP Shelf Life In Days | 1800 |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
