3M H-30-BIN Highland Wire Connector H-30, Blue, 22-16 AWG (7010304019) (1000 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M H-30-BIN Highland Wire Connector H-30, Blue, 22-16 AWG (70103040...
Description
Description
3M 7010304019 Description

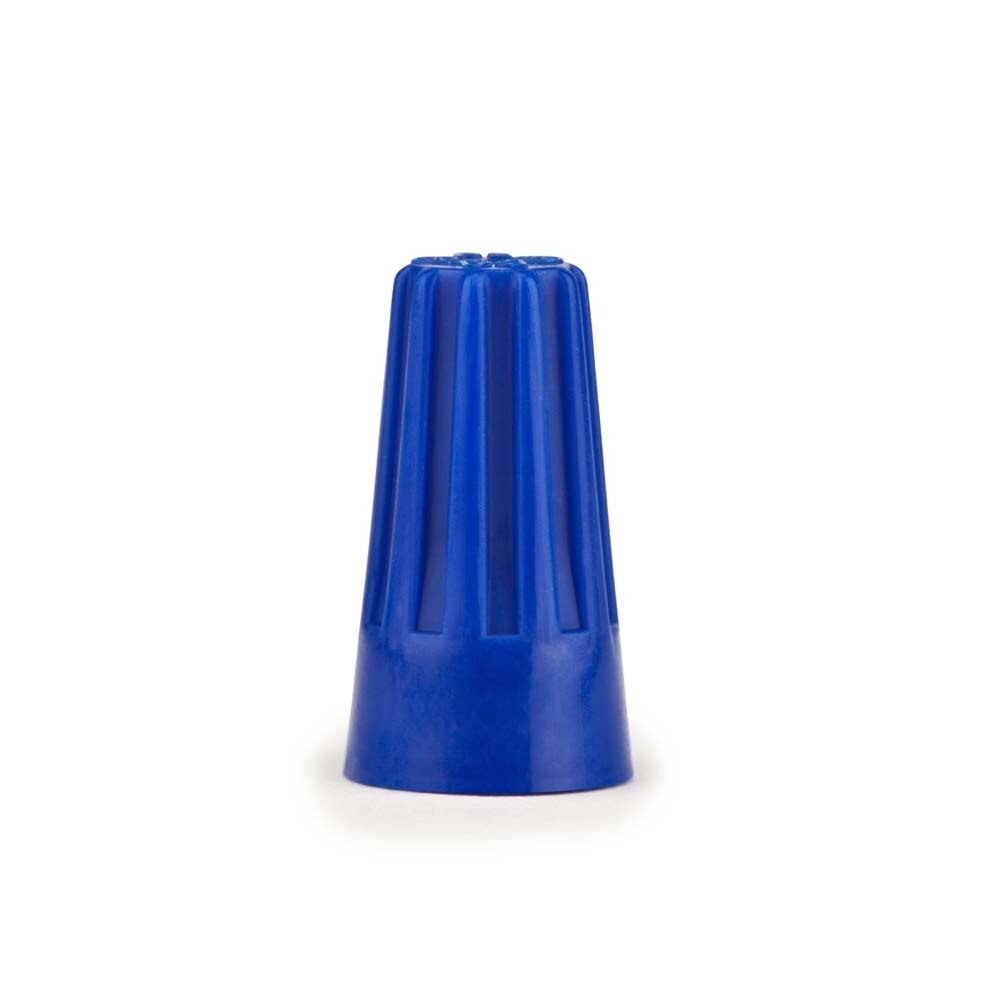

3M Highland H-30 blue twist-on wire connectors are UL Listed for connecting and insulating 22–16 AWG copper wires, rated to 300V with a vinyl insulator and steel spring, and withstand temperatures up to 221 Degree F (105 Degree C). Supplied as a 1000-pack for high-volume use.
3M 7010304019 Includes
- (1000) Highland H-30 Blue Twist-On Wire Connectors
3M 7010304019 Features
- For 22–16 AWG copper wires
- Twist-on design for quick pigtail connections
- UL Listed and CSA Certified
- 300V maximum rating (H-29/H-30)
- 105 Degree C (221 Degree F) maximum operating temperature
- Vinyl insulator with plated steel spring
- Works with solid or stranded copper wire
- Blue color coding for easy size identification
- 1,000 connectors per bin/case
3M 7010304019 Specifications
| Connector Type | Twist-on Wire Connector |
| Model | H-30 |
| Color | Blue |
| Wire Range | 22–16 AWG (copper) |
| Maximum Voltage Rating | 300 V |
| Maximum Operating Temperature | 105 Degree C (221 Degree F) |
| Insulator Material | Vinyl |
| Spring Material | Plated steel |
| Certifications | UL Listed, CSA Certified |
| Package Quantity | 1000 per bin/case |
| Shipper Dimensions (L x W x H) | 5.3 in x 5.2 in x 4.8 in |
| Shipper Weight | 2.8 lb |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
