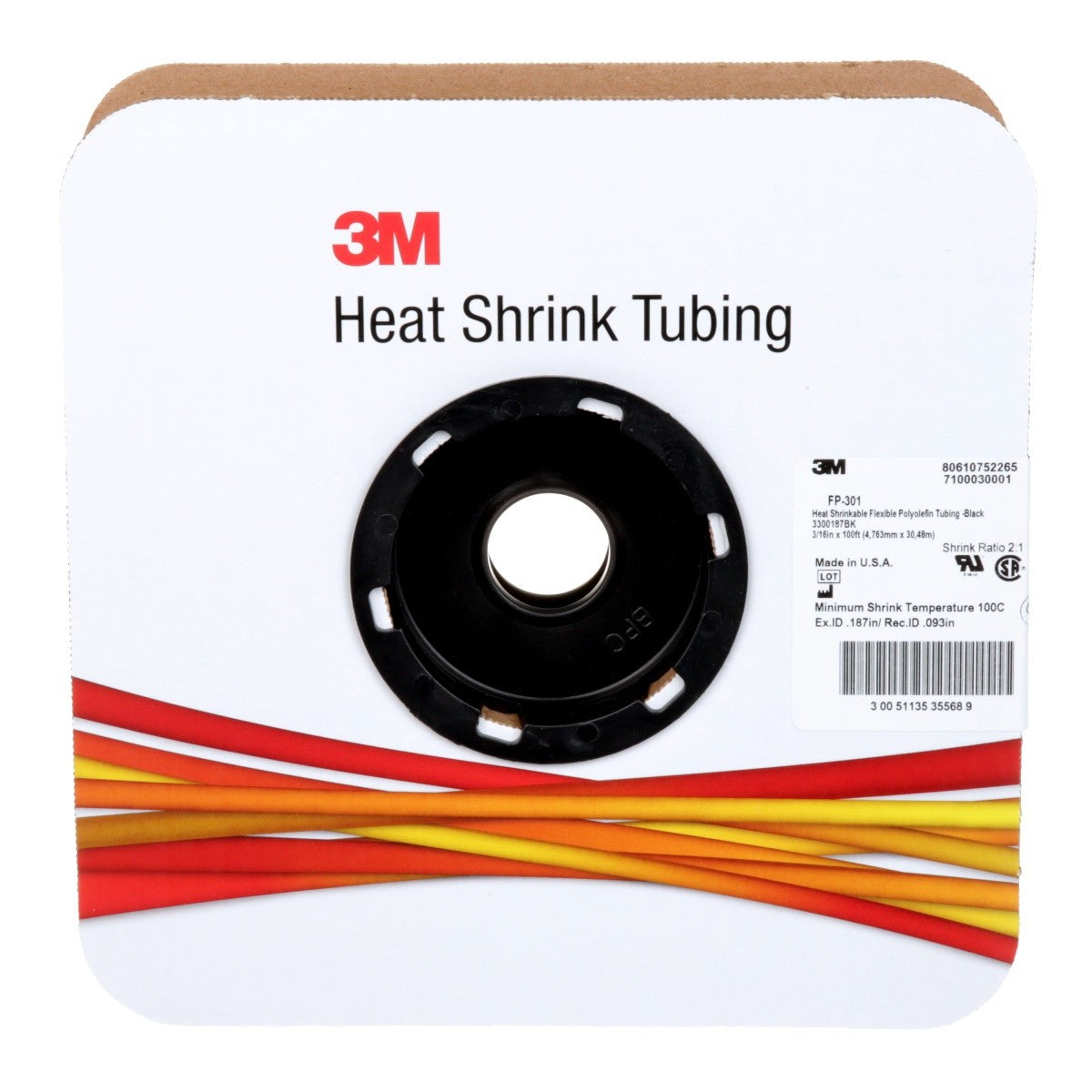

3M FP0.188BK100'S FP-301 Heat Shrink Thin Wall Tubing, 3/16 in x 100 ft Spool, Black (7100030001) (3 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M FP0.188BK100'S FP-301 Heat Shrink Thin Wall Tubing, 3/16 in ...
Description
Description
3M 7100030001 Description

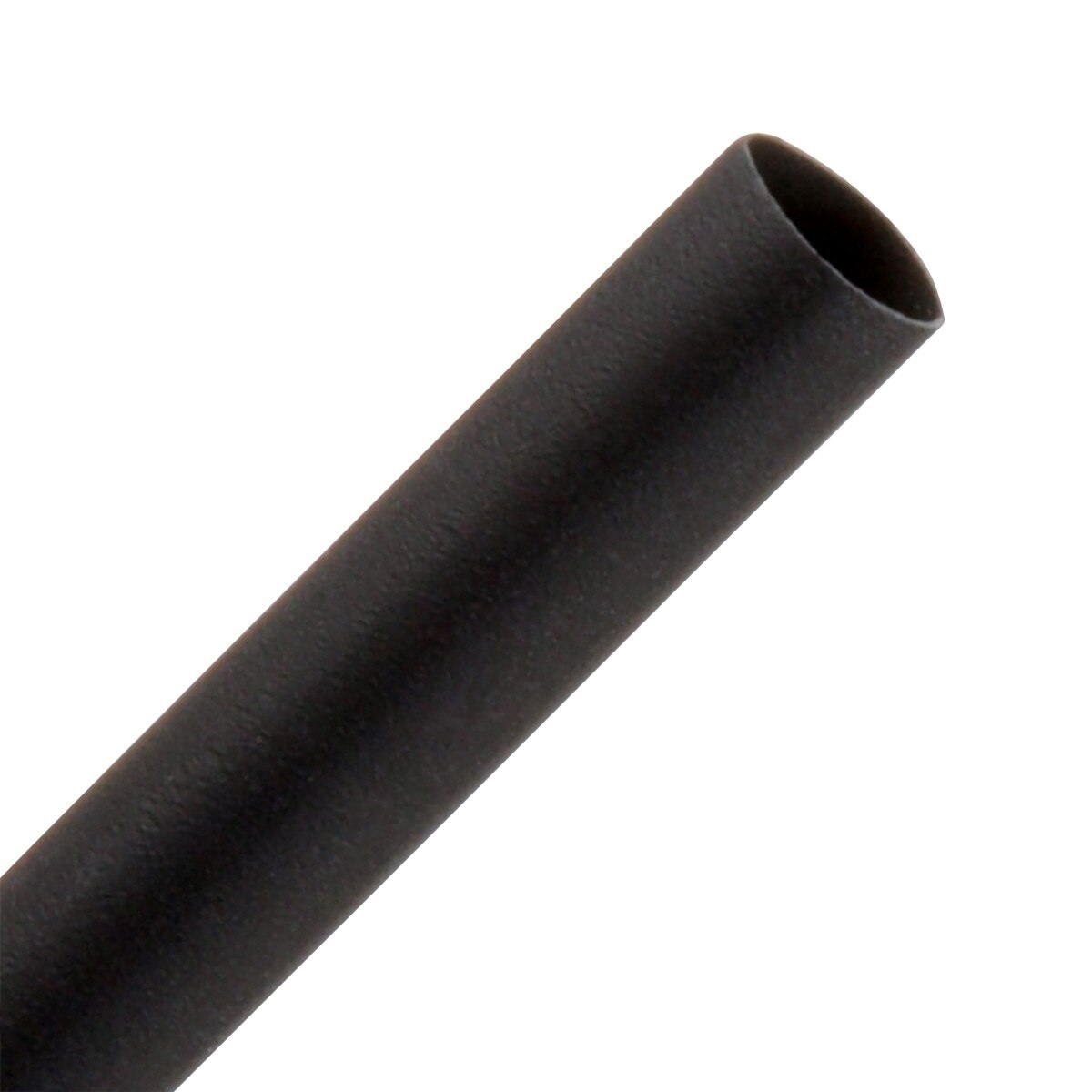

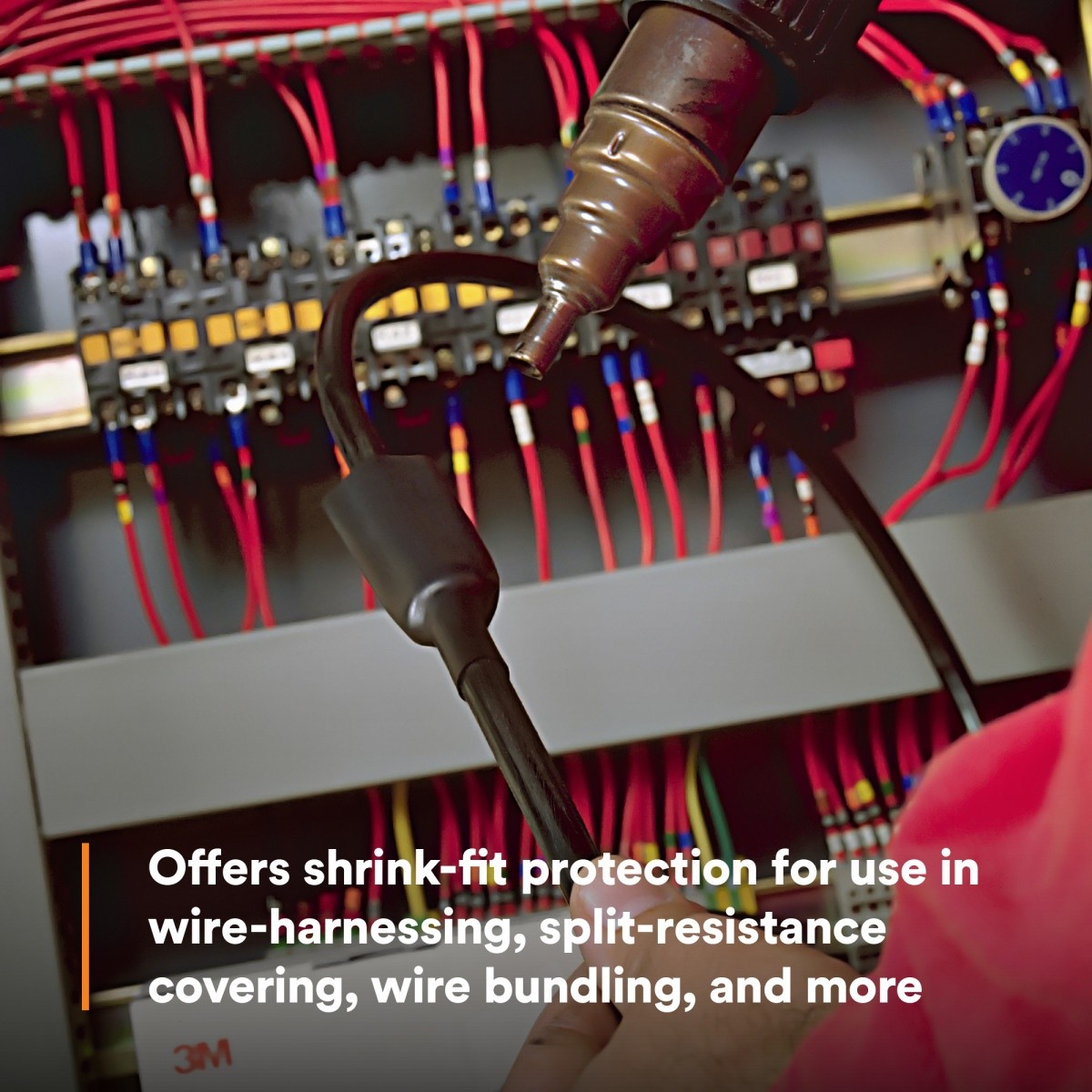

3M FP-301 heat shrink thin wall tubing is a flexible polyolefin tubing designed for shrink-fit electrical insulation and protection of wire splices, terminations, and harnesses. It features a 2:1 shrink ratio, flame-retardant performance for up to 600V applications, and moisture seal protection, with an operating temperature range of -67 Degree F to 275 Degree F (-55 to 135 Degree C).
3M 7100030001 Includes

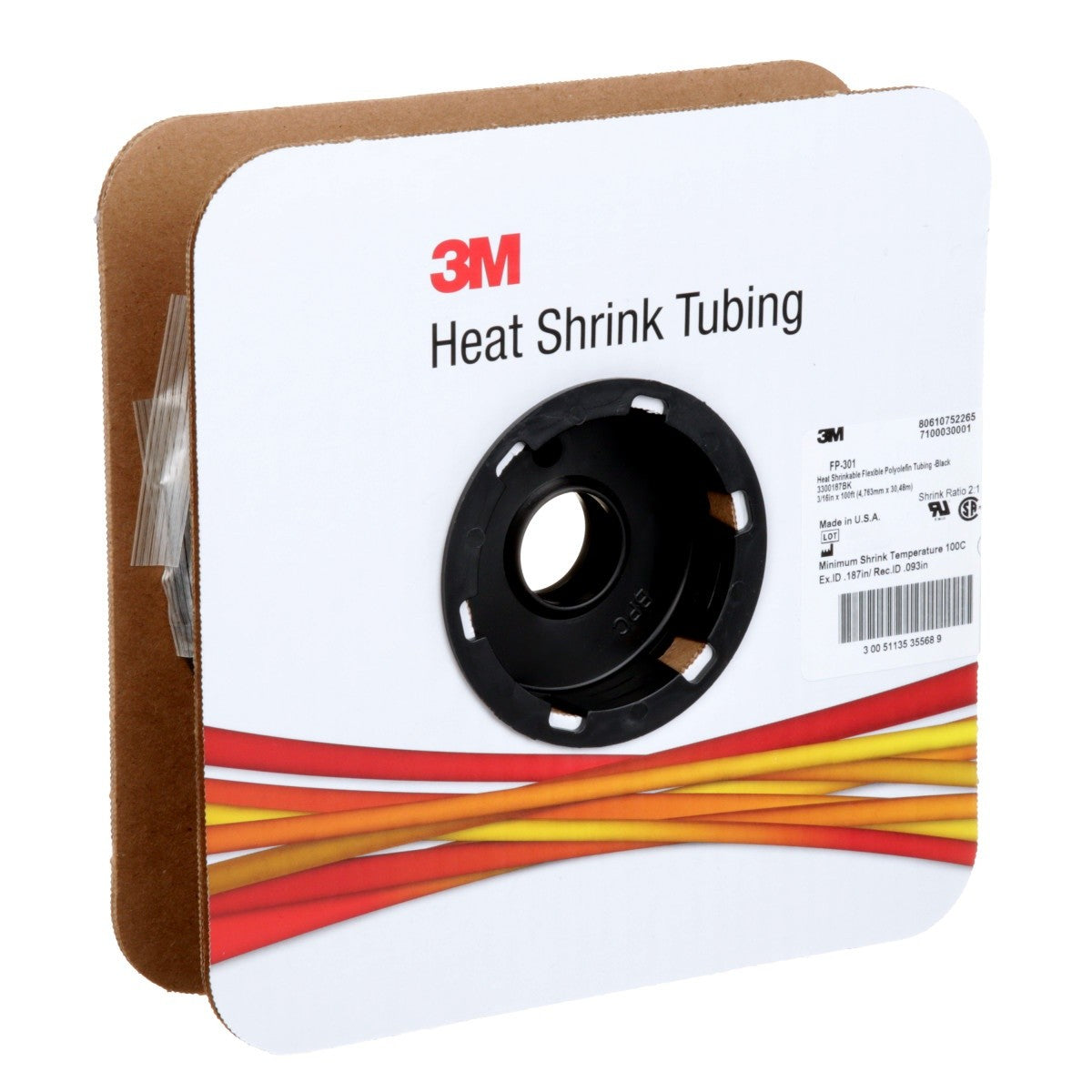

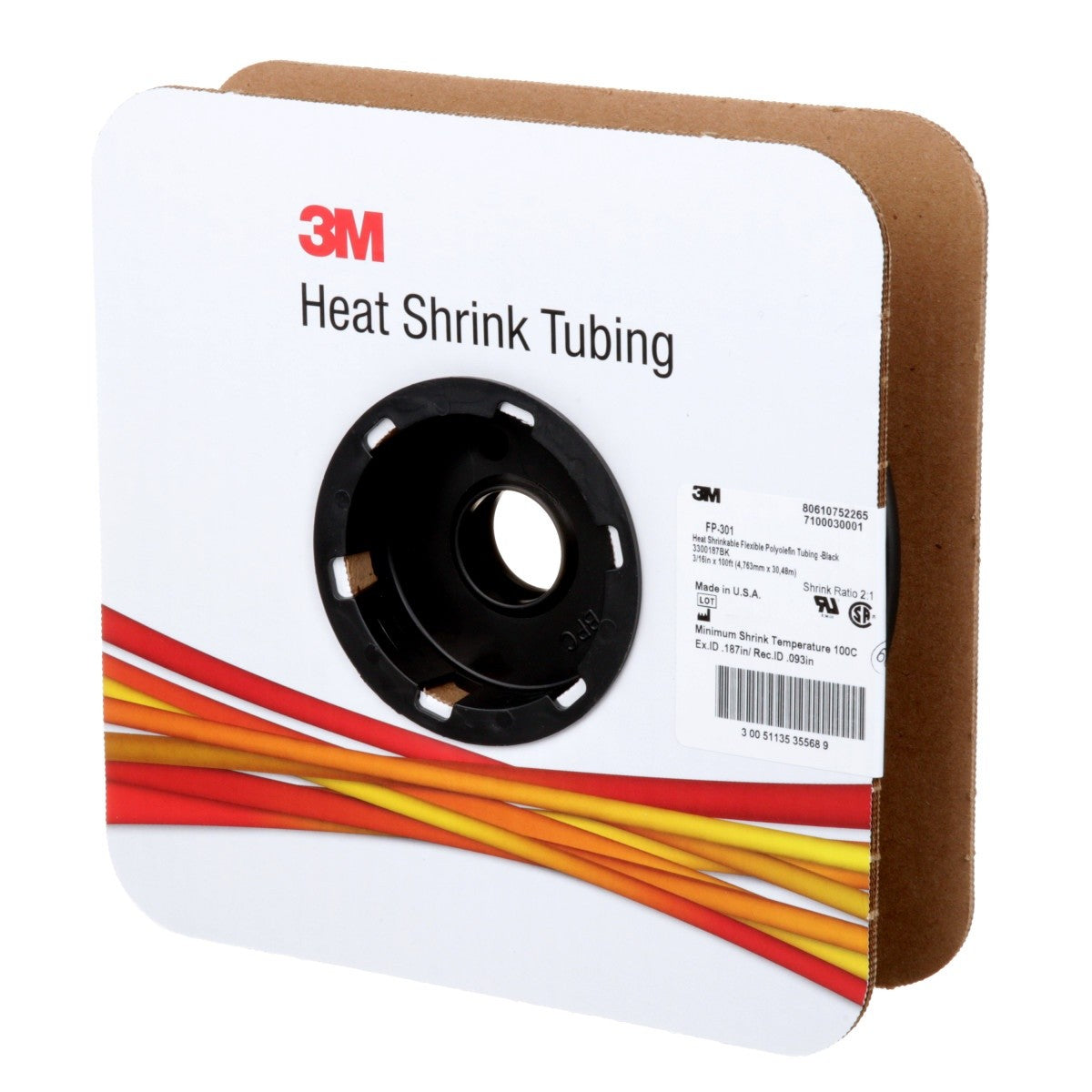

- (3) 3M FP-301 Heat Shrink Thin Wall Tubing Roll, 3/16 in x 100 ft, Black
3M 7100030001 Features
- Thin-wall single-wall polyolefin heat shrink tubing for general purpose insulation and protection
- 2:1 shrink ratio for secure shrink-fit coverage

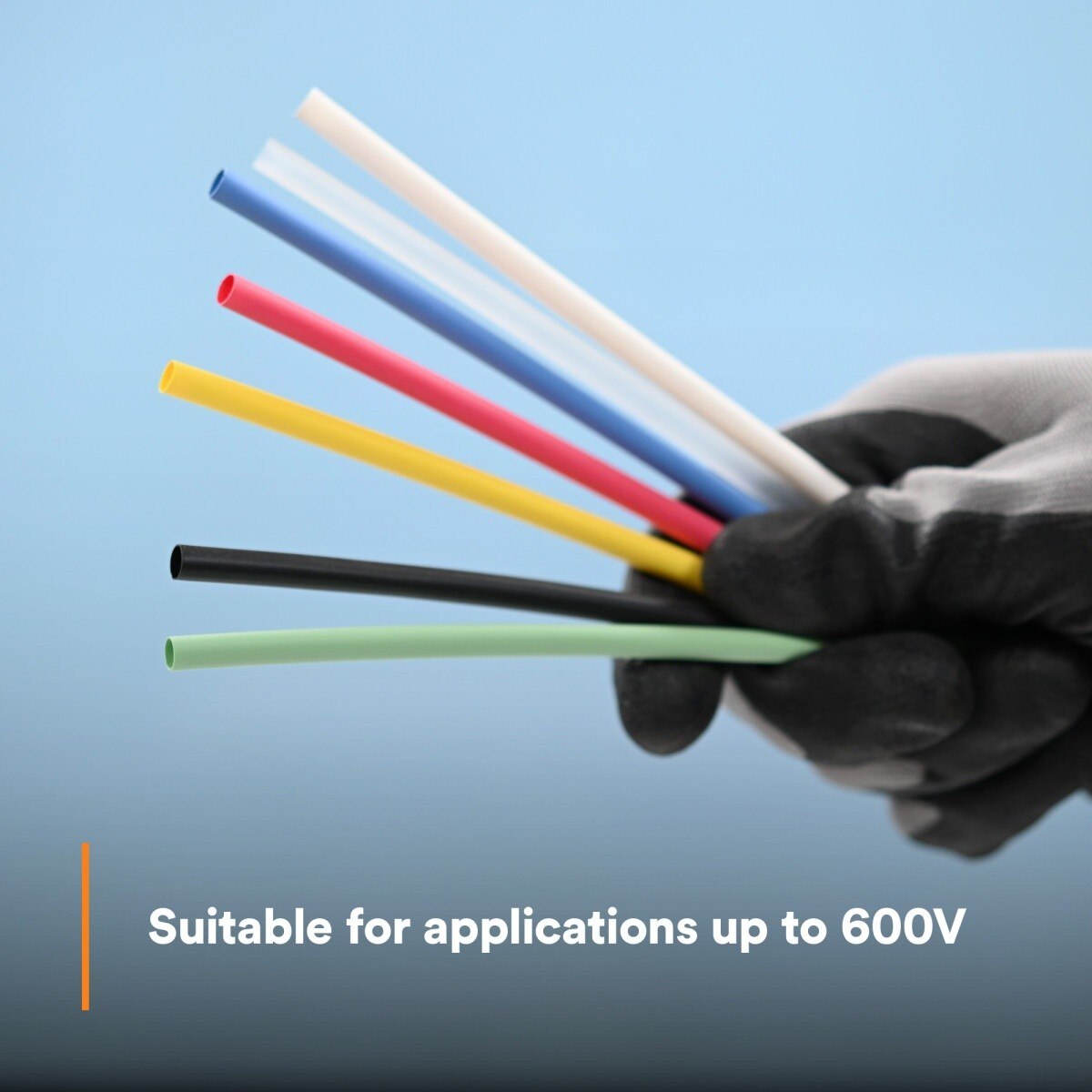

- Flame retardant tubing suitable for applications up to 600V

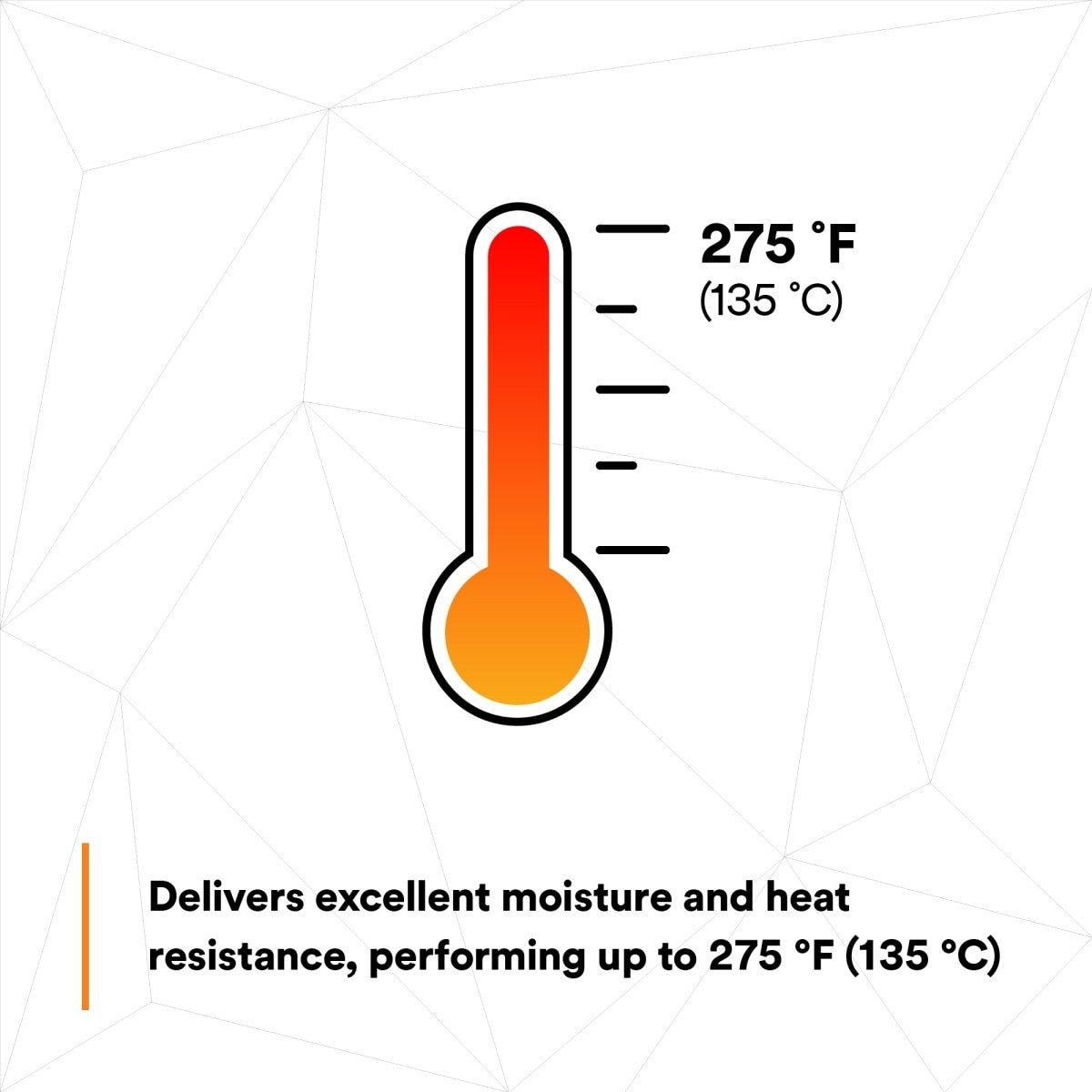

- Operating temperature range -67 Degree F to 275 Degree F (-55 Degree C to 135 Degree C)
- Helps provide moisture seal protection
- Mechanically tough and split resistant for demanding environments

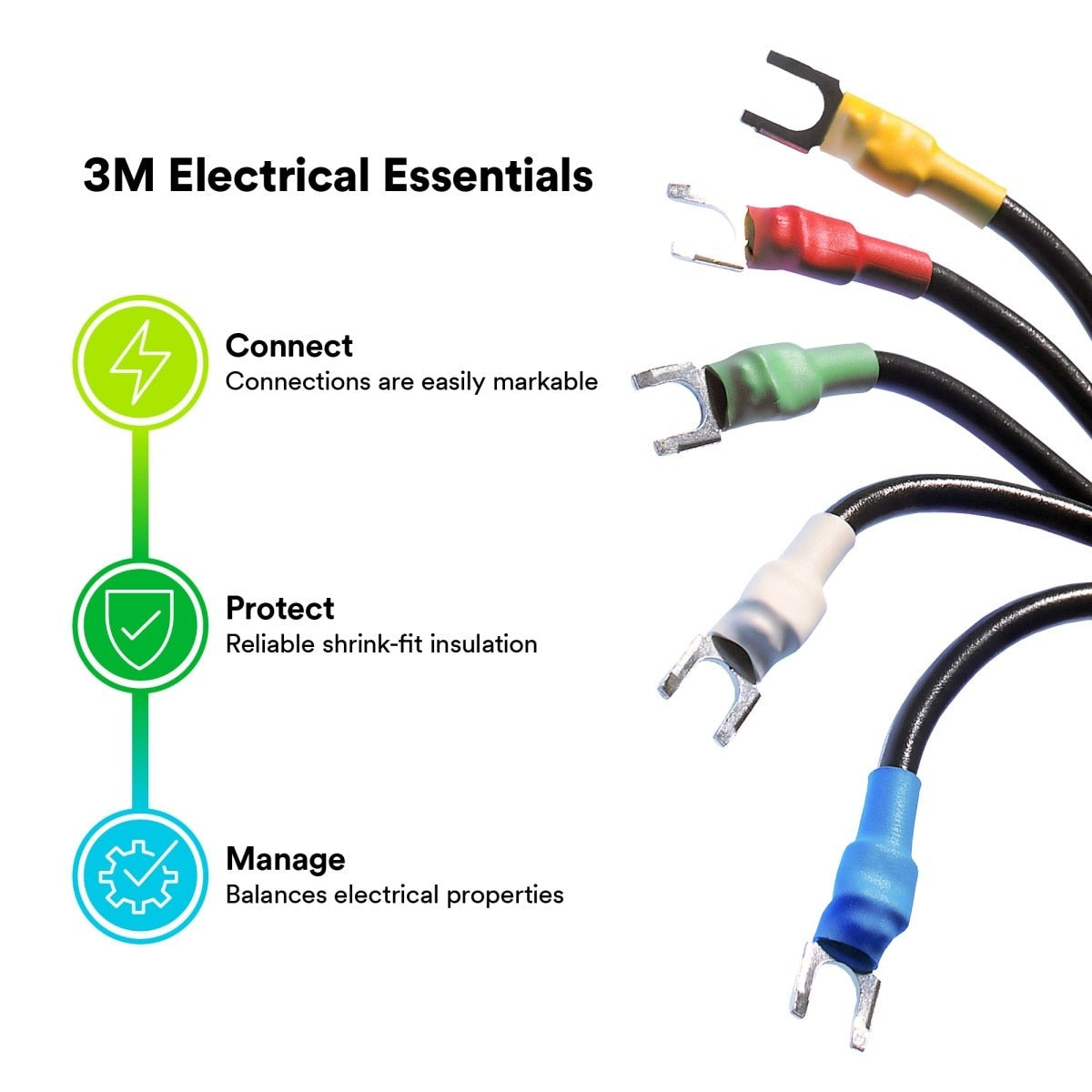

- Color coded for quick wire identification and wire marking
- UL Listed and CSA Certified
- SAE AS23053/5 Class 1 and RoHS 2011/65/EU compliant
3M 7100030001 Specifications
| Product Type | Heat Shrink Thin Wall Tubing |
| Series | FP-301 |
| Color | Black |
| Overall Length | 100 ft |

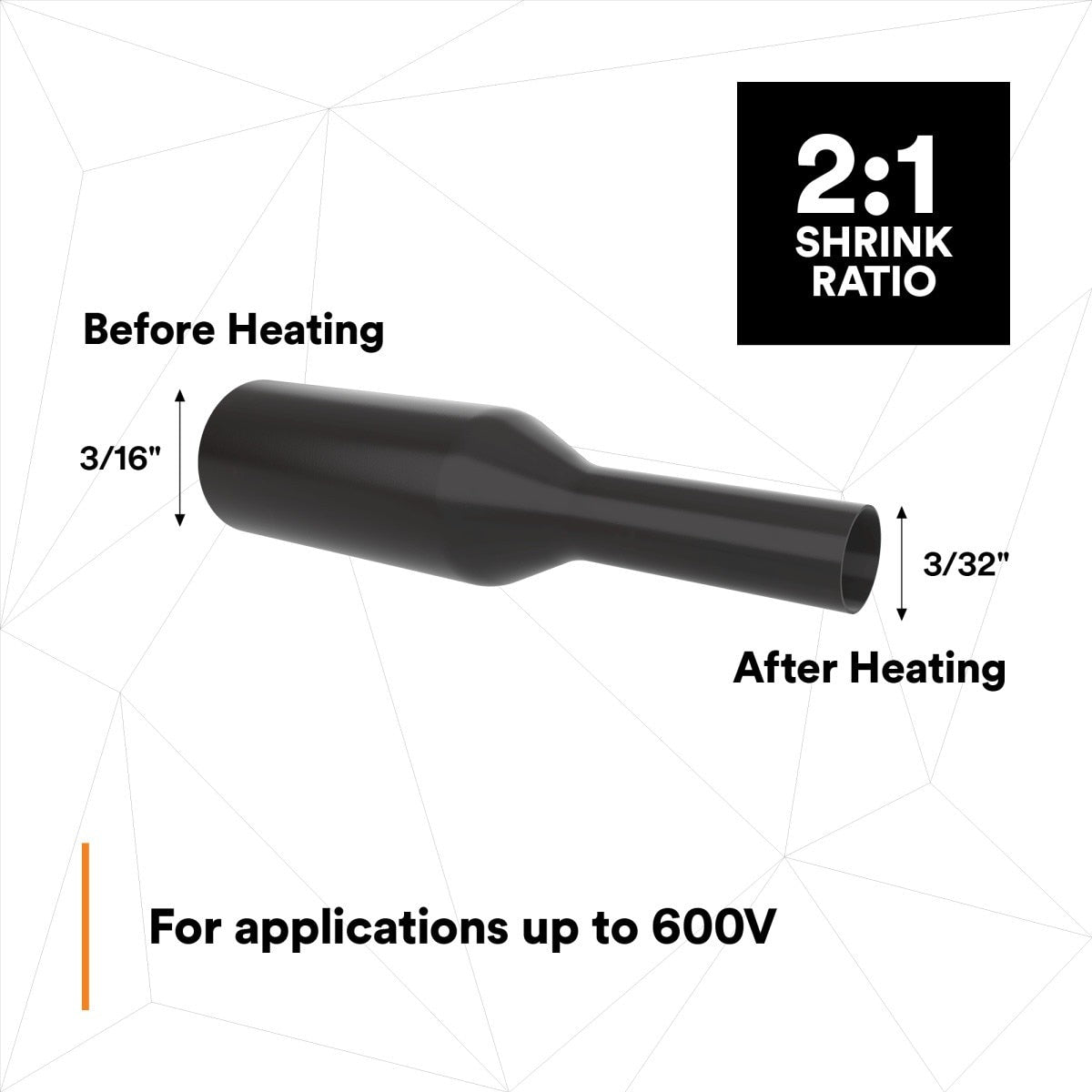

| Inner Diameter Before Shrink | 0.187 in |
| Inner Diameter After Shrink | 0.093 in |
| Shrink Ratio | 2:1 |
| Material | Flexible Polyolefin |
| Flame Retardant | Yes |
| Voltage Rating | 600V |
| Operating Temperature Range | -67 Degree F to 275 Degree F |
| Maximum Operating Temperature | 275 Degree F |
| Tensile Strength | 2400 psi |
| Elongation | 400 percent |
| UL Approval | Yes |
| UL File Number | E-39100 |
| Mil Spec | AMS-DTL-23053/5, Class 1 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
| Package Contents | 3 rolls per case |
| Roll Length | 100 ft per roll |
| Total Length Per Case | 300 linear ft |
