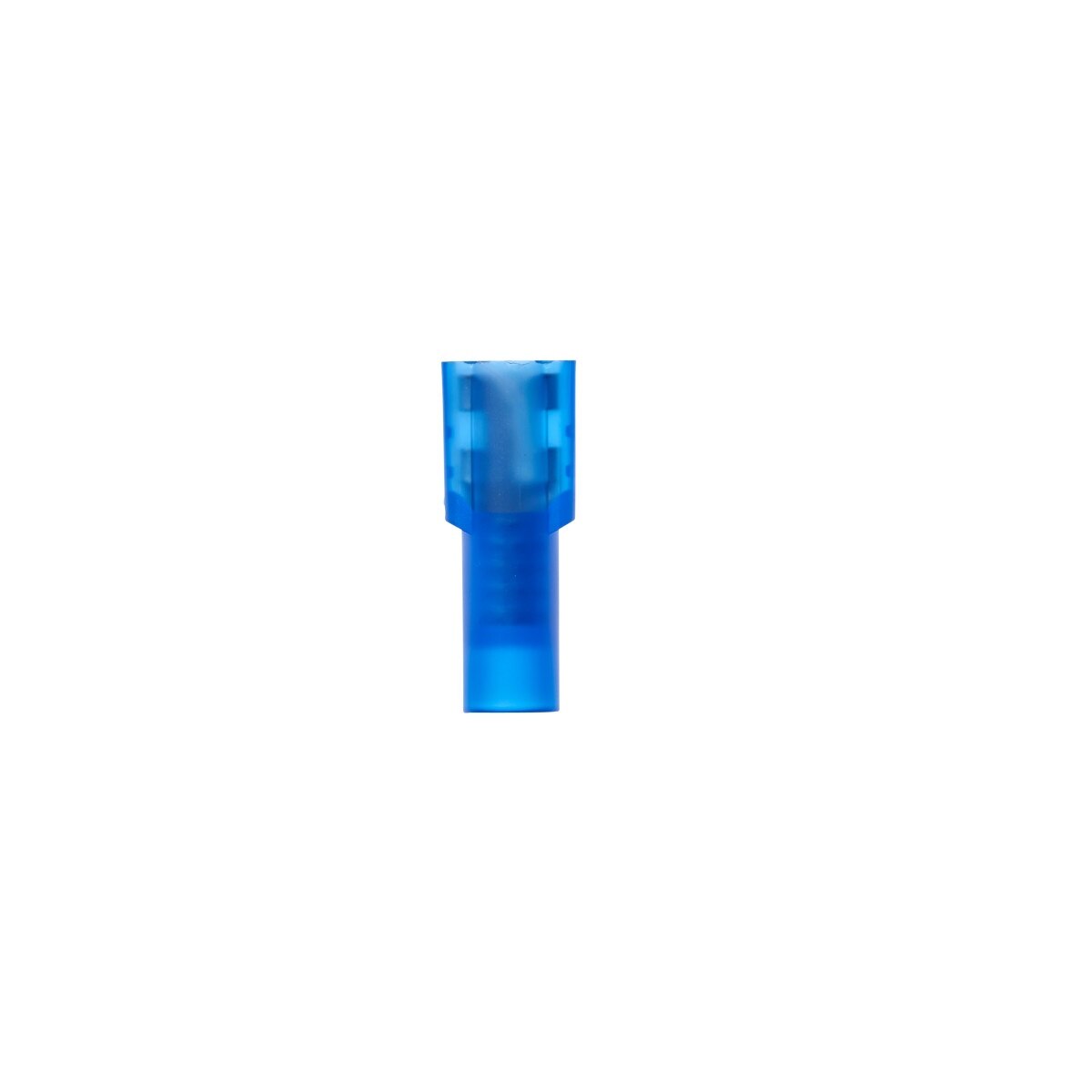

3M FDI14-250Q Highland Nylon Fully Insulated Female Disconnect Terminal, AWG 16-14, 1/4 in Tab Width (7000133658) (250 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M FDI14-250Q Highland Nylon Fully Insulated Female Disconnect Term...
Description
Description
3M 7000133658 Description
3M Highland nylon fully insulated female disconnect terminal designed for AWG 16 to 14 wires, featuring a butted seam barrel for reliable electrical contact after crimping and a tin plated brass terminal for corrosion resistance.
3M 7000133658 Includes
- (250) - 3M 7000133658 Highland Nylon Fully Insulated Female Disconnect Terminal FDI14-250Q, AWG 16-14
3M 7000133658 Features
- Female disconnect terminal with nylon fully insulated butted seam barrel for easy wire insertion
- Dents and rolled edges provide superior holding force while allowing quick disconnect
- Tin plated brass construction provides good conductivity and corrosion resistance
- Abrasion resistant flared nylon sleeve with stepped design helps ensure correct crimping
- RoHS 2011/65/EU compliant without exemption
- Rated up to 600 V maximum recommended voltage
- Fits 0.25 in male tab width connections
3M 7000133658 Specifications
| Brand | Highland |
| Part Number | FDI14-250Q |
| Disconnect Type | Female |
| Terminal Style | Fully Insulated |
| Insulation Material | Nylon |
| Wire Size Range | 16 to 14 AWG |
| Connection Width | 0.25 in |
| Tab Width | 0.250 |
| Maximum Recommended Voltage Rating | 600 V |
| Overall Length | 0.87 in |
| Overall Width | 0.37 in |
| Overall Diameter | 0.23 in |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.08 in |
| Max Insulation Outside Diameter | 0.145 in |
| UL File Number | E70512 |
| CSA File Number | LR22190 |
| Package Height | 5.5 in |
| Package Width | 4.375196850393701 in |
| Package Length | 0.5 in |
| Each Shipping Weight | 0.082 lb |
