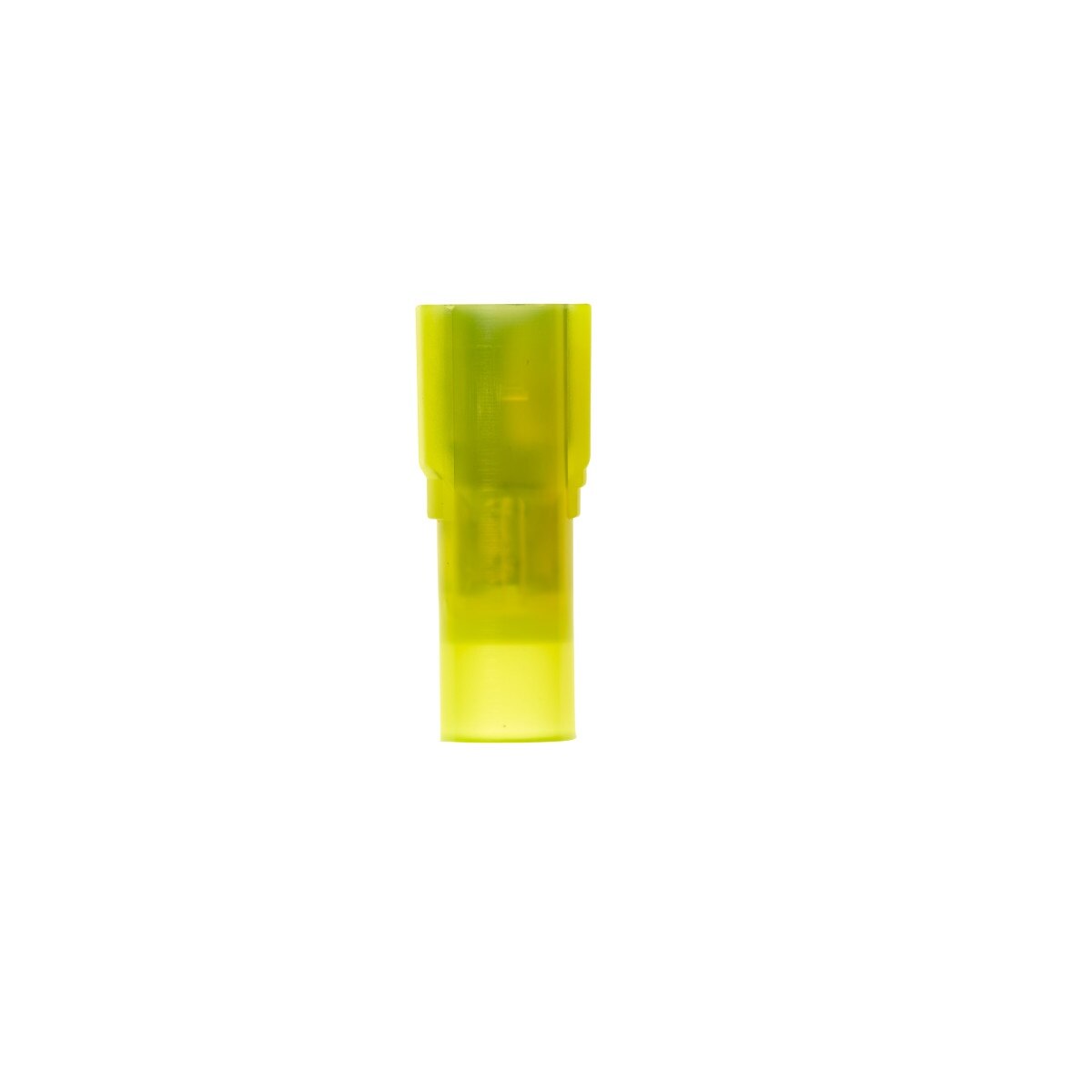

3M FDI10-250Q Highland Nylon Fully Insulated Female Disconnect Terminal, AWG 12-10, Yellow (7000133657) (250 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M FDI10-250Q Highland Nylon Fully Insulated Female Disconnect Term...
Description
Description
3M 7000133657 Description
3M Highland nylon fully insulated female disconnect terminals provide quick and easy wire disconnect with strong holding force. The butted seam barrel supports reliable crimping performance, and the tin plated brass construction helps resist corrosion.
3M 7000133657 Includes
- (250) - 3M 7000133657 Highland Nylon Fully Insulated Female Disconnect Terminal, AWG 12-10, Yellow
3M 7000133657 Features
- AWG 12 to 10 female disconnect terminal for quick disconnect applications
- Fully insulated nylon sleeve with butted seam barrel for reliable crimping
- Dents and rolled edges help provide strong holding force
- Tin plated brass construction helps resist corrosion and supports good conductivity
- Withstands temperatures from -40 to 221 degrees F
- Stepped and flared nylon sleeve helps provide abrasion resistance and supports mistake proof crimping
- Mates with 0.25 inch male tab width
- RoHS 2011/65/EU compliant without exemption
3M 7000133657 Specifications
| Brand | Highland |
| Part Number | FDI10-250Q |
| Disconnect Type | Female |
| Terminal Style | Fully Insulated |
| Insulation Material | Nylon |
| Wire Range | 12 to 10 AWG |
| Connection Width | 0.25 in |
| Barrel Style | Butted |
| Barrel Inside Diameter | 0.128 in |
| Overall Length | 0.99 in |
| Overall Width | 0.37 in |
| Overall Diameter | 0.23 in |
| Maximum Recommended Voltage Rating | 600 V |
| Color | Yellow |
