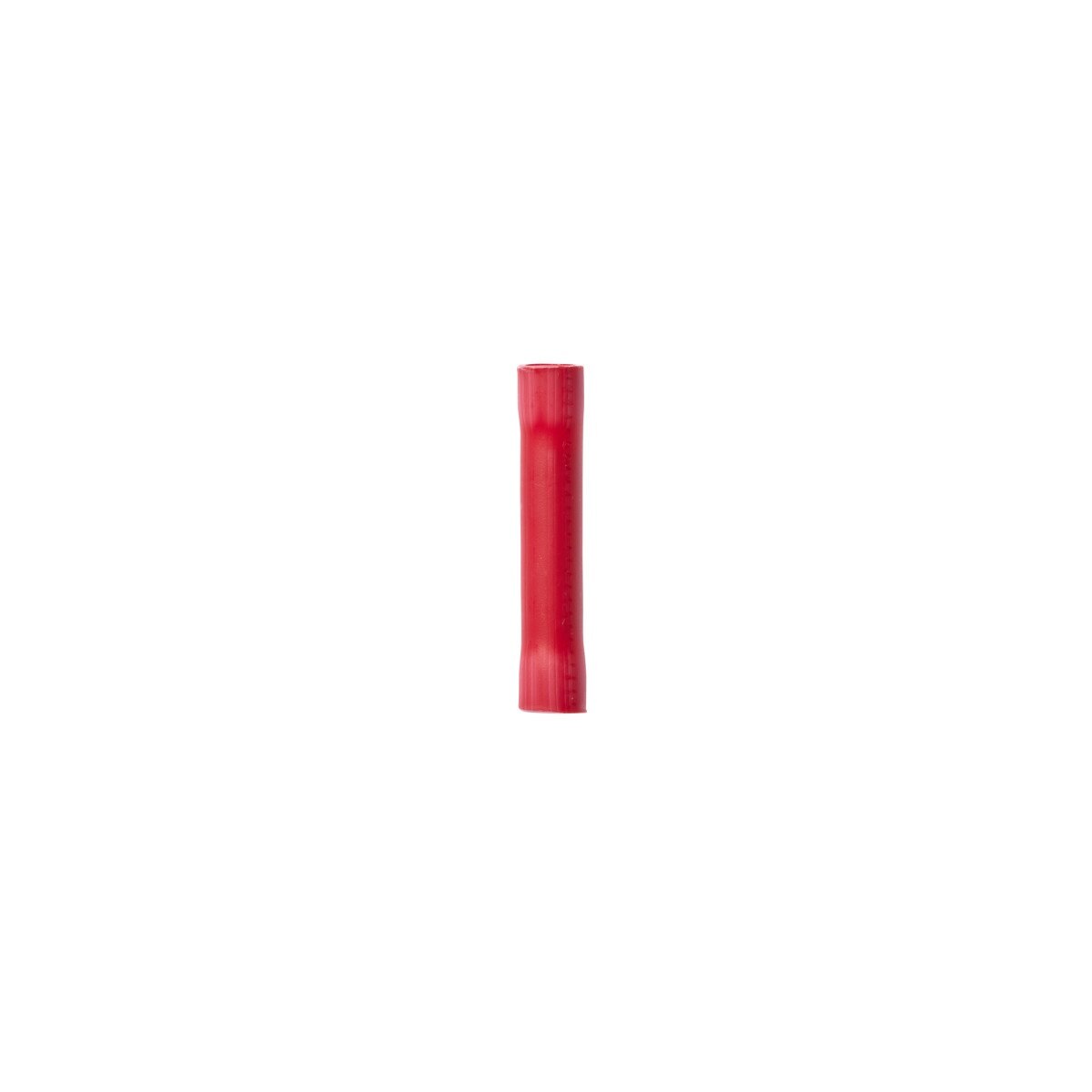

3M BSV18Q Highland Vinyl-Insulated Butted-Seam Standard Butt Connector, 22 to 18 AWG, Red (7000133656) (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M BSV18Q Highland Vinyl-Insulated Butted-Seam Standard Butt Connec...
Description
Description
3M 7000133656 Description
Vinyl-insulated, color-coded butt connector designed for secure crimp splices on 22 to 18 AWG conductors. Features a butted-seam barrel with a funnel-designed PVC sleeve for easy wire insertion and reliable electrical and mechanical performance.
3M 7000133656 Includes
- (10) - 3M 7000133656 BSV18Q Vinyl-Insulated Butted-Seam Standard Butt Connector, 22 to 18 AWG, Pack of 25, Red
3M 7000133656 Features
- Vinyl-insulated, butted-seam barrel for secure crimps
- Color-coded red insulation for quick wire-size identification
- Funnel-designed PVC sleeve helps guide wires into position
- Built-in wire stop supports correct positioning before crimping
- Electrolytic copper terminal for good conductivity
- Tin-plated finish helps resist corrosion
- Rated 600V for building wire applications and up to 1000V for signs, fixtures or luminaires
- Operating temperature range: -40 to 221 Degree Fahrenheit (-40 to 105 Degree Celsius)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant without exemption
- Bag contains 25 connectors
3M 7000133656 Specifications
| Connector Type | Butt |
| Terminal Type | Butt Connectors |
| Terminal Style | Standard |
| Conductor Size Range | 22 to 18 AWG |
| Insulated | Yes |
| Insulation Color | Red |
| Insulation Material | Vinyl |
| Barrel Style | Butted Seam |
| Body Material | Copper Alloy |
| Terminal Material | Tin-Plated Electrolytic Copper |
| Overall Length | 1.0 in |
| Barrel Inside Diameter | 0.145 in |
| Barrel Length | 0.25 in |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Voltage Rating | 600 to 1000 V |
| Operating Temperature Range (Fahrenheit) | -40 to 221 Degree Fahrenheit |
| Operating Temperature Range (Celsius) | -40 to 105 Degree Celsius |
| UL File Number | E23438 |
| CSA File Number | LR22190 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
| Pack Size | 25 per bag |
