3M 8427-16 Cold Shrink Insulator for Wire and Cable Splices, 1 kV, Black (7100010774) (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M 8427-16 Cold Shrink Insulator for Wire and Cable Splices, 1 kV, ...
Description
Description
3M 7100010774 Description

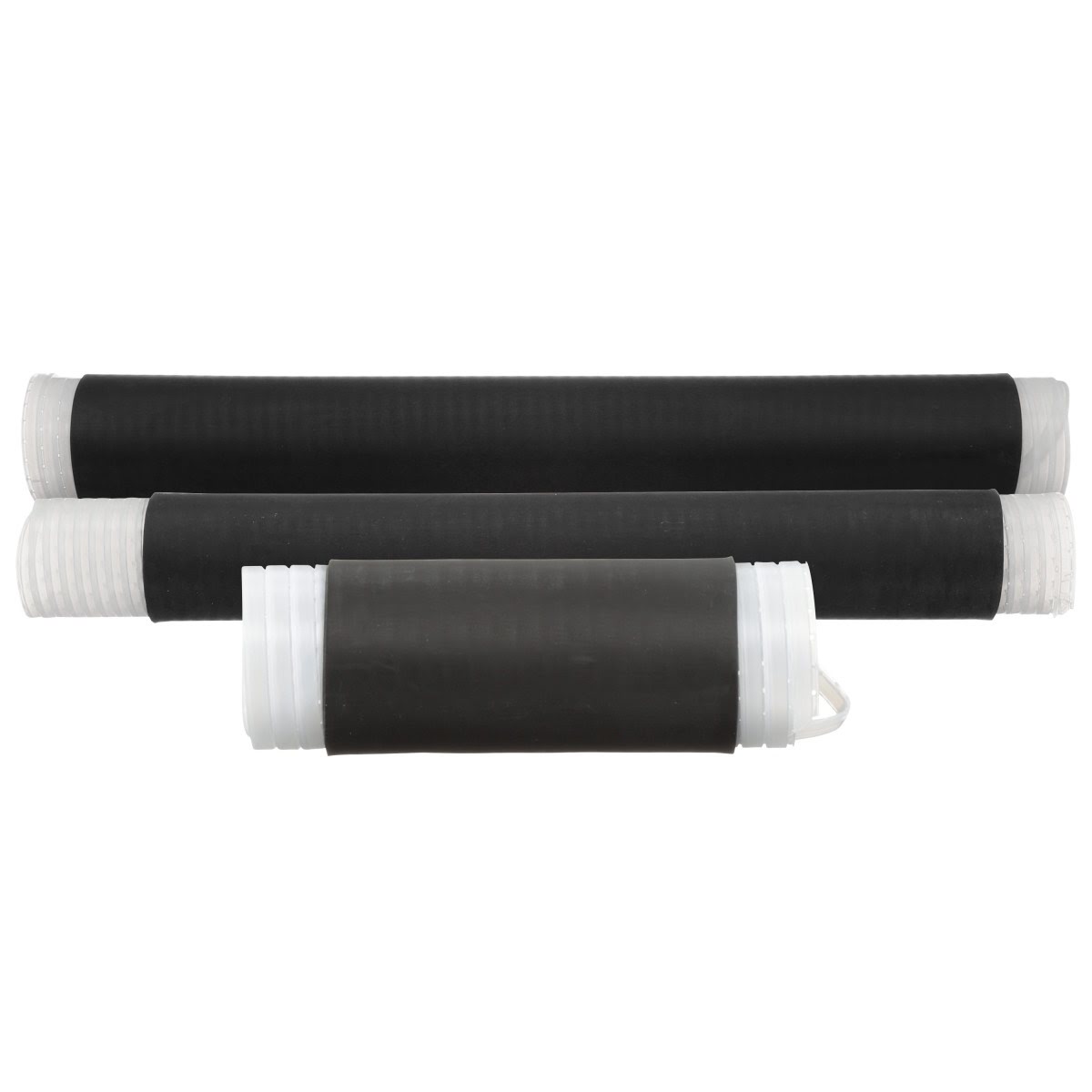

3M Cold Shrink Insulator 8427-16 is an EPDM rubber cold shrink tube on a removable core that provides primary insulation and a water resistant seal for solid dielectric insulated wires and cable splices rated up to 1 kV. It installs by hand with no tools or heat and is suitable for indoor or outdoor use, including direct burial and submersible applications.
3M 7100010774 Includes
- (10) - 3M 7100010774 Cold Shrink Insulator 8427-16, Tape, Wire, Unishield, 1 kV, Standard
3M 7100010774 Features

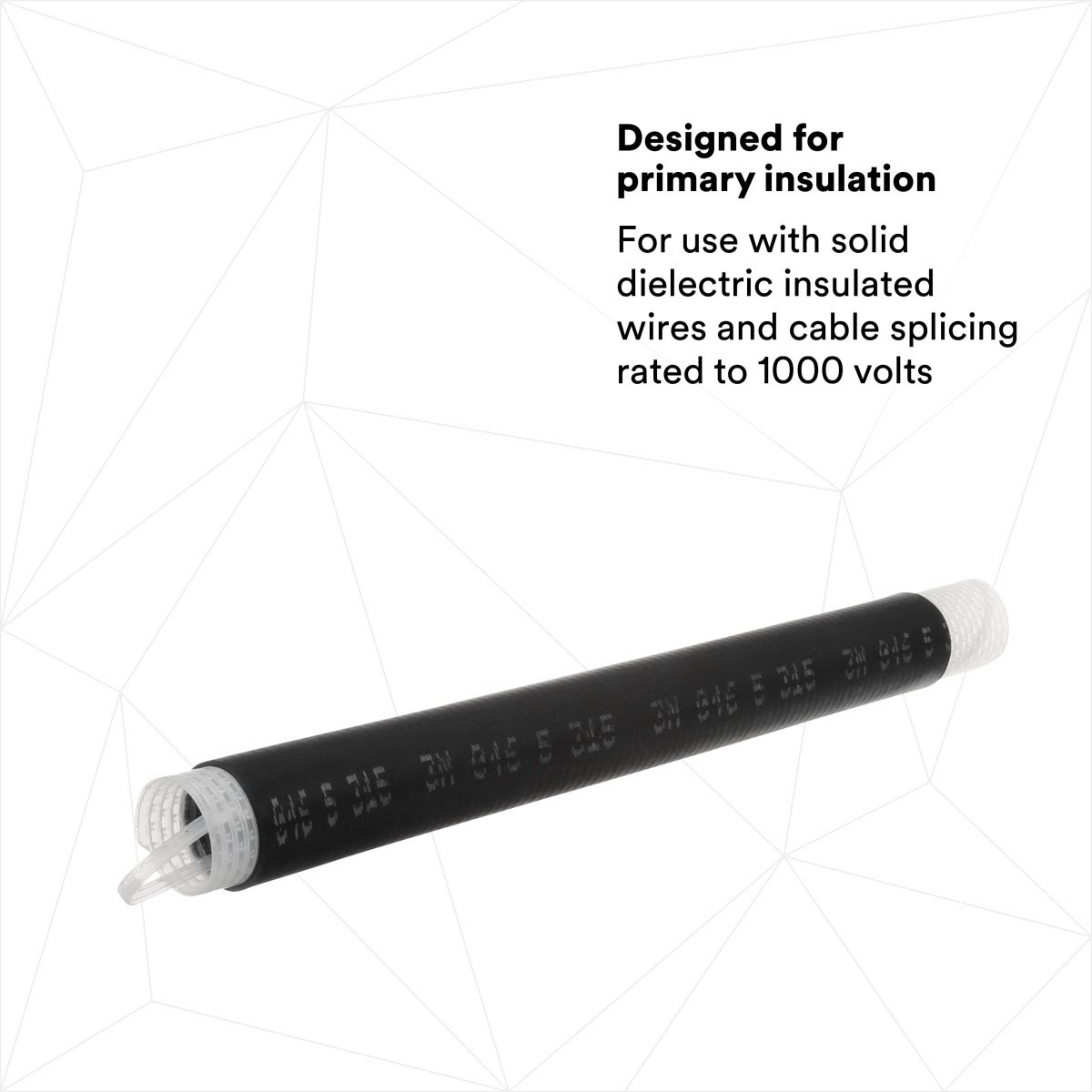

- Provides primary insulation for wires and cable splices rated up to 1 kV
- Cold shrink design on a removable plastic core for fast installation

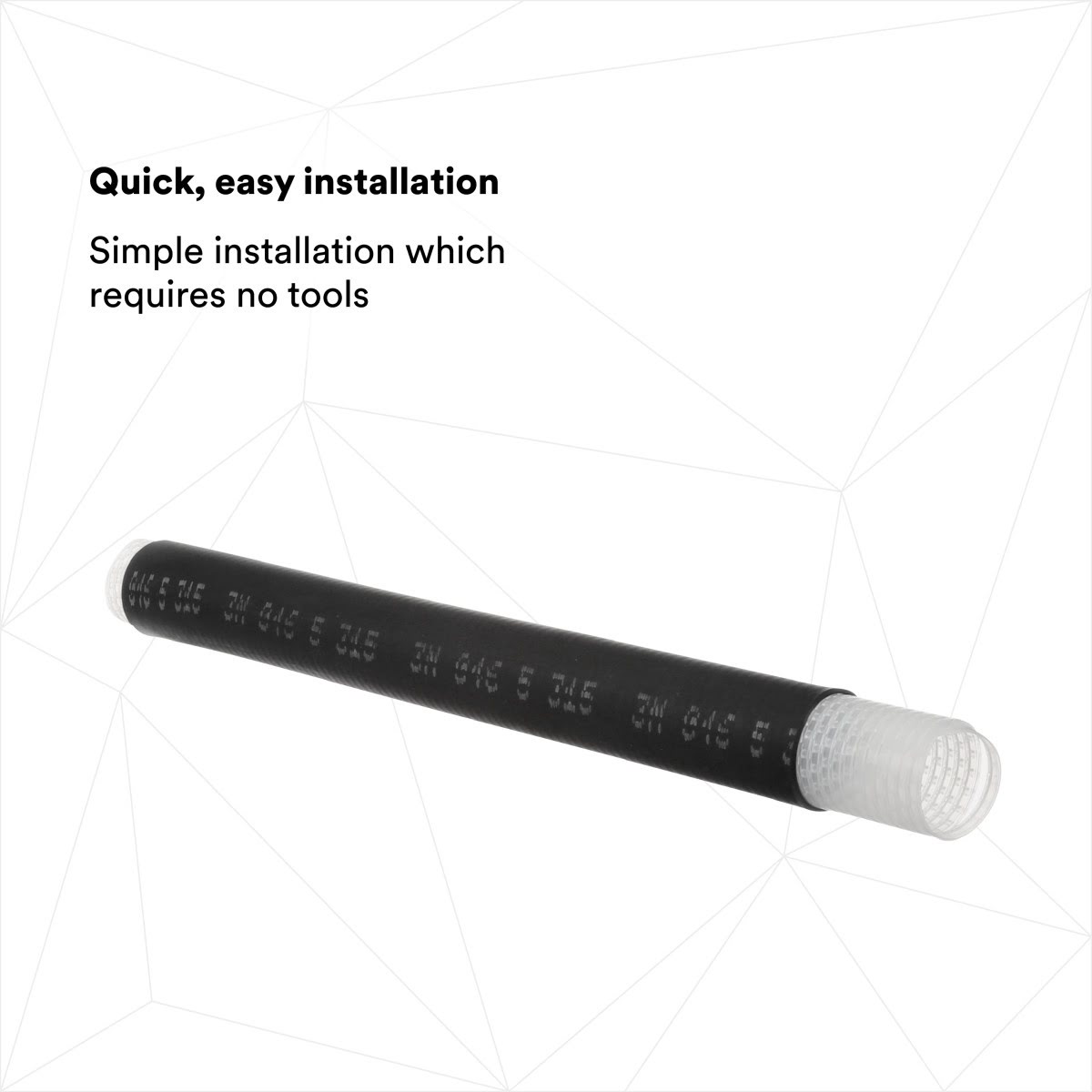

- Installs by hand with no tools or heating sources required

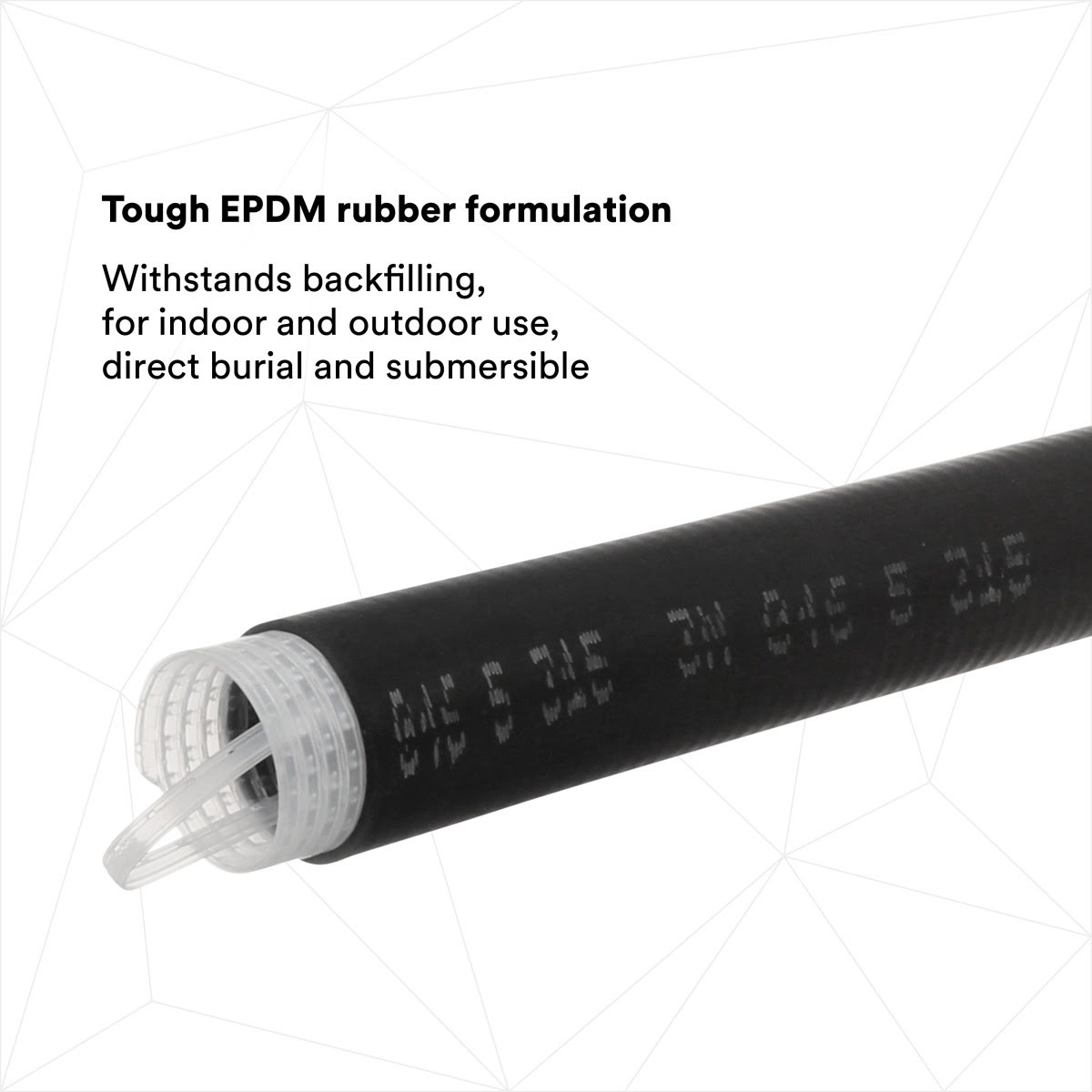

- EPDM rubber construction for durable environmental sealing and mechanical protection

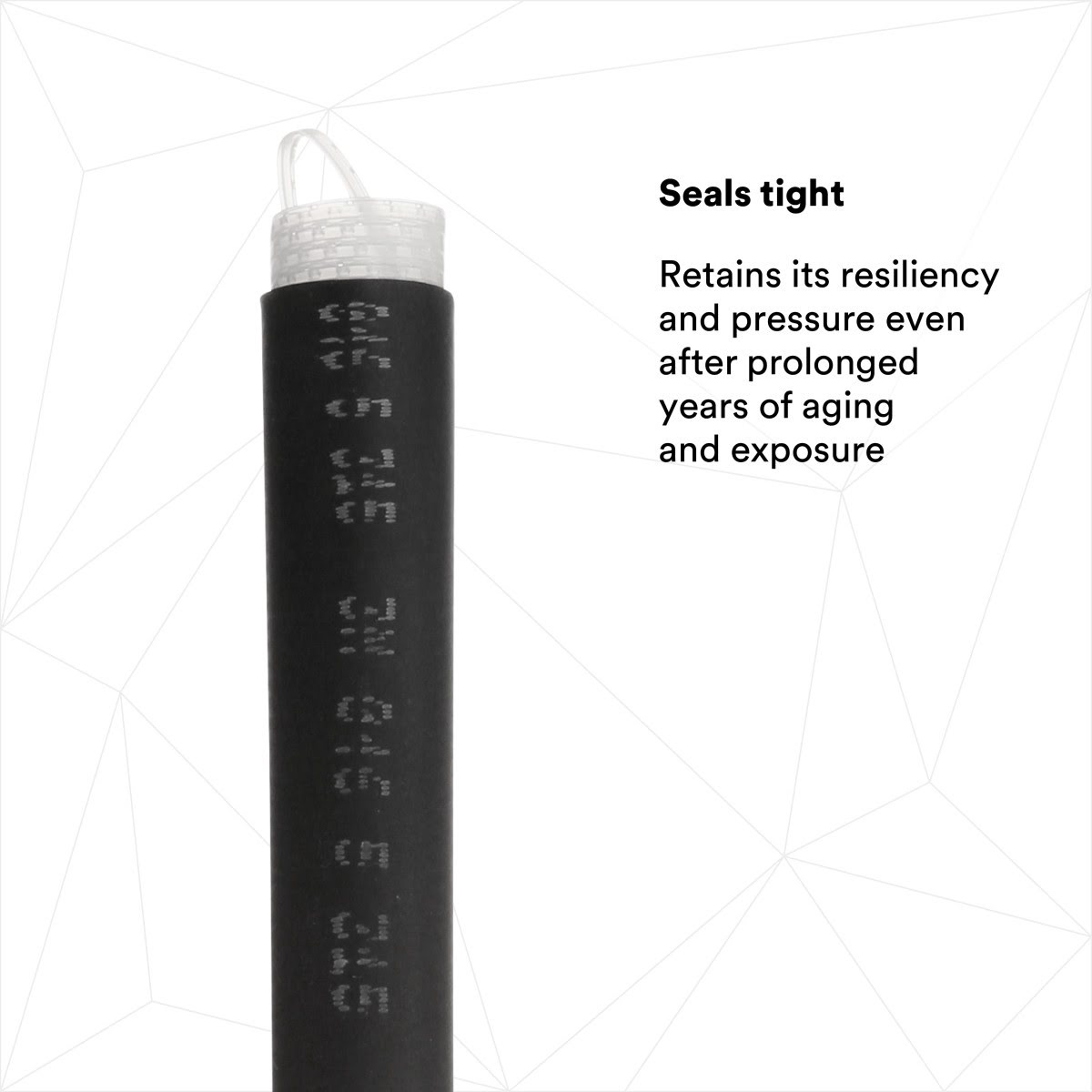

- Water resistant seal meets ANSI C119.1 water seal requirements
- Resists fluid splashes, acids, and alkalis
- Suitable for indoor and outdoor use
- Ideal for direct burial or submersible applications

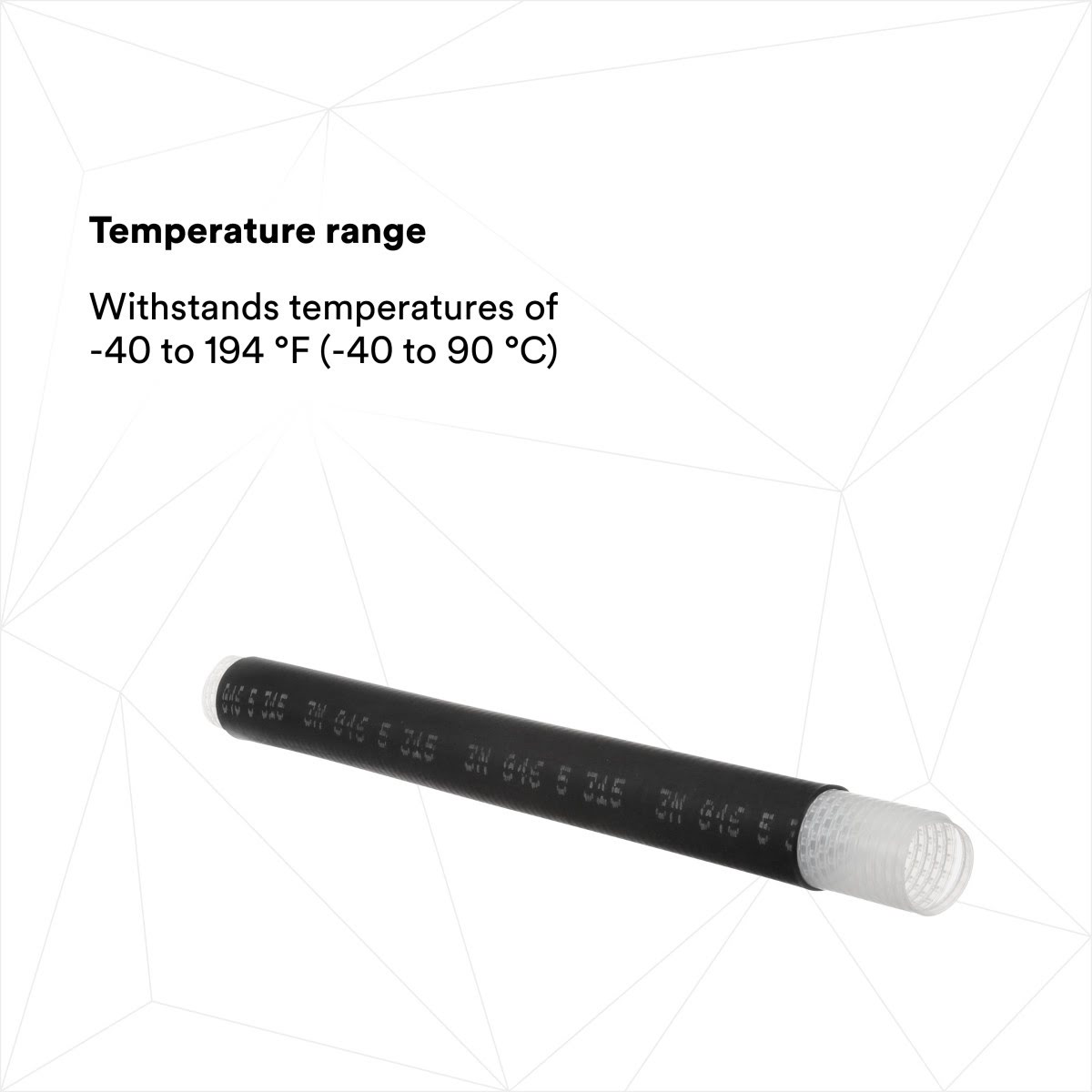

- Operating temperature range from -40 Degree F to 194 Degree F
- Accommodates a variety of cable sizes and conductor materials
3M 7100010774 Specifications
| Product Number | 8427-16 |
| Voltage Rating | 1 kV |
| Product Color | Black |
| Material | EPDM Rubber |
| Overall Length | 16 in |
| Inner Diameter Before Shrink | 1.382 in |
| Inner Diameter After Shrink | 0.661 in |
| Maximum Connector Length | 12 in |
| Minimum Operating Temperature | -40 Degree F |
| Maximum Operating Temperature | 194 Degree F |
| Conductor Material | Aluminum, Copper |
| Cable Shielding | Non-shielded, Tape Shield, UniShield, Wire Shield |
| Splice Type | Cold Shrink |
| Number of Conductors | 1 |
| RoHS | RoHS 2011/65/EU compliant without exemption |
