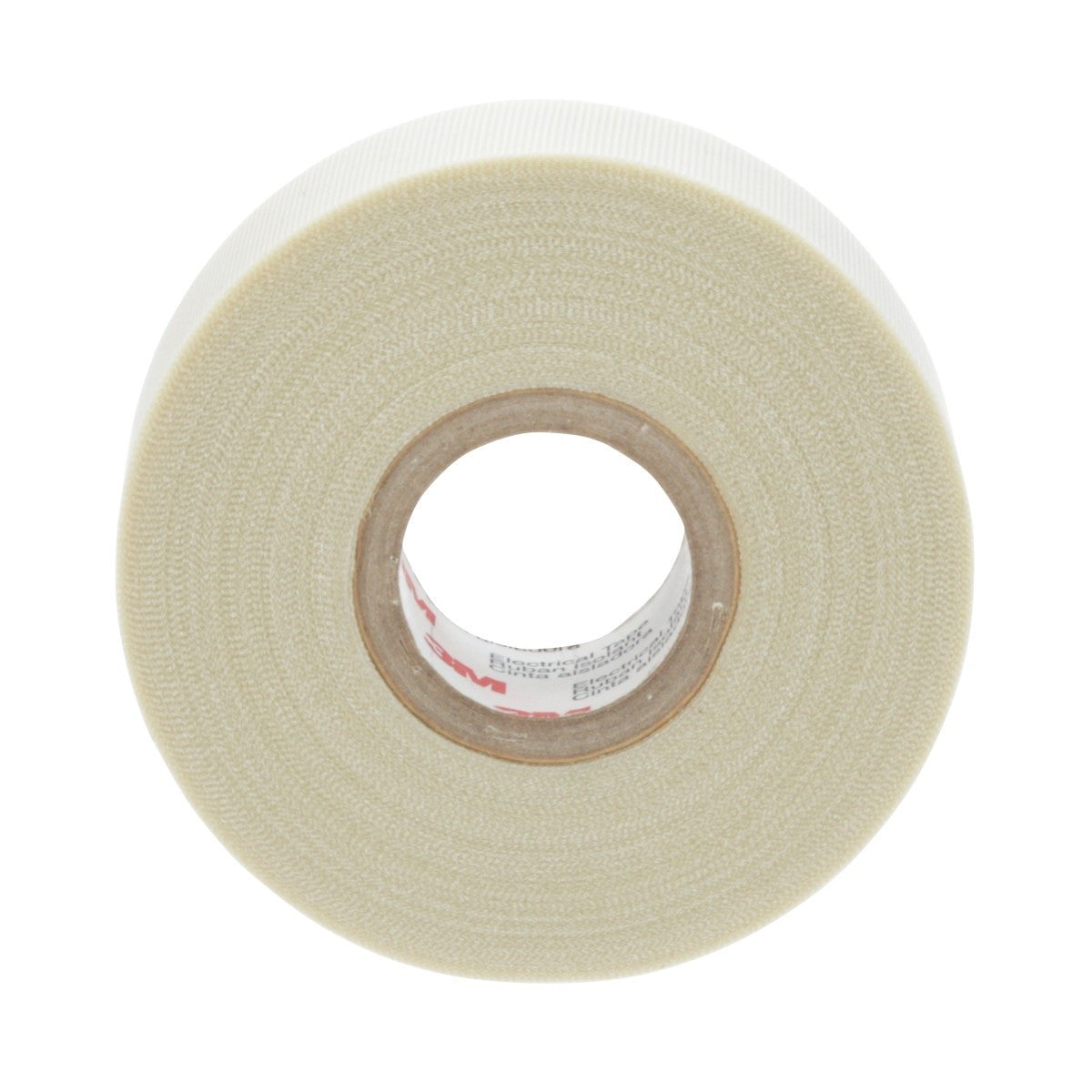

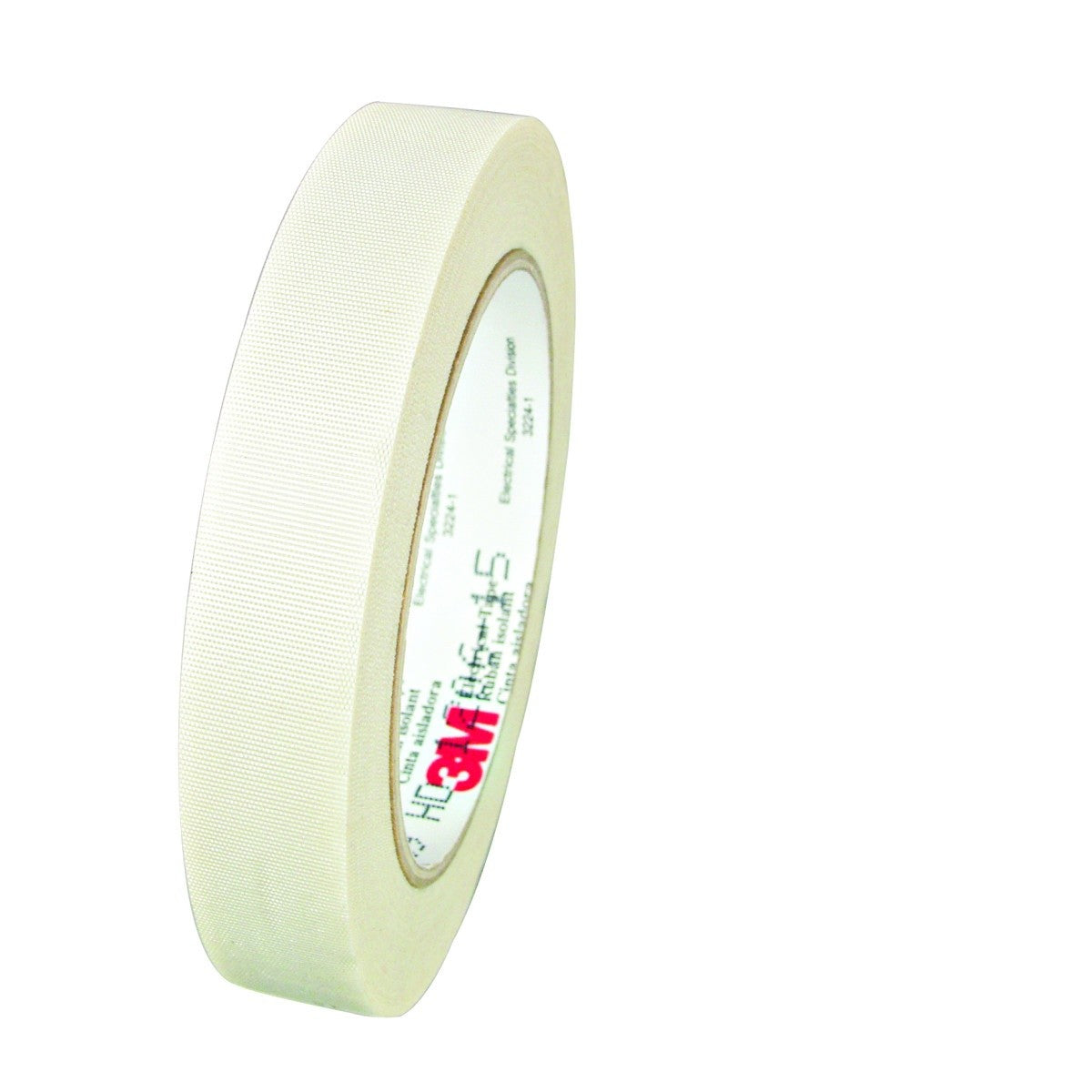

3M 69 69-3/4"X66' Scotch Glass Cloth Electrical Tape, White, 3/4" x 66', Silicone Adhesive, 7 mil, High Temperature, Flame Retardant (7000005818)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M 69 69-3/4"X66' Scotch Glass Cloth Electrical Tape, Whit...
Description
Description
3M 7000005818 Description
White glass cloth electrical tape with thermosetting silicone pressure?sensitive adhesive; 3/4 in x 66 ft roll, 7 mil thickness; high?temperature, flame?retardant insulation for coils, transformers and motor applications.
3M 7000005818 Includes
- (1) Glass Cloth Electrical Tape 69, 3/4 in x 66 ft Roll
3M 7000005818 Features
- Thermosetting silicone pressure-sensitive adhesive
- Glass cloth backing for high tensile strength
- 3/4 in x 66 ft roll; nominal 7 mil total thickness
- White color; printable and conformable
- UL 510 flame retardant; CSA certified
- Rated for continuous operation up to 200°C per UL listing
- Dielectric breakdown typical 3000 V
- Adhesion to steel minimum 30 oz/in
- Breaking strength approx. 150 lb/in
- Insulation resistance 4.8 x 10^4 megohms
3M 7000005818 Specifications
| Product Type | Glass Cloth Electrical Tape |
| 3M Product Number | 69 |
| Color | White |
| Size | 3/4 in x 66 ft |
| Total Thickness | 7 mil (0.178 mm) |
| Backing Thickness | 5.5 mil (0.140 mm) |
| Backing Material | Glass Cloth |
| Adhesive | Silicone |
| Dielectric Breakdown | 3000 V |
| Operating Temperature (Max) | 200°C (392°F) per UL; 180°C (356°F) per CSA |
| Flame Retardant | UL 510 |
| Elongation at Break | 5% |
| Insulation Resistance | 4.8 x 10^4 megohms |
| Breaking Strength | 150 lb/in |
| Adhesion to Steel (Minimum) | 30 oz/in |
| Tape Grade | Professional |
