3M 560-BULK Scotchlok Electrical IDC, Light Blue, 18?16 AWG (solid/stranded), 14 AWG (stranded) (7000005878) (5000 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M 560-BULK Scotchlok Electrical IDC, Light Blue, 18?16 AWG (solid/...
Description
Description
3M 7000005878 Description

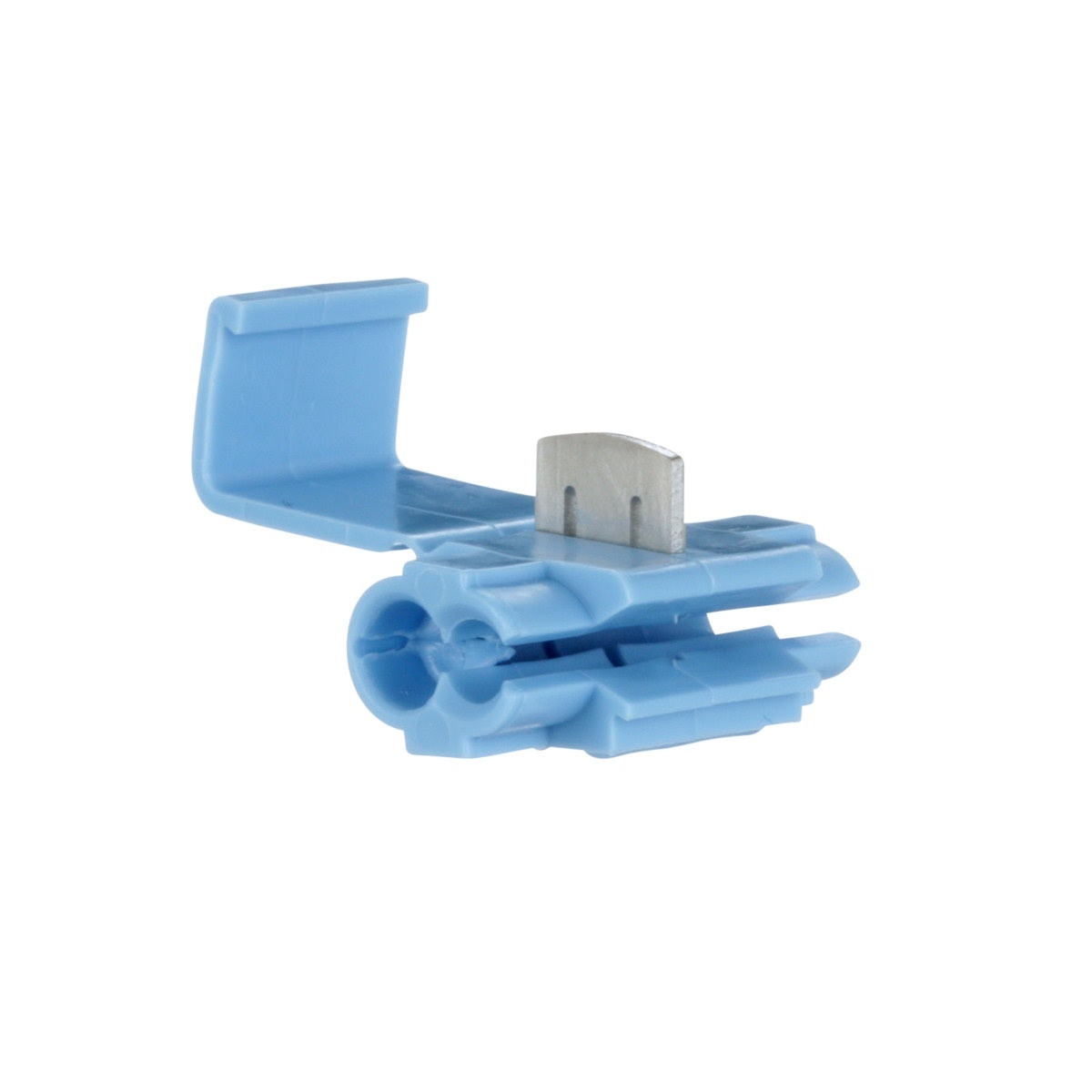

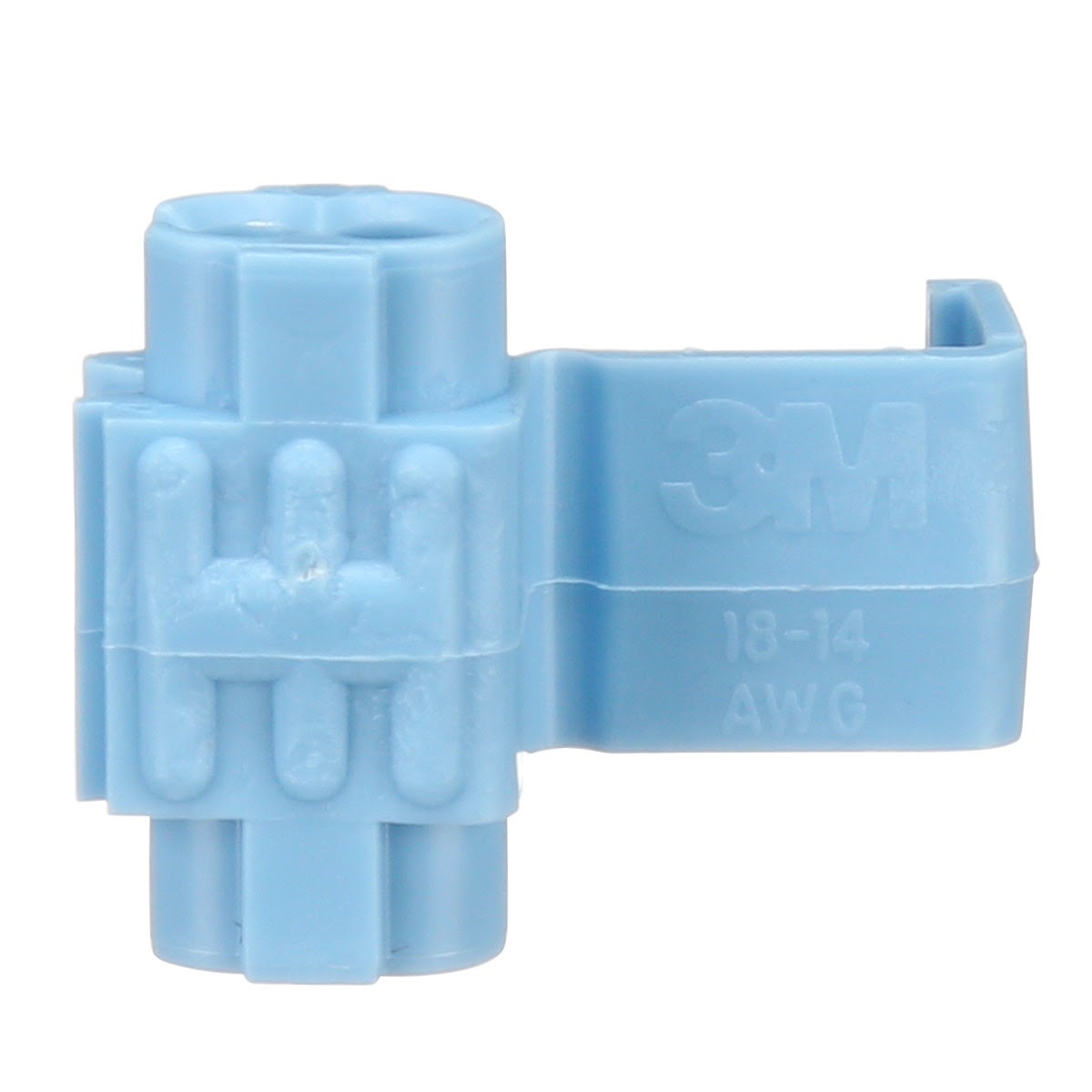

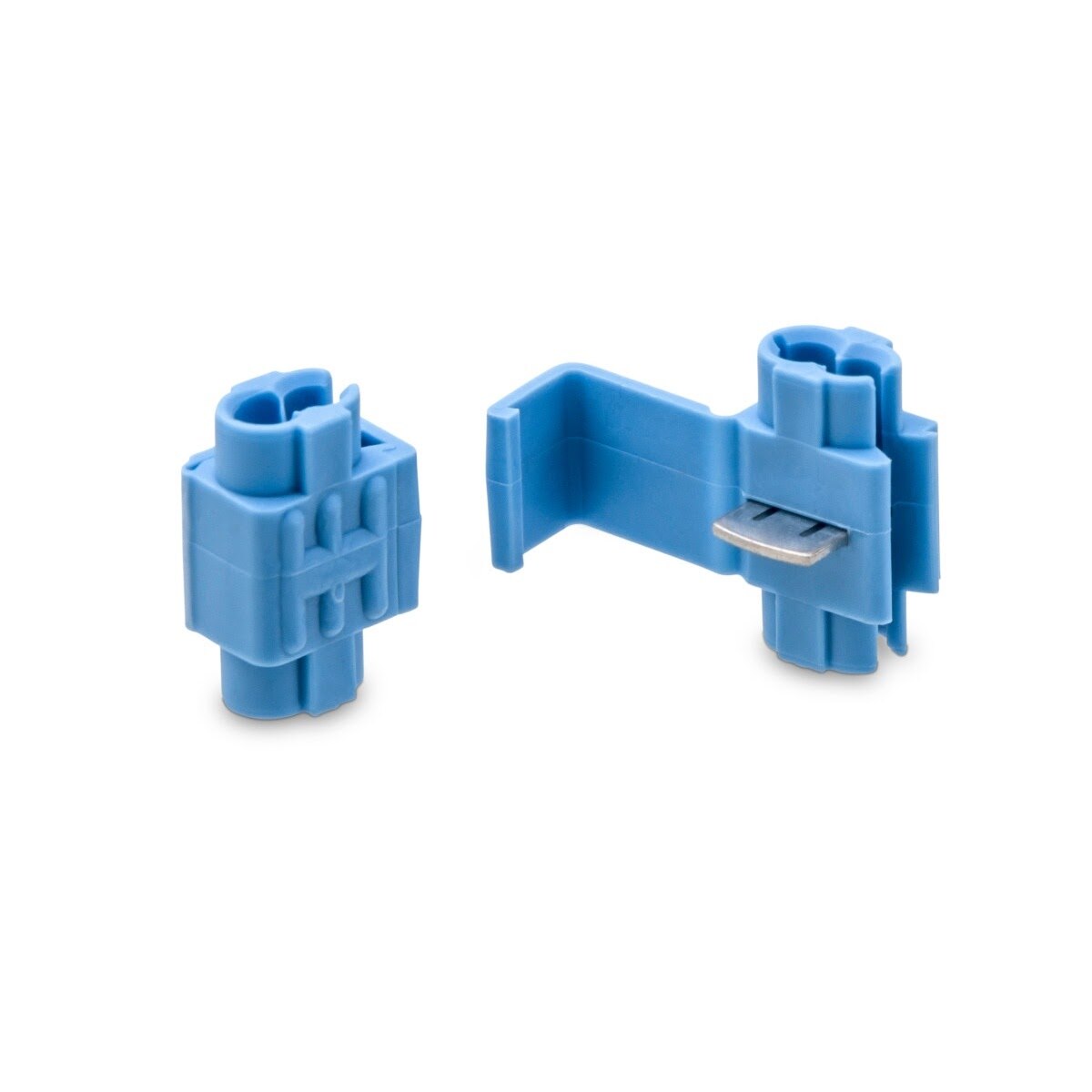

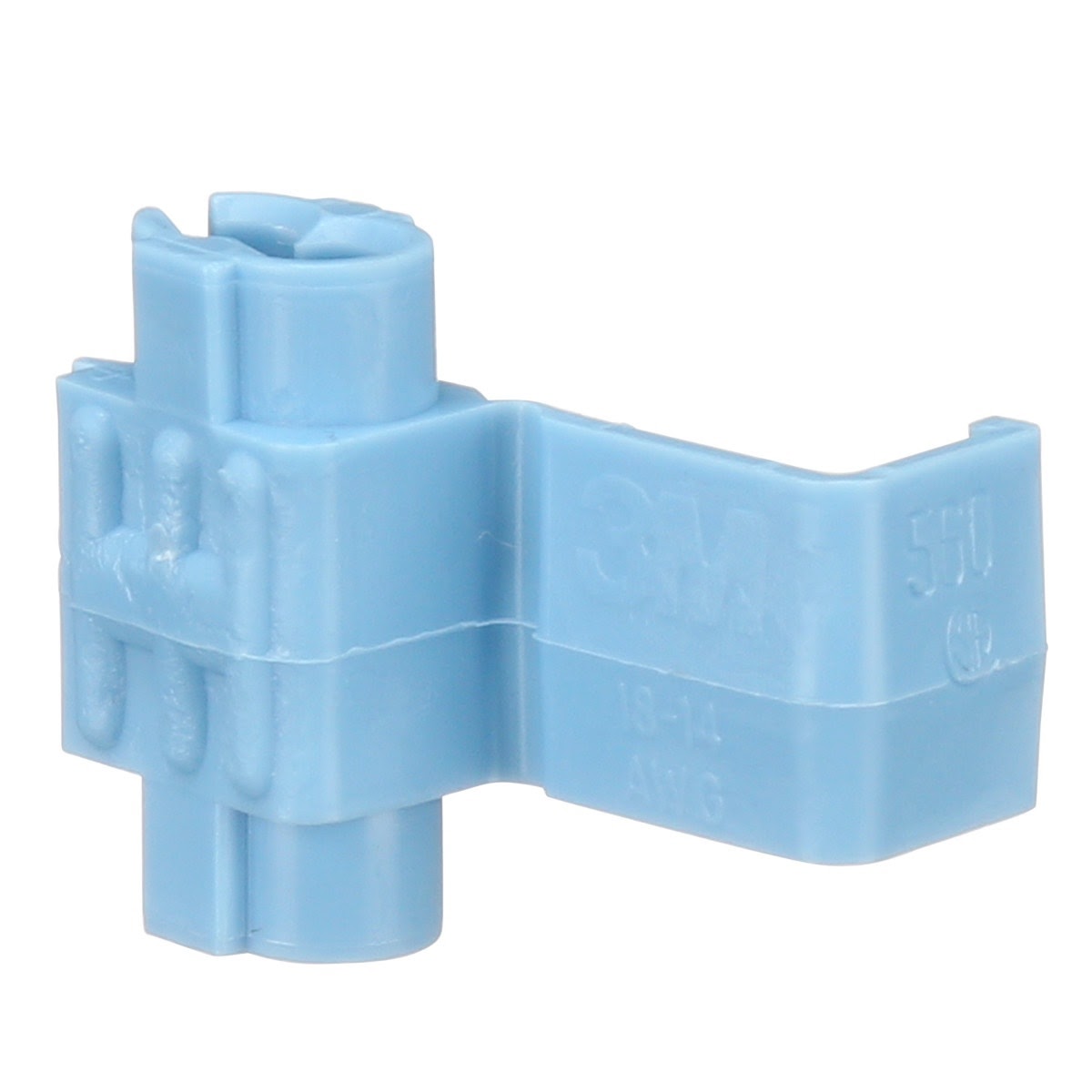

3M Scotchlok 560-BULK insulation displacement connectors are self-stripping, flame retardant wire tap and parallel splice connectors for low-voltage applications. Designed for 18-16 AWG solid or stranded conductors and 14 AWG stranded conductors, they feature polypropylene insulation and are UL Listed and CSA Certified.
3M 7000005878 Includes

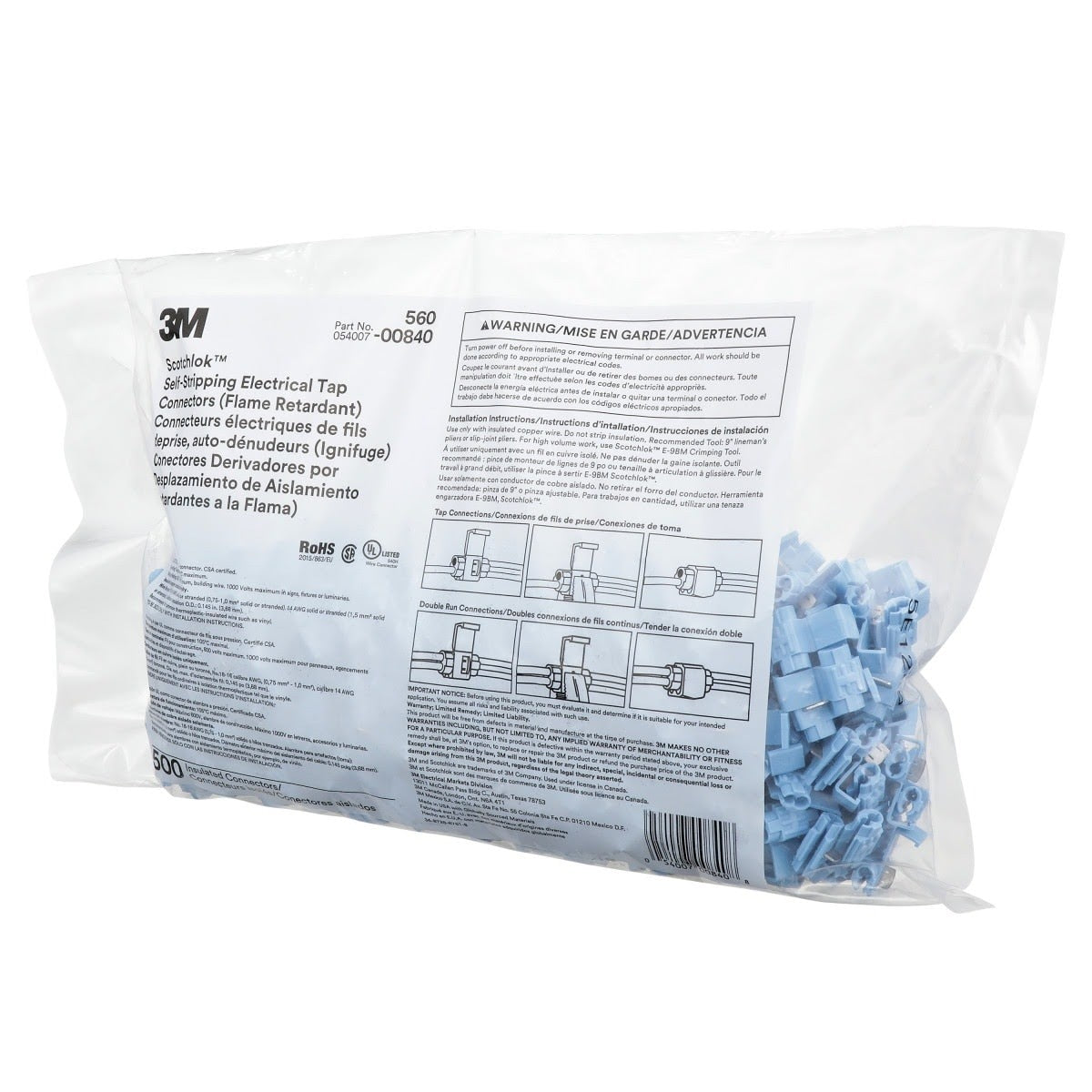

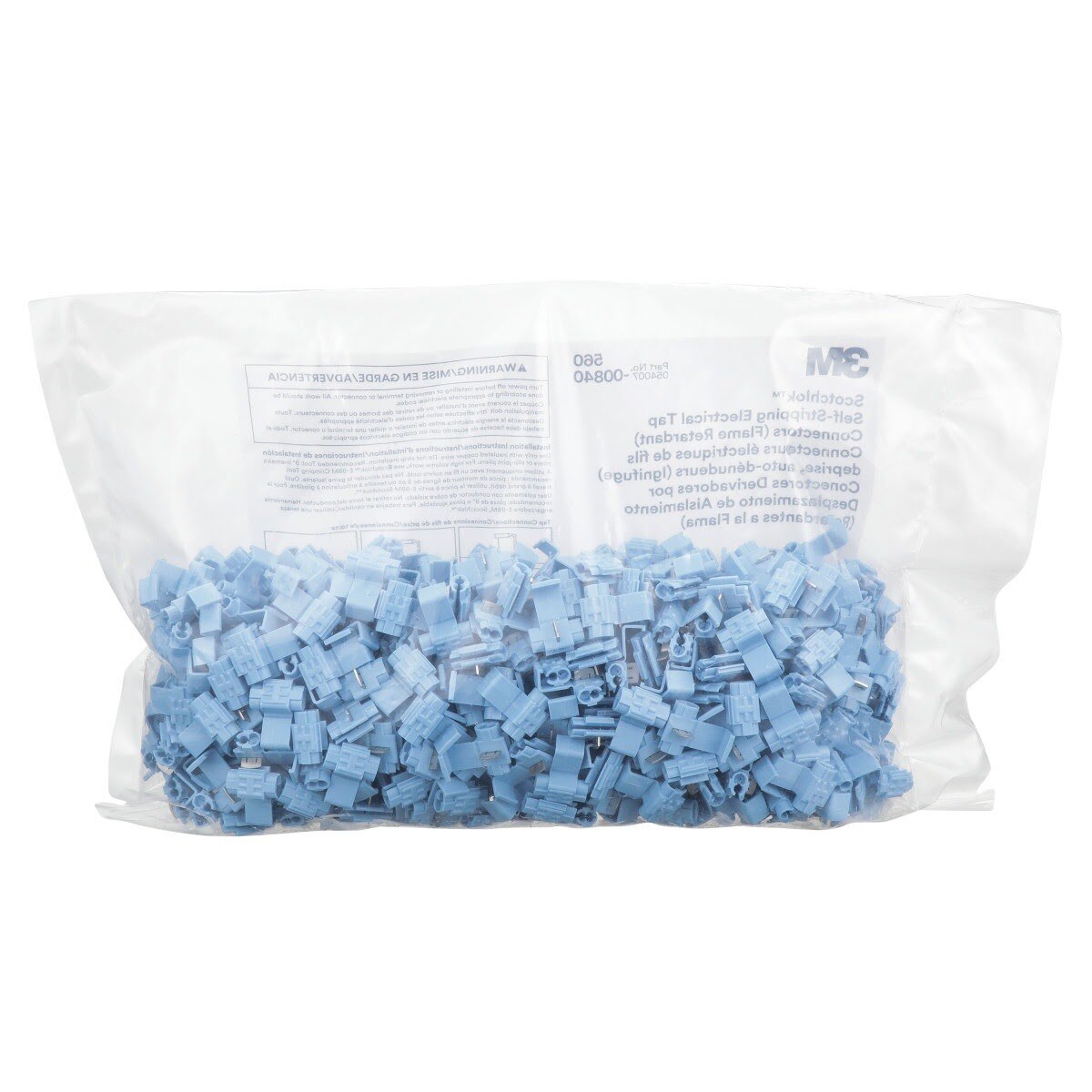

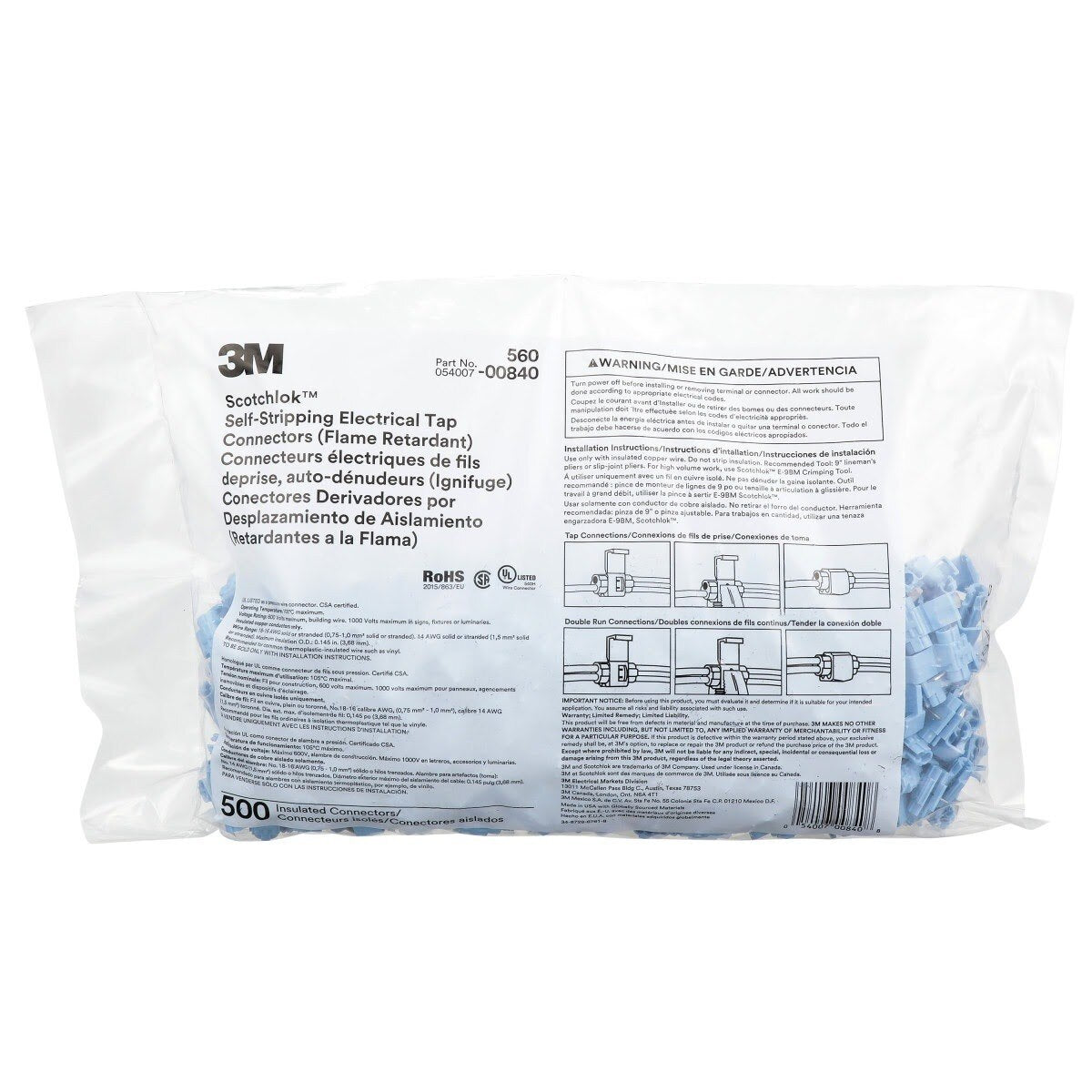

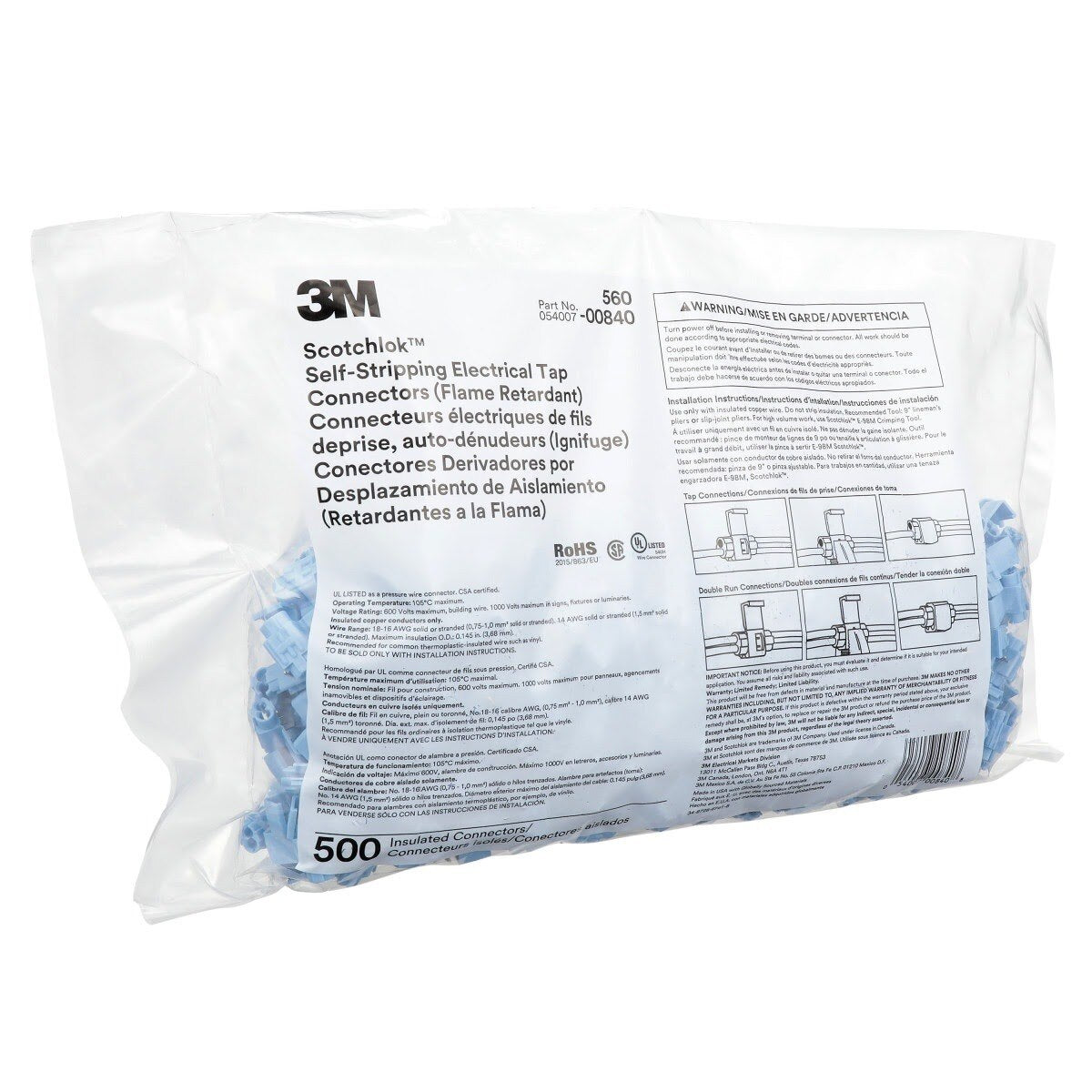

- (5000) - 3M 7000005878 Scotchlok Electrical IDC 560-BULK, Light Blue, 18-16 AWG (solid/stranded), 14 AWG (stranded)
3M 7000005878 Features
- Double run or tap connector for tap or parallel splicing

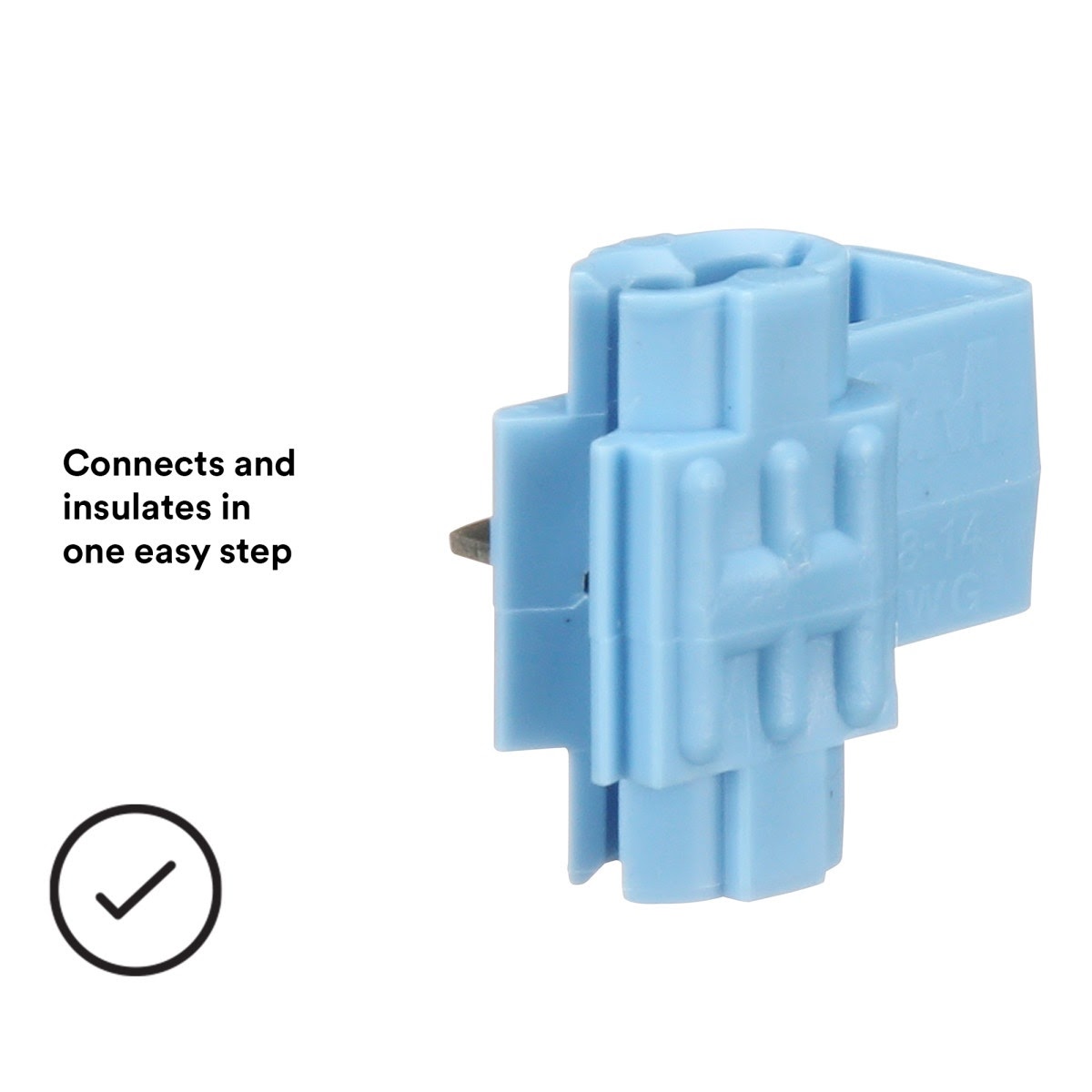

- Self-stripping insulation displacement design connects and insulates in one step
- Flame retardant polypropylene insulated body
- Light blue color for easy identification
- Compatible with 18-16 AWG solid or stranded conductors and 14 AWG stranded conductors
- Rated up to 600 V for building wire
- Withstands temperatures up to 221 Degree Fahrenheit (105 Degree Celsius)
- UL Listed and CSA Certified
- RoHS 2011/65/EU compliant
3M 7000005878 Specifications
| Part Number | 560-BULK |
| Product Type | Connector |
| Wire Connector Type | IDC Connectors |
| Connection Type | Double Run or Tap |
| Connector Style | Insulation Displacement |
| Product Color | Light Blue |
| Insulation Material | Polypropylene |
| Flame Retardant | Yes |
| Conductor Sizes | 18-16 AWG (Solid/Stranded), 14 AWG (Stranded) |
| Maximum Recommended Voltage Rating | 600 V |
| Maximum Operating Temperature | 105 Degree Celsius |
| Recommended Crimping Tool | E-9BM or 9 in. Linemans Pliers |
| Package Quantity | 500 |
| Package Length (in) | 1.968503937 |
| Package Width (in) | 10 |
| Package Height (in) | 15.4724409449 |
| Package Gross Weight (lbs) | 1.6999845037 |
