3M 5304 Motor Lead Pigtail Splice, 1 kV, 1-Hole Lug Connection, Feeder: 250-500 kcmil, Motor Lead: 4/0 AWG-500 kcmil (7000005808)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M 5304 Motor Lead Pigtail Splice, 1 kV, 1-Hole Lug Connection, Fee...
Description
Description
3M 7000005808 Description
3M Motor Lead Pigtail Splicing Kit 5304 is designed to splice motor lead cables to incoming feeder cables for pigtail stub connections at 1000V or less. The slip on lug cover is made of EPDM rubber and uses mastic strips to help seal out moisture. Kit materials are provided to make three splices and lugs are sold separately.
3M 7000005808 Includes
- (1) Motor Lead Pigtail Splice Kit 5304

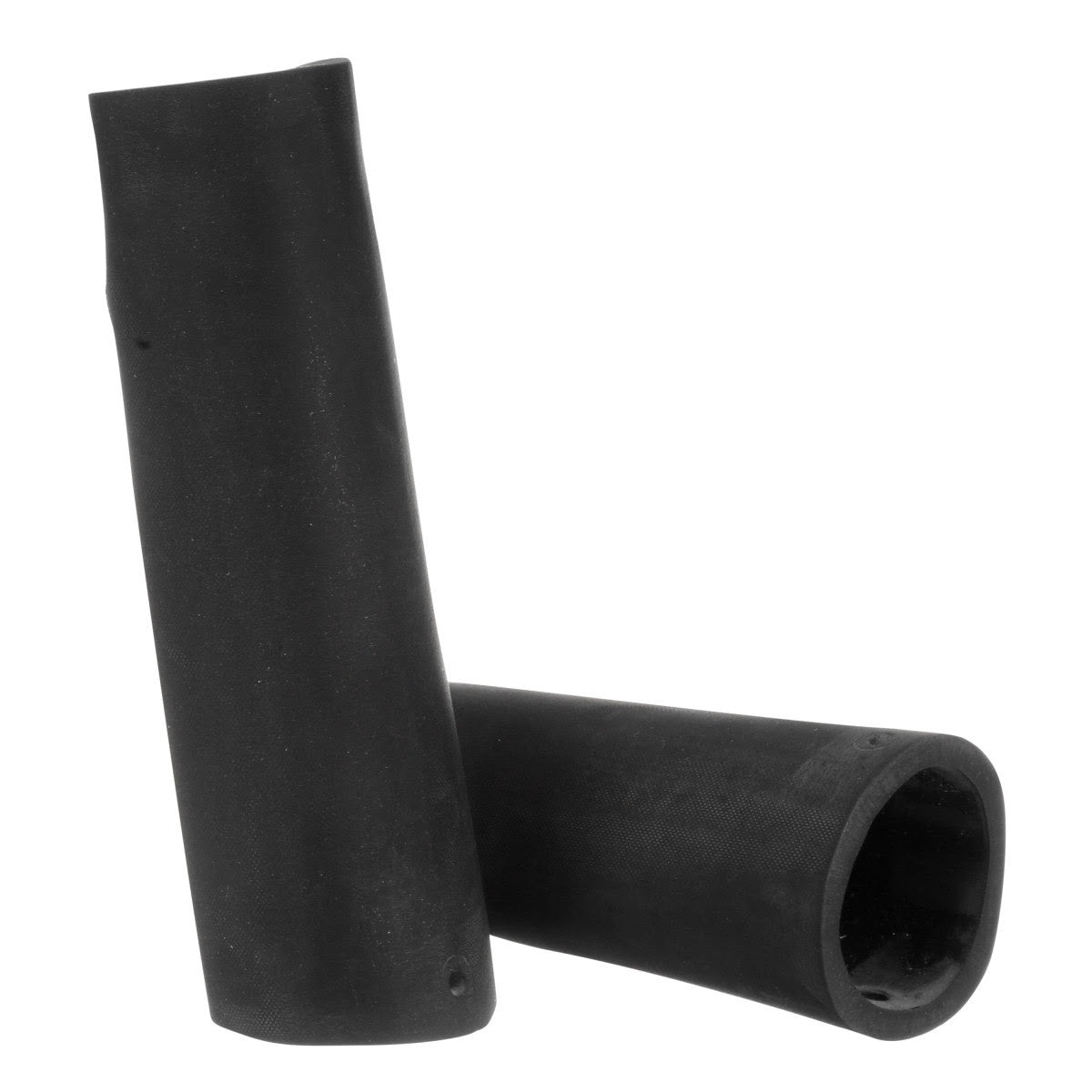

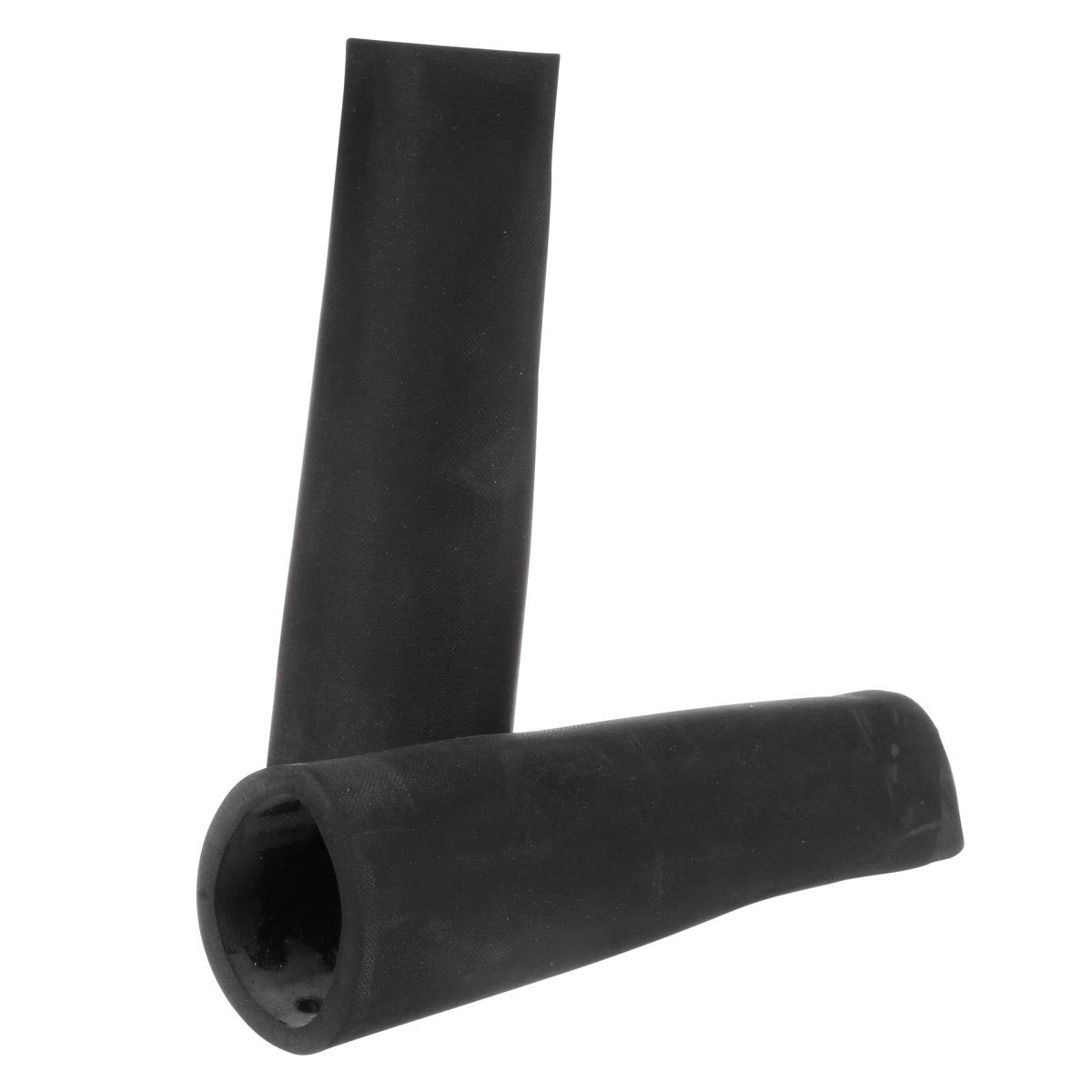

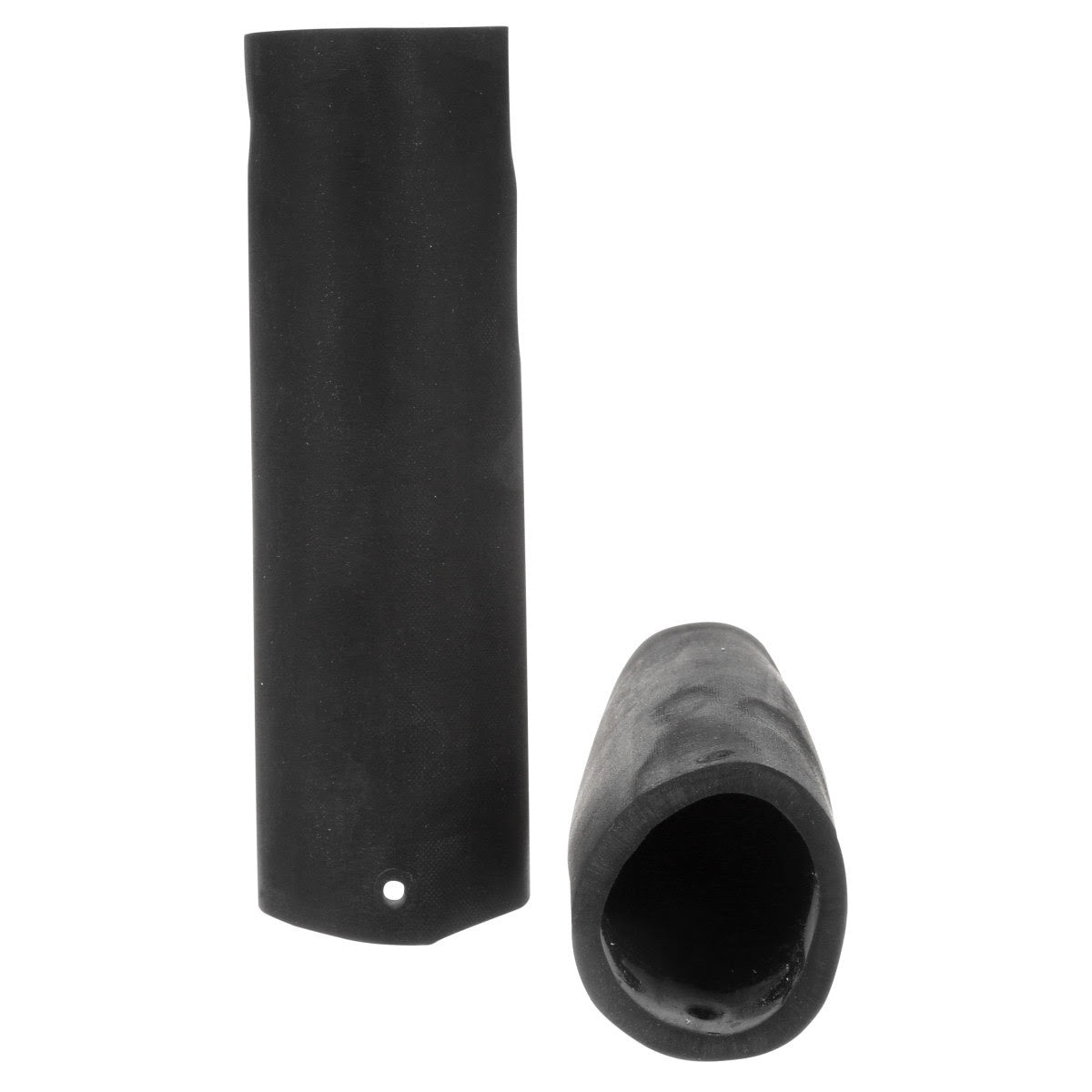

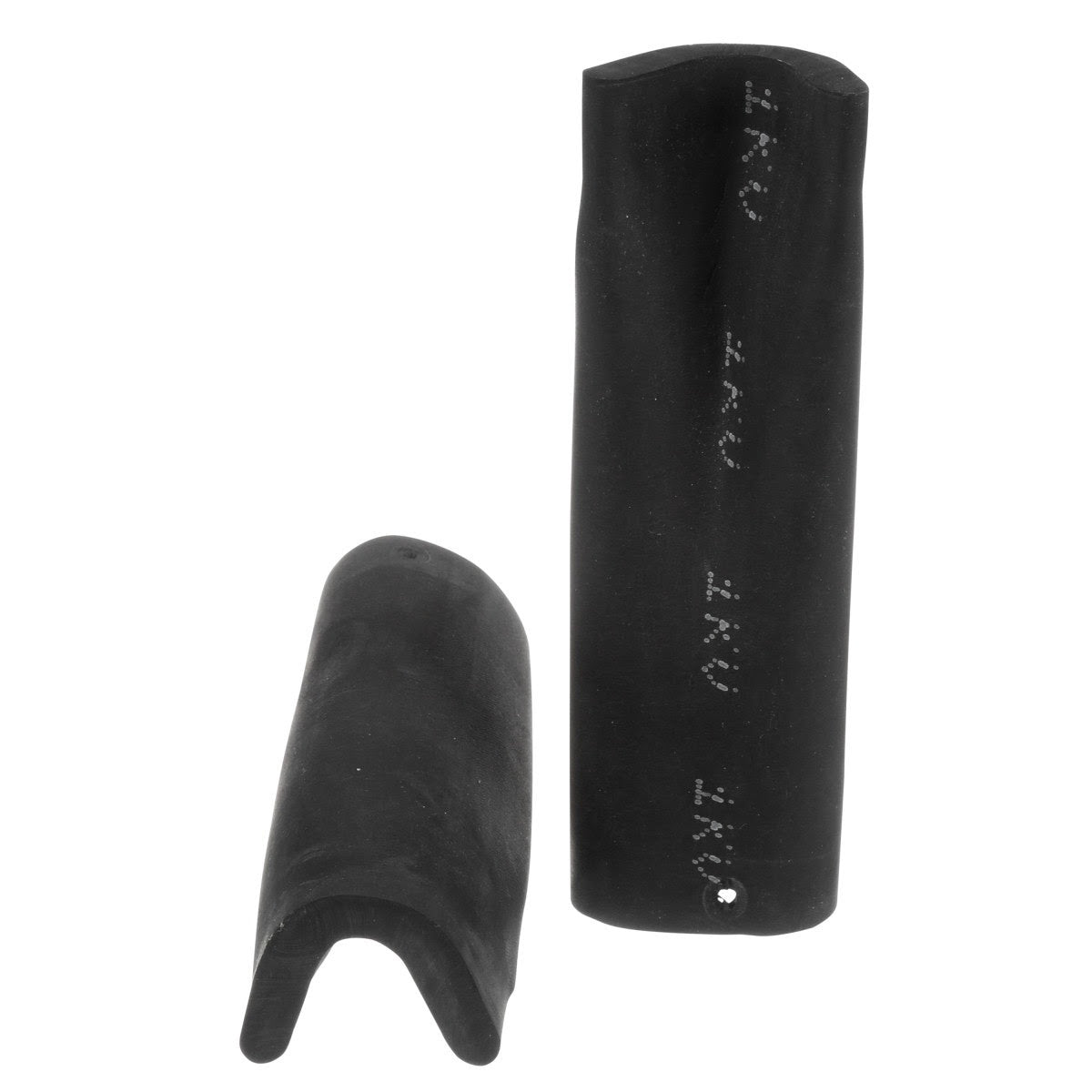

- (3) Pigtail lug covers
- (3) Mastic sealing strips
- (3) Locking pins
- (3) Tubes of silicone grease
- (1) Instruction sheet
3M 7000005808 Features
- Designed for splicing motor lead cables to incoming feeder cables
- For pigtail stub connections at 1000V or less
- Compatible with copper compression one hole lugs lugs sold separately
- Slip on lug cover made from EPDM rubber
- Mastic sealing strips help provide a moisture seal
- Each kit provides materials to make three splices
- CSA Certified
- RoHS 2011/65 EU compliant
3M 7000005808 Specifications
| Part Number | 5304 |
| Maximum Operating Voltage | 1 kV |
| Connection Type | Pigtail Non-shielded |
| Splice Type | Pigtail Only |
| Feeder Conductor Size Range | 250-500 kcmil |
| Motor Lead Conductor Size Range | 4/0 AWG-500 kcmil |
| Insulation Outside Diameter Range | 0.67-1.05 in |
| Lug Cover Inner Diameter | 1.70 in |
| Lug Cover Length | 6.7 in |
| Maximum Bolt Length | 1-1/2 in |
| Material | EPDM rubber |
| Certification | CSA Certified |
| Compliance | RoHS 2011/65 EU compliant |
