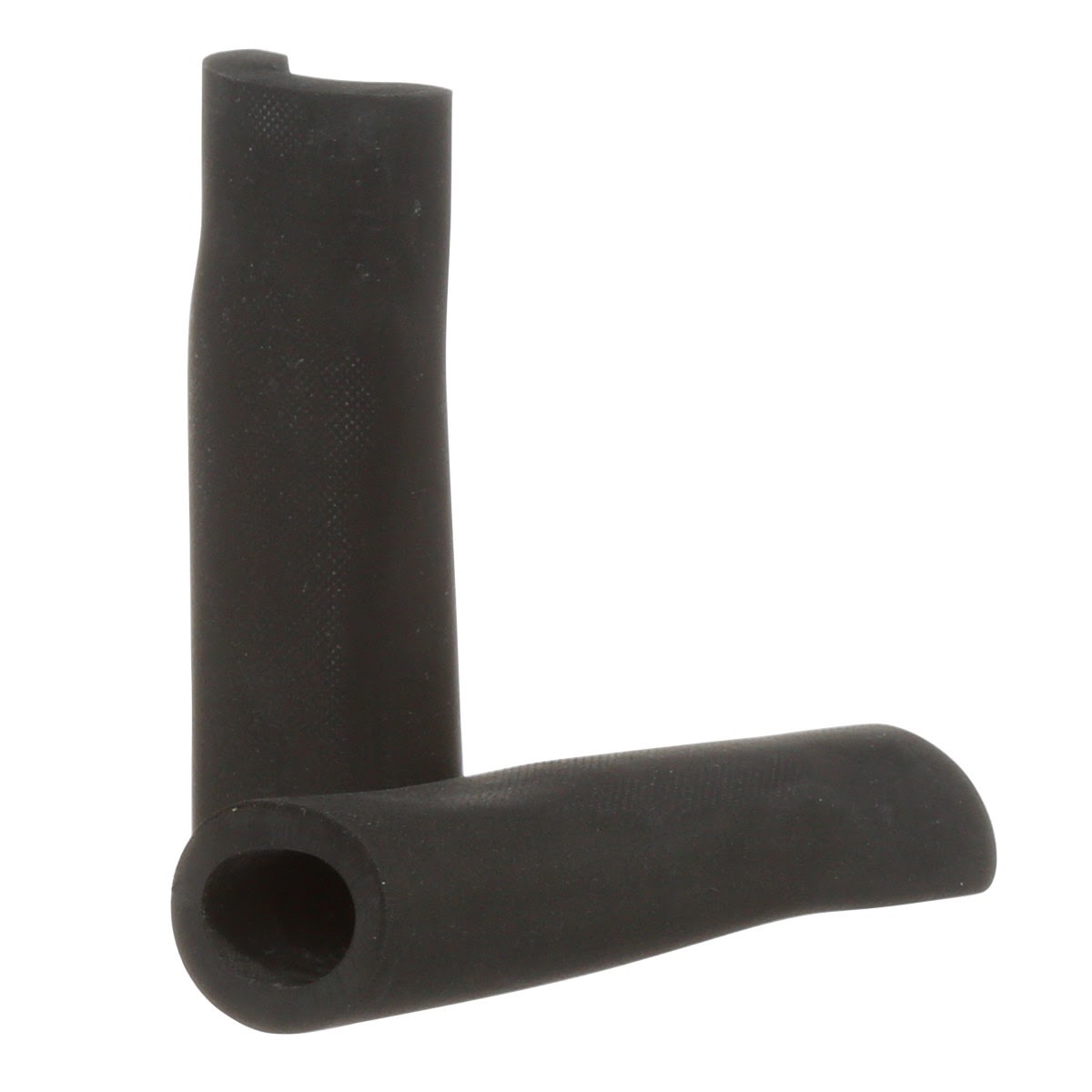

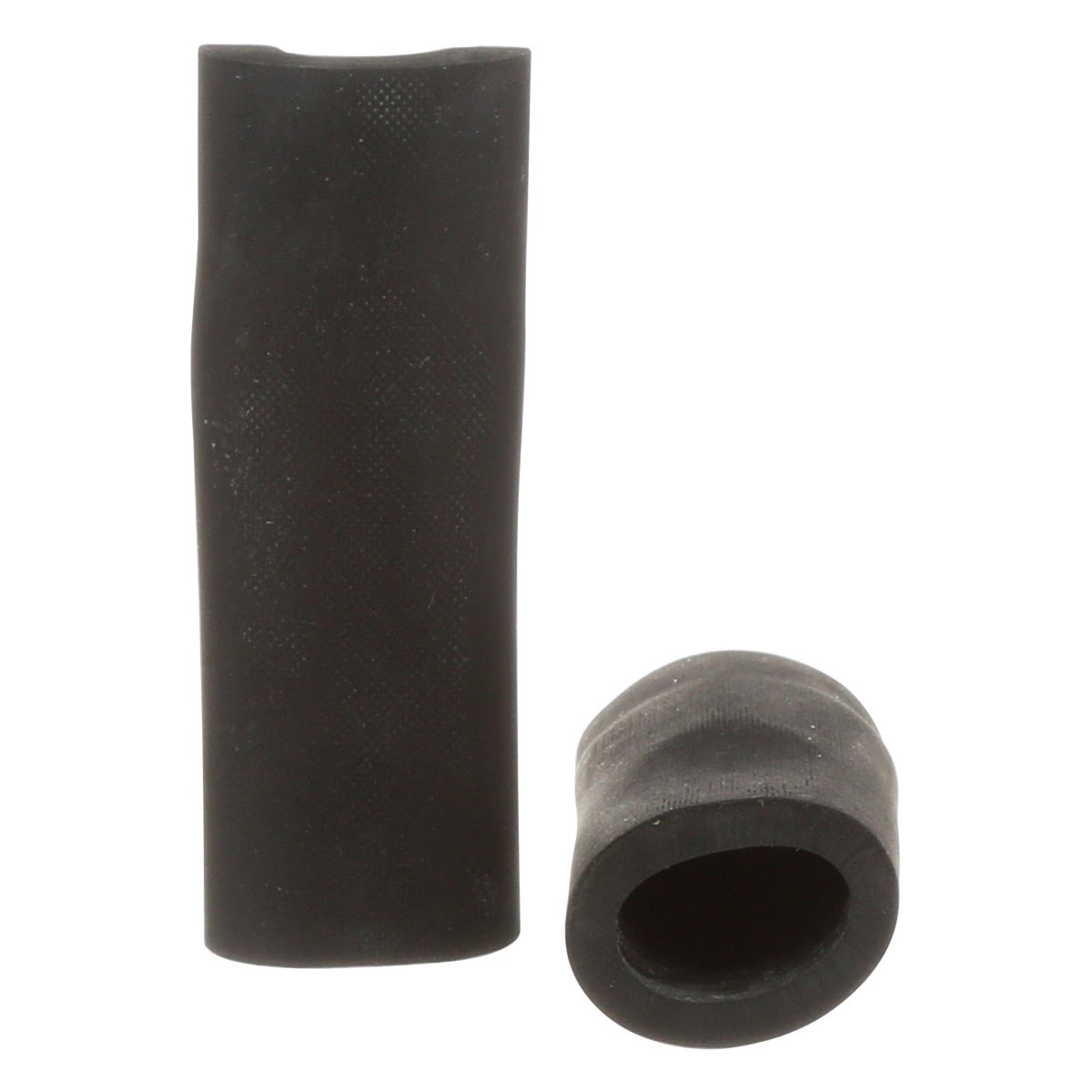

3M 5301 Motor Lead Pigtail Splice, 1 kV, 1-Hole Lug Connection, Feeder: 10-4 AWG, Motor Lead: 12-4 AWG (7000005805)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M 5301 Motor Lead Pigtail Splice, 1 kV, 1-Hole Lug Connection, Fee...
Description
Description
3M 7000005805 Description
The 3M Motor Lead Pigtail Splice 5301 kit is designed to splice motor lead cables to incoming feeder cables for non-shielded pigtail connections up to 1 kV. It uses a slip-on EPDM rubber lug cover and mastic sealing strips to help insulate and seal the connection when used with copper compression one-hole lugs (sold separately).
3M 7000005805 Includes
- (1) 3M Motor Lead Pigtail Splice 5301 Kit

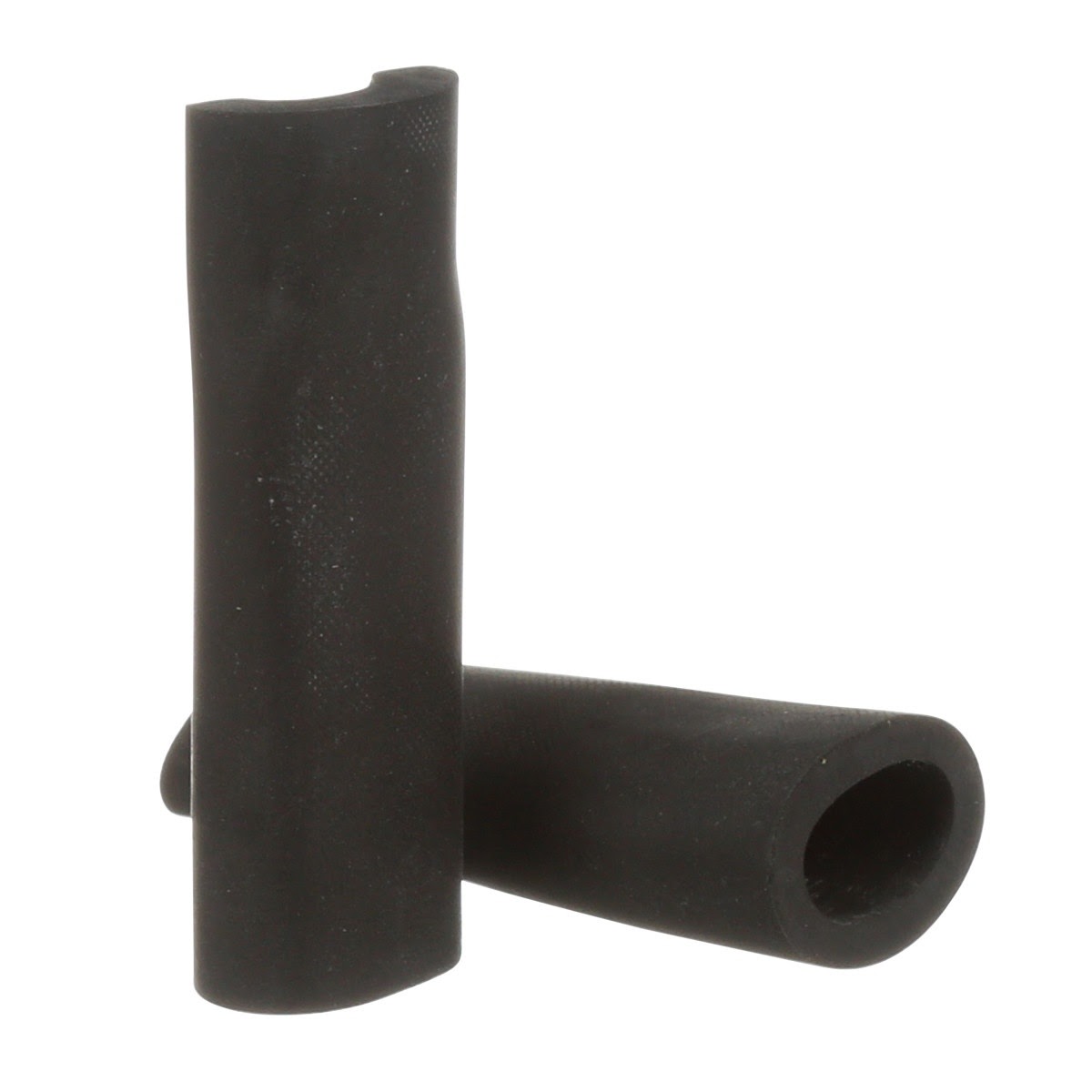

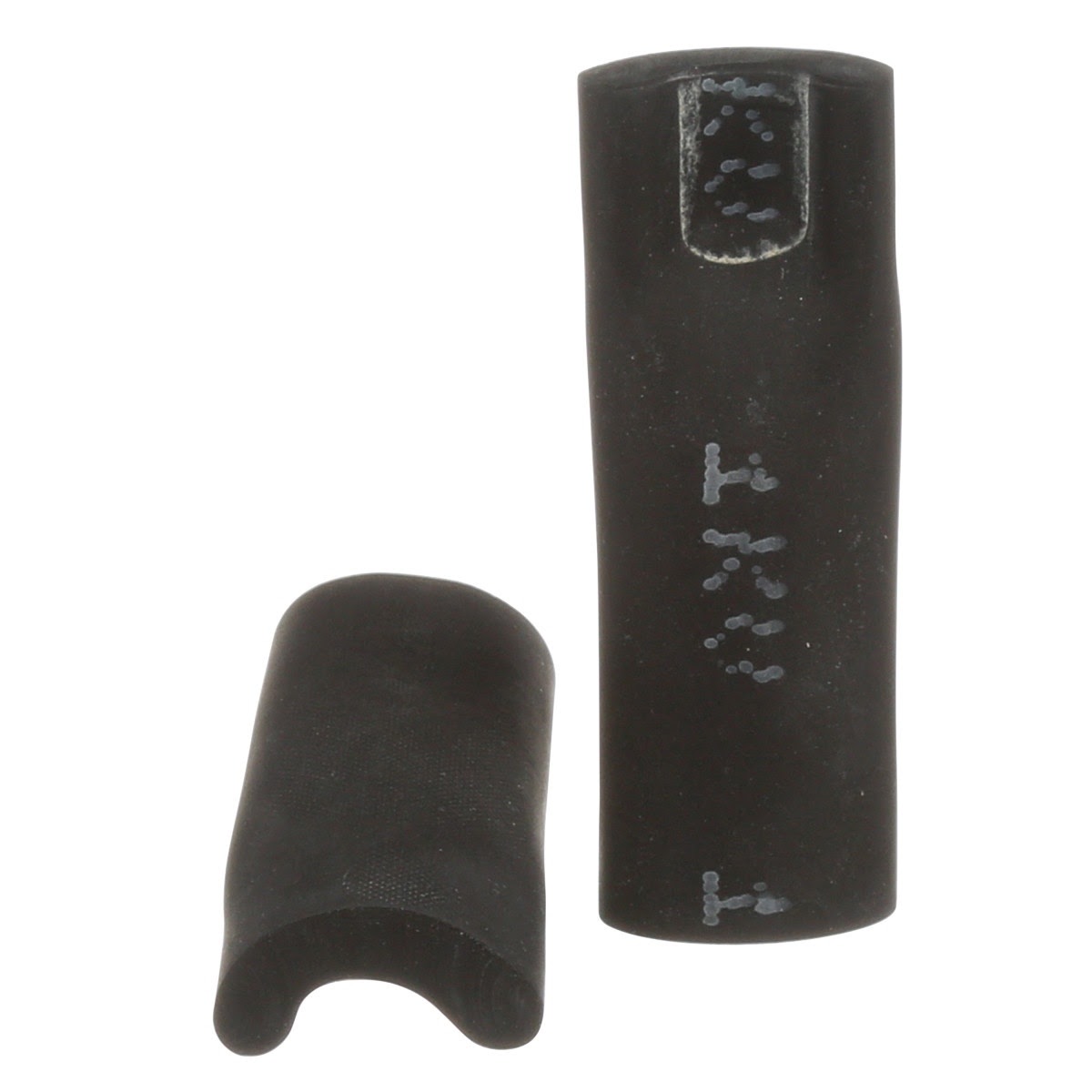

- (3) Pigtail lug covers
- (3) Mastic sealing strips
- (3) Tubes of silicone grease
- (1) Instruction sheet
3M 7000005805 Features
- Designed to splice motor lead cables to incoming feeder cables
- For pigtail stub connections at 1000 V or less
- Compatible with copper compression one-hole lugs (lugs sold separately)
- Slip-on lug cover made from durable EPDM rubber
- Mastic strips help provide a moisture seal
- Each kit makes three splices
- CSA Certified
- RoHS 2011/65/EU compliant
3M 7000005805 Specifications
| Part Number | 5301 |
| Maximum Operating Voltage | 1 kV |
| Splice Type | Pigtail Only |
| Connection Type | Pigtail (Non-shielded) |
| Cable Shielding | Non-shielded |
| Conductor Sizes (Imperial) | 10 AWG, 12 AWG, 4 AWG, 6 AWG, 8 AWG |
| Insulation Outside Diameter Range | 0.17-0.36 in |
| Lug Cover Inner Diameter | 0.70 in |
| Lug Cover Length | 3.4 in |
| Maximum Bolt Length | 1/2 in |
