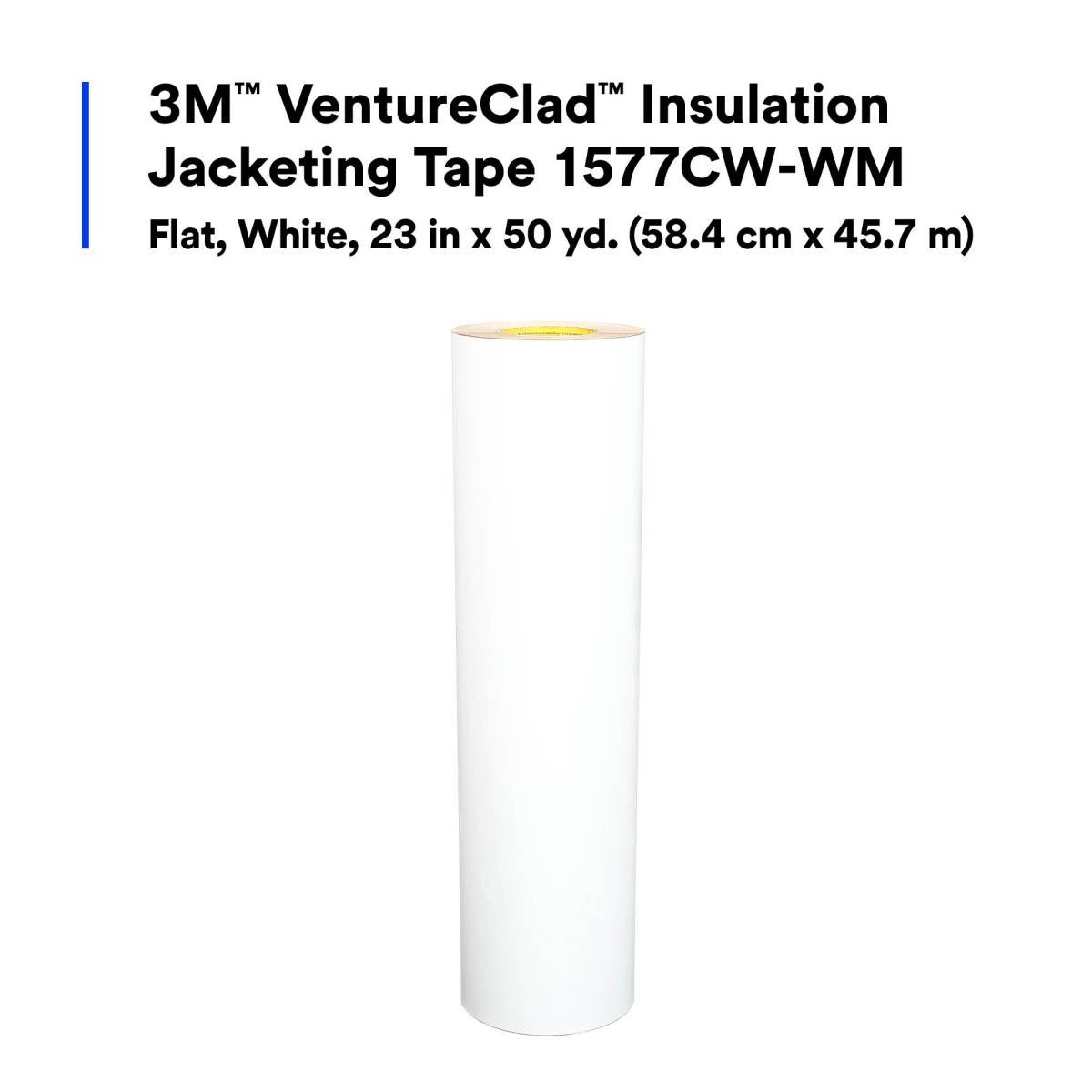

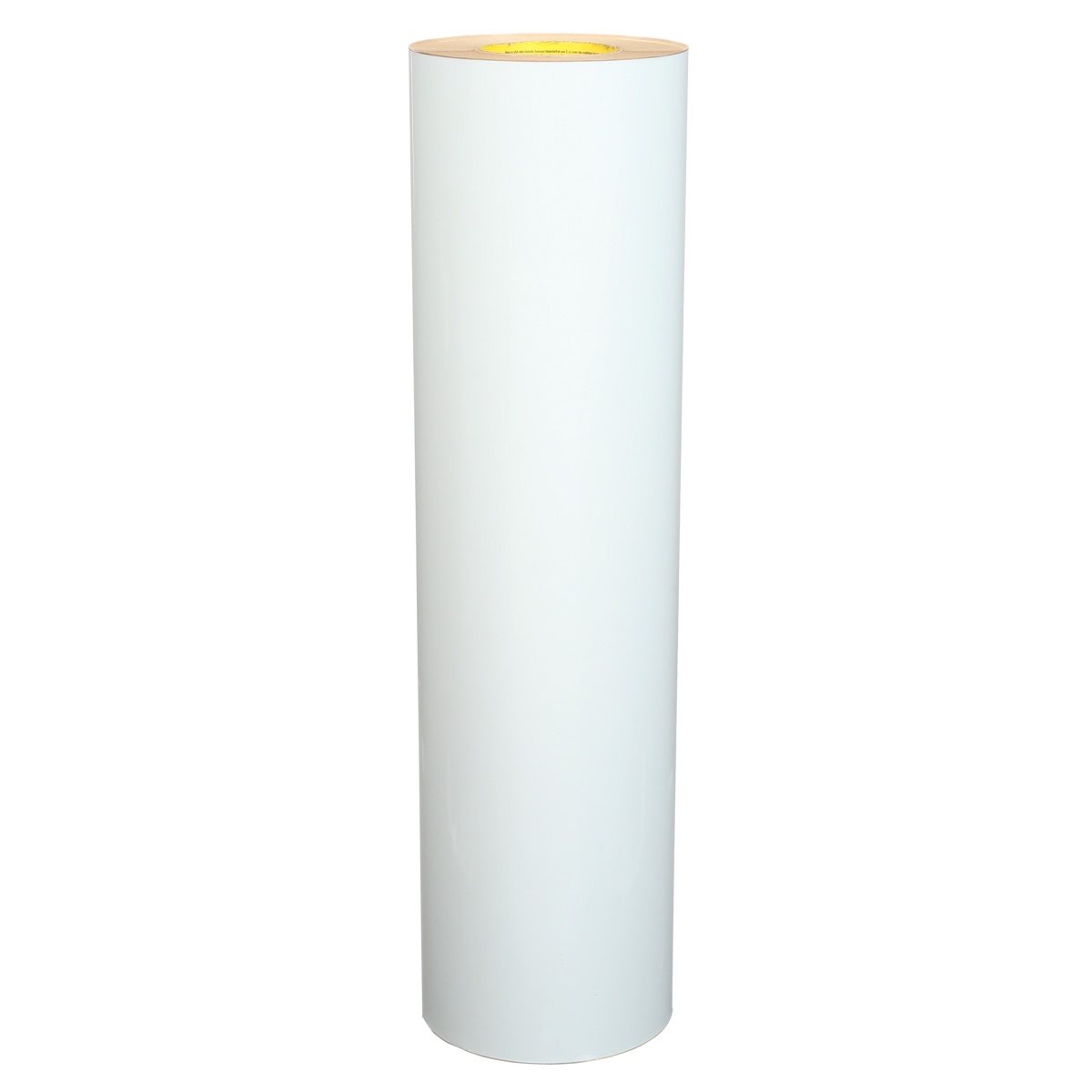

3M 1577CW-WM Insulation Jacketing Tape, Flat, White, 23 in x 50 yd, 1 Roll/Case (7100043741)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
3M 1577CW-WM Insulation Jacketing Tape, Flat, White, 23 in x 50 yd,...
Description
Description
3M 1577CW-WM Description
3M VentureClad Insulation Jacketing System 1577CW-WM is a flat, white insulation jacketing tape designed for cladding and jacketing applications to create a zero permeability vapor barrier on HVAC ductwork, vessels, and piping. The conformable laminate backing installs easily without special tools and helps protect insulation from weather, UV, mold, chemicals, and mechanical abuse.
3M 1577CW-WM Includes
- (1) 3M VentureClad Insulation Jacketing Tape 1577CW-WM Roll, 23 in x 50 yd
3M 1577CW-WM Features

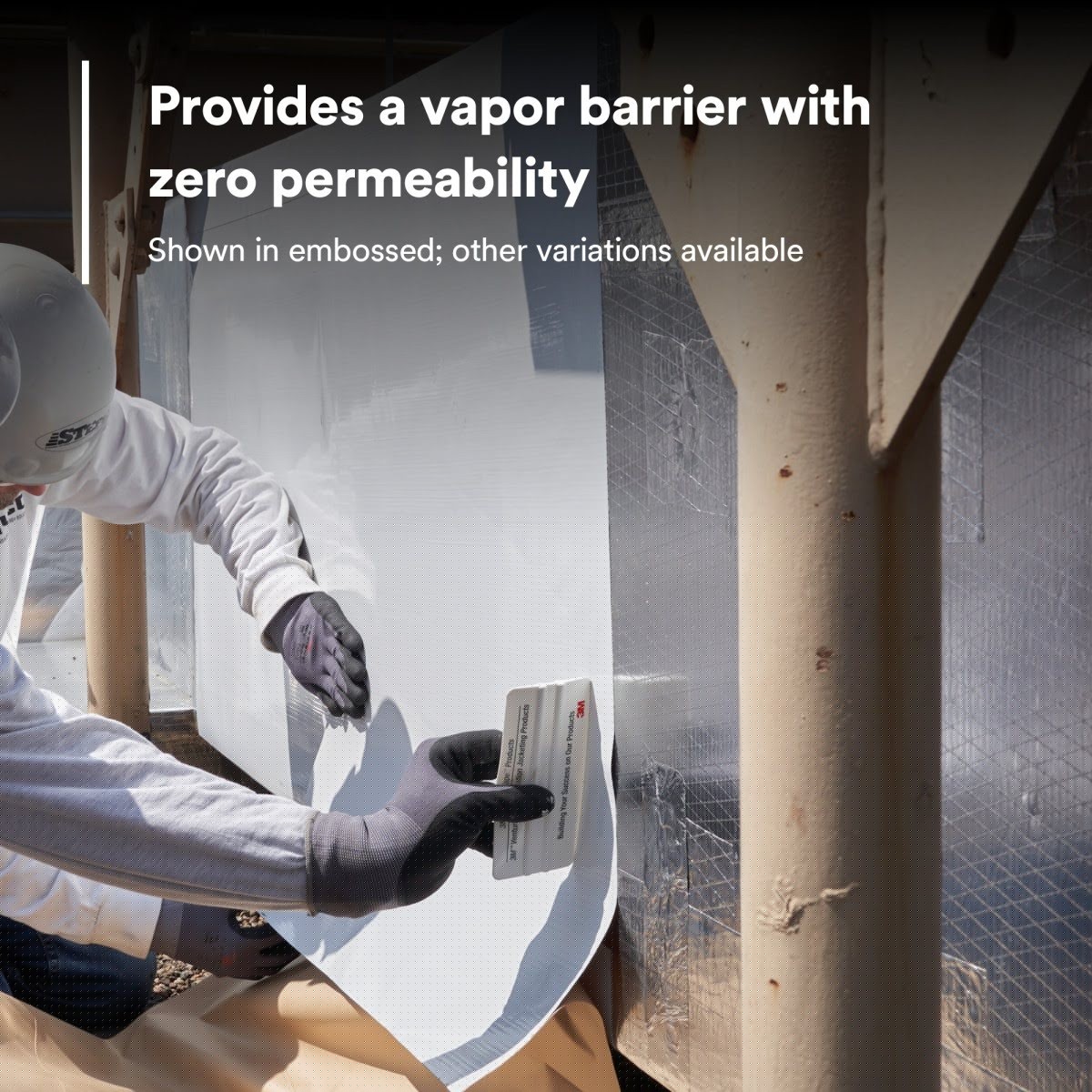

- Zero permeability vapor barrier for insulation cladding and jacketing
- Cold weather acrylic adhesive applies at temperatures as low as -10 Degree F

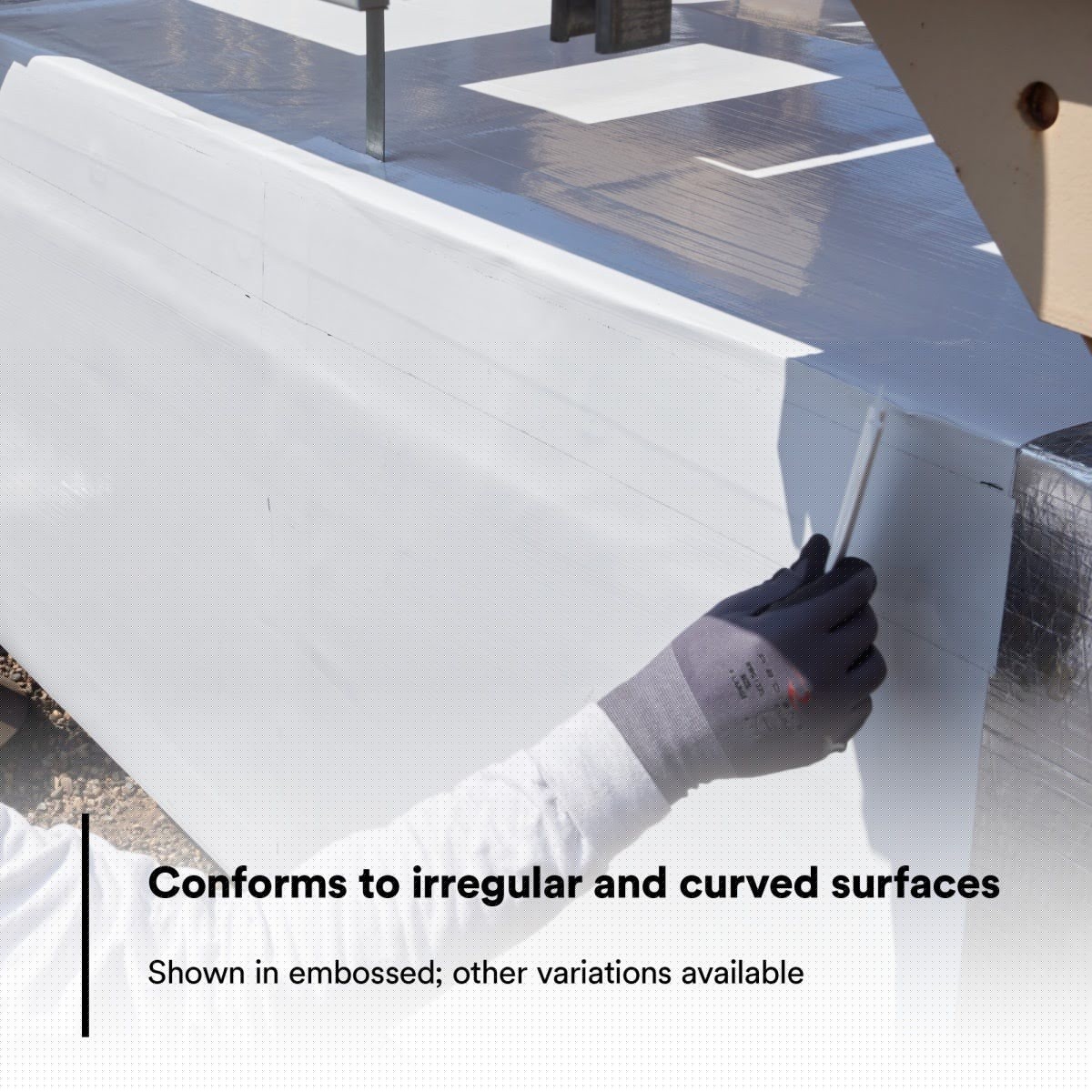

- Flexible backing conforms to curved and irregular surfaces
- High puncture and tear resistance for durable protection

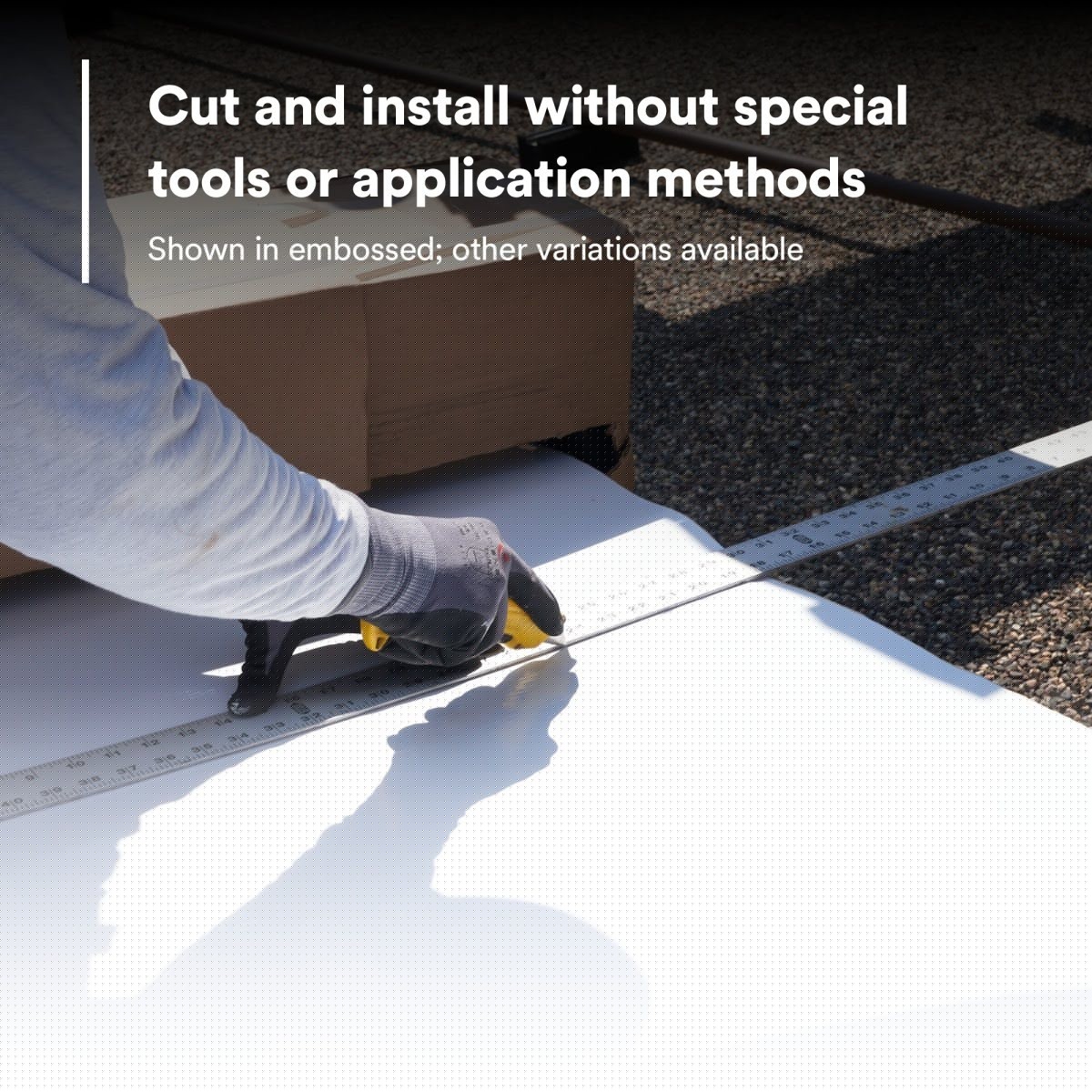

- Easy to cut and install on site without special tools
- Qualifies for compliance credit for LEED v4
- UL723 classified
3M 1577CW-WM Specifications
| Product Number | 1577CW-WM |
| Product Type | Insulation Jacketing Tape |
| Form | Flat |
| Color | White |
| Adhesive Type | Acrylic |
| Backing Material | Multi-layered Laminate |
| Overall Width | 23 in |
| Overall Length | 50 yd |
| Backing Thickness | 5 mil |
| Total Tape Thickness without Liner | 7 mil |
| Elongation at Break | 80% |
| Tensile Strength | 70 lb/in |
| Minimum Operating Temperature | -94 Degree Fahrenheit |
| Maximum Operating Temperature | 248 Degree Fahrenheit |
| Primary Liner | Polycoated Kraft |
| Shelf Life | 12 Month |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
