3M Electrical Tape: The Complete Guide for Tradesmen

If you've ever reached into your toolbox and grabbed the first roll of tape you touched, you're not alone. Most guys on the job do it. But when it comes to electrical tape, that habit can cost you either in a failed connection, a safety violation, or a redo on work you already finished.

Not all electrical tape is built the same. 3M makes some of the most trusted tapes in the trade, and they've got a lineup that covers everything from basic wire wrap to extreme-heat applications inside motors and transformers. This guide breaks it all down for you.

Using the wrong tape doesn't always cause an immediate failure. In some cases, it holds up for months before breaking down. That delayed failure is actually harder to diagnose and more expensive to fix than an obvious one.

3M engineers their electrical tapes to meet UL 510 and CSA standards, which set minimum requirements for voltage rating, flame resistance, and temperature performance. Those ratings exist for a reason. A tape rated for 60°C won't perform reliably in a 105 °C application, regardless of how many layers you wrap.

Matching the tape to the application is the most important step before any wrap or splice. The sections below give you the information you need to do that.

Vinyl electrical tape is the most commonly used type in residential, commercial, and light industrial work. 3M's vinyl tapes use a PVC film backing with a rubber-based adhesive. They're flexible, moisture-resistant, and available in a range of colors for phase identification and wire marking.

All 3M vinyl tapes in this category are rated for 600V applications. Where they differ is in backing thickness, temperature range, and overall durability. Choosing the right vinyl tape comes down to the demands of the specific job.

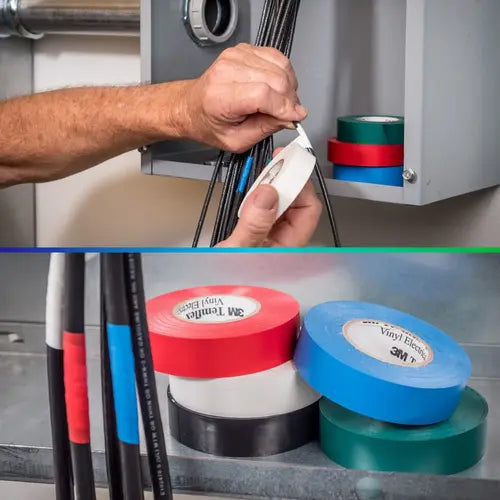

The Temflex 1700 is a general-purpose vinyl electrical tape suited for low-to-medium voltage insulation, wire bundling, and color-coding. It stretches well and conforms to irregular surfaces. It's a practical choice for everyday tasks in residential wiring, HVAC systems, and general electrical maintenance where conditions are relatively controlled.

It's not designed for heavy-duty industrial use or prolonged outdoor exposure. For those applications, a higher-spec vinyl tape is more appropriate.

The Super 33+ is rated for use from -18 degrees C to 105 degrees C (0 degrees F to 221 degrees F). It's flame-retardant, moisture-resistant, and carries a stronger backing than the Temflex 1700, which reduces tearing during application in cold or field conditions.

3M lists the Super 33+ as suitable for outdoor and underground use when applied as part of a proper splice system. It's a reliable choice for professional electrical work across a wide range of environments, including phasing, conductor color-coding, and wire splice insulation.

The Super 88 is 3M's premium vinyl electrical tape. At 8.5 mil, it's thicker than the Super 33+ at 7 mil. It's designed for applications that require UL Listed primary insulation performance, including motor leads, higher-voltage component systems, and commercial and industrial wiring.

The Super 88 is the appropriate choice when the job specifies a UL Listed vinyl tape or when the installation involves conditions that warrant a heavier-duty product. Its thicker backing provides better mechanical protection and longer service life in demanding environments.

Rubber electrical tape is self-amalgamating, which means it fuses to itself under tension without an external adhesive bond. When applied with a stretch, the layers merge into a solid, seamless mass. This creates a watertight insulation layer with no voids, which is critical in buried, submerged, or high-moisture environments.

Rubber tape is used for medium- and high-voltage cable splicing and terminations. It's typically applied first as the primary insulation layer, followed by a vinyl overtape for UV and abrasion protection.

The Scotch 130C is UL-listed for use up to 69kV (peak). It's designed for medium-voltage cable splices and terminations and is a standard tool for linemen and utility electricians working on distribution systems.

The linerless design means there's no backing to remove during application. The tape unrolls directly from the core and is applied under tension. According to 3M's product documentation, the 130C provides excellent resistance to moisture, many oils, and a broad range of chemicals. It maintains its insulating properties across a wide temperature range and over a long service life.

It's the appropriate tape for high-voltage cable work where a standard vinyl tape doesn't meet the dielectric requirements of the installation.

The Scotch 23 is a self-amalgamating rubber tape rated for 600V primary insulation applications and higher-voltage use as part of a component splice system. It's commonly used by commercial and industrial electricians for cable splices and terminations.

3M's technical documentation notes that the Scotch 23 produces a void-free insulation layer that resists moisture migration. Its conformability allows it to wrap tightly around irregular surfaces and cable ends without trapping air pockets. For installations where long-term moisture resistance is a requirement, it's one of the more reliable options in the rubber tape category.

Glass cloth electrical tapes use a woven fiberglass backing, which gives them significantly higher heat resistance than vinyl or rubber tapes. They're designed for use in motors, transformers, and industrial equipment where operating temperatures exceed the limits of standard electrical tape.

These tapes are rated by thermal class, which corresponds to the maximum continuous operating temperature of the application. Using the correct thermal class is important. A tape rated for Class B (130 degrees C) won't hold up in a Class H (180 degrees C) environment.

The 3M 27 uses a thermosetting rubber adhesive and is rated for Class B thermal applications at 130 degrees C. According to 3M's product data, it's designed for coil and transformer wrapping, motor slot liners, and general high-temperature electrical insulation.

The fiberglass backing provides mechanical strength in addition to thermal resistance, which makes it suitable for physically demanding applications inside operating equipment. It's the appropriate choice for motor rewinds and transformer work that falls within the Class B thermal range.

The 3M 69 uses a silicone adhesive system and is rated for Class H thermal applications at 180 degrees C. It's intended for dry-type transformers, motor coils, and industrial equipment that operates at sustained high temperatures.

Silicone adhesive doesn't dry out or lose bonding strength at elevated temperatures, which is a key advantage for equipment that runs continuously. 3M also notes resistance to many chemicals and solvents in its product documentation for the 69, which extends its usefulness in industrial environments where chemical exposure is a factor.

Cambric cloth tape is a woven cotton cloth tape used primarily for mechanical protection, wire harnessing, and bundling. It's not a primary insulation tape. Its role is to provide a protective outer layer over insulated conductors or to organize and secure wire bundles in panels and junction boxes.

It's been a standard product in utility and industrial electrical work for decades. Technicians servicing older equipment or working within utility infrastructure will encounter it regularly.

The 3M 1600 is a dry, uncoated cotton cloth tape. It tears easily by hand, conforms well to irregular surfaces, and produces a clean, consistent wrap. It's used for conductor lacing, wire bundling, and harnessing in control panels and electrical enclosures.

Because it's uncoated, the 1600 isn't suitable for direct exposure to moisture or chemicals. Its application is primarily mechanical. For jobs that require a finished, organized appearance inside panels or junction boxes, it's a practical and straightforward tool.

Polyimide electrical tape uses a polyimide film backing, sometimes referred to by the trade name Kapton. It offers a combination of thermal resistance, chemical resistance, and dielectric strength that no other tape category in this guide matches. It's a specialty product used in precision electrical manufacturing and high-temperature industrial applications.

Polyimide tape isn't a general-purpose product, but for the applications it's designed for, it's often the only tape that meets the performance requirements.

The 3M 1205 uses a silicone adhesive and is rated for continuous use at up to 220 degrees C (428 degrees F). According to 3M's technical data sheet, it delivers dielectric breakdown voltage above 4,000 volts per layer at just 1 mil of tape thickness.

It's used in motor winding, transformer manufacturing, aerospace wiring harnesses, and PCB masking during soldering operations. Its thin profile and high performance make it well suited for tight applications where space constraints don't allow for thick tape builds.

The 3M 1218 is a thicker version of the polyimide film tape. It maintains the same thermal and electrical performance as the 1205 while providing additional mechanical protection. It's the appropriate choice when the application requires polyimide's thermal properties but also involves physical stress or abrasion that a thinner tape wouldn't withstand.
