3M Super 77 Spray Guide: Uses, Application, and More

Choosing the right spray adhesive doesn't have to be complicated. Once you know what materials you're bonding and what each adhesive is designed to do, it's much easier to pick the right one for the job.

Take a look at what 3M Super 77 is designed to bond, how to apply it for the best results, and how it compares to 3M Hi-Strength 90. We'll also cover where each adhesive works best, from construction and auto body work to general shop applications.

This is where Super 77 earns its 'multipurpose' label. It bonds to a long list of substrates, which is why you'll find it in construction, auto shops, upholstery work, and everything in between.

3M Super 77 Substrate Compatibility

The key word here is 'lightweight.' Super 77 is built for materials that don't add a lot of stress to the bond line. Think insulation batts, headliner fabric, carpet underlayment, acoustic panels, and similar materials.

For heavier materials or high-stress applications, you'll want 3M 90 or Hi-Strength 90. More on that below.

Most bond failures with Super 77 come down to two things: dirty surfaces and rushing the flash time. Here's how to avoid both.

Both surfaces need to be clean, dry, and free of dust, oil, and loose debris. Wipe them down with a clean rag. If you're working with a painted surface or anything that might have release agents or oils on it, wipe it with isopropyl alcohol first and let it dry completely.

Shake the can for at least one minute before you spray. The propellant and adhesive need to be fully mixed. A cold can or one that wasn't shaken will give you uneven coverage and a weak bond.

Super 77 is designed to be applied between 60 degrees F and 80 degrees F. Using it outside that range causes problems. Below 60 degrees F, the adhesive won't flow or tack up correctly. Above 80 degrees F, it can flash off too fast and leave a dry surface that won't bond properly.

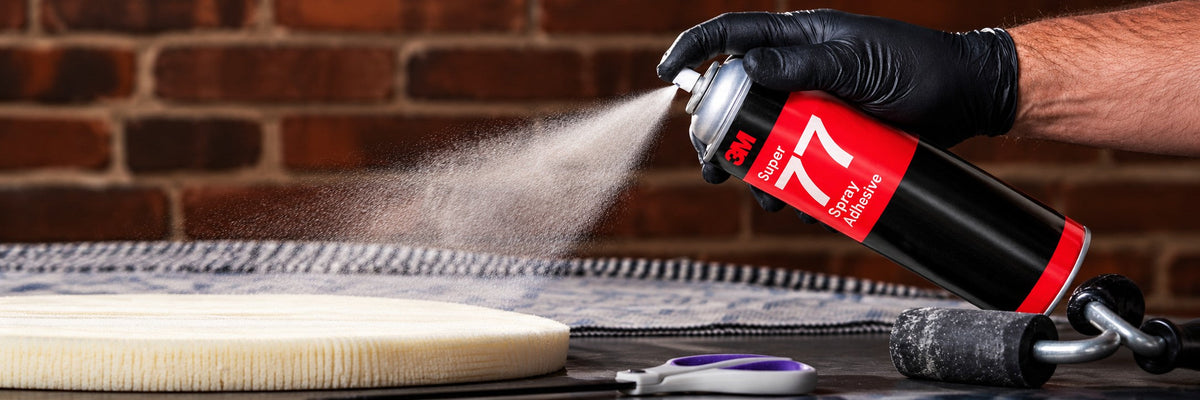

Hold the can 6 to 8 inches from the surface and apply an even coat. Super 77 has an open time of about 15 seconds to 30 minutes depending on how much you apply and the ambient temperature. Most applications need just a quick flash of 15 to 30 seconds before you mate the surfaces.

For a stronger bond, coat both surfaces and let them flash before bringing them together. This is called a contact bond and it significantly improves adhesion on porous materials.

Once you bring the surfaces together, apply firm pressure. Use a hand roller, a seam roller, or just press firmly by hand to work out any air and get full contact. Super 77 sets fast, so make sure you've got the piece positioned right before you press it down.

Construction crews and contractors use Super 77 constantly. Here's where it shows up most often.

Super 77 is one of the most common adhesives for holding fiberglass insulation batts in place during installation. It lets you tack insulation to studs, walls, and framing members before you close up the cavity, which keeps the batts from sagging before the drywall goes on. Fast application, no mess.

 If you're hanging acoustic panels, foam baffles, or fabric-wrapped wall panels, Super 77 is a clean, fast option. It doesn't telegraph through thin materials the way construction adhesive can, and it leaves a flat, professional bond.

3M lists Super 77 as an adhesive for drywall corner bead installation. It holds the bead in place while you fasten it, which is especially useful when you're working alone or running long sections of bead.

Carpet underlayment, seam taping prep, and temporary floor protection bonding all work well with Super 77. It's not a permanent flooring adhesive, but for securing underlayment and installation prep, it's fast and reliable.

For contractors doing commercial buildouts, Super 77 is a go-to for mounting foam-backed signs, exhibit panels, and fabric-covered display boards. It bonds quickly and cleanly without leaving visible adhesive ridges.

Auto body techs and mechanics reach for Super 77 for a specific list of interior and trim jobs. It's not a structural adhesive for metal panels, but it handles fabric, foam, and trim bonding well.

One of the most popular uses in auto shops is reattaching sagging headliner fabric. Super 77 bonds well to the foam backing used in most headliners and to the board substrate underneath. It's light enough not to create visible ridges or stiff spots in the fabric.

For full headliner replacements, 3M makes a dedicated headliner adhesive specifically formulated for that job. Super 77 works well for partial repairs and spot fixes.

Rebonding trunk liners, door panel carpet, and floor mats is a common shop use. Super 77 gives you a clean bond on fabric-to-board applications and doesn't bleed through lighter materials the way some solvent-based adhesives can.

While 3M makes dedicated weatherstrip adhesive for permanent installation, Super 77 can be used to temporarily tack weatherstrip in place during fitting and positioning. It gives you time to check fit before you commit to the permanent adhesive.

For positioning small trim pieces, foam padding, and plastic emblems during repair, Super 77 works well as a hold-in-place adhesive. For permanent exterior trim bonding in high-heat environments, 3M VHB tape or panel bonding adhesive is the right call.

This is the most common question about 3M spray adhesives. Here's how they actually stack up against each other.

Super 77 is built for lightweight materials and general-purpose bonding. 3M 90 and Hi-Strength 90 are both heavier-duty products designed for more demanding applications and heavier substrates.

3M Spray Adhesive Comparison: Super 77 vs. 3M 90 vs. Hi-Strength 90

Here's the bottom line: if you're bonding lightweight, flexible materials that won't put much stress on the bond, Super 77 is your adhesive. If you're bonding heavier materials or need the bond to handle heat, stress, or moisture, step up to 3M 90 or Hi-Strength 90.

One thing worth noting: using Hi-Strength 90 on foam or thin fabric is overkill. The stronger adhesive can telegraph through the material or cause stiffness in the bond area, which is a real problem on headliners and acoustic panels.

A few things the instructions don't always spell out clearly:

• Don't spray in cold weather if you can avoid it. If you're working below 60 degrees F, warm the can first. Set it in a bucket of warm (not hot) water for a few minutes before you spray.
• Keep the nozzle clean. After each use, flip the can upside down and spray for two seconds to clear the nozzle. Dried adhesive in the nozzle causes uneven spray patterns and wasted cans.
• Double-coat for better bonds on porous materials. On raw fabric or open-cell foam, apply a light coat, let it flash for 60 seconds, then apply a second coat before bringing the surfaces together.
• Don't over-apply. More adhesive doesn't mean a better bond. A thin, even coat is better than a heavy one. Heavy coats stay tacky longer and can bleed through light materials.
• Store it right. Keep the can at 60 degrees F to 80 degrees F. Don't leave it in your truck during summer months. Excessive heat causes pressure buildup and degrades the adhesive.
• Work in a ventilated area. Super 77 has strong fumes. Use it with the doors open or a fan running, and wear a respirator if you're doing high-volume work.

Knowing when not to use it is just as important as knowing when to grab it off the shelf.

Super 77 isn't the right choice for load-bearing structural bonds, bonding heavy metals or hardwoods under stress, applications that see sustained temperatures above 150 degrees F, outdoor surfaces with prolonged UV and weather exposure, or bonding polyethylene and polypropylene plastics.

If your application hits any of those conditions, you need a different product. 3M 90, Hi-Strength 90, a construction adhesive, or a structural bonding tape will be a better fit for the job.

ProWorkSupply carries the 3M Super 77 Multipurpose Spray Adhesive in the standard 16 fl oz aerosol can, available by the case. It's the same can you'll find on professional job sites and in auto body shops across the country.

3M Super 77 has been a staple in shops and on job sites for good reason. It's fast, it's flexible, and it bonds to nearly everything that doesn't need a structural hold.

Use it right (clean surfaces, right temperature, proper flash time) and it'll do exactly what you need it to. Know its limits and you'll also know when to reach for 3M 90 instead.

Either way, you're working with adhesives that have been trusted on professional job sites for decades. That counts for something.
